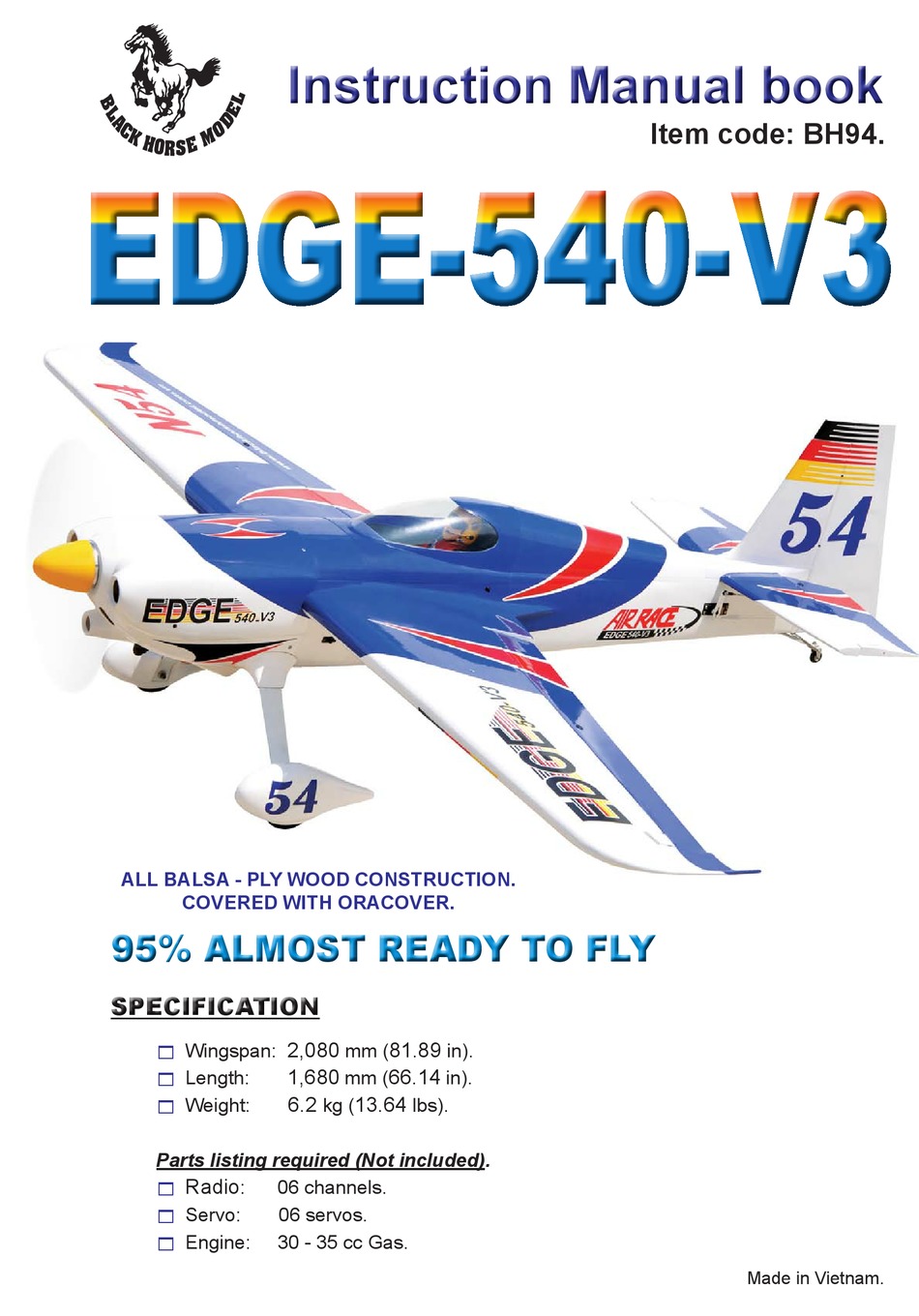

EDGE-540-V3
EDGE-540-V3
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
95% ALMOST READY TO FLY
95% ALMOST READY TO FLY
SPECIFICATION
SPECIFICATION
Wingspan:
Length:
Weight:
Parts listing required (Not included).
Radio
:
Servo:
Engine:
Instruction Manual book
Instruction Manual book
2,080
81.89
mm (
in).
1,680
66.14
mm (
in).
6.2
13.64
kg (
lbs).
06 channels.
06 servos.
30 - 35 cc Gas
.
Item code: BH94.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE-540-V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horce Model EDGE-540-V3

Summary of Contents for Black Horce Model EDGE-540-V3

  • Page 1 Instruction Manual book Instruction Manual book Item code: BH94. EDGE-540-V3 EDGE-540-V3 ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH ORACOVER. 95% ALMOST READY TO FLY 95% ALMOST READY TO FLY SPECIFICATION SPECIFICATION 2,080 81.89 Wingspan: mm ( in).  1,680 66.14...

  • Page 2: Instruction Manual

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EDGE 540-V3 30cc. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual Caution: This model is not a toy! necessary. If the air or the iron is too hot, the film If you are a beginner to this type of powered model, may melt and holes may be formed. please ask an experienced model flyer for help This model is highly pre-fabricated and can be built and support.

  • Page 4: Installing The Aileron Servos

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual REPLACEMENT SMALL PARTS 1. Aluminium landing gear. 1. INSTALLING THE AILERON SERVOS 2. Wheel pants (left & right). 3. Wheels.  1) Install the rubber grommets and brass 4. Fuel Tank. eyelets on to the aileron servos. 6.

  • Page 5: Installing The Aileron Linkages

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual 5) Repeat the procedure to install the  aileron servos in the opposite wing half. Secure 2. INSTALLING THE AILERON CONTROL HORN  1) Remove the covering from the slot on the bottom of the aileron.

  • Page 6: Installing The Stopper Assembly

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual Drill a hole 6.2 mm diameter Front view After both linkages are completed. connect both of the aileron servo loads using a Y-harness you have purchased. O.S GT-33CC Secure 1. Push in 5 x 70mm 4x12mm III.

  • Page 7: Installing The Throttle - Cable

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual  9) To secure the fuel tank in place, apply a bead of silicon sealer to the forward area of the tank, where it exits the fuselage behind the engine mounting box and to the rear of the tank at the forward bulkhead.
  • Page 8 EDGE 540-V3 30cc Item code: BH94. Instruction Manual Remove the covering Cut. Pushrod choke Pushrod wire Secure and cut Connector Push in Servo arm Pushrod choke Throttle Pushrod IV. MAIN GEAR INSTALATION Drill 8mm hole. PARTS REQUIRED  1) Assemble and mounting the wheel pants as shown in the following pictures.
  • Page 9 EDGE 540-V3 30cc Item code: BH94. Instruction Manual Bottom side. Aluminium Trim and cut landing gear  1) Slide the fiberglass cowl over the engine and line up the back edge of the cowl with the marks you made on the fuselage. ...

  • Page 10: Installing The Spinner

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual C/A glue. Bottom side. Mark line. VI. INSTALLING THE SPINNER Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 8 mm machine screws. Front view Remove the covering ...

  • Page 11: Elevator Installation

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual Repeat the procedure to install the opposite VII. ELEVATOR INSTALLATION elevator servo.  1) Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray. ...

  • Page 12: Rudder Installation

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual Elevator control horn install as same as the way lock nut of aileron. control horn 115mm 3x10mm 2. Push in 1. A+B Epoxy glue Bottom side Aluminium tube. 9mm. Secure 200 mm Attach the stabilizer to the fuselage.

  • Page 13: Rudder Cable Installation

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual 2) Insert the control horn into the slot and  A+B Epoxy glue secure it by A+B Epoxy glue. 3x10mm Rudder 2. RUDDER CABLE INSTALLATION 2. Push in Rudder push-pull system install as same as picture below.

  • Page 14: Mounting The Tail Wheel

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual Secure Secure Rudder cable XI. RUDDER PLASTIC LIGHT X. MOUNTING THE TAIL WHEEL BRACKET Set the tail wheel assembly in place on the Remove the covering plywood plate. The pivot point of the tail wheel wire should be even with the rudder hinge line and the tail wheel bracket should be centered on the plywood plate.

  • Page 15: Installing The Switch

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual  1) Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side.  2) Secure the switch in place using the two machine screws provided with the radio system.

  • Page 16: Wing Attachment

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual XV. INSTALLING COCKPIT XIV. WING ATTACHMENT FUSELAGE Locate the aluminium wing dihedral brace. See picture below: Aluminium tube. 25mm. Pillot 851mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits properly.

  • Page 17: Control Throws

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual you must add weight* to the tail to balance. *If possible, first attempt to balance the model by changing the position of the receiver battery and receiver. If you are unable to obtain good balance by doing so, then it will be necessary to add weight to the nose or tail to achieve the proper balance point.

  • Page 18: Pre-Flight Check

    EDGE 540-V3 30cc Item code: BH94. Instruction Manual PRE-FLIGHT CHECK  1) Completely charge your transmitter and receiver batteries before your first day of flying.  2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
  • Page 19 I/C FLINGT WARNINGS Always operate in open areas, away adjust the engine from ALWAYS from factories, hospitals, schools, NEVER fly near power lines, behind the propeller, and do not buildings and houses etc. NEVER aerials or other dangerous areas allow any part of your body to be in fly your aircraft close to people or including airports, motorways etc.
