    5.3.1 Call Features Table……………………………………………………………………..10 5.3.2 PSTN Pass Through ……………………………………………………………………11 5.4 LED Light Pattern Indication………………………………………………………...11 6. Configuration Guide……………………………………………………………………...12 6.1 Configuring IPS-3101h WAN IP through Voice Prompt……………………………….12 6.1.1 DHCP Mode... ………….12 6.1.2 STATIC IP Mode……………………………………………………………. ………….12 6.2 Configuring IPS-3101h with Web Browser...12 6.2.1 Access the Web Configuration Menu……………………………………..

  • Page 3: Welcome

    User’s Manaul 1. Welcome Congratulations on becoming an owner of IPS-3101h. You made an excellent choice and we hope you will enjoy all its capabilities. ArtDio's award-wining IPS-3101h is an all-in-one VoIP integrated access device that features superb audio quality, rich functionalities, high level of integration, compactness and ultra- affordability.

  • Page 4: Installation

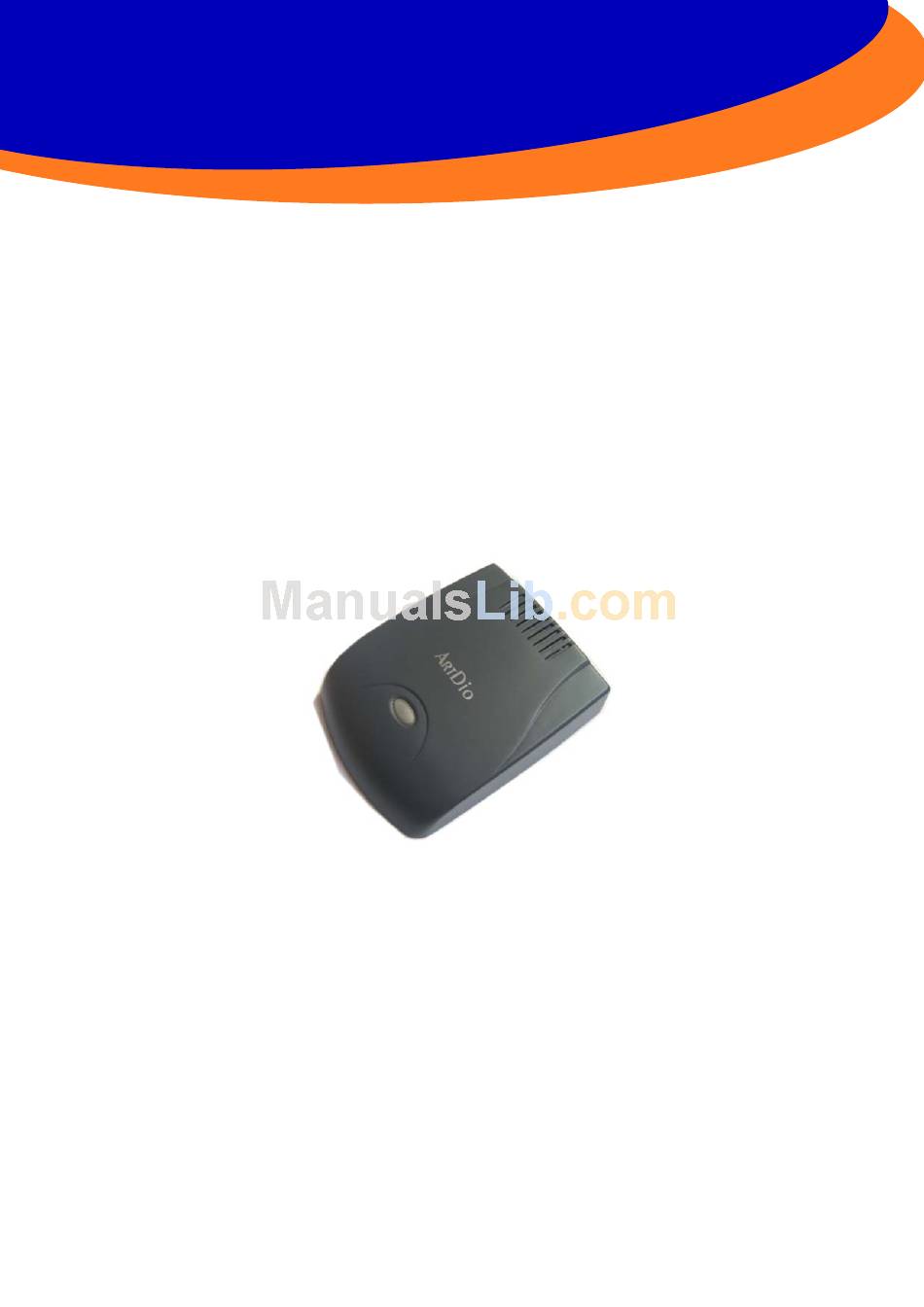

    User’s Manaul Installation IPS-3101h VoIP Gateway is an all-in-one VoIP integrated device designed to be a total solution for networks providing VoIP services. The IPS-3101h VoIP functionalities are available via a regular analog telephone. The following photo illustrates the appearance of a IPS-3101h.

  • Page 5: What Is Included In The Ckage

    Safety Compliances The IPS-3101h is compliant with various safety standards including FCC/CE. Its power adaptor is compliant with UL standard. The IPS-3101h should only operate with the universal power adaptor provided in the package. Warning: Please do not attempt to use a different power adaptor. Using other power adaptor may damage the IPS-3101h and will void the manufacturer warranty.

  • Page 6: Product Overview

    Key Features • Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP, DNS, DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc. • Built-in router, NAT, Gateway and DMZ port forwarding • Powerful digital signal processing (DSP) to ensure superb audio quality; advanced adaptive jitter control and packet loss concealment technology •...

  • Page 7: Hardware Specification

    FXS telephone port PSTN port Button Universal Switching Power Adaptor Dimension Weight Temperature Humidity Compliance IPS-3101h 1xRJ45 10Base-T 1xRJ45 10Base-T 1xFXS 1x life line port Green and red color Input: 100-240VAC 50-60 Hz Output: +5VDC, 1200mA, UL certified 70mm (W)

  • Page 8: Basic Operations

    Get Familiar with Key Pad and Voice Prompt IPS-3101h has stored a voice prompt menu for quick browsing and simple configuration. To enter this voice prompt menu, simply press the button or “***” from the analog phone. Menu Voice Prompt Main Menu “Enter a Main Option”...

  • Page 9: Make Phone Calls

    VoIP Device, to talk to each other in an ad hoc fashion without a SIP proxy. VoIP calls can be made between two phones if: • both IPS-3101h and other VoIP Device(i.e., another IPS-3101h or other IPS-3101h) have public IP addresses, or •...

  • Page 10: Call Features

    “#” key if it is configured as a send key or wait for 5 seconds. Call Features 2.6.1 Call Features Table Following table shows the call features of IPS-3101h. Block CallerID (for all-config change) Send CallerID (for all-config change)

  • Page 11: Pstn Pass Through

    2.6.2 PSTN Pass Through When IPS-3101h is out of power, the RJ 11 line jack on the IPS-3101h side will function as a pass through jack, user will be able to use the same analog phone for PSTN calls.

  • Page 12: Configuration Guide

    Follow section 5.1 with voice menu option 01 to enable IPS-3101h to use DHCP. 2.8.2 STATIC IP Mode Follow section 5.1 with voice menu option 01 to enable IPS-3101h to use STATIC IP mode, then use option 02, 03, 04 to set up VoIP gateway’s IP, Subnet Mask, Gateway respectively.

  • Page 13: Configuration Menu

    2.9.2 Configuration Menu After the correct password is entered in the login screen, the embedded Web server inside the IPS-3101h will respond with the Configuration Menu screen which is explained in details below. The definitions for all the configuration parameters in the Configuration Menu are following a...
  • Page 14 ArtDio IPS-3101h Configuration MAC Address: 00.0B.82.00.XX.XX Product Model: IPS-3101h Program--1.0.X.X Bootloader—1.0.0.XX HTML--1.0.0.XX VOC-- Software Version: 1.0.0.5 ***** Admin Password: WAN IP Address: (will attempt PPPoE if DHCP fails and following is non-blank) Use this DNS server (if specified): SIP Server:...
  • Page 15 SIP Login ID This field contains the login ID used for SIP authentication. Typically, this is the account number on an SIP server for this IPS-3101h. It can be the same as or different from the above SIP User ID, depending on whether a separate account ID is used for authentication.
  • Page 16 Advanced Options: Advanced Options: Preferred Vocoder: choice 1: (in listed order) choice 2: choice 3: choice 4: choice 5: choice 6: choice 7: choice 8: G723 rate: iLBC frame size: iLBC payload type: Silence Suppression: Voice Frames per TX: respectively) Layer 3 QoS: Layer 2 QoS: 802.1Q/VLAN Tag Use DNS SRV:...
  • Page 17 No Key Entry (in seconds, default is 4 seconds) Timeout: Use # as Yes (if set to Yes, "#" will function as the "(Re-)Dial" key) Dial Key: local SIP 5060 (default 5060) port: Local RTP 5004 (1024-65535, default 5004) port: Use random port: Traversal:...
  • Page 18 INVITE request will be 20ms. If the configured voice frames per TX exceeds the maximum allowed value, the IPS-3101h will use and save the maximum allowed value for the corresponding first vocoder choice. The maximum value for PCM is 10(x10ms) frames;...
  • Page 19 “No”, this # key will then be included as part of the dial string to be sent out. Local SIP port This parameter defines the local SIP port the IPS-3101h will listen and transmit on. The default value is 5060. Local RTP port This parameter defines the local RTP-RTCP port pair the IPS-3101h will listen and transmit on.
  • Page 20 Auto-Dial number to be automatically dialed upon offhook. Please note that only the user part of a SIP address needs to be entered here. The IPS-3101h will automatically append the “@” and the host portion of the corresponding SIP address.
  • Page 21 NTP server This parameter defines the URI or IP address of the NTP server which the IPS-3101h will use to display the current date/time. Time Zone This parameter controls how the displayed date/time will be adjusted according to the specified time zone.
  • Page 22 WAN port WAN port WAN port WAN IP Address Shows the IP address at the WAN side of the IPS-3101h. Cloned WAN MAC Allow the user to set a specific MAC address. Set in Hex format Address: Sets the LAN subnet mask. Default value is 255.255.255.0 LAN Subnet Mask LAN DHCP Base IP: Base IP for the LAN port, which function as a Gateway for the subnet.

  • Page 23: Saving The Configuration Changes

    ArtDio IPS-3101h Rebooting Status You may relogin by clicking on the link below in 30 seconds. At this point, the user can relogin to the IPS-3101h after waiting for about 30 seconds. 2.10 Configuration through a Central Server ArtDio IPS-3101hs can be automatically configured from a central provisioning system.

  • Page 24: Software Upgrade

    To configure the TFTP server via the Web configuration interface, open up your browser to point at the IP address of the IPS-3101h. Input the admin password to enter the configuration screen. From there, enter the TFTP server address in the designated field towards the bottom of the configuration screen.

  • Page 25: Restore Factory Default Setting

    Restore Factory Default Setting Warning Restore the Factory Default Setting will delete all configuration information of the device. Step 1. Find the Mac Address of the device. The Mac address of the device is located on the bottom of the device. It is a 12 digits number. Step 2.
