User Manual
Voice Internet Phone Gateway
Quick Installation Guide
Model No. IPE-104
A
Dio Company Inc.
RT
Edition 1.0
Advertisement
Table of Contents
Related Manuals for ArtDio IPE-1000
Summary of Contents for ArtDio IPE-1000
-

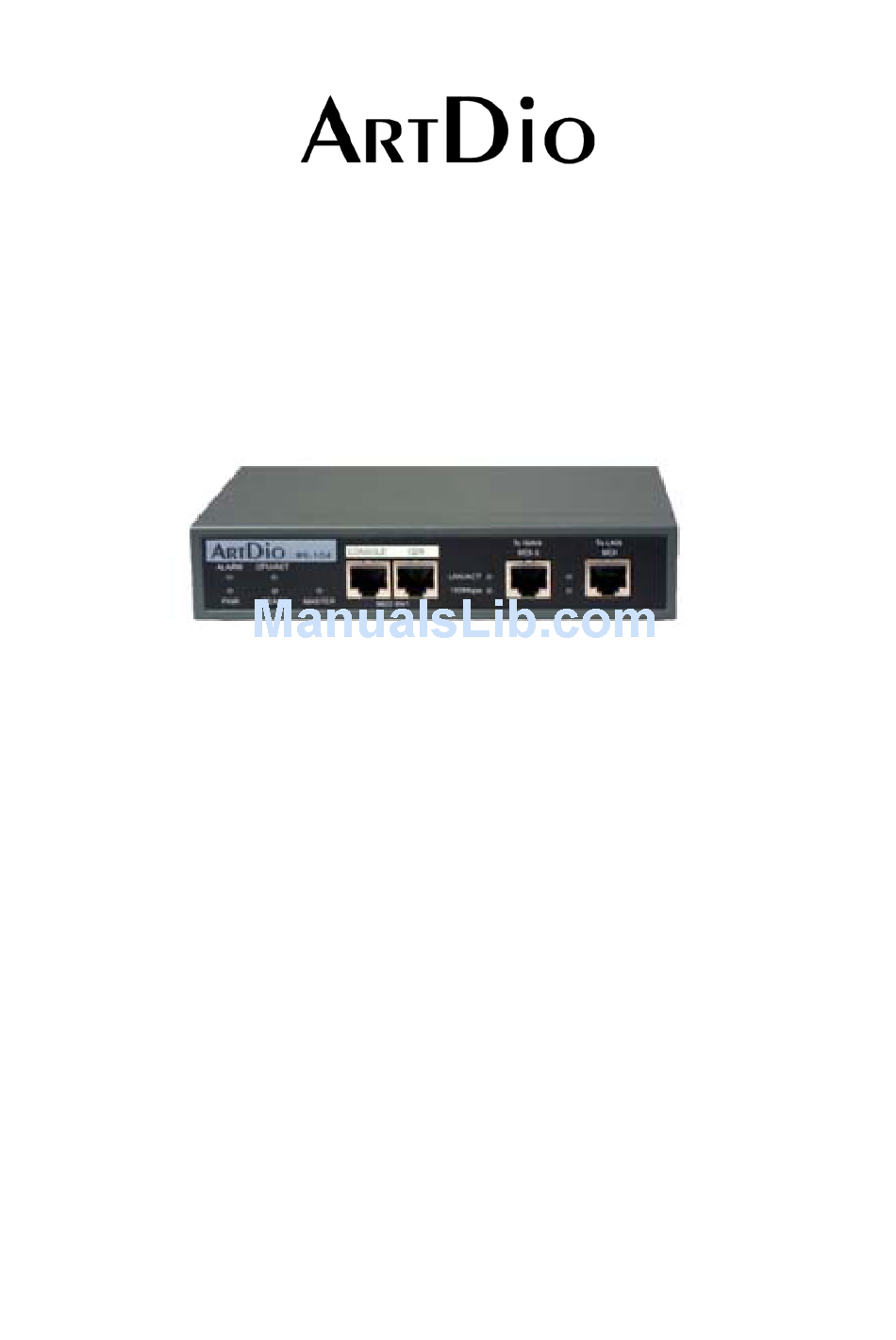

Page 1: Quick Installation Guide
Voice Internet Phone Gateway Quick Installation Guide Model No. IPE-104 Dio Company Inc. Edition 1.0... - Page 2 <0-99> Set the value for regional ID IPE Gateway(config)#exit Step 3. Configure the IP address, Subnet Mask and Default Gateway for this device The device is configured with its IP address information set to null (Default Setting). You can use a NULL MODEM cable to connect the RS-232 port on the front panel with the RS-232 port on your PC.
- Page 3 Step 4. Connecting the RJ-45 cable to the LAN and WAN Please follow the markings on the front panel when connecting the RJ-45 jacks to the “WAN” or “LAN” socket. This is important for optimum performance of your device and network. This device is designed to eliminate the need to use special cables for connection.
- Page 4 Step 7. Configuring the Extension Number Length, Country, Area, International and Long Distance Access Codes The IPE Series gateway should be connected to the PBX external lines. You should also define the length of the extension number of the PBX stations. For example, if the extension number on the PBX is like 124, then the digits of the extension should be "3".
- Page 5 Fig 3.Configure the Outbound and Inbound International Access Codes Note 1: If you don’t allow users to make International Calls from the FXO ports of this device, simply leave the “Outbound Dial Code” blank. Fig 4.Configure the Outbound and Inbound long distance Access Codes Note 2: If you don’t allow users to make long distance calls from the FXO ports of this device, simply leave the “Outbound Dial Code”...
- Page 6 Master device to see if he/she has added your MAC Address to the Master. For detail use, please refer to the user’s manual in the CD comes with your ARTDIO IPE, or visit our website www.artdioinc.com...
