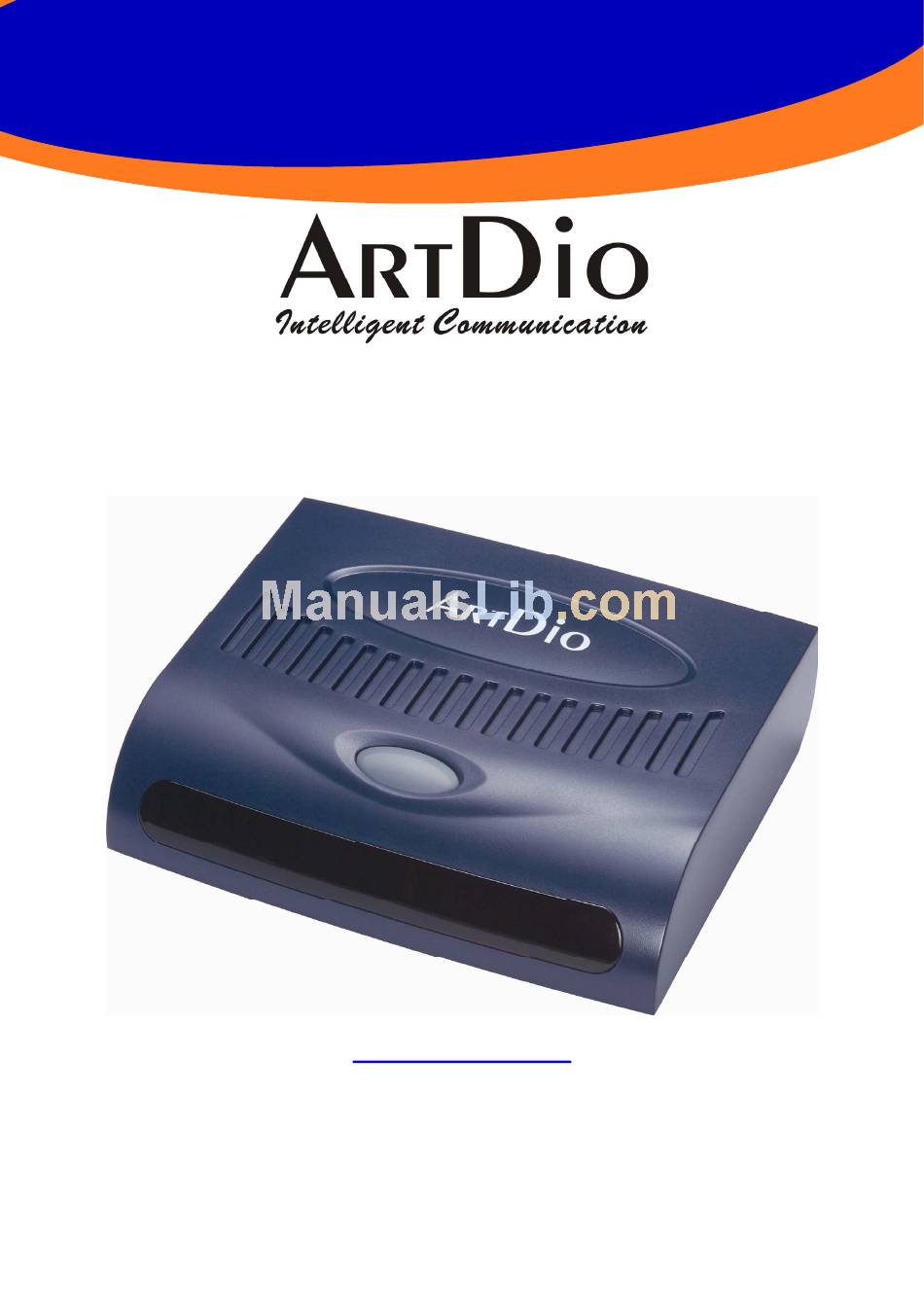

- Page 1 IPS-2101h User Manual V1.0 www.artdio.com.tw ArtDio Company, Inc.
-
Page 2: Safety Instructions
• Please read all the instructions before using this product. For additional information or troubleshooting help, please refer to the Manual CD enclosed in the package. You may also visit our website or E-mail us for further supports. E-mail: support@artdio.com.tw ArtDio Website: http://www.artdio.com.tw Safety Instructions http://www.artdioinc.com IPS-2101h User Manual... -
Page 3: Table Of Contents
Status Indicator Functions...7 Hardware Installation ...8 Connection with an IP Sharing Device or a Router...8 Connection without an IP Sharing Device or a Router ...9 Network Settings Using Status Button on IPS-2101h...10 Static IP Settings...10 DHCP Settings...10 PPPoE Settings ...11 WEB Configuration...12... - Page 4 Others ...21 Registration Message ...21 Using IPS-2101h ...21 Pickup the Phone...21 Making Phone Calls ...21 Other Phone Operation ...22 10. Firmware Auto-upgrade ...22 11. Appendix ...23 11.1 H.323 Web Configuration Example ...23 11.2 MGCP Web Configuration Example ...24 11.3 How to Add a Prefix in Front of the Number...25 11.4...
-
Page 5: Product Specifications
Storage Temperature：-30 ~ 65℃ (-22° ~ 149°F) Relative Humidity：10 ~ 95% Non-Condensing CE, FCC Firewall go-through. (SIP with STUN) Networking status, Firmware upgrade, No-answer call forward, Busy call forward, Always call forward, Web configuration interface, LED indicators. IPS-2101h User Manual... -
Page 6: Package Content
2. Package Content • One IPS-2101h VoIP Gateway • One Power Adaptor • One RJ-45 Ethernet Cable • One RJ-11 Telephone Cable • Quick Installation Guide • One Installation CD 3. Installation Functions: Status Indicator/Button (Green or Red or Orange) -
Page 7: Status Button Functions
Right after the firmware has been uploaded, the IPS-2101h will update the new firmware and the Status Button will blink with green and red lights. If IPS-2101h failed to reboot after the firmware updated, please update the firmware again in the safe mode. -
Page 8: Hardware Installation
Deploy this connection when you have an IP sharing device with only one LAN port. Installation: Plug one end of the RJ-45 cable to one of the LAN port on the IPS-2101h, and plug another end to one of the LAN port of your router. Another LAN port is available for you to connect to another Internet device or to your PC. -
Page 9: Connection Without An Ip Sharing Device Or A Router
IPS-2101h between the ADSL modem and your computer. Installation: Plug one end of the RJ-45 cable to one of the LAN port on the IPS-2101h, and plug another end to one of the LAN port of your Hub. There is another LAN port available for you to connect to another Internet device or to your PC. -
Page 10: Network Settings Using Status Button On Ips-2101H
【The default network setting is DHCP mode】 Press the Status Button on the IPS-2101h, and pick up the handset, you will be able to hear the voice prompt indicating the IP address of your IPS-2101h. If the IP address you hear is 0.0.0.0, then there is no IP address available or the internet connection is bad. -
Page 11: Pppoe Settings
IPS-2101h can not use the Status Button to configure the PPPoE network. Please configure your IPS-2101h with a Static IP (*note) first (refer to 5.1), then use web browser connect to IPS-2101h web configuration page to configure the PPPoE settings. -
Page 12: Web Configuration
6. WEB Configuration Press the Status Button on the IPS-2101h, and pick up the handset, you will be able to hear the voice prompt indicating the IP address of your IPS-2101h. If the IP address you hear is 0.0.0.0, then there is no IP address available or the internet connection is bad. Please refer to “5. -
Page 13: Protocol Settings
Subnet With “Static” selected in IP Type drop down list, please enter the Subnet Mask Mask address of the IPS-2101h in this field. With “Static” selected in IP Type drop down list, please enter the Router IP Router IP address of the IPS-2101h in this field. - Page 14 SIP Proxy Server in this field. Service ID Enter the corresponding Service ID if required by the register server. When IPS-2101h is using a private IP to traverse the NAT, please select one of the conditions: Disable...
- Page 15 If a Gatekeeper is used, the register port works as the gatekeeper’s monitor port. The default value is 1719. If a Gatekeeper is not used, the register port works as the end point device or the gatekeeper’s monitor port. The default value is 1720. IPS-2101h User Manual...
-
Page 16: Phone Settings
With MGCP or SIP protocol is used, there is no specific request for this port. You can enter any port number. ※ If there are many IPS-2101h traversing the NAT at the same time, each of them should be assigned with different port number. - Page 17 IDD Prefix distance call prefix according to E.164 dial rule. For example, U.S.A. 1; Taiwan 0. Select which network will the call take place first when IPS-2101h has PSTN and IP network. (The default setting is “IP First”) IP First: IP calls first.
-
Page 18: Audio Settings
(6.3K) by checking this box instead of data rate 5.3K. Handset In Set the volume of handset input. The range is from 1 to 15. Handset Out Set the volume of handset output. The range is from 1 to 31. Audio Settings IPS-2101h User Manual... -
Page 19: Other Settings
Enter the IP address of the firmware upgrade server in this field. Update After changes have been made on the web configuration page, please click IPS-2101h will save the settings and reboot. If the webpage goes back to login page, please login and configure again. Other Settings... -
Page 20: Passing Through The Nat/Firewall
IPS-2101h itself can make calls but is not able to receive calls. One-way talk. One end can not hear any sound. It might be the NAT/Firewall issues in these cases. IPS-2101h supports two methods to allow SIP passing through the NAT/Firewall by deploying STUN or Outbound Proxy. -
Page 21: Others
9. Using IPS-2101h Pickup the Phone The IPS-2101h will ring when there is an incoming phone call, either the IP call or PSTN calls. Making Phone Calls To make a IP call (the default Dual Mode setting for IPS-2101h is the “IP first”): Pick up the handset, after hearing the dial tone, you can proceed to dial the phone number and end with a # key to dial out the phone number. -
Page 22: Other Phone Operation
If it does, IPS-2101h will download the firmware. After the firmware has been verified, IPS-2101h will update the firmware. At this period, the Status Button will blink with red and green light. -
Page 23: Appendix
PIN：Enter the account password provided by your VoIP service provider. Register port：Normally will be 1719. Signal port：Normally will be 1720. Control port：Normally will be 1722. RTP port：Normally will be 1722. Local type：Select “account” if not specified by your VoIP service provider. IPS-2101h User Manual... -
Page 24: Mgcp Web Configuration Example
PIN：Enter the account password provided by your VoIP service provider. Register port：Normally will be 2427. Signal port：Normally will be 6800. Control port：Normally will be 6800. RTP port：Normally will be 6800. Local type：Select “phone number” if not specified by your VoIP service provider. Call type：Normally select “advance”. IPS-2101h User Manual... -
Page 25: How To Add A Prefix In Front Of The Number
Dial Number：Enter the prefix you want to add. For example, 666. DDD Code：Blank. IDD Code：Blank. DDD Prefix：Blank. 11.4 Update Information For the latest version manual, please refer to For the latest version firmware, please refer to IPS-2101h User Manual http://www.artdioinc.com/manual.htm http://www.artdioinc.com/firmware.htm... - Page 26 IPS-2101h User Manual Los Angeles Office, U.S.A. Address：14235 Lomitas Ave. La Puente, CA 91746 TEL：+ 1- 626 – 336 - 0369 FAX：+ 1- 626 – 961 - 9114 Email：ussales@artdioinc.com Taiwan Headquarter Add：7th FL., No.476, Min-Hu RD., Hsin-Chu, Taiwan 300 TEL：+ 886 – 3 - 5295000 FAX：+ 886 - 3 - 5295005...
