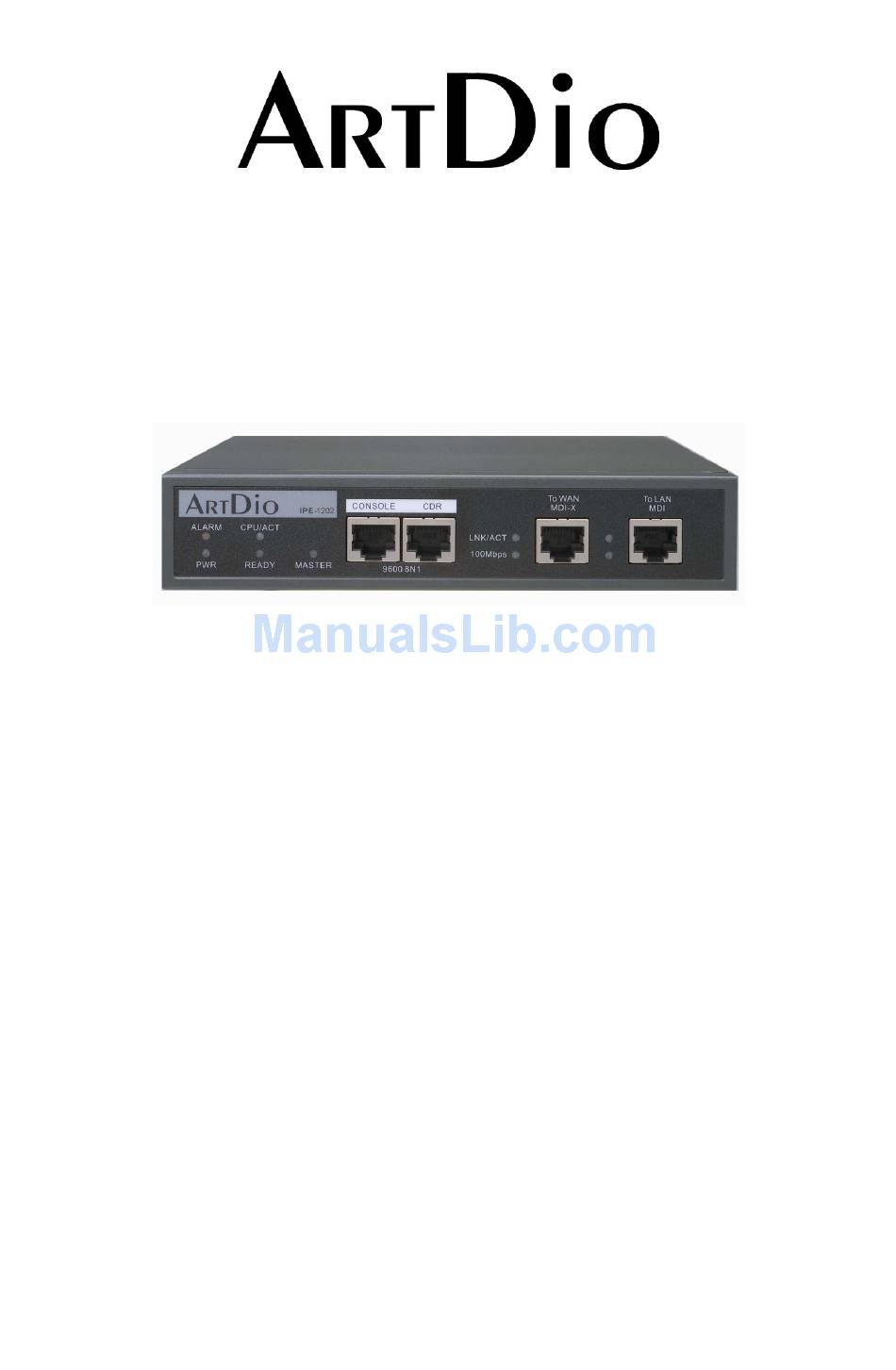

- Page 1 Voice Internet Phone Gateway Quick Installation Guide 1000 Series Dio Company Inc. Edition 1.0...
- Page 2 Step 2.Configure Region ID Skip this step if you are installing your IPC 1000 series unit in the default region. The default Region ID is printed on the label located outside the box. If you are installing your IPC 1000 series unit at any region other than that which is specified, you will need to configure the IPC 1000 series unit to the correct Region ID.
- Page 3 New Zealand Spain British (Note: If your Region ID is not listed on the chart above, please refer to the IPC 1000 series User’s Manual) Using a phone to configure the region ID 1. Pick up the phone and press 2.
- Page 4 We strongly suggest that you use a private and fixed IP address such as 192.168.0.2 (default setting) so that you can use the web based interface to configure the IPC 1000 series unit’s other advanced configurations. Using a phone to configure information 1.
- Page 5 You can use a popular browser such as IE or Netscape to perform further configurations. You need to use Ethernet connection to connect a PC to the IPC 1000 series unit and modify the PC’s TCP/IP properties (IP Address and Subnet Mask) so that they are located in the same subnet.
- Page 6 Note: If you need to configure any other parameters after the IP mode configuration is done, do not restart the IPC 1000 series unit as it will use the new IP setting. When this happens, you may no longer be able to access the IPC 1000 series unit using a web browser.
- Page 7 1000 series unit is using a public and static IP address, you can manually edit the IP address and phone number in your phone book and then directly call the recipient phone number over IP. However if the recipient IPC 1000 series is using DHCP or PPPoE, it requires an IP learning process to acquire recipient IP address.
-
Page 8: Editing Phone Book
Editing Phone Book IP Learning Unless the party receiving the call is using a fixed IP address which can be manually added to the static phone book, you will have to “learn” the IP address of the called party’s phone number before making calls to that particular number. Following table shows you how to do it. - Page 9 Local IPC 1000 series Assuming the user makes a traditional phone call through the PSTN to reach a remote IPC 1000 series unit, for example ”002862164458275” (You will then hear the ring back tone). Waiting for the recipient to answer the phone, ask called party to press the “＃”...
- Page 10 The way making VoIP calls are almost the same as making traditional phone calls that you would use every day. If the recipient IPC 1000 series is located in local, the number is the same as the destination number with leading and ending ‘#’ keys. If the recipient IPC 1000 series is located in different area (long distance call), place the long distance access code and area code in front of the destination number and leading and ending ‘#’...
-
Page 11: Sip Configuration
6 . SIP Configuration Before configuring SIP, you need an SIP proxy’s domain name or IP address if you are making SIP calls through SIP proxy. Following pictures guide you configuring the SIP Proxy’s parameters. Click the SIP COMMON button to go to the SIP configuration page. - Page 12 Configure outbound authentication if SIP proxy server or other SIP phone request for authentication. Click the ADVANCED button to go to the configuration page. Click the SIP OUTBOUND Click the “Apply” button to apply any changes Enter information for authentication including realm, username, port and password.
- Page 13 7 . SIP Phone Books Configure SIP phone book to map SIP phone number with index. Making a SIP call by using analogy phone, just pick up the phone and dial *# index #. Click the SIP button. Enter numbers. 8 .Placing SIP Calls After you have configured the SIP phone on the SIP phone book, you can easily make SIP call as follow: Pick up the phone...
