IEI Technology KINO-9454 User Manual

Mini-itx motherboard with intel core 2 duo/pentium 4.pentium d 1066/800/533mhz cpu
Hide thumbs Also See for KINO-9454:
Table of Contents

Advertisement

Quick Links

Download this manual
KINO-9454 Mini-ITX SBC
KINO-9454 Mini-ITX SBC
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINO-9454 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology KINO-9454

Summary of Contents for IEI Technology KINO-9454

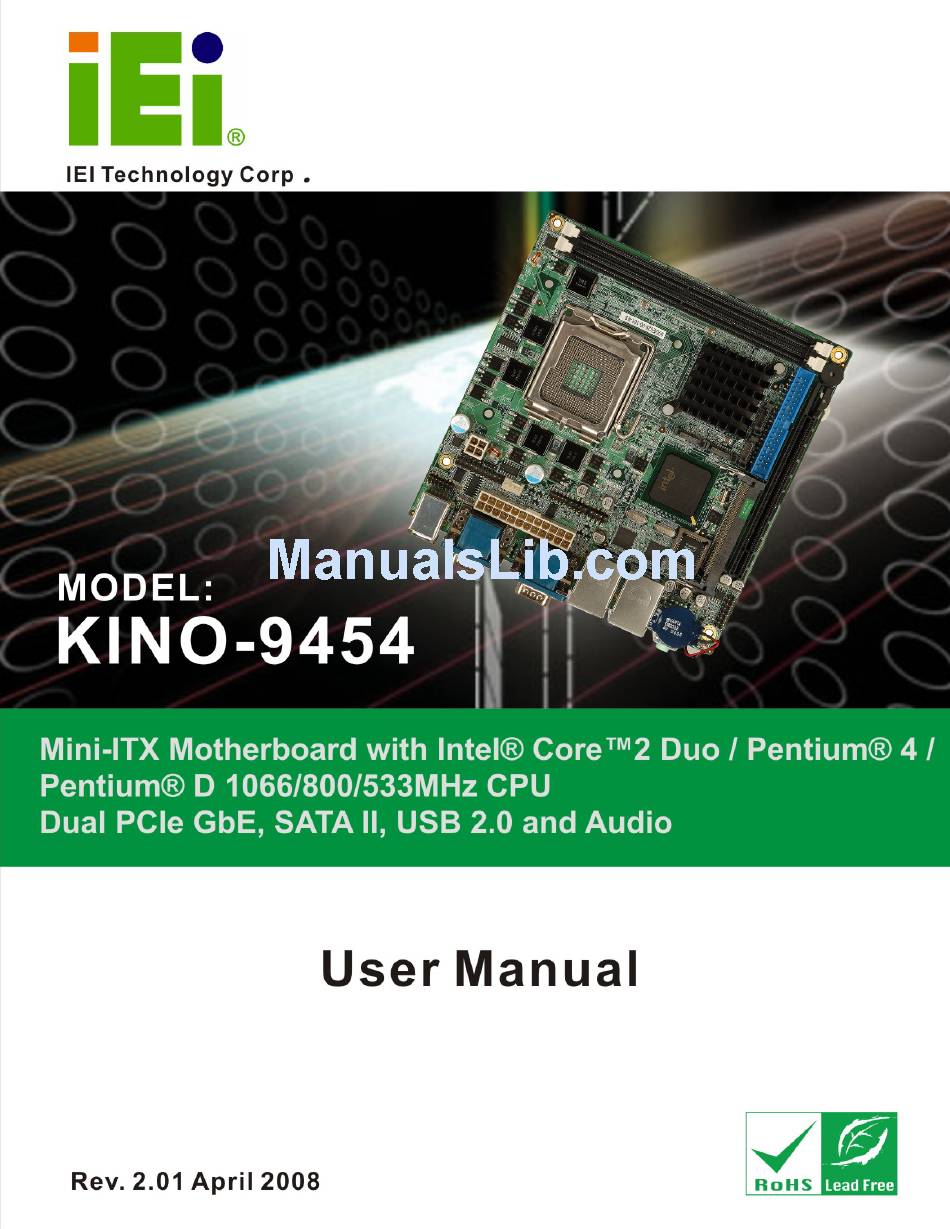

  • Page 1 KINO-9454 Mini-ITX SBC KINO-9454 Mini-ITX SBC Page i...
  • Page 2 KINO-9454 Mini-ITX SBC Revision Date Version Changes 2008-04 v.2.01 Enhanced description of the COM port information 2007-11 v2.00 1. Added Intel® Core 2 Duo as one of the compatible processors 2. Added following functions - Support TPM (Trusted Platform Module) - Support ASF 2.0 specifications...
  • Page 3 KINO-9454 Mini-ITX SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the KINO-9454. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
  • Page 5 KINO-9454 Mini-ITX SBC CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the KINO-9454. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.

  • Page 6: Packing List

    KINO-9454 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the KINO-9454 package. 1 x KINO-9454 SBC 1 x IDE cable...

  • Page 7: Table Of Contents

    1.1.1 KINO-9454 Applications..................2 1.1.2 KINO-9454 Benefits................... 3 1.1.3 KINO-9454 Features..................3 1.2 KINO-9454 B ................. 4 OARD VERVIEW 1.2.1 KINO-9454 Connectors ..................4 1.2.2 Technical Specifications..................5 DETAILED SPECIFICATIONS ................7 2.1 O ........................8 VERVIEW 2.2 D ....................... 8 IMENSIONS 2.2.1 Board Dimensions....................
  • Page 8 3.3.1 Package Contents..................... 27 3.3.2 Optional Items....................28 CONNECTORS AND JUMPERS ................. 31 4.1 P ..............32 ERIPHERAL NTERFACE ONNECTORS 4.1.1 KINO-9454 Layout................... 32 4.1.2 Peripheral Interface Connectors ..............33 4.1.3 Rear Panel Connectors ..................34 4.2 I ..............34 NTERNAL ERIPHERAL ONNECTORS...
  • Page 9 KINO-9454 Mini-ITX SBC 4.2.1 ATX + CPU 12V Power Connector ..............35 4.2.2 Fan Connectors....................35 4.2.3 Front Panel Connector ..................37 4.2.4 Digital Input/Output Connector............... 38 4.2.5 IDE Connector ....................38 4.2.6 IR Interface Connector ..................40 4.2.7 Mini PCI Slot ....................41 4.2.8 PCI Express x16 Slot..................
  • Page 10 KINO-9454 Mini-ITX SBC 5.5.2 COM 3 Function Select Jumper............... 73 5.6 C .................... 74 HASSIS NSTALLATION 5.6.1 Airflow......................74 5.6.2 Motherboard Installation................. 75 5.7 I ............75 NTERNAL ERIPHERAL EVICE ONNECTIONS 5.7.1 Peripheral Device Cables ................75 5.7.2 ATA Flat Cable Connection ................75 5.7.3 Mini PCI Installation ..................
  • Page 11 KINO-9454 Mini-ITX SBC 6.3.8 Trusted Computing ..................113 6.3.9 USB Configuration..................114 6.3.9.1 USB Mass Storage Device Configuration..........116 6.4 PCI/P P........................119 6.5 B ........................121 6.5.1 Boot Settings Configuration................122 6.5.2 Boot Device Priority ..................125 6.5.3 Hard Disk Drives ................... 126 6.6 S...
  • Page 12 KINO-9454 Mini-ITX SBC D.3 IRQ M .................... 169 APPING ABLE D.4 DMA C ................169 HANNEL SSIGNMENTS COMPATIBILITY....................171 E.1 C ................ 172 OMPATIBLE PERATING YSTEMS E.2 C ..................172 OMPATIBLE ROCESSORS E.3 C ................172 OMPATIBLE EMORY ODULES HAZARDOUS MATERIALS DISCLOSURE ........... 175 F.1 H...
  • Page 13 Figure 4-12: SATA Drive Connector Locations ............48 Figure 4-13: TPM Connector Location ..............49 Figure 4-14: Internal USB Connector Locations ............50 Figure 4-15: KINO-9454 External Interface Connectors ..........51 Figure 4-16: Audio Connector..................52 Figure 4-17: VGA Connector ..................52 Figure 4-18: RJ-45 Ethernet Connector ..............54...
  • Page 14 KINO-9454 Mini-ITX SBC Figure 4-19: PS/2 Pinouts ...................55 Figure 4-20: External Serial Port Connector ............56 Figure 5-1: Intel® LGA775 Socket ................65 Figure 5-2: Remove the CPU Socket Protective Shield...........66 Figure 5-3: Open the CPU Socket Load Plate............66 Figure 5-4: Insert the Socket LGA775 CPU...............67 Figure 5-5: IEI CF-520 Cooling Kit ................68...
  • Page 15 KINO-9454 Mini-ITX SBC Figure 7-10: VGA Driver Installing Notice.............. 142 Figure 7-11: VGA Driver Installation Complete ............. 142 Figure 7-12: Access Windows Control Panel ............143 Figure 7-13: Double Click the System Icon ............144 Figure 7-14: Double Click the Device Manager Tab..........144 Figure 7-15: Device Manager List ................
  • Page 16 KINO-9454 Mini-ITX SBC List of Tables Table 1-1: Technical Specifications ................6 Table-2-1: Supported CPUs..................11 Table 2-2: Supported HDD Specifications ..............16 Table 2-3: Power Consumption .................24 Table 3-1: Package List Contents................28 Table 3-2: Optional Items....................29 Table 4-1: Peripheral Interface Connectors..............34 Table 4-2: Rear Panel Connectors................34 Table 4-3: CPU 12V Power Connector Pinouts ............35...
  • Page 17 KINO-9454 Mini-ITX SBC Table 4-23: External USB Connector Pinouts ............57 Table 5-1: Jumpers......................71 Table 5-2: Clear CMOS Jumper Settings ..............72 Table 5-3: COM 3 Function Select Jumper Settings..........73 Table 5-4: IEI Provided Cables...................75 Table 6-1: BIOS Navigation Keys................89 Page xvii...
  • Page 18 KINO-9454 Mini-ITX SBC List of BIOS Menus BIOS Menu 1: Main......................90 BIOS Menu 2: Advanced.....................92 BIOS Menu 3: CPU Configuration................93 Menu 4: IDE Configuration ..................94 Menu 5: IDE Master and IDE Slave Configuration ...........96 Menu 6: Super IO Configuration ................100 Menu 7: Hardware Health Configuration..............
  • Page 19 KINO-9454 Mini-ITX SBC Glossary Hard Disk Drive AC ’97 Audio Codec 97 ACPI Advanced Configuration and Power Integrated Data Electronics Interface Input/Output Advanced Power Management ICH7 I/O Controller Hub 7 ARMD ATAPI Removable Media Device L1 Cache Level 1 Cache...

  • Page 20: This Page Is Intentionally Left Blank

    KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xx...

  • Page 21: Introduction

    KINO-9454 Mini-ITX SBC Chapter Introduction Page 1...

  • Page 22: Kino-9454 Overview

    ATA (SATA) hard disk drives (HDD) with maximum transfer rates of 3Gbps and up to eight USB 2.0 devices. The KINO-9454 also has a PCIe x16 socket and a Mini PCI socket for system expansion. The Trusted Platform Module (TPM) support provides protection to the system enabling system integrators and designers to build a secured and valued system.

  • Page 23: Kino-9454 Benefits

    Low profile design for embedded chassis Trusted Platform Module support 1.1.3 KINO-9454 Features Some of the KINO-9454 features are listed below: Complies with RoHS Supports Intel® Pentium® 4 / Pentium® D / Celeron® D CPUs Supports a maximum front side bus (FSB) speed up to 1066MHz...

  • Page 24: Kino-9454 Board Overview

    KINO-9454 Mini-ITX SBC 1.2 KINO-9454 Board Overview Figure 1-2: KINO-9454 Board Overview 1.2.1 KINO-9454 Connectors The KINO-9454 has the following connectors on-board: 1 x CPU 12V power connector 2 x DDR2 DIMM sockets 2 x Fan connectors 1 x Front panel connector...

  • Page 25: Technical Specifications

    The location of these connectors on the motherboard can be seen in Figure 1-1. These connectors are fully described in Chapter 3. 1.2.2 Technical Specifications KINO-9454 technical specifications are listed in Table 1-1. Detailed descriptions of each specification can be found in Chapter 2. SPECIFICATION CPUs Supported ®...

  • Page 26: Table 1-1: Technical Specifications

    KINO-9454 Mini-ITX SBC ® -Intel ICH7 I/O Controller Hub (ICH) Graphics Support Intel® Graphics Media Accelerator 950 Display Memory Dual channel DDR2 400/533/667MHz memory modules (Max. 2GB) PCI Bus Interface 33MHz, Revision 2.3 Serial ATA (SATA) Four SATA II connectors with 3.0Gbps transfer rates...

  • Page 27: Detailed Specifications

    KINO-9454 Mini-ITX SBC Chapter Detailed Specifications Page 7...

  • Page 28: Overview

    KINO-9454 Mini-ITX SBC 2.1 Overview This chapter describes the specifications and on-board features of the KINO-9454 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below: Length: 170mm Width: 170mm Figure 2-1: KINO-9454 Dimensions (mm)

  • Page 29: External Interface Panel Dimensions

    Figure 2-2: External Interface Panel Dimensions (mm) 2.3 Data Flow The KINO-9454 motherboard comes with an Intel® 945G Graphics and Memory Controller Hub (GMCH) and an Intel® ICH7 I/O Controller Hub (ICH). Figure 2-3 shows the data flow between the system chipset, the CPU and other components installed on the motherboard.

  • Page 30: Cpu Support

    KINO-9454 Mini-ITX SBC Figure 2-3: Data Flow Block Diagram 2.4 CPU Support Table-2-1 lists the CPUs supported by the KINO-9454 board. Model Clock Speed L2 Cache Max. FSB Socket ® Intel Core 2 Duo 1.06 to 2.13GHz 2MB to 4MB...

  • Page 31: Intel ® 945G Graphics And Memory Controller Hub

    The Intel® 945G supports two, 2GB, 400/533/667MHz dual channel DDR SDRAM DIMMs. Two 240-pin memory sockets on the KINO-9454 enable a maximum of 4GB of memory to be installed on the system. The memory sockets are shown in Figure 2-1.

  • Page 32: Intel ® 945G Pcie X16

    KINO-9454 Mini-ITX SBC Figure 2-4: 240-pin DIMM Sockets ® 2.5.3 Intel 945G PCIe x16 2.5.3.1 PCIe x16 Bus Overview The Intel® 945G GMCH chipset has a dedicated 16-lane PCIe port for an external PCIe x16 graphics card. The PCIe x16 slot is shown in Figure 2-6.

  • Page 33: Pcie X16 Bus Specifications

    KINO-9454 Mini-ITX SBC 2.5.3.2 PCIe x16 Bus Specifications Some of the PCIe x16 bus specifications are listed below. Compliant with the current PCI Express Base Specification base PCIe frequency of 2.5GHz Raw bit rate on the pins is 250Gbps Maximum theoretical bandwidth of 4GB/s in each direction resulting in an...

  • Page 34: Intel ® Ich7 I/O Controller Hub

    KINO-9454 Mini-ITX SBC Up to 4 pixels per clock rendering Microsoft* DirectX* 9 Hardware Acceleration Features: Pixel Shader 2, Volumetric Textures, Shadow Maps, Slope Scale Depth Bias, Two-Sided Stencil Microsoft* DirectX* 9 Vertex Shader 3.0 and Transform and Lighting supported in SW through highly optimized Processor Specific Geometry...

  • Page 35: Intel ® Ich7 Audio Codec '97 Controller

    Integrated SATA host controller with DMA operations interfaced to two SATA connectors on the KINO-9454 Integrated IDE controller supports Ultra ATA 100/66/33 Supports the eight USB 2.0 devices on the KINO-9454 with four UHCI controllers and one EHCI controller Complies with System Management Bus (SMBus) Specification, Version 2.0 Supports Audio Codec ’97 (AC’97) Revision 2.3...

  • Page 36: Ich7 Ide Interface

    KINO-9454 Mini-ITX SBC Figure 2-6: PCIe GbE Connectors ® 2.6.4 Intel ICH7 IDE Interface The integrated IDE interface on the ICH7 supports two IDE hard disks and ATAPI devices. PIO IDE transfers up to 16MB/s and Ultra ATA transfers of 100MB/s. The integrated IDE...

  • Page 37: Intel ® Ich7 Low Pin Count (Lpc) Interface

    5V tolerant PCI signals (except PME#) Integrated PCI arbiter supports up to seven PCI bus masters The PCI bus is interfaced to one Mini PCI slot of the KINO-9454 and supports one expansion mini PCI card. Figure 2-7: Mini PCI Slot...

  • Page 38: Intel Ich7 Real Time Clock

    Up to eight high-speed, full-speed or low-speed USB devices are supported by the ICH7 on the KINO-9454. High-speed USB 2.0, with data transfers of up to 480MB/s, is enabled with the ICH7 integrated Enhanced Host Controller Interface (EHCI) compliant host controller.

  • Page 39: Pcie Bus Components

    The GMCH has one PCIe x16 port reserved for a PCIe x16 graphics card. The PCIe x16 lane is interfaced to a PCIe x16 slot on the KINO-9454. The PCIe x16 graphics card is then installed on the PCIe x16 slot on the KINO-9454.

  • Page 40: Lpc Bus Components

    KINO-9454 Mini-ITX SBC Integrated 10/100/1000BASE-T transceiver Automatic MDI crossover function PCIe v1.0a 10/100/1000BASE-T full/half-duplex MAC Wake on LAN support meeting the ACPI requirements Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z, clause 30) Serial EEPROM or serial flash support JTAG support 2.8 LPC Bus Components...

  • Page 41: Super I/O Lpc Interface

    KINO-9454 Mini-ITX SBC PC98/99/2001, ACPI and LANDesk Compliant Enhanced Hardware Monitor Fan Speed Controller SmartGuardian Controller Single +5V Power Supply Two 16C550 UARTs for serial port control Keyboard Controller Watchdog Timer Serial IRQ Support Vbat & Vcch Support Single +5V Power Supply Some of the Super I/O features are described in more detail below: 2.8.3.1 Super I/O LPC Interface...

  • Page 42: Super I/O Fan Speed Controller

    Supports mouse double-click and/or mouse move power on events 2.8.4 Fintek F81216DG LPC Serial Port Chipset The KINO-9454 has a Fintek F81216DG chipset onboard enables the addition of two additional UART serial ports (COM3, COM4 and COM5). UART includes 16-byte send/receive FIFO.

  • Page 43: Operating Temperature And Temperature Control

    KINO-9454 Mini-ITX SBC System temperature CPU temperature Eight voltage inputs on the KINO-9454 Super I/O Enhanced Hardware Monitor monitor the following voltages: CPU Core DRAM Vcc +3.30V +5.00V +12.0V FSB Vcc +1.20V The KINO-9454 Super I/O Enhanced Hardware Monitor also monitors the following...

  • Page 44: Power Consumption

    KINO-9454 Mini-ITX SBC are also mounted on the GMCH and ICH chipsets to ensure the operating temperature of these chips remain low. 2.9.3 Power Consumption Table 2-3 shows the power consumption parameters for the KINO-9454 running with a ® ® 3.06GHz Intel Pentium 4 processor with 1GB of 533MHz DDR2 memory.

  • Page 45: Unpacking

    KINO-9454 Mini-ITX SBC Chapter Unpacking Page 25...

  • Page 46: Anti-Static Precautions

    When the KINO-9454 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the KINO-9454 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.

  • Page 47: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the KINO-9454 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.

  • Page 48: Optional Items

    The items listed in this section are optional items that must be ordered separately. Please contact your KINO-9454 vendor, distributor or reseller for more information or, contact IEI directly by sending an email to sales@iei.com.tw. The following optional items are available for the KINO-9454. Quantity Item and Part Number Image...

  • Page 49: Table 3-2: Optional Items

    KINO-9454 Mini-ITX SBC Quantity Item and Part Number Image RS-232/422/485 cable (P/N: 32200-000077-RS) CPU Cooler (P/N: CF-520-RS) CPU Cooler (P/N: CF-775A-RS) PVGA-M1600L PCIe graphics card 20-pin SINOSUN TPM module, S/W management tool 20-pin WINBOND TPM module, S/W management tool 20-pin INFINEON TPM module, S/W...
  • Page 50 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 30...

  • Page 51: Connectors And Jumpers

    KINO-9454 Mini-ITX SBC Chapter Connectors and Jumpers Page 31...

  • Page 52: Peripheral Interface Connectors

    KINO-9454 Mini-ITX SBC 4.1 Peripheral Interface Connectors Section 4.1.1 shows peripheral interface connector locations. Section 4.1.2 lists all the peripheral interface connectors seen in Section 4.1.1. 4.1.1 KINO-9454 Layout Figure 4-1 shows the on-board peripheral connectors, backplane peripheral connectors and on-board jumpers.

  • Page 53: Peripheral Interface Connectors

    KINO-9454 Mini-ITX SBC 4.1.2 Peripheral Interface Connectors Table 4-1 shows a list of the peripheral interface connectors on the KINO-9454. Detailed descriptions of these connectors can be found in Section 4.2. Connector Type Label ATX + CPU 12V power connector...

  • Page 54: Rear Panel Connectors

    USB connector (2) 8-pin header USB2 Table 4-1: Peripheral Interface Connectors 4.1.3 Rear Panel Connectors Table 4-2 lists the rear panel connectors on the KINO-9454. Detailed descriptions of these connectors can be found in Section 0. Connector Type Label Audio jacks...

  • Page 55: Atx + Cpu 12V Power Connector

    KINO-9454 Mini-ITX SBC 4.2.1 ATX + CPU 12V Power Connector CN Label: CPU12V1 CN Type: 4-pin headers (1x4) CN Location: See Figure 4-2 CN Pinouts: See Table 4-3 The connector supports the 12V power supply. Figure 4-2: CPU 12V Power Connector Location PIN NO.

  • Page 56: Figure 4-3: Fan Connector Locations

    KINO-9454 Mini-ITX SBC The cooling fan connectors on the KINO-9454 provide a 12V, 500mA current to a CPU cooling fan and a system cooling fan. All cooling fans have linear fan speed controlled by BIOS. Figure 4-3: Fan Connector Locations PIN NO.

  • Page 57: Front Panel Connector

    KINO-9454 Mini-ITX SBC 4.2.3 Front Panel Connector CN Label: F_PANEL1 CN Type: 14-pin header (2x7) CN Location: See Figure 4-4 CN Pinouts: See Table 4-6 The front panel connector connects to several external switches and indicators to monitor and control the motherboard. These indicators and switches include:...

  • Page 58: Digital Input/Output Connector

    See Table 4-7 The DIO connector is managed through a Super I/O chip. The DIO connector pins are user programmable. The digital IO port of KINO-9454 is 5V CMOS level. Figure 4-5: Digital I/O Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION...

  • Page 59: Figure 4-6: Ide Device Connector Location

    See Figure 4-6 CN Pinouts: See Table 4-8 One primary 40-pin IDE device connector on the KINO-9454 motherboard supports connectivity to ATA 100/66/33 IDE devices with data transfer rates up to 100MB/s. Figure 4-6: IDE Device Connector Location PIN NO.

  • Page 60: Ir Interface Connector

    KINO-9454 Mini-ITX SBC PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 GROUND GROUND IOW#...

  • Page 61: Mini Pci Slot

    KINO-9454 Mini-ITX SBC Figure 4-7: IR Connector Location PIN NO. DESCRIPTION IR-RX Ground IR-TX Table 4-9: IR Connector Pinouts 4.2.7 Mini PCI Slot CN Label: MPCI1 CN Type: 124-pin Mini PCI Type III slot CN Location: See Figure 4-8 CN Pinouts: See Table 4-10 Mini PCI is a small form factor version of a PCI card.

  • Page 62: Figure 4-8: Mini Pci Slot Location

    KINO-9454 Mini-ITX SBC Figure 4-8: Mini PCI Slot Location NAME NAME NAME NAME GROUND 3.3V AD[02] RING AD[31] FRAME# AD[03] 8PMJ-3 PME# CLKRUN# AD[00] 8PMJ-1 AD[29] TRDY# 8PMJ-6 RESERVED SERR# RESERVED_WIP5 8PMJ-2 GROUND STOP# AD[01] 8PMJ-7 AD[30] GROUND RESERVED_WIP5 8PMJ-4 AD[27] 3.3V...

  • Page 63: Pci Express X16 Slot

    KINO-9454 Mini-ITX SBC RESERVED AD[19] AD[09] SYS_AUDIO_OUT GROUND AD[20] AD[08] SYS_AUDIO_IN 3.3VAUX GROUND C/BE[0]# SYS_AUDIO_OUT GND AD[07] SYS_AUDIO_IN GND RST# AD[17] 3.3V AUDIO_GND GROUND AD[18] 3.3V AUDIO_GND 3.3V C/BE[2]# AD[06] RESERVED REQ# AD[16] AD[05] MPCIACT# GNT# IRDY# AD[04] VCC5VA 3.3V...

  • Page 64: Table 4-11: Pcie X16 Side A Pinouts

    KINO-9454 Mini-ITX SBC NAME NAME NAME NAME Name HSIn(1) HSIp(6) HSIp(11) PRSNT#1 HSIn(6) HSIn(11) +12v +12v HSIp(2) HSIn(2) HSIp(7) HSIp(12) JTAG2 HSIn(7) HSIn(12) JTAG3 JTAG4 HSIp(3) RSVD JTAG5 HSIn(3) HSIp(13) +3.3v HSIp(8) HSIn(13) +3.3v RSVD HSIn(8) PWRGD RSVD HSIp(14) REFCLK+...

  • Page 65: Atx Power Connector

    KINO-9454 Mini-ITX SBC JTAG1 RSVD HSOn(8) 3.3Vaux PRSNT#2 WAKE# HSOp(14) RSVD HSOp(4) HSOp(9) HSOn(14) HSOn(4) HSOn(9) HSOp(0) HSOn(0) HSOp(15) HSOp(5) HSOp(10) HSOn(15) PRSNT#2 HSOn(5) HSOn(10) PRSNT#2 HSOp(1) RSVD#2 HSOn(1) HSOp(6) HSOp(11) HSOn(6) HSOn(11) Table 4-12: PCIe x16 Side B Pinouts 4.2.9 ATX Power Connector...

  • Page 66: Figure 4-10: Power Connector Location

    KINO-9454 Mini-ITX SBC Figure 4-10: Power Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V +3.3V -12V Ground Ground PS-ON Ground Ground Ground Ground Ground Power Good +5VSB +12V +12V +3.3V Ground Table 4-13: Power Connector Pinouts Page 46...

  • Page 67: Serial Port Connector

    KINO-9454 Mini-ITX SBC 4.2.10 Serial Port Connector CN Label: COM3 CN Type: 14-pin header (2x5) CN Location: See Figure 4-11 CN Pinouts: See Table 4-14 The serial ports connectors connect to RS-232 or RS-422/485 serial port device. Figure 4-11: Serial Port Connector Location PIN NO.

  • Page 68: Tpm Connector

    KINO-9454 Mini-ITX SBC CN Location: See Figure 4-12 CN Pinouts: See Table 4-15 The four SATA drive connectors are connected to four SATA II drives. SATA II drives transfer data at speeds as high as 3.0Gbps. Figure 4-12: SATA Drive Connector Locations PIN NO.

  • Page 69: Figure 4-13: Tpm Connector Location

    KINO-9454 Mini-ITX SBC CN Pinouts: See Table 4-16 The TPM (Trusted Platform Module) connector is a device with a controller that is used to check authenticity of digital signs and keys as well as other encryption and security functions. Figure 4-13: TPM Connector Location PIN NO.

  • Page 70: Internal Usb Connectors

    KINO-9454 Mini-ITX SBC 4.2.13 Internal USB Connectors CN Label: USB1 and USB2 8-pin header (2x4) CN Type: CN Location: See Figure 4-14 CN Pinouts: See Table 4-17 One 2x4 pin connector provides connectivity to two USB 2.0 ports. The USB ports are used for I/O bus expansion.

  • Page 71: External Interface Connectors

    4.3 External Interface Connectors The peripheral connectors on the back panel are connected to devices externally when the KINO-9454 is installed in a chassis. The peripheral connectors on the rear panel are: 2 x Audio jacks 1 x CRT connector...

  • Page 72: Crt Connector

    KINO-9454 Mini-ITX SBC Microphone (Pink): Connects a microphone. Figure 4-16: Audio Connector 4.3.2 CRT Connector CN Label: CN Type: 15-pin female connector CN Location: See Figure 4-15 (labeled number 8) CN Pinouts: See Table 4-18 The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

  • Page 73: Ethernet Connectors

    CN Pinouts: See Table 4-19 The KINO-9454 is equipped with two built-in GbE Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following...

  • Page 74: Keyboard/Mouse Connector

    Table 4-20: RJ-45 Ethernet Connector LEDs 4.3.4 Keyboard/Mouse Connector CN Label: KBMS1 CN Type: PS/2 connector CN Location: See Figure 4-15 (labeled number 1) CN Pinouts: See Table 4-21 The KINO-9454 keyboard and mouse connectors are standard PS/2 connectors. Page 54...

  • Page 75: Serial Port Connectors

    KINO-9454 Mini-ITX SBC Figure 4-19: PS/2 Pinouts DESCRIPTION DESCRIPTION KB DATA MS DATA GROUND GROUND KB VCC MS VCC KB CLOCK MS CLOCK Table 4-21: PS/2 Connector Pinouts 4.3.5 Serial Port Connectors CN Label: COM1: CN5 (motherboard label) COM4: CN4 top (motherboard label)

  • Page 76: Usb Connectors

    KINO-9454 Mini-ITX SBC Figure 4-20: External Serial Port Connector Description DATA CARRIER DETECT (DCD) RECEIVE DATA (RXD) TRANSMIT DATA (TXD) DATA TERMINAL READY (DTR) GROUND (GND) DATA SET READY (DSR) REQUEST TO SEND (RTS) CLEAR TO SEND (CTS) RING INDICATOR (RI) Table 4-22: External Serial Port Pinouts 4.3.6 USB Connectors...

  • Page 77: Table 4-23: External Usb Connector Pinouts

    KINO-9454 Mini-ITX SBC DATA6+ DATA7+ GROUND GROUND Table 4-23: External USB Connector Pinouts Page 57...
  • Page 78 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 58...

  • Page 79: Installation

    KINO-9454 Mini-ITX SBC Chapter Installation Page 59...

  • Page 80: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-9454. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-9454, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 81: Installation Considerations

    KINO-9454 is installed. All installation notices pertaining to the installation of the KINO-9454 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the KINO-9454 and injury to the person installing the motherboard. 5.2.1 Installation Notices...

  • Page 82: Installation Checklist

    KINO-9454 Mini-ITX SBC When working with the KINO-9454, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the KINO-9454 DO NOT: Remove any of the stickers on the PCB board. These stickers are required for warranty validation.

  • Page 83: Unpacking

    When the KINO-9454 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 5.1. Make sure the packing box is facing upwards so the KINO-9454 does not fall out of the box. Make sure all the components in the checklist shown in Section 5.3.2 are present.

  • Page 84: Cpu, Cpu Cooling Kit And Dimm Installation

    Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the KINO-9454. If one of these component is not installed the KINO-9454 cannot run.

  • Page 85: Figure 5-1: Intel® Lga775 Socket

    The LGA775 socket is shown in Figure 5-1. Figure 5-1: Intel® LGA775 Socket To install a socket LGA775 CPU onto the KINO-9454, follow the steps below: WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU.

  • Page 86: Figure 5-2: Remove The Cpu Socket Protective Shield

    KINO-9454 Mini-ITX SBC Figure 5-2: Remove the CPU Socket Protective Shield Step 2: Open the socket. Disengage the load lever by pressing the lever down and slightly outward to clear the retention tab. Rotate the load lever to a fully open position.

  • Page 87: Figure 5-4: Insert The Socket Lga775 Cpu

    KINO-9454 Mini-ITX SBC facing upward. Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the CPU socket. Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.

  • Page 88: Socket Lga775 Cf-520 Cooling Kit Installation

    WARNING: It is strongly recommended that you DO NOT use the original heat sink and cooler provided by Intel® on the KINO-9454. IEI’s cooling kit (CF-520) includes a support bracket that is combined with the heat sink mounted on the CPU to counterweigh and balance the load on both sides of the PCB.

  • Page 89: Figure 5-6: Securing The Heat Sink To The Pcb Board

    Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the KINO-9454. Carefully route the cable and avoid heat generating chips and fan blades. Step 0:...

  • Page 90: Dimm Installation

    KINO-9454 Mini-ITX SBC 5.4.3 DIMM Installation WARNING: Only DDR2 memory module can be installed on the KINO-9454. Do not install DDR memory modules. If a DDR memory module is installed on the KINO-9454, the KINO-9454 may be irreparably damaged. Please make sure the purchased DIMM complies with the memory specifications of the KINO-9454.

  • Page 91: Jumper Settings

    OPEN a jumper means removing the Figure 5-8: Jumper Locations plastic clip from a jumper. Before the KINO-9454 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the KINO-9454 are listed in Table 5-1. Description...

  • Page 92: Clear Cmos Jumper

    Jumper Location: See Figure 5-9 If the KINO-9454 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 93: Com 3 Function Select Jumper

    KINO-9454 Mini-ITX SBC Figure 5-9: Clear CMOS Jumper 5.5.2 COM 3 Function Select Jumper Jumper Label: Jumper Type: 3-pin header Jumper Settings: See Table 5-3 Jumper Location: See Figure 5-10 The COM 3 Function Select jumper sets the communication protocol used by the second serial communications port (COM 3) as RS-232, RS-422 or RS-485.

  • Page 94: Chassis Installation

    The KINO-9454 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 95: Motherboard Installation

    Table 5-4: IEI Provided Cables 5.7.2 ATA Flat Cable Connection The ATA 66/100 flat cable connects to the KINO-9454 to one or two IDE devices. To connect an IDE HDD to the KINO-9454, please follow the instructions below. Step 1: Locate the IDE connector.

  • Page 96: Mini Pci Installation

    Step 0: 5.7.3 Mini PCI Installation A Mini PCI expansion card can be installed on the KINO-9454 using the optional Mini PCI expansion slot. To install a Mini PCI card into the Mini PCI socket, please follow the steps below and refer to Figure 5-12.

  • Page 97: Pcie X16 Expansion Card Installation

    Step 0: 5.7.4 PCIe x16 Expansion Card Installation A PCIe x16 expansion card can be installed on the KINO-9454 using the PCIe x16 expansion slot. To install a PCIe expansion card into the PCIe socket, please follow the steps below and refer to Figure 5-13.

  • Page 98: Sata Drive Connection

    Step 0: 5.7.5 SATA Drive Connection The KINO-9454 is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 99: Figure 5-14: Sata Drive Cable Connection

    KINO-9454 Mini-ITX SBC in Chapter 3. Step 2: Insert the cable connector. Press the clip on the connector at the end of the SATA cable and insert the cable connector into the onboard SATA drive connector. See Figure 5-14. Figure 5-14: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk.

  • Page 100: External Peripheral Interface Connection

    RJ-45 Ethernet cable connectors PS/2 devices Serial port devices USB devices VGA monitors To install these devices, connect the corresponding cable connector from the actual device to the corresponding KINO-9454 external peripheral interface connector making sure the pins are properly aligned. Page 80...

  • Page 101: Audio Connection

    KINO-9454 Mini-ITX SBC 5.8.1 Audio Connection Audio signals are interfaced through two phone jack connections. The red phone jack is for Mic In and green is for Speaker Out. Follow the steps below to connect audio devices to the KINO-9454.

  • Page 102: Ps/2 Keyboard And Mouse Connection

    Step 0: 5.8.3 PS/2 Keyboard and Mouse Connection The KINO-9454 has a dual PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow the steps below to connect a keyboard and mouse to the KINO-9454.

  • Page 103: Serial Device Connection

    KINO-9454 Mini-ITX SBC Figure 5-18: PS/2 Keyboard/Mouse Connector 5.8.4 Serial Device Connection The KINO-9454 has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the KINO-9454.

  • Page 104: Usb Connection

    5.8.5 USB Connection The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the KINO-9454. Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB Series "A"...

  • Page 105: Vga Monitor Connection

    Figure 5-20: USB Connector 5.8.6 VGA Monitor Connection The KINO-9454 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the KINO-9454, please follow the instructions below.

  • Page 106: Figure 5-21: Vga Connector

    KINO-9454 Mini-ITX SBC Figure 5-21: VGA Connector Step 6: Secure the connector. Secure the DB-15 VGA connector from the VGA monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0: Page 86...

  • Page 107: Ami Bios Setup

    KINO-9454 Mini-ITX SBC Chapter AMI BIOS Setup Page 87...

  • Page 108: Introduction

    KINO-9454 Mini-ITX SBC 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 109: Getting Help

    KINO-9454 Mini-ITX SBC F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 110: System Overview

    KINO-9454 Mini-ITX SBC BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed. The items shown in the system overview include: AMI BIOS: Displays auto-detected BIOS information...

  • Page 111: Advanced

    KINO-9454 Mini-ITX SBC System Time [xx:xx:xx]: The system time is set here. System Date [Day xx/xx/xxxx]: The system date is set here. 6.3 Advanced The Advanced menu (BIOS Menu 2) allows access to the CPU and peripheral device configuration options through the following sub-menus:...

  • Page 112: Cpu Configuration

    KINO-9454 Mini-ITX SBC BIOS Menu 2: Advanced 6.3.1 CPU Configuration The CPU Configuration menu (BIOS Menu 3) shows detailed CPU specifications and CPU configuration options. Page 92...

  • Page 113: Ide Configuration

    KINO-9454 Mini-ITX SBC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used Frequency: Lists the CPU processing speed...

  • Page 114: Ata/Ide Configurations [Compatible]

    KINO-9454 Mini-ITX SBC BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Compatible] Use the ATA/IDE Configurations option to configure the ATA/IDE controller. Disables the on-board ATA/IDE controller. Disabled Compatible Configures the on-board ATA/IDE controller to be in EFAULT compatible mode. In this mode, a SATA channel will replace one of the IDE channels.

  • Page 115: Ide Master, Ide Slave

    KINO-9454 Mini-ITX SBC Legacy IDE Channels [PATA Pri, SATA Sec] SATA Only PATA Pri, SATA Sec EFAULT PATA Pri., PATA Sec IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices.

  • Page 116: Type [Auto]

    KINO-9454 Mini-ITX SBC BIOS Menu 5: IDE Master and IDE Slave Configuration Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.

  • Page 117: Zip

    KINO-9454 Mini-ITX SBC IDE disk drives on the specified channel. ARMD This option specifies an ATAPI Removable Media Device. These include, but are not limited to: LS-120 LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing).

  • Page 118: Pio Mode [Auto]

    KINO-9454 Mini-ITX SBC PIO Mode [Auto] Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases.

  • Page 119: Auto]

    KINO-9454 Mini-ITX SBC MWDMA0 Multi Word DMA mode 0 selected with a maximum data transfer rate of 4.2MBps Multi Word DMA mode 1 selected with a maximum data MWDMA1 transfer rate of 13.3MBps MWDMA2 Multi Word DMA mode 2 selected with a maximum data transfer rate of 16.6MBps...

  • Page 120: Super Io Configuration

    KINO-9454 Mini-ITX SBC Auto BIOS auto detects HDD SMART support. EFAULT Disabled Prevents BIOS from using the HDD SMART feature. Enabled Allows BIOS to use the HDD SMART feature 32Bit Data Transfer [Enabled] Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.

  • Page 121: Serial Port1 Address [3F8/Irq4]

    KINO-9454 Mini-ITX SBC Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address. Disabled No base address is assigned to Serial Port 1 3F8/IRQ4 Serial Port 1 I/O port address is 3F8 and the interrupt...

  • Page 122: Serial Port2 Mode [Irda]

    KINO-9454 Mini-ITX SBC 2E8/IRQ3 Serial Port 2 I/O port address is 2E8 and the interrupt address is IRQ3 Serial Port2 Mode [IrDA] Use the Serial Port2 Mode option to select the Serial Port2 operational mode. Normal Serial Port 2 mode is normal...

  • Page 123: Serial Port4 Address [2E8]

    KINO-9454 Mini-ITX SBC Serial port 3 IRQ address is 9 Serial port 3 IRQ address is 10 Serial port 3 IRQ address is 11 EFAULT Serial Port4 Address [2E8] Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.

  • Page 124: Hardware Health Configuration

    KINO-9454 Mini-ITX SBC Serial port 5 I/O port address is 2E0 EFAULT Serial port 5 I/O port address is 2D0 Serial Port5 IRQ [11] Use the Serial Port5 IRQ option to select the interrupt address for serial port 5. Serial port 5 IRQ address is 10...

  • Page 125: Fan Mode Setting [Full On Mode]

    KINO-9454 Mini-ITX SBC FAN Mode Setting [Full On Mode] Use the FAN Mode Setting option to configure the fan. Full On Mode Fan is on all the time EFAULT Automatic mode Fan is off when the temperature is low enough. Parameters must be set by the user.

  • Page 126: Acpi Configuration

    KINO-9454 Mini-ITX SBC CPU Core DRAM Vcc +3.30V +5.00V +12.0V FSB Vcc +1.20V VBAT 6.3.5 ACPI Configuration The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 8: ACPI Configuration...

  • Page 127: Apm Configuration

    KINO-9454 Mini-ITX SBC ACPI Aware O/S [Yes] Use the ACPI Aware O/S option to enable the system to configure ACPI power saving options. ACPI can only be implemented if the system OS complies with the ACPI standard. Windows 98, Windows 2000, and Windows XP all comply with ACPI.

  • Page 128: At/Atx Power [Atx Power]

    KINO-9454 Mini-ITX SBC AT/ATX power [ATX power] Use the AT/ATX power BIOS option to select the power supply that is connected to the system. AT power An AT power supply is connected to the system An ATX power supply is connected to the system...

  • Page 129: Remote Access Configuration

    KINO-9454 Mini-ITX SBC Disabled Wake event not generated by an incoming call Enabled Wake event generated by an incoming call EFAULT Resume on PCI-Express WAKE# [Enabled] The Resume on PCI-Express WAKE# BIOS option specifies if the system is roused from a suspended or standby state when there is activity on the PCI-Express bus.

  • Page 130: Remote Access [Disabled]

    KINO-9454 Mini-ITX SBC allows a remote host running a terminal program to display and configure the BIOS settings. BIOS Menu 10: Remote Access Configuration [Advanced] Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system.

  • Page 131: Flow Control

    KINO-9454 Mini-ITX SBC Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access.

  • Page 132: Flow Control [None]

    KINO-9454 Mini-ITX SBC 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1 NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Flow Control [None] Use the Flow Control option to report the flow control method for the console redirection application.

  • Page 133: Trusted Computing

    KINO-9454 Mini-ITX SBC ANSI The target terminal type is ANSI EFAULT VT100 The target terminal type is VT100 VT-UTF8 The target terminal type is VT-UTF8 VT-UTF8 Combo Key Support [Enabled] Use the VT-UFT8 Combo Key Support option to enable additional keys that are not provided by VT100 for the PC 101 keyboard.

  • Page 134: Usb Configuration

    KINO-9454 Mini-ITX SBC BIOS Menu 11: Trusted Computing TCG/TPM Support [No] Use the TCG/TPM Support option to configure support for the TPM. TPM support is disabled. EFAULT TPM support is enabled. Clearing the TPM [Press Enter] Use the Clearing the TPM option to clear the information stored in the TPM.

  • Page 135: Usb Configuration

    KINO-9454 Mini-ITX SBC BIOS Menu 12: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xxxxx.xxxxx USB Devices Enabled The USB Devices Enabled field lists the USB devices that are enabled on the system USB Functions [Enabled] Use the USB Functions BIOS option to enable or disable USB function support.

  • Page 136: Usb Mass Storage Device Configuration

    KINO-9454 Mini-ITX SBC USB 2.0 Controller [Enabled] Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller Disabled USB 2.0 controller disabled Enabled USB 2.0 controller enabled EFAULT Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 137: Usb Mass Storage Reset Delay [20 Sec]

    KINO-9454 Mini-ITX SBC BIOS Menu 13: USB Mass Storage Device Configuration USB Mass Storage Reset Delay [20 Sec] Use the USB Mass Storage Reset Delay option to set the number of seconds POST waits for the USB mass storage device after the start unit command.

  • Page 138: Device

    KINO-9454 Mini-ITX SBC Device ## The Device## field lists the USB devices that are connected to the system. Emulation Type [Auto] Use the Emulation Type BIOS option to specify the type of emulation BIOS has to provide for the USB device.

  • Page 139: Pci/Pnp

    KINO-9454 Mini-ITX SBC 80h or above. CDROM Assumes the CD-ROM is formatted as bootable media. All the devices that support block sizes greater than 512 bytes can only be booted using this option. 6.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 14) to configure advanced PCI and PnP settings.

  • Page 140: Irq# [Available]

    KINO-9454 Mini-ITX SBC IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. Available The specified IRQ is available to be used by EFAULT PCI/PnP devices Reserved The specified IRQ is reserved for use by Legacy ISA...

  • Page 141: Boot

    KINO-9454 Mini-ITX SBC DM Channel 1 DM Channel 3 DM Channel 5 DM Channel 6 DM Channel 7 Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices.

  • Page 142: Boot Settings Configuration

    KINO-9454 Mini-ITX SBC BIOS Menu 15: Boot 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 16) to configure advanced system boot options. Page 122...

  • Page 143: Quick Boot [Enabled]

    KINO-9454 Mini-ITX SBC BIOS Menu 16: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Enabled Some POST procedures are skipped to decrease...

  • Page 144: Addon Rom Display Mode [Force Bios]

    KINO-9454 Mini-ITX SBC AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. Force BIOS The system forces third party BIOS to display EFAULT during system boot.

  • Page 145: Boot Device Priority

    KINO-9454 Mini-ITX SBC Enabled Can be booted from a remote system through the EFAULT 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 17) to specify the boot sequence from the available devices. Possible boot devices may include:...

  • Page 146: Hard Disk Drives

    KINO-9454 Mini-ITX SBC 6.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. When the menu is opened, the HDDs connected to the system are listed as shown below: 1st Drive...

  • Page 147: Security

    KINO-9454 Mini-ITX SBC BIOS Menu 18: Hard Disk Drives 6.6 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. Page 127...

  • Page 148: Change Supervisor Password

    KINO-9454 Mini-ITX SBC BIOS Menu 19: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.

  • Page 149: Chipset

    KINO-9454 Mini-ITX SBC Use the Clear User Password to clear a user’s password. The default for this option is Not Installed. If a user password must be cleared, use this option. 6.7 Chipset Use the Chipset menu (BIOS Menu 20) to access the NorthBridge and SouthBridge...

  • Page 150: Northbridge Configuration

    KINO-9454 Mini-ITX SBC 6.7.1 NorthBridge Configuration Use the Northbridge Chipset Configuration menu (BIOS Menu 21) to configure the Northbridge chipset. BIOS Menu 21:Northbridge Chipset Configuration Memory Hole [Disabled] Use the Memory Hole option to reserve memory space between 15MB and 16MB for ISA expansion cards that require a specified area of memory to work properly.

  • Page 151: Southbridge Configuration

    KINO-9454 Mini-ITX SBC Initiate Graphic Adapter [PEG/PCI] Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration...

  • Page 152: Asf Support [Enabled]

    KINO-9454 Mini-ITX SBC BIOS Menu 22:Southbridge Chipset Configuration ASF Support [Enabled] Use the ASF Support BIOS option to control the system’s ability to connect to a remote management server. Disabled The system will not communicate with a remote management server.

  • Page 153: Exit

    KINO-9454 Mini-ITX SBC Enabled The onboard LAN device automatically detected and EFAULT enabled Onboard LAN device manually disabled Disabled 6.8 Exit Use the Exit menu (BIOS Menu 23) to load default BIOS values, optimal failsafe values and to save configuration changes.

  • Page 154: Discard Changes And Exit

    KINO-9454 Mini-ITX SBC Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system. Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.

  • Page 155: Software Drivers

    KINO-9454 Mini-ITX SBC Chapter Software Drivers Page 135...

  • Page 156: Available Software Drivers

    To install the chipset driver, please follow the steps below: Step 1: Insert the CD into the system that contains the KINO-9454 board. Open the 1-INF directory and locate the icon for the infinst_autol.exe installation file. Once located, use the mouse to double click the icon.

  • Page 157: Figure 7-1: Installshield Wizard Preparation Screen

    KINO-9454 Mini-ITX SBC Figure 7-1: InstallShield Wizard Preparation Screen Step 3: The “Welcome” window in Figure 7-2 appears next. Figure 7-2: Welcome Screen Step 4: Click “N ” and the license agreement shown in Figure 7-3 appears. Page 137...

  • Page 158: Figure 7-3: License Agreement

    KINO-9454 Mini-ITX SBC Figure 7-3: License Agreement Step 5: Agree to the license terms by clicking “Y ”. The “Readme” in Figure 7-4 appears. Figure 7-4: Readme Information Step 6: Click “Y ”. The driver is installed on the computer. After the installation is complete, the installation complete screen shown in Figure 7-5 appears.

  • Page 159: Vga Driver

    KINO-9454 Mini-ITX SBC the preferred option and click “F ” to complete the installation process. INISH 格式化: 項目符 Step 6: Figure 7-5: Restart the Computer 7.3 VGA Driver To install the VGA driver, please follow the steps below: Step 7: Insert the Utility CD that came with the motherboard into the system CD drive.

  • Page 160: Figure 7-6: Starting Install Shield Wizard Screen

    KINO-9454 Mini-ITX SBC Figure 7-6: Starting Install Shield Wizard Screen Step 10: The Preparing Setup window appears next (Figure 7-7). Figure 7-7: Preparing Setup Screen Page 140...

  • Page 161: Figure 7-8: Vga Driver Installation Welcome Screen

    KINO-9454 Mini-ITX SBC Step 11: A Welcome screen shown in Figure 7-8 appears. Click N to continue the installation. Figure 7-8: VGA Driver Installation Welcome Screen Step 12: A license agreement shown in Figure 7-9 appears. Read through the license agreement.

  • Page 162: Figure 7-10: Vga Driver Installing Notice

    KINO-9454 Mini-ITX SBC Step 13: Accept the terms and conditions stipulated in the license agreement by clicking the “Y ” button (Figure 7-9). The installation notice shown in Figure 7-10 appears. Figure 7-10: VGA Driver Installing Notice Step 14: After the driver installation process is complete, a confirmation screen shown in Figure 7-11 appears.

  • Page 163: Broadcom Lan Driver (For Gbe Lan) Installation

    KINO-9454 Mini-ITX SBC 7.4 Broadcom LAN Driver (for GbE LAN) Installation To install the Broadcom LAN driver, please follow the steps below. Step 16: Open Windows Control Panel (Figure 7-12). Figure 7-12: Access Windows Control Panel Step 17: Double click the System icon (Figure 7-13).

  • Page 164: Figure 7-13: Double Click The System Icon

    KINO-9454 Mini-ITX SBC Figure 7-13: Double Click the System Icon Step 18: Double click the Device Manager tab (Figure 7-14). Figure 7-14: Double Click the Device Manager Tab Step 19: A list of system hardware devices appears (Figure 7-15). Page 144...

  • Page 165: Figure 7-15: Device Manager List

    KINO-9454 Mini-ITX SBC Figure 7-15: Device Manager List Step 20: Double click the listed device that has question marks next to it. (This means Windows does not recognize the device). Step 21: The Device Driver Wizard appears (Figure 7-16). Click N to continue.

  • Page 166: Figure 7-16: Search For Suitable Driver

    KINO-9454 Mini-ITX SBC Figure 7-16: Search for Suitable Driver Step 22: Select “Specify a Location” in the Locate Driver Files window (Figure 7-17). Click N to continue. Page 146...

  • Page 167: Figure 7-17: Locate Driver Files

    KINO-9454 Mini-ITX SBC Figure 7-17: Locate Driver Files Step 23: Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx Drivers” directory (Figure 7-18) in the location browsing window, where “X:\” is the system CD drive. Figure 7-18: Location Browsing Window...

  • Page 168: Realtek Audio Driver (Alc655) Installation

    KINO-9454 Mini-ITX SBC Step 24: Click OK to continue. A driver files location menu window appears. Click N continue. The driver is installed.Step 0: 7.5 RealTek Audio Driver (ALC655) Installation To install the Realtek Audio driver, please follow the steps below.

  • Page 169: Figure 7-20: Audio Driver Install Shield Wizard Starting

    KINO-9454 Mini-ITX SBC Figure 7-20: Audio Driver Install Shield Wizard Starting Step 3: The Setup Status screen appears as the driver is installed (Figure 7-21). Figure 7-21: Audio Driver Setup Preparation Step 4: At this stage the Digital Signal Not Found screen appears (Figure 7-22). Click to continue.

  • Page 170: Figure 7-22: Audio Driver Digital Signal

    KINO-9454 Mini-ITX SBC Figure 7-22: Audio Driver Digital Signal Step 5: The audio driver installation continues (Figure 7-23). Figure 7-23: Audio Driver Installation Continues Step 6: After the driver installation process is complete, a confirmation screen appears (Figure 7-24). Page 150...

  • Page 171: Intel ® Matrix Storage Manager Installation

    KINO-9454 Mini-ITX SBC Figure 7-24: Audio Driver Installation Complete Step 7: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer.Step 0:...

  • Page 172: Figure 7-25: Preparing Setup Screen

    KINO-9454 Mini-ITX SBC Figure 7-25: Preparing Setup Screen Step 4: A Welcome screen appears. Click N to continue the installation. Step 5: A license agreement appears. Read through the license agreement. Step 6: The “Uninstallation Warning” window appears. Click on the N button to continue.
  • Page 173 KINO-9454 Mini-ITX SBC Step 10: After the driver installation process is complete, a confirmation screen appears. Step 11: The confirmation screen allows user to restart the computer immediately after the installation is complete or to restart the computer later. For the settings to take effect the computer must be restarted.
  • Page 174 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 154...

  • Page 175: Abios Configuration Options

    KINO-9454 Mini-ITX SBC Appendix BIOS Configuration Options Page 155...

  • Page 176: O Ptions

    KINO-9454 Mini-ITX SBC A.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6. 　 System Overview ....................90 　 ATA/IDE Configurations [Compatible]..............94 　 Legacy IDE Channels [PATA Pri, SATA Sec]............95 　 IDE Master and IDE Slave ..................95 　...
  • Page 177 KINO-9454 Mini-ITX SBC 　 Restore on AC Power Loss [Last State]............108 　 Resume on Ring [Enabled] ................108 　 Resume on PCI-Express WAKE# [Enabled]............. 109 　 Resume On RTC Alarm [Disabled]..............109 　 RTC Alarm Date (Days) ..................109 　...
  • Page 178 KINO-9454 Mini-ITX SBC 　 Emulation Type [Auto] ..................118 　 IRQ# [Available]....................120 　 DMA Channel# [Available] ................. 120 　 Reserved Memory Size [Disabled] ..............121 　 Quick Boot [Enabled] ..................123 　 Quiet Boot [Disabled] ..................123 　 AddOn ROM Display Mode [Force BIOS] ............124 　...

  • Page 179: Bdio Interface

    KINO-9454 Mini-ITX SBC Appendix DIO Interface Page 159...

  • Page 180: Dio Interface Introduction

    KINO-9454 Mini-ITX SBC B.1 DIO Interface Introduction The DIO connector on the KINO-9454 is interfaced to GPIO ports on the IT8712F Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 181: Assembly Language Samples

    KINO-9454 Mini-ITX SBC B.3 Assembly Language Samples B.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...
  • Page 182 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 162...

  • Page 183: Cwatchdog Timer

    KINO-9454 Mini-ITX SBC Appendix Watchdog Timer Page 163...
  • Page 184 KINO-9454 Mini-ITX SBC Note: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 185 KINO-9454 Mini-ITX SBC Note: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
  • Page 186 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 166...

  • Page 187: Daddress Mapping

    KINO-9454 Mini-ITX SBC Appendix Address Mapping Page 167...

  • Page 188: Io Address Map

    KINO-9454 Mini-ITX SBC D.1 IO Address Map I/O address Description Range 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor...

  • Page 189: Irq Mapping Table

    KINO-9454 Mini-ITX SBC D.3 IRQ Mapping Table Description Description IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 ACPI IRQ2 Available IRQ10 COM 4 IRQ3 IRQ11 COM 3 / COM 5 IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 SMBus Controller IRQ13...
  • Page 190 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 170...

  • Page 191: Ecompatibility

    KINO-9454 Mini-ITX SBC Appendix Compatibility Page 171...

  • Page 192: Compatible Operating Systems

    The following operating systems have been successfully run on the KINO-9454. MS-DOS 6.22 Microsoft Windows XP Professional Microsoft Windows 2000 E.2 Compatible Processors The following LGA 775 processors have been successfully tested on the KINO-9454. Model Number Frequency Intel® Pentium® D 2.8GHz 800MHz Intel®...
  • Page 193 KINO-9454 Mini-ITX SBC other memory modules that comply with the specifications may also work on the KINO-9454 but have not been tested. The following memory modules have been successfully tested on the KINO-9454. Manufacturer Model No. Capacity Speed Kingston KHX5400D2K2/2G...
  • Page 194 KINO-9454 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 174...

  • Page 195: Hazardous Materials Disclosure

    KINO-9454 Mini-ITX SBC Appendix Hazardous Materials Disclosure Page 175...

  • Page 196: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    KINO-9454 Mini-ITX SBC F.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 197 KINO-9454 Mini-ITX SBC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 198 KINO-9454 Mini-ITX SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

  • Page 199: Gexternal Ac'97 Audio Codec

    KINO-9454 Mini-ITX SBC Appendix External AC’97 Audio CODEC Page 179...

  • Page 200: Introduction

    KINO-9454 Mini-ITX SBC G.1 Introduction The motherboard comes with an onboard Realtek ALC655 CODEC. The ALC655 is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC that provides three pairs of stereo outputs with 5-bit volume control, a mono output, and multiple stereo and mono inputs, along with flexible mixing, gain, and mute functions.

  • Page 201: Sound Effect Configuration

    KINO-9454 Mini-ITX SBC Figure G-1: Control Panel Sound Effect Manager G.2 Sound Effect Configuration G.2.1 Accessing the Sound Effects Manager Follow the steps below to access the Sound Effect Manager. Step 1: Install the ALC655 audio CODEC driver (see Section 7.5).

  • Page 202: Sound Effect Manager Configuration Options

    KINO-9454 Mini-ITX SBC Figure G-3: Sound Effects Manager (ALC655) NOTE: The Sound Effect Manager shown in Figure G-3 is for the RealTek ALC655 audio CODEC. Different CODECs may have different sound manager appearances. The following section describes the different configuration options in the Sound Effect Manager.
  • Page 203 KINO-9454 Mini-ITX SBC NOTE: The Karaoke Mode is configured in the Sound Effect menu. To access Karaoke configuration settings, click on the Sound Effect menu tab. Sound Effect Karaoke Mode Equalizer Speaker Configuration Speaker Test S/PDIF-In S/PDIF-Out Connector Sensing HRTF Demo...
  • Page 204 KINO-9454 Mini-ITX SBC Key adjustment up or down arrow icons enable users to define a key that fits a certain vocal range. Equalizer Selection - Preset equalizer settings enable easy audio range settings. Ten frequency bands can be configured. Speaker Configuration - Multi-channel speaker settings are configured in this menu.

  • Page 205: Hindex
