KINO-9652 Mini-ITX SBC

Page i

Table of Contents

Summary of Contents for IEI Technology KINO-9652

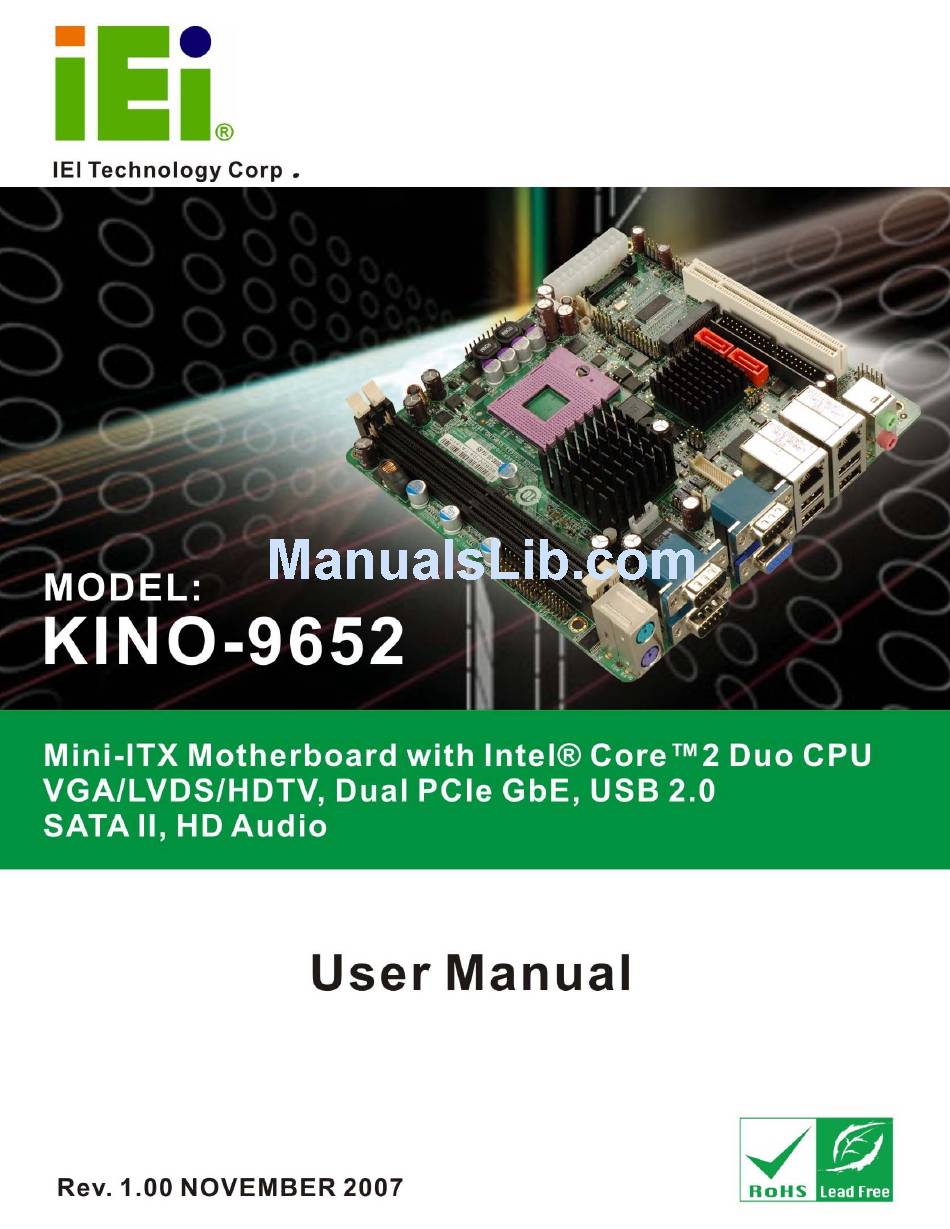

Page 1 KINO-9652 Mini-ITX SBC KINO-9652 Mini-ITX SBC Page i...
Page 2 KINO-9652 Mini-ITX SBC Revision Date Version Changes 2007-11 1.00 Initial Release Page ii...
Page 3 KINO-9652 Mini-ITX SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Page 4 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the KINO-9652. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
Page 5 KINO-9652 Mini-ITX SBC CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the KINO-9652. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.
Page 6: Packing List
KINO-9652 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the KINO-9652 package. 1 x KINO-9652 single board computer 1 x IDE flat cable...
Page 7: Table Of Contents
1.1 KINO-9652 O ..................... 2 VERVIEW 1.1.1 KINO-9652 Features..................2 1.2 KINO-9652 B ................. 3 OARD VERVIEW 1.2.1 KINO-9652 Connectors ..................4 1.2.2 Technical Specifications..................5 DETAILED SPECIFICATIONS ................7 2.1 O ......................... 8 VERVIEW 2.2 D ......................8 IMENSIONS 2.2.1 Board Dimensions....................
Page 8 KINO-9652 Mini-ITX SBC ® 2.6.7 Intel ICH8ME PCIe x1 Bus................21 ® 2.6.8 Intel ICH8ME Real Time Clock ..............21 ® 2.6.9 Intel ICH8ME SATA Controller ..............21 ® 2.6.10 Intel ICH8ME Serial Peripheral Interface (SPI) BIOS ....... 22 ®...
Page 9 KINO-9652 Mini-ITX SBC 4.1 P ..............40 ERIPHERAL NTERFACE ONNECTORS 4.1.1 KINO-9652 Layout................... 40 4.1.2 Peripheral Interface Connectors ..............41 4.1.3 Rear Panel Connectors ..................42 4.2 I ..............43 NTERNAL ERIPHERAL ONNECTORS 4.2.1 Audio Connector ....................43 4.2.2 Audio CD In Connector ................... 44 4.2.3 ATX Power Connector ..................
Page 10 KINO-9652 Mini-ITX SBC 5.3.1 Socket P CPU Installation ................73 5.3.2 Cooling Kit CF-479B-RS Installation.............. 76 5.3.3 DIMM Installation ................... 78 5.4 J ....................80 UMPER ETTINGS 5.4.1 Clear CMOS Jumper..................80 5.4.2 COM 4 Function Select Jumper............... 82 5.4.3 COM Port Pin 9 Setting Jumpers ..............83 5.4.4 LVDS Voltage Selection..................
Page 11 KINO-9652 Mini-ITX SBC 6.3.2 IDE Configuration ..................105 6.3.2.1 IDE Master, IDE Slave ................107 6.3.3 Super IO Configuration...................112 6.3.4 Hardware Health Configuration..............115 6.3.5 Intel AMT Configuration .................116 6.3.6 Intel Robson Configuration................117 6.3.7 Remote Access Configuration .................118 6.3.8 Trusted Computing ..................121 6.3.9 USB Configuration..................
Page 12 KINO-9652 Mini-ITX SBC 7.7.2 Driver Installation ..................177 ® 7.8 I ....... 183 NTEL ATRIX TORAGE ANAGER RIVER NSTALLATION 7.9 I ® A ....189 NTEL CTIVE ANAGEMENT ECHNOLOGY RIVER NSTALLATION ® INTEL AMT CONFIGURATION..............195 ® 8.1 I AMT S ................
Page 13 KINO-9652 Mini-ITX SBC H.1 I ..................... 237 NTRODUCTION H.1.1 Accessing the AC’97 CODEC ............... 237 H.1.2 Driver Installation..................237 H.2 S ................238 OUND FFECT ONFIGURATION H.2.1 Accessing the Sound Effects Manager ............238 H.2.2 Sound Effect Manager Configuration Options ..........239 INDEX........................
Page 14 KINO-9652 Mini-ITX SBC List of Figures Figure 1-1: KINO-9652 Embedded SBC...............2 Figure 1-2: KINO-9652 Board Overview ..............3 Figure 2-1: KINO-9652 Dimensions (mm) ..............8 Figure 2-2: External Interface Panel Dimensions (mm)..........9 Figure 2-3: Data Flow Block Diagram................10 Figure 2-4: Front Side Bus (FSB)................12 Figure 2-5: 240-pin DDR2 DIMM Sockets ..............13...
Page 15 Figure 4-15: TPM Connector Pinout Locations............60 Figure 4-16: TV Connector Pinout Locations............61 Figure 4-17: Internal USB Connector Locations ............62 Figure 4-18: KINO-9652 External Interface Connectors ..........63 Figure 4-19: Audio Connectors..................64 Figure 4-20: VGA Connector ..................64 Figure 4-21: RJ-45 Ethernet Connector ..............65 Figure 4-22: PS/2 Pinouts...................66...
Page 16 KINO-9652 Mini-ITX SBC Figure 5-19: RJ-45 Ethernet Connector ..............95 Figure 5-20: VGA Connector ..................96 Figure 5-21: Serial Device Connector ...............97 Figure 5-22: PS/2 Keyboard/Mouse Connector............98 Figure 7-1: Introduction Screen................151 Figure 7-2: Available Drivers................... 151 Figure 7-3: Intel® Chipset Driver Directory ............152 Figure 7-4: Intel®...
Page 17 KINO-9652 Mini-ITX SBC Figure 7-29: Intel® 82573 Driver Directory Icon ............ 169 Figure 7-30: Intel® 82573 Operating System............170 Figure 7-31: Select Operating System Type ............171 Figure 7-32: Driver Directory................... 171 Figure 7-33: Intel® 82573 Driver Startup Icon ............172 Figure 7-34: Intel®...
Page 18 KINO-9652 Mini-ITX SBC Figure 7-61: IAMT Driver Directory................. 189 Figure 7-62: IAMT Driver Installation Icon ............. 190 Figure 7-63: IAMT Welcome Screen ............... 190 Figure 7-64: IAMT License Agreement..............191 Figure 7-65: IAMT Readme File................191 Figure 7-66: IAMT Setup Operations ..............192 Figure 7-67: Completed Installation ...............
Page 19 KINO-9652 Mini-ITX SBC List of Tables Table 1-1: Technical Specifications ................6 Table 2-1: Supported Intel® Core™2 Duo (Merom) Processors ......11 Table 2-2: Supported HDD Specifications ..............20 Table 2-3: Power Consumption .................31 Table 3-1: Package List Contents................36 Table 3-2: Optional Items ...................37 Table 4-1: Peripheral Interface Connectors..............42...
Page 20 KINO-9652 Mini-ITX SBC Table 4-23: External Serial Port Pinouts ..............68 Table 4-24: External USB Connector Pinouts ............68 Table 5-1: Jumpers......................80 Table 5-2: Clear CMOS Jumper Settings ..............81 Table 5-3: COM 4 Function Select Jumper Settings..........82 Table 5-4: COM 1/2 Pin 9 Setting Jumper Settings..........84 Table 5-5: COM 3/4 Pin 9 Setting Jumper Settings..........84...
Page 21 KINO-9652 Mini-ITX SBC List of BIOS Menus Menu 1: Main ....................102 Menu 2: Advanced ....................104 Menu 3: CPU Configuration ..................105 Menu 4: IDE Configuration ..................106 Menu 5: IDE Master and IDE Slave Configuration ..........108 Menu 6: Super IO Configuration ................112 Menu 7: Hardware Health Configuration ...............
Page 22: This Page Is Intentionally Left Blank
KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xxii...
Page 23: Introduction
KINO-9652 Mini-ITX SBC Chapter Introduction Page 1...
Page 24: Kino-9652 Overview
The KINO-9652 Mini-ITX form factor motherboard is a Socket P Intel® Core 2 Duo CPU platform. The KINO-9652 has a maximum front side bus (FSB) frequency of 800 MHz and comes with a VGA interface and dual PCI Express (PCIe) Gigabit Ethernet (GbE). The KINO-9652 supports up to two, second-generation serial ATA (SATA) hard disk drives (HDD) with maximum transfer rates of 3 Gbps and up to eight USB 2.0 devices.
Page 25: Kino-9652 Board Overview
KINO-9652 Mini-ITX SBC Supports HDTV-Out, 24-bit dual channels LVDS and CRT Supports Intel® Active Management Technology (AMT) 2.5 1.2 KINO-9652 Board Overview Figure 1-2: KINO-9652 Board Overview Page 3...
Page 26: Kino-9652 Connectors
2 x SATA II connectors 1 x TPM connector 1 x TV out connector 2 x USB connectors The KINO-9652 has the following connectors on the board rear panel: 2 x Audio jacks 1 x CRT connector 2 x Ethernet connectors...
Page 27: Technical Specifications
The location of these connectors on the motherboard can be seen in Figure 1-1. These connectors are fully described in Chapter 3. 1.2.2 Technical Specifications KINO-9652 technical specifications are listed in Table 1-1. Detailed descriptions of each specification can be found in Chapter 2. SPECIFICATION...
Page 28: Table 1-1: Technical Specifications
KINO-9652 Mini-ITX SBC Serial Ports Three RS-232 (DB-9 connectors) One RS-232/422/485 (14-pin header connector) Two PS/2 keyboard/mouse connectors Keyboard/Mouse One IrDA connector through the iTE IT8712F super I/O. Supports: Infrared Serial Infrared (SIR) Amplitude Shift Keyed IR (ASKIR) Extension One PCI slot...
Page 29: Detailed Specifications
KINO-9652 Mini-ITX SBC Chapter Detailed Specifications Page 7...
Page 30: Overview
KINO-9652 Mini-ITX SBC 2.1 Overview This chapter describes the specifications and on-board features of the KINO-9652 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below: Length: 170mm Width: 170mm Figure 2-1: KINO-9652 Dimensions (mm)
Page 31: External Interface Panel Dimensions
Figure 2-2: External Interface Panel Dimensions (mm) 2.3 Data Flow The KINO-9652 motherboard comes with an Intel® GM965 GMCH and an Intel® ICH8ME I/O Controller Hub. Figure 2-3 shows the data flow between the system chipset, the CPU and other components installed on the motherboard.
Page 32: Compatible Processors
Figure 2-3: Data Flow Block Diagram 2.4 Compatible Processors Table 2-1 lists the Merom core Intel® Core™2 Duo processors supported on the KINO-9652. All the processors in Table 2-1 are 65nm Socket P processors with the following features: Enhance Intel® Speedstep® Technology Enhanced deep C4 sleep state Intel®...
Page 33: Intel ® Gm965 Graphics And Memory Controller Hub
KINO-9652 Mini-ITX SBC Intel® Smart Memory Access Intel® Dual Core Technology Processor # CPU Speed FSB Speed Cache Size T5250 1.50 GHz 667 MHz 2 MB T5270 1.40 GHz 800 MHz 2 MB T5450 1.66 GHz 667 MHz 2 MB T5470 1.60 GHz...
Page 34: Intel® Gm965 Front Side Bus (Fsb) Support
2.5.3 Intel GM965 Memory Support WARNING: Only DDR2 memory module can be installed on the KINO-9652. Do not install DDR memory modules. If a DDR memory module is installed on the KINO-9652, the KINO-9652 may be irreparably damaged. Page 12...
Page 35: Figure 2-5: 240-Pin Ddr2 Dimm Sockets
The DIMM1 socket must be installed with one DDR2 DIMM to enable the KINO-9652 to boot-up properly. ® The Intel GM965 GMCH on the KINO-9652 supports two 240-pin DDR2 DIMMs with the following features: Two 240-pin DIMMs DDR2 only (DO NOT install a DDR DIMM)
Page 36: Intel ® Gm965 Integrated Graphics
KINO-9652 Mini-ITX SBC ® 2.5.4 Intel GM965 Integrated Graphics ® The Intel® GM965 GMCH has an mobile Intel Graphics Media Accelerator X3100 integrated graphics engine that supports the following display devices: Analog CRT LVDS Analog TV-Out Figure 2-6: Integrated Graphics Interfaces ®...
Page 37: Intel ® Gm965 Direct Management Interface (Dmi)
KINO-9652 Mini-ITX SBC screens TFT panel type supported Panel Fitting, Panning and Center mode supported SPWG v3.5 specification compliant ® 2.5.4.3 Intel GM965 TV Out Support An internal 6-pin header TV output connector is interfaced to the Intel® GM965 graphics engine.
Page 38: Intel ® Ich8Me I/O Controller Hub
Complies with PCI Local Bus Specification, Revision 2.3 and supports 33 MHz PCI operations Supports ACPI Power Management Logic Contains: Enhanced DMA controller Interrupt controller Timer functions Integrated SATA host controller with DMA operations interfaced to two SATA connectors on the KINO-9652 Page 16...
Page 39: Intel ® Ich8Me Hd Audio Controller
KINO-9652 Mini-ITX SBC Supports the eight USB 2.0 devices on the KINO-9652 with four UHCI controllers and one EHCI controller Complies with System Management Bus (SMBus) Specification, Version 2.0 Supports Intel® High Definition Audio Contains Low Pin Count (LPC) interface...
Page 40: Intel ® Ich8Me Ethernet Controller
KINO-9652 Mini-ITX SBC ® 2.6.3 Intel ICH8ME Ethernet Controller The Intel® ICH8ME integrated GbE controller is interfaced to an Intel® 82566MM Gigabit LAN connect device through the Gigabit LAN Connect Interface (GLCI). The GLCI is shared with the PCIe x1 port 6. The Intel® 82566MM connects the Intel® ICH8ME integrated GbE controller to an external RJ-45 Ethernet LAN connector to provide GbE access.
Page 41: Intel® 82566Mm Gigabit Lan Connect Device
KINO-9652 Mini-ITX SBC Magic Packet wake-up enable with unique MAC address. Fragmented UDP checksum off load for package reassembly. 2.6.3.1 Intel® 82566MM Gigabit LAN Connect Device One of the external RJ-45 Ethernet LAN connectors is interfaced to an Intel® 82566MM Gigabit LAN connect device.
Page 42: Intel ® Ich8Me Low Pin Count (Lpc) Interface
PCI Revision 2.3 compliant 33 MHz 5V tolerant PCI signals (except PME#) Integrated PCI arbiter supports up to seven PCI bus masters The PCI bus is interfaced to one PCI slot of the KINO-9652 and supports one expansion PCI card. Page 20...
Page 43: Intel ® Ich8Me Pcie X1 Bus
ICH8ME PCIe x1 Bus The Intel® ICH8ME GMCH has six PCIe x1 lanes. Three of the six PCIe lanes are implemented on the KINO-9652, including: One PCIe x1 lanes is interfaced to an PCIe mini card slot One PCIe x1 lanes is connected to an Intel® 82566MM GbE controller One PCIe x1 lane is connected to an Intel®...
Page 44: Intel ® Ich8Me Serial Peripheral Interface (Spi) Bios
ICH8ME USB Controller Up to eight high-speed, full-speed or low-speed USB devices are supported by the ICH8ME on the KINO-9652. High-speed USB 2.0, with data transfers of up to 480MB/s, is enabled with the ICH8ME integrated Enhanced Host Controller Interface (EHCI) compliant host controller.
Page 45: Pcie Bus Components
The ICH8ME has one PCIe x1 port reserved for a PCIe mini card. The PCIe x1 lane is interfaced to a PCIe mini card slot on the KINO-9652. The PCIe x1 mini card is then installed on the PCIe mini card slot on the KINO-9652.
Page 46: Intel® 82573L Pcie Gbe Controller
KINO-9652 Mini-ITX SBC Figure 2-13: PCIe Mini Card Slot 2.7.3 Intel® 82573L PCIe GbE Controller An RJ-45 Ethernet LAN connector is interfaced directly to an Intel® 82573L PCIe GbE controller. The Intel® 82573L PCIe GbE controller is a compact, single-port integrated physical layer (PHY) device with its own Memory Access Controller (MAC) and interfaced to the Intel®...
Page 47: Lpc Bus Components
The LPC bus is connected to components listed below: TPM connector Super I/O chipset 2.8.2 TPM Module A TPM connector on the KINO-9652 is interfaced to the Intel® ICH8ME through the LPC bus. The TPM connector is shown in Figure 2-15 below. Page 25...
Page 48: Super I/O Chipset
Winbond TPM module For more information about these modules please refer to Chapter 3 or contact the KINO-9652 reseller or vendor. Alternatively, please contact IEI at sales@iei.com.tw. 2.8.3 Super I/O chipset The iTE IT8712F Super I/O chipset is connected to the ICH8ME through the LPC bus. iTE IT8712F Super I/O chipset is shown in Figure 2-16 below.
Page 49: Figure 2-16: Ite It8712F Super I/O
KINO-9652 Mini-ITX SBC Figure 2-16: iTE IT8712F Super I/O The iTE IT8712F is an LPC interface-based Super I/O device that comes with Environment Controller integration. Some of the features of the iTE IT8712F chipset are listed below: LPC Interface PC98/99/2001, ACPI and LANDesk Compliant...
Page 50: Super I/O Lpc Interface
2.8.3.5 Super I/O GPIO Ports The Super I/O has 38 programmable GPIO pins of which 8 are implemented on the KINO-9652. The GPIO connector has 8 programmable bits, 4-bit input and 4-bit output. 2.8.3.6 Super I/O Infrared The Super I/O has dedicated infrared (IrDA) pins that are interfaced to an IrDA connector.
Page 51: Super I/O Keyboard Controller
Supports mouse double-click and/or mouse move power on events 2.8.4 Fintek F81216DG LPC Serial Port Chipset The KINO-9652 has a Fintek F81216DG chipset onboard enables the addition of two additional UART serial ports (COM3 and COM4). UART includes 16-byte send/receive FIFO.
Page 52: Operating Temperature And Temperature Control
KINO-9652 Mini-ITX SBC System temperature Eight voltage inputs on the KINO-9652 Super I/O Enhanced Hardware Monitor monitor the following voltages: CPU Core +1.8V +3.30V +5.00V +12.0V +1.05V +1.5V +1.25V VBAT The KINO-9652 Super I/O Enhanced Hardware Monitor also monitors the following fan...
Page 53: Power Consumption
KINO-9652 Mini-ITX SBC 2.9.3 Power Consumption Table 2-3 shows the power consumption parameters for the KINO-9652 running with a 2.0GHz Intel® Core™2 Duo T7300 with a 800 MHz FSB and a 533 MHz 512MB DDR2 DIMM, Voltage Current 2.5A +12V 1.65A...
Page 54 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 32...
Page 55: Unpacking
KINO-9652 Mini-ITX SBC Chapter Unpacking Page 33...
Page 56: Anti-Static Precautions
When the KINO-9652 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the KINO-9652 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.
Page 57: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the KINO-9652 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
Page 58: Optional Items
The items listed in this section are optional items that must be ordered separately. Please contact your KINO-9652 vendor, distributor or reseller for more information or, contact iEi directly by sending an email to sales@iei.com.tw. The following optional items are available for the KINO-9652. Quantity Item and Part Number Image...
Page 59: Table 3-2: Optional Items
KINO-9652 Mini-ITX SBC Quantity Item and Part Number Image (P/N: 32000-083701-RS) CPU Cooler (P/N: CF-479B-RS) 20-pin SINOSUN TPM module, S/W management tool 20-pin WINBOND TPM module, S/W management tool 20-pin INFINEON TPM module, S/W management tool Table 3-2: Optional Items...
Page 60 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 38...
Page 61: Connectors And Jumpers
KINO-9652 Mini-ITX SBC Chapter Connectors and Jumpers Page 39...
Page 62: Peripheral Interface Connectors
KINO-9652 Mini-ITX SBC 4.1 Peripheral Interface Connectors Section 4.1.1 shows peripheral interface connector locations. Section 4.1.2 lists all the peripheral interface connectors seen in Section 4.1.1. 4.1.1 KINO-9652 Layout Figure 4-1 shows the on-board peripheral connectors, backplane peripheral connectors and on-board jumpers.
Page 63: Peripheral Interface Connectors
KINO-9652 Mini-ITX SBC 4.1.2 Peripheral Interface Connectors Table 4-1 shows a list of the peripheral interface connectors on the KINO-9652. Detailed descriptions of these connectors can be found in Section 4.2. Connector Type Label Audio connector 10-pin header FRONT-PANEL1 Audio CD in connector...
Page 64: Rear Panel Connectors
USB connector (2) 8-pin header USB2 Table 4-1: Peripheral Interface Connectors 4.1.3 Rear Panel Connectors Table 4-2 lists the rear panel connectors on the KINO-9652. Detailed descriptions of these connectors can be found in Section 4.3. Connector Type Label Audio Jacks...
Page 65: Internal Peripheral Connectors
See Figure 4-2 CN Pinouts: See Table 4-3 The front panel audio connector connects the on-board sound system of the KINO-9652 to the audio line out and microphone jacks on the front of the computer chassis. Figure 4-2: Audio Connector Location PIN NO.
Page 66: Audio Cd In Connector
KINO-9652 Mini-ITX SBC 4.2.2 Audio CD In Connector CN Label: CDIN1 CN Type: 4-pin header (1x4) CN Location: See Figure 4-3 CN Pinouts: See Table 4-4 The 4-pin audio CD in connector is connected to an external audio CD device for the input and output of audio signals from a CD player to the system.
Page 67: Figure 4-4: Atx Power Connector Pinout Locations
KINO-9652 Mini-ITX SBC CN Location: See Figure 4-4 CN Pinouts: See Table 4-5 The ATX connector is connected to an external ATX power supply. Power is provided to the system, from the power supply through this connector. Figure 4-4: ATX Power Connector Pinout Locations PIN NO.
Page 68: Compactflash® Socket (Optional)
CN Type: 50-pin slot (2x25) CN Location: See Figure 4-5 CN Pinouts: See Table 4-6 A CF Type I or Type II memory card is inserted to the optional CF socket on the solder side of the KINO-9652. Page 46...
Page 69: Figure 4-5: Cf Card Socket Location
KINO-9652 Mini-ITX SBC Figure 4-5: CF Card Socket Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND VCC-IN CHECK1 DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 Page 47...
Page 70: Fan Connectors
See Figure 4-6 CN Pinouts: See Table 4-7 The cooling fan connectors on the KINO-9652 provide a 12V, 500mA current to one CPU cooling fan and one system cooling fan. There is a “sense” pin in the fan connector, which Page 48...
Page 71: Front Panel Connector
KINO-9652 Mini-ITX SBC transfers the fan’s sense signal to the system BIOS in order to recognize the fan speed. Please note that only some specific types of fans offer a rotation signal. Figure 4-6: Fan Connector Locations PIN NO. DESCRIPTION...
Page 72: Figure 4-7: Front Panel Connector Location
KINO-9652 Mini-ITX SBC The front panel connector connects to several external switches and indicators to monitor and control the motherboard. These indicators and switches include: Power Power button Reset button Speaker Figure 4-7: Front Panel Connector Location FUNCTION DESCRIPTION FUNCTION...
Page 73: Digital Input/Output Connector
See Table 4-9 The DIO connector is managed through a Super I/O chip. The DIO connector pins are user programmable. The digital IO port of KINO-9652 is 5V CMOS level. Figure 4-8: GPIO Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION...
Page 74: Ide Connector
See Figure 4-9 CN Pinouts: See Table 4-10 One primary 40-pin IDE device connector on the KINO-9652 motherboard supports connectivity to ATA 100/66/33 IDE devices with data transfer rates up to 100MB/s. Figure 4-9: IDE Device Connector Location Page 52...
Page 75: Infrared Interface Connector
KINO-9652 Mini-ITX SBC PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0...
Page 76: Lcd Backlight Connector
KINO-9652 Mini-ITX SBC Figure 4-10: Infrared Connector Pinout Locations PIN NO. DESCRIPTION IR-RX IR-TX Table 4-11: Infrared Connector Pinouts 4.2.10 LCD Backlight Connector CN Label: INVERTER1 5-pin wafer connector (1x5) CN Type: CN Location: See Figure 4-11 CN Pinouts: See Table 4-12 The LCD backlight connector is for the LCD inverter connection.
Page 77: Lvds Lcd Connector
KINO-9652 Mini-ITX SBC Figure 4-11: LCD Backlight Connector Location PIN NO. DESCRIPTION BRIGHTNESS GND1 GND2 BL_EN Table 4-12: LCD Backlight Connector Pinouts 4.2.11 LVDS LCD connector CN Label: LVDS1 CN Type: 30-pin crimp connector (2x15) CN Location: See Figure 4-12...
Page 78: Figure 4-12: Lvds Lcd Connector Location
KINO-9652 Mini-ITX SBC Figure 4-12: LVDS LCD Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDS data0 output + LVDS data0 output - LVDS data1 output + LVDS data1 output - LVDS data2 output + LVDS data2 output - LVDS clock output +...
Page 79: Sata Drive Connectors
KINO-9652 Mini-ITX SBC PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDS data3 output + LVDS data3 output - +LCD (3.3V or 5V) +LCD (3.3V or 5V) +LCD (3.3V or 5V) +LCD (3.3V or 5V) Table 4-13: LVDS LCD Connector Pinouts 4.2.12 SATA Drive Connectors...
Page 80: Serial Port Connector
KINO-9652 Mini-ITX SBC Table 4-14: SATA Drive Connector Pinouts 4.2.13 Serial Port Connector CN Label: COM1 CN Type: 14-pin header (2x7) CN Location: See Figure 4-14 CN Pinouts: See Table 4-15 The serial ports connectors connect to RS-232/422/485 serial port device.
Page 81: Trusted Platform Module (Tpm) Connector
KINO-9652 Mini-ITX SBC RXD 485+ RXD 485# Table 4-15: COM1 Pinouts 4.2.14 Trusted Platform Module (TPM) Connector CN Label: TPM1 CN Type: 20-pin header (2x10) CN Location: See Figure 4-15 CN Pinouts: See Table 4-16 The Trusted Platform Module (TPM) connector secures the system on bootup.
Page 82: Tv Out Connector
KINO-9652 Mini-ITX SBC Figure 4-15: TPM Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION FWHPCLK LFRAME# PCIRST# LAD3 LAD2 VCC3 LAD1 LAD0 SMBCLK SMBDATA 3VDUAL SERIRQ CLKRUN# LPCPD# LDRQ# Table 4-16: TPM Connector Pinouts 4.2.15 TV Out Connector CN Label:...
Page 83: Figure 4-16: Tv Connector Pinout Locations
KINO-9652 Mini-ITX SBC The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA connector. The TV out connector makes displaying media data on a television easier. Figure 4-16: TV Connector Pinout Locations S-Video Connector PIN NO.
Page 84: Internal Usb Connectors
KINO-9652 Mini-ITX SBC 4.2.16 Internal USB Connectors CN Label: USB1 and USB2 8-pin header (2x4) CN Type: CN Location: See Figure 4-17 CN Pinouts: See Table 4-18 One 2x4 pin connector provides connectivity to two USB 2.0 ports. The USB ports are used for I/O bus expansion.
Page 85: External Interface Connectors
4.3 External Interface Connectors The peripheral connectors on the back panel are connected to devices externally when the KINO-9652 is installed in a chassis. The peripheral connectors on the rear panel are: 2 x Audio jacks 1 x CRT connector...
Page 86: Crt Connector
KINO-9652 Mini-ITX SBC Figure 4-19: Audio Connectors 4.3.2 CRT Connector CN Label: VGA1_COM1 CN Type: 15-pin female connector CN Location: See Figure 4-18 CN Pinouts: See Table 4-19 and Figure 4-20 The standard 15-pin VGA connector connects to a CRT or LCD display monitor.
Page 87: Ethernet Connectors
CN Pinouts: See Table 4-20 The KINO-9652 is equipped with two built-in GbE Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following...
Page 88: Keyboard/Mouse Connector
Table 4-21: RJ-45 Ethernet Connector LEDs 4.3.4 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: PS/2 connector CN Location: See Figure 4-18 CN Pinouts: See Table 4-22 The KINO-9652 keyboard and mouse connectors are standard PS/2 connectors. Figure 4-22: PS/2 Pinouts Page 66...
Page 89: Serial Port Connectors
KINO-9652 Mini-ITX SBC DESCRIPTION DESCRIPTION L_KDAT L_MDAT L_KCLK L_MCLK Table 4-22: PS/2 Connector Pinouts 4.3.5 Serial Port Connectors CN Label: VGA1_COM1 and COM_C1 CN Type: DB-9 CN Location: See Figure 4-18 CN Pinouts: See Table 4-23 The serial ports can be connected to a serial communications device directly.
Page 90: Usb Connector
KINO-9652 Mini-ITX SBC GROUND (GND) DATA SET READY (DSR) REQUEST TO SEND (RTS) CLEAR TO SEND (CTS) RING INDICATOR (RI) Table 4-23: External Serial Port Pinouts 4.3.6 USB Connector CN Label: LAN1_USB1 and LAN2_USB2 CN Type: USB port CN Location:...
Page 91: Installation
KINO-9652 Mini-ITX SBC Chapter Installation Page 69...
Page 92: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-9652. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-9652, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Page 93: Installation Considerations
KINO-9652 is installed. All installation notices pertaining to the installation of the KINO-9652 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the KINO-9652 and injury to the person installing the motherboard. 5.2.1 Installation Notices...
Page 94: Installation Checklist
KINO-9652 Mini-ITX SBC When working with the KINO-9652, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the KINO-9652 DO NOT: Remove any of the stickers on the PCB board. These stickers are required for warranty validation.
Page 95: Cpu, Cpu Cooling Kit And Dimm Installation
Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the KINO-9652. If one of these component is not installed the KINO-9652 cannot run.
Page 96: Figure 5-1: Make Sure The Cpu Socket Retention Screw Is Unlocked
KINO-9652 Mini-ITX SBC CPU socket should be in the unlocked position. If it is not in the unlocked position, use a screwdriver to unlock the screw. See Figure 5-1. Figure 5-1: Make sure the CPU socket retention screw is unlocked Step 2: Inspect the CPU socket.
Page 97: Figure 5-2: Lock The Cpu Socket Retention Screw
KINO-9652 Mini-ITX SBC Figure 5-2: Lock the CPU Socket Retention Screw Page 75...
Page 98: Cooling Kit Cf-479B-Rs Installation
KINO-9652 Mini-ITX SBC 5.3.2 Cooling Kit CF-479B-RS Installation Figure 5-3: IEI CF-479B-RS Cooling Kit An IEI Socket P CPU cooling kit can be purchased separately. The cooling kit comprises a CPU heat sink and a cooling fan. WARNING: Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the CF-479B-RS heat sink.
Page 99: Figure 5-4: Cooling Kit Support Bracket
KINO-9652 Mini-ITX SBC Figure 5-4: Cooling Kit Support Bracket Step 4: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each nut a few turns at a time and do not over-tighten the screws. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the motherboard.
Page 100: Dimm Installation
KINO-9652 Mini-ITX SBC 5.3.3 DIMM Installation WARNING: Only DDR2 memory module can be installed on the KINO-9652. Do not install DDR memory modules. If a DDR memory module is installed on the KINO-9652, the KINO-9652 may be irreparably damaged. Please make sure the purchased DIMM complies with the memory specifications of the KINO-9652.
Page 101: Figure 5-6: Installing A Dimm
KINO-9652 Mini-ITX SBC Figure 5-6: Installing a DIMM Step 1: Open the DIMM socket handles. The DIMM socket has two handles that secure the DIMM into the socket. Before the DIMM can be inserted into the socket, the handles must be opened. See Figure 5-6.
Page 102: Jumper Settings
OPEN a jumper means removing the Figure 5-7: Jumper Locations plastic clip from a jumper. Before the KINO-9652 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the KINO-9652 are listed in Table 5-1. Description...
Page 103: Table 5-2: Clear Cmos Jumper Settings
Jumper Location: See Figure 5-8 If the KINO-9652 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
Page 104: Com 4 Function Select Jumper
KINO-9652 Mini-ITX SBC Figure 5-8: Clear CMOS Jumper 5.4.2 COM 4 Function Select Jumper Jumper Label: Jumper Type: 6-pin header Jumper Settings: See Table 5-3 Jumper Location: See Figure 5-9 The COM 4 Function Select jumper sets the communication protocol used by the second serial communications port (COM 4) as RS-232, RS-422 or RS-485.
Page 105: Com Port Pin 9 Setting Jumpers
KINO-9652 Mini-ITX SBC The COM 4 Function Select jumper location is shown in Table 5-3. Figure 5-9: COM 4 Function Select Jumper Location 5.4.3 COM Port Pin 9 Setting Jumpers Jumper Label: JP1 and JP2 Jumper Type: 10-pin header Jumper Settings:...
Page 106: Figure 5-10: Com Port Pin 9 Setting Jumper Locations
KINO-9652 Mini-ITX SBC Short 7 – 9 COM 1 RI Pin use RI Default Short 2 – 4 COM 2 RI Pin use +12V Short 4 – 6 COM 2 RI Pin use +5V Short 6 – 8 COM 2 RI Pin use +5V Short 8 –...
Page 107: Lvds Voltage Selection
KINO-9652 Mini-ITX SBC 5.4.4 LVDS Voltage Selection WARNING: Permanent damage to the screen and KINO-9652 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.
Page 108: Lvds Panel Resolution Selection
KINO-9652 Mini-ITX SBC Figure 5-11: LVDS Voltage Selection Jumper Pinout Locations 5.4.5 LVDS Panel Resolution Selection Jumper Label: Jumper Type: 8-pin header Jumper Settings: See Table 5-7 Jumper Location: See Figure 5-12 The LVDS Panel Resolution Selection jumper allows the LVDS screen resolution to be set.
Page 109: Chassis Installation
The KINO-9652 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply...
Page 110: Motherboard Installation
IEI website (http://www.ieiworld.com.tw) to find out more about the available chassis. 5.5.2 Motherboard Installation To install the KINO-9652 motherboard into the chassis, please refer to the reference material that came with the chassis. 5.6 Internal Peripheral Device Connections 5.6.1 Peripheral Device Cables...
Page 111: Ide Cable Connection
KINO-9652 Mini-ITX SBC HDTV/TV cable with Component output 5.6.2 IDE Cable Connection The IDE flat cable connects to the KINO-9652 to one or two IDE devices. To connect an IDE HDD to the KINO-9652, please follow the instructions below. Step 1: Locate the IDE connector.
Page 112: Dual Rs-232 Cable Connection
KINO-9652 Mini-ITX SBC 5.6.3 Dual RS-232 Cable Connection The dual RS-232 cable consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9-pin male connector. To install the dual RS-232 cable, please follow the steps below.
Page 113: Figure 5-15: Sata Drive Cable Connection
KINO-9652 Mini-ITX SBC The KINO-9652 is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3.
Page 114: Usb Cable (Dual Port) With Slot Bracket
Align the connectors. The cable has two connectors. Correctly align pin 1on each cable connector with pin 1 on the KINO-9652 USB connector. Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the KINO-9652, connect the cable connectors to the Page 92...
Page 115: External Peripheral Interface Connection
KINO-9652 Mini-ITX SBC onboard connectors. See Figure 5-17. Figure 5-17: Dual USB Cable Connection Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a bracket. To secure the bracket to the chassis please refer to the installation instructions that came with the chassis.Step 0:...
Page 116: Audio Connection
Figure 5-18: Audio Connectors 5.7.2 RJ-45 Ethernet and USB Connection The KINO-9652 has two RJ-45 Ethernet and USB combo connectors on the external peripheral interface panel for LAN communications and USB device. Follow the steps below to connect an RJ-45 Ethernet and USB connectors to the KINO-9652.
Page 117: Vga Monitor Connection
Figure 5-19: RJ-45 Ethernet Connector 5.7.3 VGA Monitor Connection The KINO-9652 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the KINO-9652, please follow the instructions below.
Page 118: Serial Device Connection
5.7.4 Serial Device Connection The KINO-9652 has one female DB-9 connector on the external peripheral interface panel for serial devices. Follow the steps below to connect a serial device to the KINO-9652. Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in Chapter 3.
Page 119: Ps/2 Keyboard/Mouse Connection
Step 0: 5.7.5 PS/2 Keyboard/Mouse Connection The KINO-9652 has a dual PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow the steps below to connect a keyboard and mouse to the KINO-9652.
Page 120: Figure 5-22: Ps/2 Keyboard/Mouse Connector
KINO-9652 Mini-ITX SBC Figure 5-22: PS/2 Keyboard/Mouse Connector Page 98...
Page 121: Ami Bios
KINO-9652 Mini-ITX SBC Chapter AMI BIOS Page 99...
Page 122: Introduction
KINO-9652 Mini-ITX SBC 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.
Page 123: Getting Help
KINO-9652 Mini-ITX SBC F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...
Page 124: Main
KINO-9652 Mini-ITX SBC 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.
Page 125: Advanced
KINO-9652 Mini-ITX SBC Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
Page 126: Cpu Configuration
KINO-9652 Mini-ITX SBC USB Configuration (see Section 6.3.9) Power Configuration (see Section 6.3.10) BIOS Menu 2: Advanced 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Page 104...
Page 127: Ide Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used Frequency: Lists the CPU processing speed...
Page 128: Menu 4: Ide Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Compatible] Use the ATA/IDE Configurations option to configure the ATA/IDE controller. Disables the on-board ATA/IDE controller. Disabled Compatible Configures the on-board ATA/IDE controller to be in EFAULT compatible mode. In this mode, a SATA channel will replace one of the IDE channels.
Page 129: Ide Master, Ide Slave
KINO-9652 Mini-ITX SBC Legacy IDE Channels [SATA Pri, PATA Sec] SATA Only SATA Pri., PATA Sec EFAULT PATA Only IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices. The following IDE devices are detected and are...
Page 130: Menu 5: Ide Master And Ide Slave Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 5: IDE Master and IDE Slave Configuration Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.
Page 131 KINO-9652 Mini-ITX SBC IDE disk drives on the specified channel. ARMD This option specifies an ATAPI Removable Media Device. These include, but are not limited to: LS-120 LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing).
Page 132 KINO-9652 Mini-ITX SBC PIO Mode [Auto] Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases.
Page 133 KINO-9652 Mini-ITX SBC MWDMA0 Multi Word DMA mode 0 selected with a maximum data transfer rate of 4.2MBps Multi Word DMA mode 1 selected with a maximum data MWDMA1 transfer rate of 13.3MBps MWDMA2 Multi Word DMA mode 2 selected with a maximum data transfer rate of 16.6MBps...
Page 134: Super Io Configuration
KINO-9652 Mini-ITX SBC Auto BIOS auto detects HDD SMART support. EFAULT Disabled Prevents BIOS from using the HDD SMART feature. Enabled Allows BIOS to use the HDD SMART feature 32Bit Data Transfer [Enabled] Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.
Page 135 KINO-9652 Mini-ITX SBC Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address. Disabled No base address is assigned to Serial Port 1 3F8/IRQ4 Serial Port 1 I/O port address is 3F8 and the interrupt...
Page 136 KINO-9652 Mini-ITX SBC 2E8/IRQ3 Serial Port 2 I/O port address is 2E8 and the interrupt address is IRQ3 Serial Port2 Mode [Normal] Use the Serial Port2 Mode option to select the Serial Port2 operational mode. Normal Serial Port 2 mode is normal...
Page 137: Hardware Health Configuration
KINO-9652 Mini-ITX SBC Serial port 4 I/O port address is 3F8 Serial port 4 I/O port address is 2F8 Serial port 4 I/O port address is 3E8 Serial port 4 I/O port address is 2E8 EFAULT Serial Port4 IRQ [10] Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
Page 138: Intel Amt Configuration
KINO-9652 Mini-ITX SBC The following system parameters and values are shown. The system parameters that are monitored are: System Temperatures: The following system temperatures are monitored CPU Temperature PWM Temperature System Temperature Fan Speeds: The CPU cooling fan speed is monitored.
Page 139: Intel Robson Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 8: Intel AMT Configuration Intel AMT Support [Disabled] Use the Intel AMT Support option to enable or disable the Intel AMT support. The Intel® AMT function is disabled. Disabled EFAULT Enabled The Intel® AMT function is enabled.
Page 140: Remote Access Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 9: Intel Robson Configuration Intel Robson [Disabled] Use the Intel Robson BIOS option to enable or disable the Intel® Robson Technology feature. Intel® Robson, Intel® Turbo Memory, is a technology introduced by Intel® to boost a computer startup process.
Page 141: Menu 10: Remote Access Configuration [Advanced]
KINO-9652 Mini-ITX SBC BIOS Menu 10: Remote Access Configuration [Advanced] Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Disabled Remote access is disabled. EFAULT Enabled Remote access configuration options shown below...
Page 142 KINO-9652 Mini-ITX SBC These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows users to select the serial port used for remote access. COM1 System is remotely accessed through COM1 EFAULT COM2 System is remotely accessed through COM2...
Page 143: Trusted Computing
KINO-9652 Mini-ITX SBC NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.
Page 144: Usb Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 11: Trusted Computing TCG/TPM Support [No] Use the TCG/TPM Support option to configure support for the TPM. TPM support is disabled. EFAULT TPM support is enabled. Clearing the TPM [Press Enter] Use the Clearing the TPM option to clear the information stored in the TPM.
Page 145: Menu 12: Usb Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 12: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xxxxx.xxxxx USB Devices Enabled The USB Devices Enabled field lists the USB devices that are enabled on the system USB Function [Enabled] Use the USB Function BIOS option to enable or disable the USB function.
Page 146 KINO-9652 Mini-ITX SBC Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.
Page 147: Usb Mass Storage Device Configuration
KINO-9652 Mini-ITX SBC 6.3.9.1 USB Mass Storage Device Configuration Use the USB Mass Storage Device Configuration menu (BIOS Menu 13) to configure USB mass storage class devices. BIOS Menu 13: USB Mass Storage Device Configuration USB Mass Storage Reset Delay [20 Sec] Use the USB Mass Storage Reset Delay option to set the number of seconds POST waits for the USB mass storage device after the start unit command.
Page 148 KINO-9652 Mini-ITX SBC device after the start unit command. 40 Sec POST waits 40 seconds for the USB mass storage device after the start unit command. Device ## The Device## field lists the USB devices that are connected to the system.
Page 149: Power Configuration
KINO-9652 Mini-ITX SBC floppy image. This option works only for drives formatted with FAT12, FAT16 or FAT32. Hard Disk Allows the USB device to be emulated as hard disk responding to INT13h calls that return DL values of 80h or above.
Page 150: Acpi Configuration
KINO-9652 Mini-ITX SBC 6.3.10.1 ACPI Configuration The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration and Power Interface (ACPI) option. BIOS Menu 15: ACPI Configuration [Advanced\ Power Configuration] Suspend Mode [S1(POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used.
Page 151: Apm Configuration
KINO-9652 Mini-ITX SBC 6.3.11 APM Configuration The APM Configuration menu (BIOS Menu 9) allows the advanced power management options to be configured. BIOS Menu 16:Advanced Power Management Configuration Power Button Mode [On/Off] Use the Power Button Mode BIOS to specify how the power button functions.
Page 152 KINO-9652 Mini-ITX SBC Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. Power Off...
Page 153: Pci/Pnp
KINO-9652 Mini-ITX SBC Disabled The real time clock (RTC) cannot generate a wake EFAULT event If selected, the following appears with values that Enabled can be selected: RTC Alarm Date (Days) RTC Alarm Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.
Page 154: Menu 17: Pci/Pnp Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 17: PCI/PnP Configuration IRQ# Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. Available The specified IRQ is available to be used by PCI/PnP devices Reserved The specified IRQ is reserved for use by Legacy ISA...
Page 155 KINO-9652 Mini-ITX SBC IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. Available The specified DMA is available to be used by...
Page 156: Boot
KINO-9652 Mini-ITX SBC 54KB reserved for legacy ISA devices 6.5 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options. BIOS Menu 18: Boot 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 19) to configure advanced system boot options.
Page 157: Menu 19: Boot Settings Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 19: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Enabled Some POST procedures are skipped to decrease...
Page 158 KINO-9652 Mini-ITX SBC AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. Force BIOS The system forces third party BIOS to display EFAULT during system boot.
Page 159: Boot Device Priority
KINO-9652 Mini-ITX SBC Intel® 82573L PCIe GbE controller Enabled Can be booted from a remote system through the Intel® 82573L PCIe GbE controller 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 20) to specify the boot sequence from the available devices.
Page 160 KINO-9652 Mini-ITX SBC Use the Removable Drives menu (BIOS Menu 21) to specify the boot sequence of the available USB devices. When the menu is opened, the USB devices connected to the system are listed as shown below: 1st Drive...
Page 161: Security
KINO-9652 Mini-ITX SBC BIOS Menu 21: Removable Drives 6.6 Security Use the Security menu (BIOS Menu 22) to set system and user passwords. BIOS Menu 22: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.
Page 162: Chipset
KINO-9652 Mini-ITX SBC password. After the password has been added, Install appears next to Change User Password. Clear User Password Use the Clear User Password to clear a user’s password. The default for this option is Not Installed. If a user password must be cleared, use this option.
Page 163: Menu 23:Northbridge Chipset Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 23:Northbridge Chipset Configuration Memory Remap Feature [Enabled] Use the Memory Remap Feature option to allow the overlapped PCI memory above the total physical memory to be remapped. Enabled Overlapped PCI memory can be remapped EFAULT...
Page 164: Video Function Configuration
KINO-9652 Mini-ITX SBC 15MB – 16MB Between 15MB and 16MB of memory is reserved for ISA expansion cards Boots Graphics Adapter Priority [IGD] Use the Boots Graphics Adapter Priority option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD.
Page 165: Southbridge Configuration
KINO-9652 Mini-ITX SBC Flat Panel Type [1024x768 18b] Use the Flat Panel Type option to select the type of flat panel connected to the system. Configuration options are listed below. 640x480 18b 800x600 18b 1024x768 18b 1024x768 24b 1280x1024 48b...
Page 166: Menu 24:Southbridge Chipset Configuration
KINO-9652 Mini-ITX SBC BIOS Menu 24:Southbridge Chipset Configuration HDA Controller [Enabled] Use the HDA Controller option to enable the Southbridge high definition audio controller. If the HDA device has been connected to the system, this option should be enabled. Disabled...
Page 167: Me Subsystem Configuration
KINO-9652 Mini-ITX SBC Enabled The Alert Standard Format (ASF) controller is activated EFAULT and can communicate with a remote management server. 6.7.3 ME Subsystem Configuration The ME Subsystem Configuration menu (BIOS Menu 24) allows the AMT subsystem (Management Engine, ME) and Host Embedded Controller Interface (HECI) driver options to be configured.
Page 168 KINO-9652 Mini-ITX SBC system. Enabled The HECI message is enabled when booting up the EFAULT system. HECI Message [Enabled] Use the HECI Message BIOS option to enable or disable HECI message. The HECI message disabled. Disabled Enabled The HECI message enabled.
Page 169: Exit
KINO-9652 Mini-ITX SBC ME-KT [Disabled] Use the ME-KT option to enable or disable the Keyboard and Text redirection (KT) function on an AMT-capable system. KT is also known as Serial-Over-Lan (SOL). Disabled The KT function of the ME is disabled.
Page 170 KINO-9652 Mini-ITX SBC Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system.
Page 171: Software Drivers
KINO-9652 Mini-ITX SBC Chapter Software Drivers Page 149...
Page 172: Available Software Drivers
Intel® Active Management Technology (AMT) driver Installation instructions are given below. 7.2 Driver CD Auto-run All the drivers for the KINO-9652 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.
Page 173: Figure 7-1: Introduction Screen
KINO-9652 Mini-ITX SBC Step 2: The driver main menu appears (Figure 7-1). Figure 7-1: Introduction Screen Step 3: Click KINO-9652. Step 4: A new screen with a list of available drivers appears (Figure 7-2). Figure 7-2: Available Drivers Step 5: Select the driver to install from the list in Figure 7-2.
Page 174: Intel® Chipset Driver
KINO-9652 Mini-ITX SBC 7.3 Intel® Chipset Driver To install the Intel® chipset driver, please follow the steps below. Step 1: Select KINO-9652 from the list in Figure 7-1. Step 2: Select INF from the list in Figure 7-2. Step 3: The window shown in Figure 7-3 appears.
Page 175: Figure 7-4: Intel® Chipset Driver Setup Icon
KINO-9652 Mini-ITX SBC Figure 7-4: Intel® Chipset Driver Setup Icon Step 6: Click on the infinst_autol setup icon in Figure 7-4. Step 7: The Intel® Package Manager begins to extract the installation files. See Figure 7-5. Page 153...
Page 176: Figure 7-5: Intel® Package Manager
KINO-9652 Mini-ITX SBC Figure 7-5: Intel® Package Manager Step 8: The Intel® Setup Welcome screen. See Figure 7-6. Figure 7-6: Intel® Setup Welcome Screen Step 9: Click N to continue. Step 10: The Intel® license agreement in appears. Page 154...
Page 177: Figure 7-7: Intel® Chipset Driver License Agreement
KINO-9652 Mini-ITX SBC Figure 7-7: Intel® Chipset Driver License Agreement Step 11: Accept the terms and conditions by clicking Y Step 12: The Readme file in Figure 7-8 appears. Figure 7-8: Readme File Step 13: Click N to continue. Page 155...
Page 178: Intel® Graphics Media Accelerator Driver
KINO-9652 Mini-ITX SBC Step 14: The driver is then installed. Step 15: When the installation process is complete, the Setup Complete screen appears. See Figure 7-9. Figure 7-9: Intel® Chipset Driver Complete Installation Screen Step 16: To complete the chipset driver installation, click F...
Page 179: Figure 7-10: Select The Operating System
KINO-9652 Mini-ITX SBC Figure 7-10: Select the Operating System Step 3: Select the operating system from those shown in Figure 7-10. Step 4: A new window appears. See Figure 7-11. Figure 7-11: Intel® Driver Directory Page 157...
Page 180: Figure 7-12: Intel® Vga Driver Setup Icon
KINO-9652 Mini-ITX SBC Step 5: Click the directory icon in Figure 7-11. Step 6: A new window appears. See Figure 7-12. Figure 7-12: Intel® VGA Driver Setup Icon Step 7: Click on the VGA driver installation icon in See Figure 7-12.
Page 181: Figure 7-13: Gma Driver Readme File
KINO-9652 Mini-ITX SBC Figure 7-13: GMA Driver Readme File Step 9: Click N to extract the GMA driver files. See Figure 7-14. Figure 7-14: GMA Driver File Extraction Step 10: The welcome screen shown in Figure 7-15 appears. Page 159...
Page 182: Figure 7-15: Gma Driver Installation Welcome Screen
KINO-9652 Mini-ITX SBC Figure 7-15: GMA Driver Installation Welcome Screen Step 11: To continue the installation process, click N Step 12: The license agreement in Figure 7-16 appears. Figure 7-16: GMA Driver License Agreement Step 13: Click the Y in Figure 7-16 to continue.
Page 183: Intel® 82566 Gigabit Lan Connect Device Driver
KINO-9652 Mini-ITX SBC Step 14: The installation notice shown in Figure 7-17 appears. Figure 7-17: GMA Driver Installing Notice Step 15: A confirmation screen shown in Figure 7-18 appears. Figure 7-18: GMA Driver Installation Complete Step 16: After selecting when to restart the computer in Figure 7-18, click F...
Page 184: Figure 7-19: Intel® 82566 Driver Directory Icon
KINO-9652 Mini-ITX SBC Figure 7-19: Intel® 82566 Driver Directory Icon Step 3: Click on the Intel® 82566DM, MM directory icon in Figure 7-19. Step 4: The window in Figure 7-20 appears. Page 162...
Page 185: Figure 7-20: Intel® 82566 Operating System
KINO-9652 Mini-ITX SBC Figure 7-20: Intel® 82566 Operating System Step 5: Select the Operating System in Figure 7-20. Step 6: The window in Figure 7-21appears. Step 7: In Figure 7-21 select the operating system type installed on the system. Page 163...
Page 186: Figure 7-21: Select Operating System Type
KINO-9652 Mini-ITX SBC Figure 7-21: Select Operating System Type Step 8: The window in Figure 7-22 appears. Figure 7-22: Driver Directory Step 9: Click on the directory icon in Figure 7-22. Page 164...
Page 187: Figure 7-23: Intel® 82566 Device Driver Startup Icon
KINO-9652 Mini-ITX SBC Step 10: A window containing the Intel® 82566 driver startup icon appears. See Figure 7-23. Figure 7-23: Intel® 82566 Device Driver Startup Icon Step 11: Double click the Intel® 82566 driver startup icon in Figure 7-23. Step 12: The driver begins to extract the installation files.
Page 188: Figure 7-24: Intel® 82566 Welcome Screen
KINO-9652 Mini-ITX SBC Figure 7-24: Intel® 82566 Welcome Screen Step 15: The license agreement in Figure 7-25 appears. Figure 7-25: Intel® 82566 Driver License Agreement Step 16: Accept the conditions of the license agreement and click N to continue. Step 17: The Setup Options screen in Figure 7-26 appears next.
Page 189: Figure 7-26: Intel® 82566 Driver Setup Options
KINO-9652 Mini-ITX SBC Figure 7-26: Intel® 82566 Driver Setup Options Step 18: Select the required installation configuration in Figure 7-26 and click N continue. Step 19: The Ready to Install the Program window in Figure 7-27 appears. Figure 7-27: Intel® 82566 Driver Installation Ready Window...
Page 190: Intel® 82573 Pci Express Gigabit Ethernet Controller Driver
KINO-9652 Mini-ITX SBC Figure 7-28: Intel® 82566 Driver Installation Progress Step 22: When the installation is finished. Click F in the termination screen. Step 0: INISH 7.6 Intel® 82573 PCI Express Gigabit Ethernet Controller Driver To install the Intel® 82573 PCIe GbE controller, please follow the steps below.
Page 191: Figure 7-29: Intel® 82573 Driver Directory Icon
KINO-9652 Mini-ITX SBC Figure 7-29: Intel® 82573 Driver Directory Icon Step 3: Click on the Intel® 82573L directory icon in Figure 7-29. Step 4: The window in Figure 7-30 appears. Page 169...
Page 192: Figure 7-30: Intel® 82573 Operating System
KINO-9652 Mini-ITX SBC Figure 7-30: Intel® 82573 Operating System Step 5: Select the Operating System in Figure 7-30. Step 6: The window in Figure 7-31 appears. Step 7: In Figure 7-31 select the operating system type installed on the system.
Page 193: Figure 7-31: Select Operating System Type
KINO-9652 Mini-ITX SBC Figure 7-31: Select Operating System Type Step 8: The window in Figure 7-32 appears. Figure 7-32: Driver Directory Step 9: Click on the directory icon in Figure 7-22. Page 171...
Page 194: Figure 7-33: Intel® 82573 Driver Startup Icon
KINO-9652 Mini-ITX SBC Step 10: A window containing the Intel® 82573 driver startup icon appears. See Figure 7-32. Figure 7-33: Intel® 82573 Driver Startup Icon Step 11: Click the startup icon in Figure 7-33. Step 12: The License Agreement for the Intel® 82573 appears. See Figure 7-34.
Page 195: Figure 7-34: Intel® 82573 License Agreement
KINO-9652 Mini-ITX SBC Figure 7-34: Intel® 82573 License Agreement Step 13: Accept the license terms and agreements in and click N to continue. Step 14: Next, select the directory in which the files must be saved. See Figure 7-35. Figure 7-35: Intel® 82573 File Location Select...
Page 196: Figure 7-36: Intel® 82573 Installation Files Extraction
KINO-9652 Mini-ITX SBC Step 16: The driver begins to extract the installation files. See Figure 7-36. Figure 7-36: Intel® 82573 Installation Files Extraction Step 17: The Intel® PRO Network Connections window appears. See Figure 7-37. Figure 7-37: Intel® PRO Network Connections window...
Page 197: Figure 7-38: Intel® Pro Network Connections Welcome
KINO-9652 Mini-ITX SBC Step 19: The Intel® PRO Network Connections Welcome screen in Figure 7-38 appears. Figure 7-38: Intel® PRO Network Connections Welcome Step 20: Click N to continue. Step 21: A new License Agreement appears. See Figure 7-39. Figure 7-39: License Agreement...
Page 198: Figure 7-40: Setup Type
KINO-9652 Mini-ITX SBC Step 23: The Setup Type window in Figure 7-40 appears. Figure 7-40: Setup Type Step 24: Select the setup type in Figure 7-40 and click N to continue. Step 25: The drivers are installed. See Figure 7-41.
Page 199: Realtek Hd Audio Driver (Alc883) Installation
KINO-9652 Mini-ITX SBC 7.7 Realtek HD Audio Driver (ALC883) Installation To install the Realtek High Definition (HD) Audio driver, please follow the steps below. NOTE: This driver only needs to be installed if an external audio kit with a RealTek ALC883 codec is installed.
Page 200: Figure 7-42: Select The Audio Codec
KINO-9652 Mini-ITX SBC Figure 7-42: Select the Audio CODEC Step 3: Double-click the ALC883 folder. Step 4: Double-click the appropriate operating system folder (Figure 7-43). Page 178...
Page 201: Figure 7-43: Select The Os
KINO-9652 Mini-ITX SBC Figure 7-43: Select the OS Step 5: Double-click the appropriate operating system version folder (Figure 7-44). Figure 7-44: Select the OS Version Step 6: Double-click the Setup.exe program icon in Figure 7-45. Page 179...
Page 202: Figure 7-45: Locate The Setup Program Icon
KINO-9652 Mini-ITX SBC Figure 7-45: Locate the Setup Program Icon Step 7: The InstallShield Wizard starts (Figure 7-46). Figure 7-46: The InstallShield Wizard Starts Step 8: The InstallShield Wizard is prepared to guide the user through the rest of the process (Figure 7-47).
Page 203: Figure 7-47: Preparing Setup Screen
KINO-9652 Mini-ITX SBC Figure 7-47: Preparing Setup Screen Step 9: Once initialized, the InstallShield Wizard welcome screen appears (Figure 7-48). Figure 7-48: InstallShield Wizard Welcome Screen Step 10: Click N to continue the installation. Step 11: InstallShield starts to install the new software as shown in Figure 7-49.
Page 204: Figure 7-49: Audio Driver Software Configuration
KINO-9652 Mini-ITX SBC Figure 7-49: Audio Driver Software Configuration Step 12: The Installation Wizard updates the system as shown in Figure 7-50. Figure 7-50: Installation Wizard Updates the System Step 13: After the driver installation process is complete, a confirmation screen appears (Figure 7-51).
Page 205: Intel ® Matrix Storage Manager Driver Installation
KINO-9652 Mini-ITX SBC Figure 7-51: Restart the Computer Step 14: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer.
Page 206: Figure 7-52: Sata Raid Driver Installation Program
KINO-9652 Mini-ITX SBC Figure 7-52: SATA RAID Driver Installation Program Step 3: Double-click the INTEL® folder. Step 4: Double-click the iata62_cd.exe program icon in Figure 7-53. Page 184...
Page 207: Figure 7-53: Sata Raid Setup Program Icon
KINO-9652 Mini-ITX SBC Figure 7-53: SATA RAID Setup Program Icon Step 5: Figure 7-54 shows the InstallShield Wizard preparing to guide the user through the rest of the process. Figure 7-54: InstallShield Wizard Setup Screen Page 185...
Page 208: Figure 7-55: Matrix Storage Manager Setup Screen
KINO-9652 Mini-ITX SBC Step 6: Figure 7-55 shows the Matrix Storage Manager software configuring the installation process. Figure 7-55: Matrix Storage Manager Setup Screen Step 7: Figure 7-56 shows the Matrix Storage Manager welcome screen. Figure 7-56: Matrix Storage Manager Welcome Screen...
Page 209: Figure 7-57: Matrix Storage Manager Warning Screen
KINO-9652 Mini-ITX SBC and decide whether or not to continue the installation process. Figure 7-57: Matrix Storage Manager Warning Screen Step 9: Click N and a license agreement appears (Figure 7-58). Figure 7-58: Matrix Storage Manager License Agreement Step 10: Read the license agreement.
Page 210: Figure 7-59: Matrix Storage Manager Readme File
KINO-9652 Mini-ITX SBC Figure 7-59: Matrix Storage Manager Readme File Step 11: Read the Readme file information and click N Step 12: After the driver installation process is complete, a confirmation screen appears (Figure 7-60). Figure 7-60: Matrix Storage Manager Setup Complete Step 13: The confirmation screen offers the option of restarting the computer now or later.
Page 211: Intel® Active Management Technology Driver Installation
KINO-9652 Mini-ITX SBC For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: 7.9 Intel® Active Management Technology Driver Installation To install the Intel® Active Management Technology (IAMT) driver, please follow the steps...
Page 212: Figure 7-62: Iamt Driver Installation Icon
KINO-9652 Mini-ITX SBC Figure 7-62: IAMT Driver Installation Icon Step 4: Double click the setup icon in Figure 7-62. Step 5: The window in Figure 7-63 appears. Figure 7-63: IAMT Welcome Screen Step 6: Click N to continue. The License Agreement in Figure 7-64 appears.
Page 213: Figure 7-64: Iamt License Agreement
KINO-9652 Mini-ITX SBC Figure 7-64: IAMT License Agreement Step 7: Agree to the terms and conditions in the license agreement by clicking Y Step 8: The IAMT Readme file in Figure 7-65 appears Figure 7-65: IAMT Readme File Step 9: Click N to continue.
Page 214: Figure 7-66: Iamt Setup Operations
KINO-9652 Mini-ITX SBC Step 10: Setup operations are performed. See Figure 7-66. Figure 7-66: IAMT Setup Operations Step 11: When the Setup Operations in Figure 7-66 are complete, the window in Figure 7-67 appears. Figure 7-67: Completed Installation Step 12: Click F to complete the IAMT installation.
Page 215: Figure 7-68: Iamt Driver Directory
KINO-9652 Mini-ITX SBC Step 13: Go back to iAMT and Utilities directory (Figure 7-68). Figure 7-68: IAMT Driver Directory Step 14: Click on the HECI directory icon. The window in Figure 7-69 appears. Figure 7-69: HECI Driver Installation Icon Page 193...
Page 216 KINO-9652 Mini-ITX SBC Step 15: Double click the setup icon in Figure 7-69. Step 16: Follow the step-by-step installation process to install the HECI driver. Step 0: Step 0: Page 194...
Page 217: Intel Amt Configuration
KINO-9652 Mini-ITX SBC Chapter ® Intel Configuration Page 195...
Page 218: Intel ® Amt Setup Procedure
® 8.1 Intel AMT Setup Procedure The KINO-9652 is featured with the Intel® Active Management Technology (AMT) 2.5. To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the DIMM1 socket is installed with one DDR2 DIMM.
Page 219: Intel ® Management Engine Bios Extension
KINO-9652 Mini-ITX SBC ® 8.2 Intel Management Engine BIOS Extension This section describes the essential steps for using the Intel® Management Engine BIOS extension (MEBx). Step 1: A screen prompts the user to press <Ctrl+P> after a single beep during boot-up process.
Page 220: Figure 8-3: Change Intel® Me Password
KINO-9652 Mini-ITX SBC Step 3: To change the password, select Change Intel® ME Password. Enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).
Page 221: Figure 8-6: Provision Model
KINO-9652 Mini-ITX SBC Step 6: Select Provision Model and press Enter. (Figure 8-6) Figure 8-6: Provision Model Step 7: When the screen in Figure 8-7 prompts, enter N and press Enter. Figure 8-7: Intel® AMT 2.0 Mode Step 8: A message prompts to confirm to Change to Small Business (Figure 8-8). Enter Y and press Enter.
Page 222: Figure 8-8: Enterprise
KINO-9652 Mini-ITX SBC Figure 8-8: Enterprise Step 9: Select TCP/IP (in Intel AMT Configuration) and press Enter. A message prompts for disabling network interface. Enter N to enable network interface. Figure 8-9: Enable Network Interface Page 200...
Page 223: Figure 8-10: Exit
KINO-9652 Mini-ITX SBC Step 10: Enable or disable DHCP. DHCP is enabled by default. If DHCP is disabled, enter the following TCP/IP settings: Static TCP/IP address (the static TCP/IP address and Intel® AMI Host Name must be different from those configured in the operating system)
Page 224: Using The Intel Amt Web Interface
NOTE: Prior to use the Intel® AMT web interface, please make sure the Intel® AMT drivers are properly installed in the KINO-9652 and the Intel® AMT enabled confirmation dialog window displays after boot-up. To access an Intel® AMT client system from a remote console, follow the steps below.
Page 225: Figure 8-12: Intel® Amt Web Login Dialog
KINO-9652 Mini-ITX SBC Figure 8-12: Intel® AMT Web Login Dialog Step 6: Enter admin as the user name (Figure 8-12). Step 7: Enter the password changed in the Intel® MEBx configuration (Section 8.2, Step 3). If the password remained as default, enter Abab12!@ Step 8: Press OK and the Intel®...
Page 226: Figure 8-13: Intel® Amt Web Interface
KINO-9652 Mini-ITX SBC Figure 8-13: Intel® AMT Web Interface NOTE: To enhance the platform manageability of the KINO-9652, work with the Independent Software Vendors (ISV) to implement the Intel® AMT management utility on the system. Page 204...
Page 227: Abios Configuration Options
KINO-9652 Mini-ITX SBC Appendix BIOS Configuration Options Page 205...
Page 228: O Ptions
KINO-9652 Mini-ITX SBC A.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6. 　 System Overview ....................102 　 System Time [xx:xx:xx] ..................103 　 System Date [xx/xx/xx] ..................103 　 ATA/IDE Configurations [Compatible].............. 106 　...
Page 229 KINO-9652 Mini-ITX SBC 　 Intel AMT Support [Disabled] ................117 　 Intel Robson [Disabled]..................118 　 Remote Access [Disabled]................. 119 　 Serial Port Number ..................... 119 　 Serial Port Mode......................　 Redirection after BIOS POST................119 　 Terminal Type...................... 119 　...
Page 230 KINO-9652 Mini-ITX SBC 　 RTC Alarm Time ....................131 　 IRQ#........................132 　 DMA Channel# [Available] ................. 133 　 Reserved Memory Size [Disabled] ..............133 　 Quick Boot [Enabled] ..................135 　 Quiet Boot [Disabled] ..................135 　 AddOn ROM Display Mode [Force BIOS] ............136 　...
Page 231 KINO-9652 Mini-ITX SBC 　 Load Failsafe Defaults..................148 Page 209...
Page 232: Bterminology
KINO-9652 Mini-ITX SBC Appendix Terminology Page 210...
Page 233 KINO-9652 Mini-ITX SBC AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
Page 234 KINO-9652 Mini-ITX SBC COM refers to serial ports. Serial ports offer serial communication to expansion devices. The serial port on a personal computer is usually a male DB-9 connector. The Digital-to-Analog Converter (DAC) converts digital signals to analog signals. Double Data Rate refers to a data bus transferring data on both the rising and falling edges of the clock signal.
Page 235 KINO-9652 Mini-ITX SBC protocols used to enable electronic devices to wirelessly communicate with each other. L1 Cache The Level 1 Cache (L1 Cache) is a small memory cache built into the system processor. L2 Cache The Level 2 Cache (L2 Cache) is an external processor memory cache.
Page 236 KINO-9652 Mini-ITX SBC to automatic status checking technology implemented on hard disk drives. UART Universal Asynchronous Receiver-transmitter (UART) is responsible for asynchronous communications on the system and manages the system’s serial communication (COM) ports. UHCI The Universal Host Controller Interface (UHCI) specification is a register-level interface description for USB 1.1 Host Controllers.
Page 237 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 215...
Page 238: Cdio Interface
KINO-9652 Mini-ITX SBC Appendix DIO Interface Page 216...
Page 239: Dio Interface Introduction
KINO-9652 Mini-ITX SBC C.1 DIO Interface Introduction The DIO connector on the KINO-9652 is interfaced to GPIO ports on the IT8712F Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.
Page 240: Assembly Language Samples
KINO-9652 Mini-ITX SBC C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...
Page 241 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 219...
Page 242: Dwatchdog Timer
KINO-9652 Mini-ITX SBC Appendix Watchdog Timer Page 220...
Page 243 KINO-9652 Mini-ITX SBC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
Page 244 KINO-9652 Mini-ITX SBC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
Page 245 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 223...
Page 246: Eaddress Mapping
KINO-9652 Mini-ITX SBC Appendix Address Mapping Page 224...
Page 247: Io Address Map
KINO-9652 Mini-ITX SBC E.1 IO Address Map I/O address Description Range 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor...
Page 248: Irq Mapping Table
KINO-9652 Mini-ITX SBC E.3 IRQ Mapping Table Description Description IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 ACPI IRQ2 Available IRQ10 COM 4 IRQ3 COM2 IRQ11 COM 3 IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 SMBus Controller IRQ13 IRQ6 IRQ14...
Page 249 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 227...
Page 250: Fcompatibility
KINO-9652 Mini-ITX SBC Appendix Compatibility Page 228...
Page 251: Compatible Processors
The compatible items described here have been tested by the IEI R&D team and found to be compatible with the KINO-9652. F.1 Compatible Processors The following Socket 478 processors have been successfully tested on the KINO-9652. Model Number Frequency Intel® Core™ Duo T2600 2.16 GHz...
Page 252 KINO-9652 Mini-ITX SBC The following memory modules have been successfully tested on the KINO-9652. Manufacturer Model No. Capacity Speed CORSAIR VS51MB667D2 512 MB 667 MHz CORSAIR VS1GB667D2 1 GB 667 MHz CORSAIR VS2GB667D2 2 GB 667 MHz Kingston KHX5400D2K2/2G 1 GB...
Page 253 KINO-9652 Mini-ITX SBC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 231...
Page 254: Hazardous Materials Disclosure
KINO-9652 Mini-ITX SBC Appendix Hazardous Materials Disclosure Page 232...
Page 255: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury
KINO-9652 Mini-ITX SBC G.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
Page 256 KINO-9652 Mini-ITX SBC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Hg) (Cd) Chromium (Pb) Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
Page 257 KINO-9652 Mini-ITX SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。部件名称有毒有害物质或元素铅汞镉六价铬多溴联苯多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体显示印刷电路板金属螺帽电缆组装风扇组装电力供应组装电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
Page 258: Hexternal Ac'97 Audio Codec
KINO-9652 Mini-ITX SBC Appendix External AC’97 Audio CODEC Page 236...
Page 259: Introduction
KINO-9652 Mini-ITX SBC H.1 Introduction The motherboard comes with an onboard Realtek ALC883 CODEC. The ALC883 is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC that provides three pairs of stereo outputs with 5-bit volume control, a mono output, and multiple stereo and mono inputs, along with flexible mixing, gain, and mute functions.
Page 260: Sound Effect Configuration
KINO-9652 Mini-ITX SBC Figure H-1: Control Panel Sound Effect Manager H.2 Sound Effect Configuration H.2.1 Accessing the Sound Effects Manager Follow the steps below to access the Sound Effect Manager. Step 1: Install the ALC883 audio CODEC driver (see Section 7.7).
Page 261: Sound Effect Manager Configuration Options
KINO-9652 Mini-ITX SBC Figure H-3: Sound Effects Manager (ALC883) NOTE: The Sound Effect Manager shown in Figure H-3 is for the RealTek ALC883 audio CODEC. Different CODECs may have different sound manager appearances. The following section describes the different configuration options in the Sound Effect Manager.
Page 262 KINO-9652 Mini-ITX SBC NOTE: The Karaoke Mode is configured in the Sound Effect menu. To access Karaoke configuration settings, click on the Sound Effect menu tab. Sound Effect Karaoke Mode Equalizer Speaker Configuration Speaker Test S/PDIF-In S/PDIF-Out Connector Sensing HRTF Demo...
Page 263 KINO-9652 Mini-ITX SBC Key adjustment up or down arrow icons enable users to define a key that fits a certain vocal range. Equalizer Selection - Preset equalizer settings enable easy audio range settings. Ten frequency bands can be configured. Speaker Configuration - Multi-channel speaker settings are configured in this menu.
Page 264: Iindex
KINO-9652 Mini-ITX SBC Index Page 242...
Page 265 KINO-9652 Mini-ITX SBC ＡＣ AC’97 Audio CODEC .......235 cables............88 ACPI ........ 116, 117, 127, 128 dual port USB ........92 Advanced Power Management ....145 dual RS-232...........90 airflow ............87 CF card ............46 ALC883..........6, 236 location and pinouts.......46 AMI BIOS.............6 socket ............46 ATX ............45...
Page 266 KINO-9652 Mini-ITX SBC serial port..........67 DDR2 ..........2, 4, 5, 41 USB port..........68 Digital I/O ..........4, 6 connectors, pinouts and location dimensions...........8 14-pin serial port........58 board ............8 ATX power ..........44 external peripheral interface connector audio............43 panel............9 audio CD in..........44 DIMM ............78 CompactFlash ........46...
Page 267 KINO-9652 Mini-ITX SBC ＨＫ HDTV ............3, 5 keyboard ..........93, 97 heat sink ............76 keyboard controller ........29 ＩＬ ICH8M............5 LAN connector ...........65 IDE device ..........89 LCD backlight........4, 41, 54 connector..........89 LCD voltage .......... 5, 80 IDE flat cable .........89 LPC bus .............25...
Page 268 KINO-9652 Mini-ITX SBC Serial Device Ｐ connection ..........96 PCI interface ..........20 Serial Device..........96 PCIe bus ............23 serial port ...........67 PCIe mini card ....2, 4, 6, 21, 23, 41 serial ports ..........28 peripheral device cables......88 SIR interface ..........53 Power Button Mode .........129 socket P CPU PS/2 ..........66, 67, 225...
Page 269 KINO-9652 Mini-ITX SBC USB 2.0 ......2, 4, 5, 42, 62, 63 VGA monitor..........95 USB cable connection ..........95 dual port ..........92 Ｗ USB port ............68 warranty validation ........72 Ｖ VGA ............95 Page 5...
