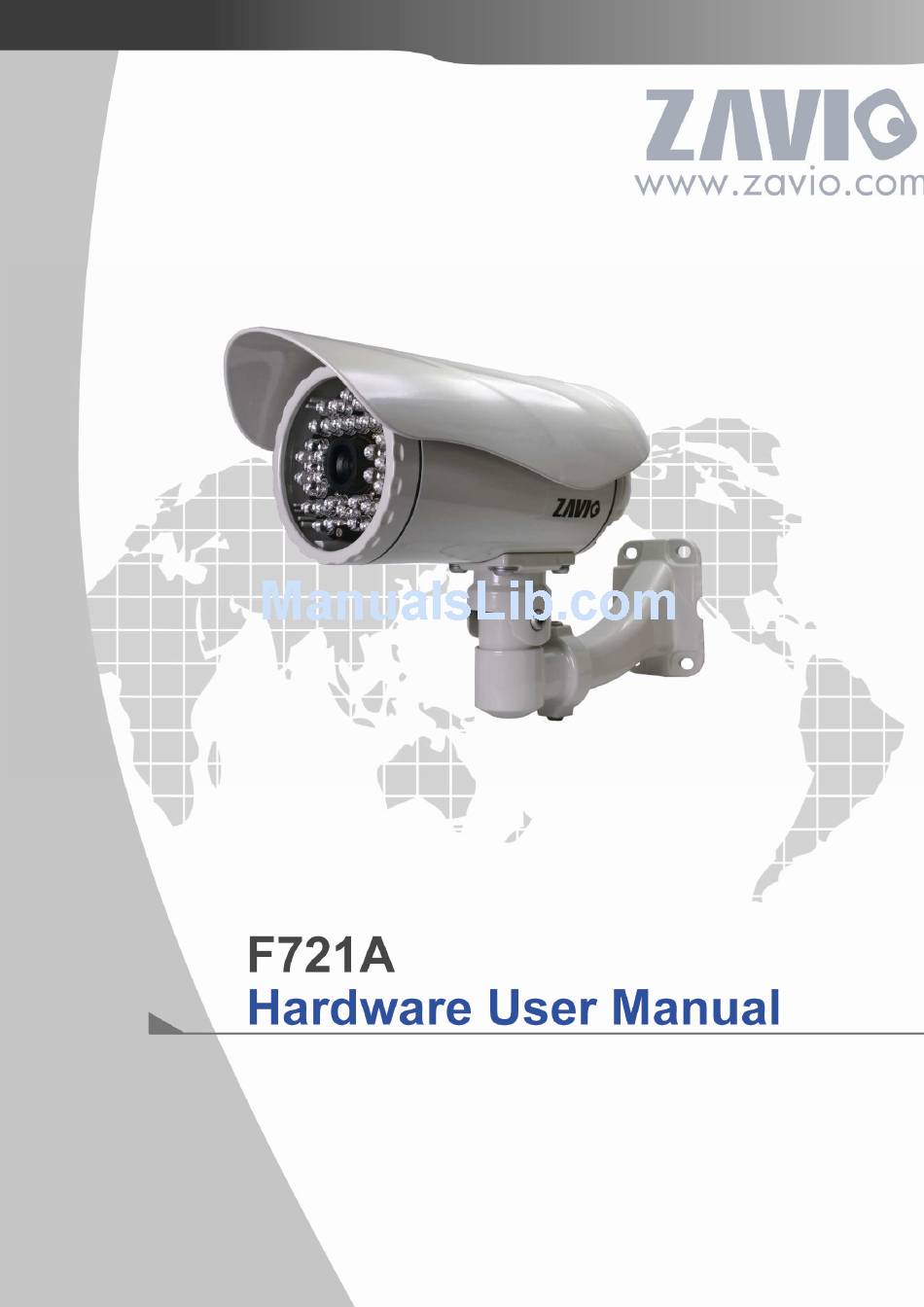

- Page 1 F721A User Manual...
-
Page 2: Table Of Contents
F721A User Manual F721A Outdoor 35M IR IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 CHAPTER 5. BASIC CONNECTION ....................8 5.1 P E) C ...................... -
Page 3: Chapter 1. Safety Instruction
F721A User Manual Hardware User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. - Page 4 F721A User Manual In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, • If water or other foreign objects enter the cabinet, or •...
-
Page 5: Chapter 2. Introduction
F721A User Manual Chapter 2. Introduction The Zavio F721A is an IP66 rated weather-proof IP camera designed for 24hr outdoor surveillance even in the harshest conditions. It is equipped with a Sony high-resolution CCD sensor and high power Infrared LEDs with up to 35m (110 feet) working distance Key Features: 1/3”... -
Page 6: Chapter 3. Package Contents
F721A User Manual Chapter 3. Package Contents Camera – F721A Outdoor IR Network Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and Language Packs Wall Bracket –... -
Page 7: Chapter 4. Physical Description
F721A User Manual Chapter 4. Physical Description Overview Housing- IP66 related protection against dust and heavy rain Reset - When the device is empowered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to set the device settings back to factory default. - Page 8 F721A User Manual Network Indicator (Green Light) - Green light will light up after the IP Camera connected with network and IP Camera completed the boot process. Network Transmit Indicator (Yellow Light) - Yellow light will light up while transmitting data via internet...
-
Page 9: Chapter 5. Basic Connection
F721A User Manual Chapter 5. Basic Connection F721A offers Power over Ethernet (PoE) connection. However, you still can use F721A with PoE or without PoE connection. You can follow the procedure below to connect the IP Camera for both applications. -
Page 10: Chapter 6. Application
F721A User Manual Chapter 6. Application...
