User Manual
Please follow the installation steps below to set up your F531E & F731E IR IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.2
Install the hardware. See P.3
Connect all cables. See P.4
Use the software CD to install Intelligent IP Installer.
Microsoft OS:
Access the IP Camera using Intelligent IP Installer. See P.5
Change the Web Interface into your preferred language. See P.5
Mac OS using Safari Browser. See P.7
Change lighting environment setting. See P.7
Use IP Camera via Mobile Phone. See P.8
Windows Live Messenger Setting. See P.8
Access to Internet via Static IP, Dynamic IP or both. See P.10
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com
Package Contents
1. F531E
Camera
Quick Installation
Guide
Software CD
Mounting Bracket
Adaptor
2. F731E
Camera
Lens
Quick Installation Guide
Software CD
Component Packs
Zavio F531E & F731E Quick Installation Guide

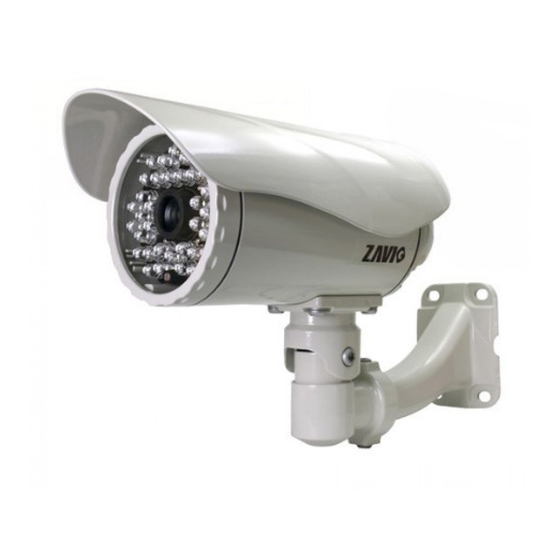

F531E Indoor/Outdoor IR IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Three screws and plastic wall anchors , Bracket
12V DC, max 12W
F731E Outdoor IR IP Camera
4.3mm, 6mm, 8mm, 12mm (optional)
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Two Packs of screws
See P.4
1
