158
Appendix B, Matrox MXO2 Connectors

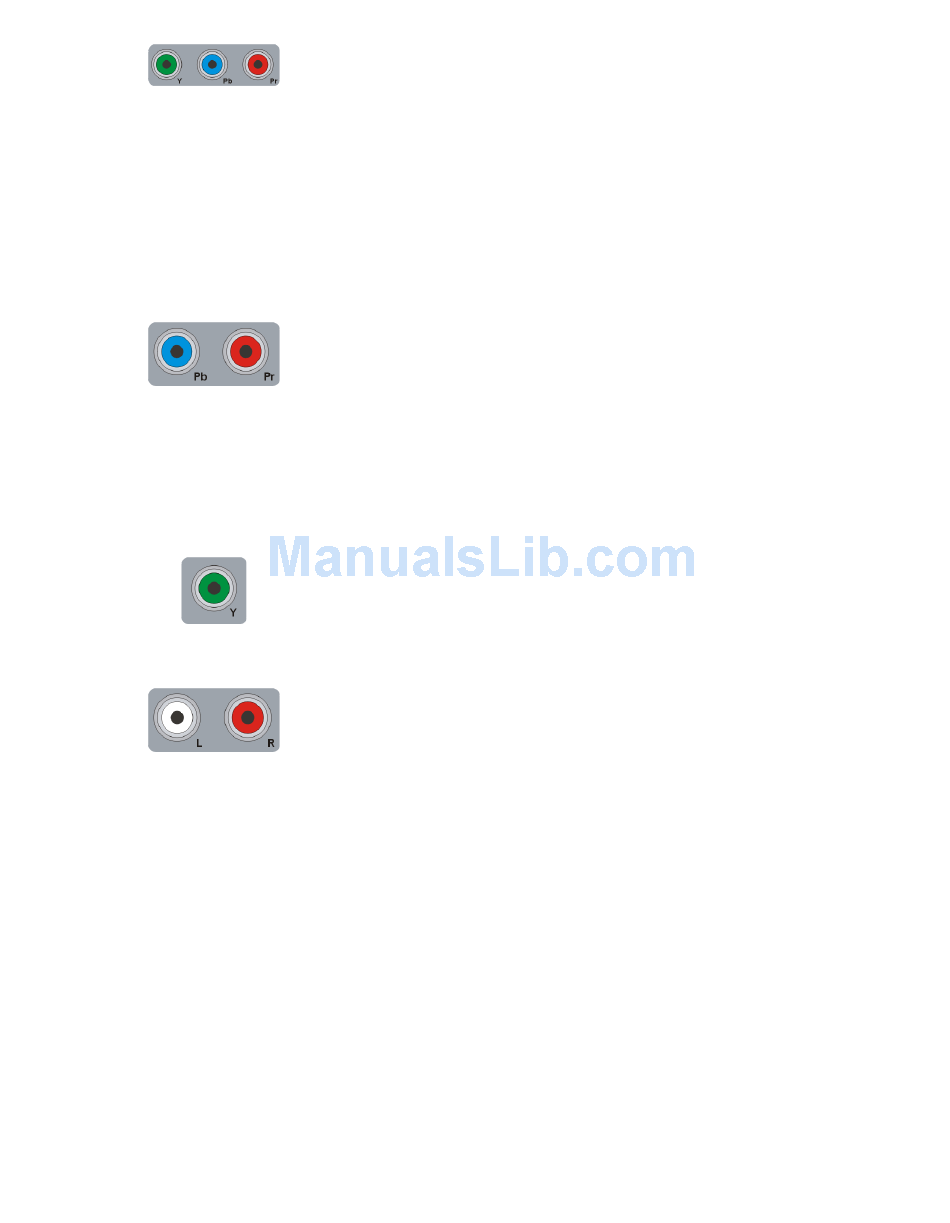

Component video (Y, Pb, Pr) Allows you to output HD or
SD video to an analog component device. Connect component
Y, Pb, Pr video cables to a video monitor, VTR, or other
component device.
¦ Note The component output supports YUV devices
only. When you connect an analog component device to
MXO2 Mini, you won't be able to connect an S-Video
or composite device at the same time.
S-Video Output connectors Pb and Pr allow you to connect
the MXO2 S-Video adapter cable for outputting SD video to an
analog S-Video device. Connect an S-Video cable, via the
MXO2 S-Video adapter cable, to a video monitor, VTR, or
other S-Video device. For instructions on how to connect
S-Video devices to MXO2 Mini, see
devices to MXO2 Mini"
Composite video (Y) Allows you to output SD video to an
analog NTSC or PAL device. Connect a composite video cable
to a video monitor, VTR, or other NTSC or PAL device.
Analog audio (unbalanced) Provide outputs for unbalanced
analog audio channels one and two, or one stereo pair. Connect
RCA cables to a VTR, audio mixer, speakers, or other audio
device.
"Connecting S-Video
on page 49.
