Gorenje ZOS2467 Instructions For Use Manual

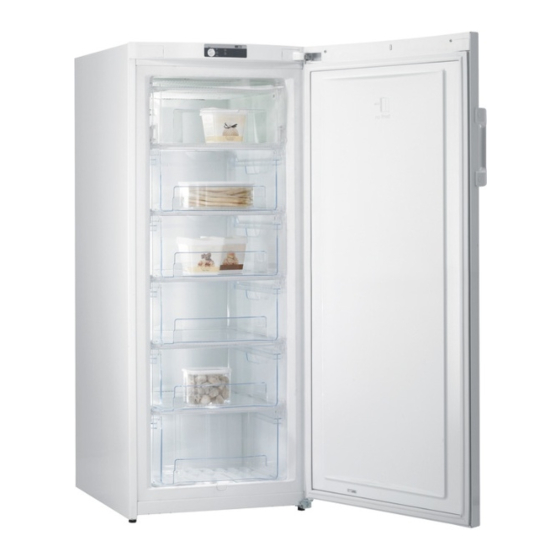

Upright freezer
Hide thumbs Also See for ZOS2467:

Advertisement

Table of Contents

Instructions for use
GB
Upright Freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZOS2467 and is the answer not in the manual?

Questions and answers

Related Manuals for Gorenje ZOS2467

Summary of Contents for Gorenje ZOS2467

  • Page 1 Instructions for use Upright Freezer...

  • Page 2: Table Of Contents

    We thank you for the confi dence you have shown by purchasing our appliance. We wish you a lot of pleasure using the appliance. The appliance is intended solely for household use. The upright freezer is intended for use in households, for freezing fresh food and long-term storage of frozen food (up to one year, depending on the type of food).

  • Page 3: Important Warnings

    Important warnings • The appliance is manufactured in compliance with the effective safety standards. However, it can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 • To protect the environment, dispose of the appliance after its useful life by taking it to an authorized waste collection center. • The packaging is made of environment-friendly materials that can be recycled, disposed of, or destroyed without hazard to the environment. •...

  • Page 5: A Few Tips On How To Save Power With Your Refrigerator-Freezer Combo

    A few tips on how to save power with your refrigerator-freezer combo • Observe the installation instructions. • Do not open the appliance door more frequently than necessary. • Occasionally check whether air can circulate freely behind the appliance. • Condenser unit mounted on the appliance back wall must be kept clean at all times (see section “Cleaning the appliance”).

  • Page 6: Appliance Description

    Appliance description TRADITIONAL FREEZER 1 Control panel 7 Defrost drain outlet groove 2 Interior light* 8 Leg support* 3 Freezing compartment 9 Leg 4 Fast freeze for small quantities of food* 10 Wheels* 5 Larger drawer SpaceBox* 11 Cold accumulator* 6 Storage compartment •...
  • Page 7 NO FROST FREEZER 1 Control unit 2 Interior illumination* 3 NO FROST freezing unit (cooler, fan ...)* 4 Freezing and storage area 5 Large space - SpaceBox drawer* 6 Leg support* 7 Leg 8 Wheel* • Interior accessories of the appliance may vary according to the model. •...

  • Page 8: Installation And Connection

    Installation and connection Selecting the room • The appliance should be installed in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is within the ranges listed in the table below. The appliance class is indicated on the label with the basic information on the appliance.
  • Page 9 Note: When placing the appliances side by side, the anti-dew (anti-condensation) set has to be purchased and installed. Code for ordering the set: 151046 Connecting the • Use the power cord to connect the appliance to the power appliance mains. The wall outlet should be fi tted with a ground contact (safety socket).

  • Page 10: Changing The Door Opening Direction

    Changing the door opening direction Tools required: ring spanner (box-end wrench) No. 8, screwdriver, torx25, fl athead screwdriver 1. Use the fl at-bladed screwdriver to remove the covers A and B1. 2. Remove, starting from the top and working your way down: hinge (C), door (D), and hinge (E1). Make sure the door is not damaged.
  • Page 11 Version I + II 4. VERSION I: Door (D): move the hinge (J) to the opposite side. Remove the door retainer (K1) with the support (L) and attach a symmetric retainer (K2) supplied in the bag along with the support (L), on the opposite side. VERSION II: Door (D): undo the screw of the door cover (M) and remove it, including the cover (N).
  • Page 12 Version III Required tools: socket spanner nr. 8, screwdriver, torx 25 Caution! After unscrewing of before fi xing hinges, hold the door to prevent it from falling and damaging. 1. Remove upper hinge cover (keep it for eventual later use), together with cover on the opposite side of the upper hinge cover (on the opposite side you will insert the attached cover during the assembly), and remove the cover on the opposite side of the upper part of the door.

  • Page 13: Operating The Appliance

    Operating the appliance CONTROL UNIT I no frost CONTROL UNIT II A Temperature setting dial and on/off switch B Signal light: on when appliance is in operation C Freezer sound alarm acknowledgment key D Signal light: fl ashing during freezer alarm E Freezer power boost key F Signal light: on when the freezer power boost is activated G Digital temperature display indicates actual temperature in the appliance from -16°C to -24°C*...
  • Page 14 Switching the appliance Switch on the appliance by rotating the A dial towards the max on/off sign. Signal light B goes on. To switch off the appliance, align the recessed par of the dial with the sign (there is still current and voltage in the appliance).
  • Page 15 Freezer power boost • Use this setting after switching on the appliance for the fi rst time, before cleaning, and when adding larger quantities of food (see “Freezing process”). • Press the E key – signal light F goes on. The function is automatically deactivated after two days.
  • Page 16 CONTROL UNIT III CONTROL UNIT IV SUPER A Temperature setting knob, on/off, and freezer power bost D Signal light on/ fl ashing: High temperature alarm...
  • Page 17 Turning the appliance on Rotate the thermostat knob A clockwise towards the thicker end of the sign. Control unit III: When the appliance is switched on for the fi rst time, the D signal light will be on. It will go off automatically when the freezer cools down to a temperature that no longer presents danger of food spoilage.
  • Page 18 Setting the appliance • Recommended setting for the thermostat knob A is half way temperature between the thinner and the thicker end of the sign. • A change in the environment temperature will affect the temperature in the appliance. The thermostat knob setting should be adjusted accordingly.

  • Page 19: Freezing Fresh Food And Storing Frozen Food

    Freezing fresh food and storing frozen food Maximum quantity of fresh food that can be Freezing procedure introduced into the appliance at a time is indicated on the label with basic information on the appliance. If this quantity is exceeded, freezing quality will deteriorate, as will the quality of the already frozen food.

  • Page 20: Defrosting Frozen Food

    It is important that the food is frozen as quickly as possible; therefore, smaller packages should be preferred. Before freezing, the food should be cooled. Storing pre-frozen food • When storing or using frozen food, observe the manufacturer’s instructions. Temperature and best before date are indicated on the packaging.

  • Page 21: Defrosting The Appliance

    Cold accumulator (only In case of a power failure, cold accumulators will slow down the with some models) temperature increase.They are the most effi cient when placed directly over the frozen food, in the upper freezing compartment. Defrosting the appliance Defrosting traditional •...

  • Page 22: Cleaning The Appliance

    Cleaning the appliance Before cleaning, disconnect the appliance from the power mains – rotate the thermostat knob A to the position and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners containing abrasive particles, acids, or solvents, are not appropriate as they will damage the surface.

  • Page 23: Troubleshooting

    Troubleshooting Problem: Cause or remedy: After connecting to the power • Make sure the wall outlet is powered and that the appliance mains, the appliance does not is plugged in. operate: Cooling system has been • Too high environment temperature. working continuously for a long •...

  • Page 24: Information On Appliance Noise

    WE RESERVE THE RIGHT TO CHANGES THAT TO NOT AFFECT THE APPLIANCE FUNCTIONALITY. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com /> ZOS2467 ZOS2461 ZOS2467C...
