Summary of Contents for EMMO Urban

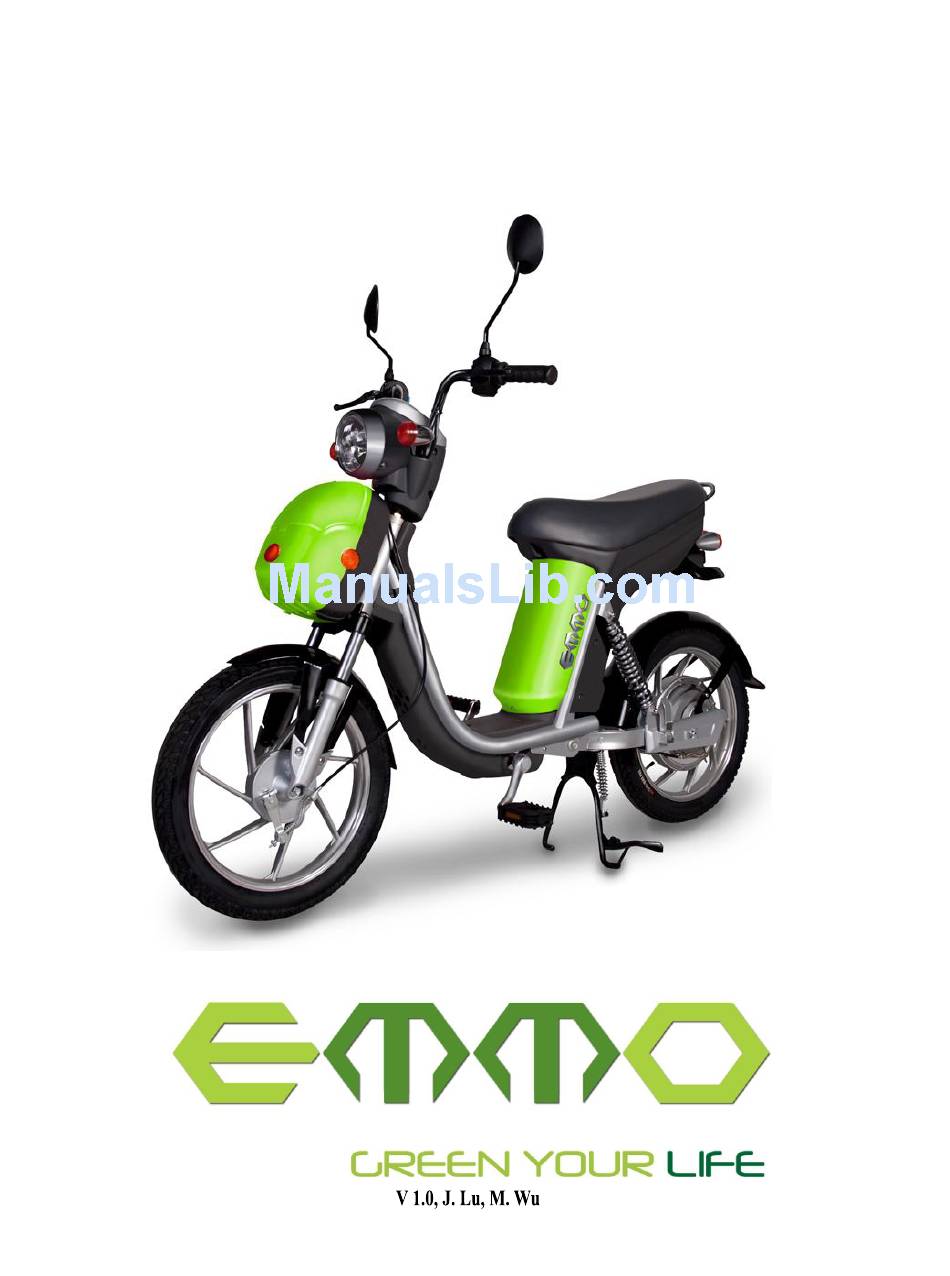

  • Page 1 Emmo Urban Owner’s Manual...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-9 Brakes, Tire Pressure, and Front Carrying Case……………….…….……………………………...10 Adjusting Brakes……………………………………………………………………………………………………11 Kickstand, Pedals, Bike Chain, and Pegs ……………………………..…………………………………12 Seat Lock and Power Cable……………………………………………..……………………………………...13 Ignition…………………………………………………………………………………………………………………..14 Remote Controller………………………………………...……………………………………………………….15 Right Side of the Handlebar and Throttle……………………………………………………………….16 Left Side of the Handlebar……………………………………………………………………….……………..17 Dashboard……………………………………….………………………………………………….…………………18 E-bike Registration…………………………………...……………………………………………………………19...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e Specifications Black; White; Red; Orange; Yellow; Green Color: Dimension (LxWxH): 1650 x 710 x 1220 18″/2.5″ Wheel Size: 55 kg Net Weight: Maximum Speed: 32 km/h Travel Range: 50(Lead Acid 12Ah)-70(Lithium 20Ah) km* 3-8 Hours (Lead Acid) / 3-6 Hours (Lithium) Charging Time: 16(Lead Acid Version) - 18( Lithium Version) Degrees Climbing Angle:...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e Lead Acid Battery Charger...
  • Page 7 MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT 2. To charge the Urban without having to remove the battery THE CHARGER, AND WILL RESULT IN from the bike, plug your charger into the socket that is THE CHARGER DAMAGING THE underneath the seat and between the shocks (as indicated BATTERY.
  • Page 8 P a g e Charging the Bike (Lithium Battery) Charging the battery is done from the charger port located on the battery itself. The charger is separated into two different parts: A cable with one end that goes into a 110V power outlet, and the other end that goes into the charger box itself, the charger box with a cable that plugs into the bike (page 9).
  • Page 9 P a g e Lithium Battery Charger After plugging the separate cable into the charger box, plug the charger into the charger port on the bike. The LED1 light should turn red when the charger box is connected to the bike.

  • Page 10: Brakes, Tire Pressure, And Front Carrying Case

    Clockwise tightens the brakes while counter clockwise loosens the brakes Carrying Case This is the Urban’s storage space, which can be opened through the keyhole indicated by the black arrow. Tire Pressure The recommended air pressure for the tires is 40 psi.

  • Page 11: Adjusting Brakes

    Adjusting the Back Brake To tighten the back brake on the Urban, loosen the nut (as indicated by the white arrow) and pull the cable (as indicated by the gray arrow). After pulling the cable to the desired tightness, tighten the nut to secure position. To loosen the back...

  • Page 12: Kickstand, Pedals, Bike Chain, And Pegs

    12 | P a g e Centre Stand The centre kick stand is better used for all situations. In order to engage the kickstand, apply pressure with your foot downwards and gently lift the bike upwards, NOT BACKWARDS. Bike Chain Remember to grease the chains once a month.

  • Page 13: Seat Lock And Power Cable

    13 | P a g e Seat To open the seat, use the keyhole on the side of the bike (shown in the picture above on the left). Turn right to unlock the seat. Power Cable The power cable (as indicated in the white arrow above, in the picture on the right) controls the power running through the bike from the battery.

  • Page 14: Ignition

    14 | P a g e Key Positions in Ignition 1. This is the ‘on’ position. This position is reached when the key is turned to the right, from the off position. The bike will turn on, and all functions on the handlebars will work. 2.

  • Page 15: Remote Controller

    15 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the „unlock‟ button on the remote. Lock Unlock This button locks the bike. When the bike is This button unlocks the bike.

  • Page 16: Right Side Of The Handlebar And Throttle

    16 | P a g e Throttle Light Switch When the throttle is turned This switch controls the amount of lightning backwards (toward the rider) it on your bike. When the switch is pushed to makes the e-bike move forward. the right, no extra lights are turned on.

  • Page 17: Left Side Of The Handlebar

    17 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 18: Dashboard

    18 | P a g e Speedometer This shows the speed you are going at once the bike is running. Power Gauge This meter demonstrates the remaining amount of electricity available in your battery. H indicates High energy and L indicates Low energy.

  • Page 19: E-Bike Registration

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...

  • Page 20: Contact Information

    P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
