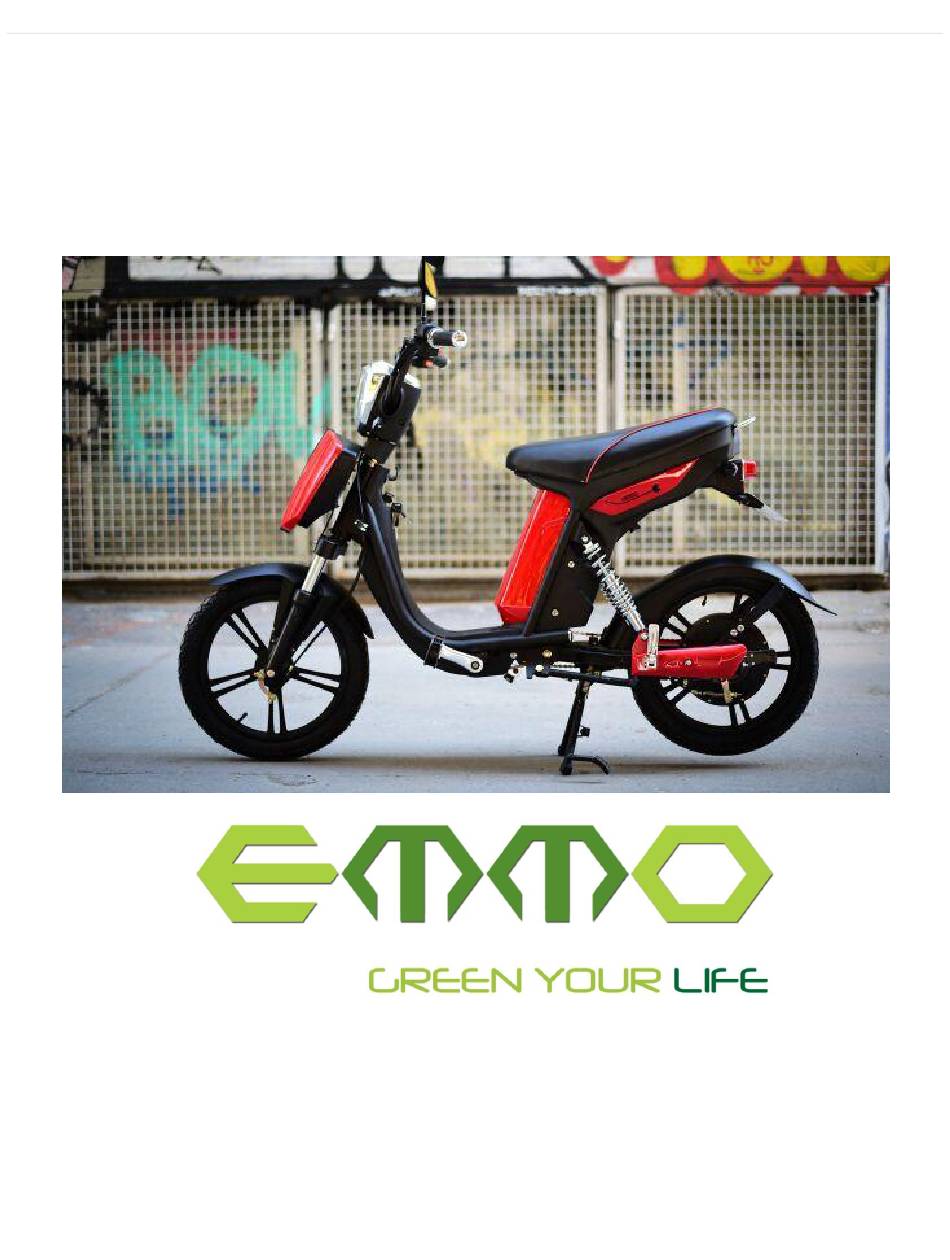

- Page 1 P a g e Emmo Urban S Owner’s Manual T. Lac V 1.0...
-
Page 2: Table Of Contents
P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-7 Front Drum Brakes..………………………………………………………………………………………………...8 Back Drum Brakes and Tires…………….……………………………….......…………………..9 Pedals, Center Stand and Bike Chain …………………………………......…………………10 Seat Lock ............…………………..……..……..………………………..…11 Ignition.............……………………….…………………………………………12 Alarm System..………….......……………………….………………………….………...13 Motor Lock............................14 Right Handlebar..……………………………………………..…………..…....…………………..15 Left Handlebar..………………………………………...…………………………………...…………………….16 Dashboard……………………………………….………………………………………………….…………………17 E-bike Registration…………………………………...……………………………………………………………18... -
Page 3: E-Bike Mto Label
P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle. -
Page 4: Specifications
P a g e Specifications Black, Red, Blue Color: Dimension 162cm x 71cm x 120 cm (LxWxH): 18'' x 2.5'' Wheel Size: 50-65 kg (base on battery type) Net Weight: Maximum Speed: 32 km/h 50 km Travel Range: 3 – 8 Hours Charging Time: Climbing Angle: 25 Degrees... -
Page 5: Charging Your E-Bike
P a g e Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2. - Page 6 P a g e...
- Page 7 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E-BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY (i.e.
-
Page 8: Front Drum Brakes
P a g e Front Brake To activate the front brake, pull this lever towards the rider. Rear Brake To activate the rear brake, pull this lever towards the rider. Tire Pressure The recommended air pressure for the tires is 35-40 psi. Check the tire pressure once a month. -
Page 9: Back Drum Brakes And Tires
Adjusting the Back Brake and Greasing the Chain To tighten the back brake on the Urban S, Tighten the nut (as indicated by the white arrow) to the desired tightness. To loosen the back brakes, simply loosen the nut to the desired tightness. Once a month it is recommended that you use... -
Page 10: Pedals, Center Stand And Bike Chain
10 | P a g e Centre Stand Pegs The centre kick stand is better used for all To have the pegs fold out, press situations. In order to engage the kickstand, apply the button indicated by the pressure with your foot downwards and gently lift white arrow. -
Page 11: Seat Lock
11 | P a g e Seat Lock To open the seat, use the keyhole on the back of the bike (shown in the picture above on the left). Turn clockwise to unlock the seat. Power Cable The power cable (as indicated in the white arrow above, in the picture on the right) controls the power running through the bike from the battery. -
Page 12: Ignition
12 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn to the left, from the off position. This locks the handlebar when it is turned half way to the left. -
Page 13: Alarm System
Note: If the bike is off, turning the bike on, then turning it off again will set the alarm. Alarm To use the alarm on the Urban S, you must insert your key into the ignition, and make sure it is in the off position. -
Page 14: Motor Lock
14 | P a g e Note: If the motor lock is on, and the rider tries to use the throttle on the bike, the motor WILL get damaged. The motor will still try to function but will burn itself out very quickly. ALWAYS MAKE SURE THAT THE MOTOR LOCK IS DISENGAGED BEFORE RIDING YOUR BIKE. -
Page 15: Right Handlebar
15 | P a g e Light Switch Throttle This switch controls the amount of lightning on your bike. When the switch is pushed to When the throttle is turned the right, no extra lights are turned on. (Only backwards (toward the rider) it brake lights work) When the switch is in the makes the e-bike move forward. -
Page 16: Left Handlebar
16 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker. -
Page 17: Dashboard
17 | P a g e Speedometer This shows the speed you are going at once the bike is running. Power Gauge Odometer This meter demonstrates the This meter keeps track of how remaining amount of electricity many kilometres the bike has available in your battery. -
Page 18: E-Bike Registration
Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp... -
Page 19: Contact Information
P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
