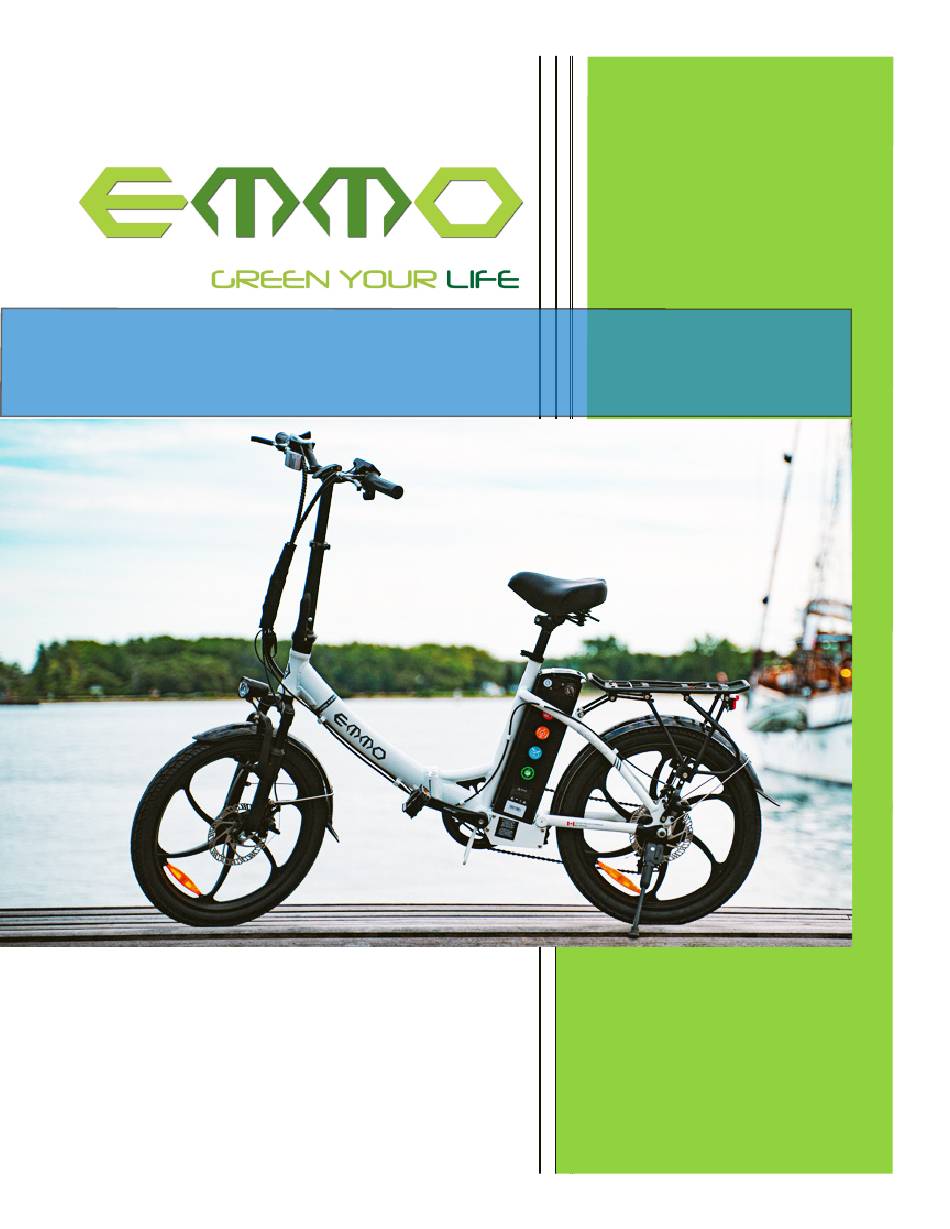

USER'S MANUAL
EMMOM
Monta 2019
Emmo
F7 S
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F7 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMMO F7 S

Summary of Contents for EMMO F7 S

  • Page 1 USER’S MANUAL EMMOM Monta 2019 Emmo F7 S...
  • Page 2 © 2019 Emmo Inc. All rights reserved. No texts, details, or illustrations from this Manual may be reproduced or distributed, or become the subject of unauthorized use for commercial purposes. Should you discover any errors,...

  • Page 3: Table Of Contents

    MENU About EMMO --------------------------------------------------- Rules and Regulations of Riding an E-Bike ---------- Parts Overview ------------------------------------------------- Control Pad ------------------------------------------------------ Adjustment ------------------------------------------------------ Headlebar Height ------------------------------------ Handlebar Tilt Angle ------------------------------ Seat Height ------------------------------------------- Turn on the Bike ----------------------------------------------- Gear Shifter ----------------------------------------------------- Throttle ------------------------------------------------------------...

  • Page 4: About Emmo

    ABOUT EMMO Established since 2009, Emmo Inc. is a proud Canadian venture that is focused on creating a more sustainable future by providing high quality electric bicycles. We offer a wide variety of E-bikes that are suitable for leading a greener, and more stylish, way of living. Emmo E-bikes are priced competitively with other green solutions.

  • Page 5: Rules And Regulations Of Riding An E-Bike

    RULES and REGULATIONS of riding an e-bike According to Canada’s Motor Vehicle Safety Regulations (MVSR). A qualified e-bike (defined as Power Assist Bicycle) must meet following requirements: • The e-bike must have operable pedals • Upper wattage limit for the motor is 500W. •...

  • Page 6: Parts Overview

    1. PARTS OVERVIEW...
  • Page 7 1. PARTS OVERVIEW...

  • Page 8: Control Pad

    2. CONTROL PAD 1. Pedal-Assist Adjust Buttons: Press ‘ + ‘ to raise the pedal-assist level. Press ‘ -’ to lower the pedal-assist level. 2. Pedal-Assist Level Indicator: 3 different levels- low, medium and high. The higher the level is, the easier for you to pedal. 3.

  • Page 9: Adjustment

    3. ADJUSTMENT - HANDLEBAR HEIGHT Step 1: Unlock the Clamp.
  • Page 10 3. ADJUSTMENT - HANDLEBAR HEIGHT Step 2: Adjust the handlebar to a height that you prefer. Warning: There is a maximum height marker on the post, you must not adjust the handlebar to a position higher than that.

  • Page 11: Handlebar Tilt Angle

    3. ADJUSTMENT - HANDLEBAR TILT ANGLE Step 1: Unlock the clamp on the top of the handlebar. Step 2: Adjust the tilt angle of the handlebar to a posi- tion that you prefer. Warning: Please lock the clamp back after the adjustment.

  • Page 12: Seat Height

    3. ADJUSTMENT - SEAT HEIGHT Step 1: Unlock the seat post clamp.
  • Page 13 3. ADJUSTMENT - SEAT HEIGHT Step 2: Adjust the seat height to your preferred position and lock the clamp. Warning: There is a maximum height marker on the seat post. You must not raise the seat to a higher position than that.

  • Page 14: Turn On The Bike

    4. TURN ON THE BIKE • Plug in the key. • Turn the key clockwise to turn the bike on.

  • Page 15: Gear Shifter

    5. GEAR SHIFTER Pushing the upper lever to raise the gear lever (smaller numbers). Pushing the button to lower the gear lever (bigger numbers).

  • Page 16: Throttle

    6. THROTTLE • Press the throttle kill swicth to enable the throttle function. • Twist the throttle when you are ready to go. Warning: Do not turn the throttle if you are not ready to ride.

  • Page 17: Horn

    7. HORN Press the button to sound the horn.

  • Page 18: Safety Instructions

    8. SAFETY INSTRUCTIONS To ensure the safety of you and others, • Do not ride after you take medications which may affect your riding ability, drink alcohol, or when you are unwell. • Please make sure you are familiar with your local bylaw regarding e-bikes.

  • Page 19: How To Ride

    9. HOW TO RIDE THE BIKE • Sit on the bike. Put on the helmet or any protective equipment required. • Use the key to turn the bike on (refer to page 15). • Before you start off, kick the side stand up.

  • Page 20: How To Charge

    10. HOW TO CHARGE The charger is separated into two different parts: 1. A cable with one end that goes into a 110V power outlet, and the other end that goes into the charger box itself. 2. The charger box with a cable that plugs into the bike.
  • Page 21 10. HOW TO CHARGE • Step 3: Make sure the indicator on the charger turns red. • Step 4: Once the battery is fully charged, unplug the charger from the power outlet first and then unplug the charger from the battery. *The red indicator means it is charging, and the green indicator means the battery is fully charged.

  • Page 22: How To Remove The Battery

    11. HOW TO REMOVE THE BATTERY • Step 1: Pull up the lever under the seat cushion. • Step 2: Fold the seat cushion up.
  • Page 23 11. HOW TO REMOVE THE BATTERY • Step 3: Plug in the key, follow the instructions on the lock - gently push the key in and turn the key to UNLOCK position. • Step 4: Once unlocked, the shackle on the back of the battery lock will be drawn back.
  • Page 24 11. HOW TO REMOVE THE BATTERY • Step 5: Lift the battery up and remove it carefully. TIP: When putting the battery back to the bike, make sure the battery goes along the battery rail, as shown below. Once the battery is put in place, lock the battery before you want to turn on the bike.

  • Page 25: How To Fold The Bike

    12. HOW TO FOLD THE BIKE - Main Frame • Step 1: Pull up the clamp lever. • Step 2: Pull out the clamp from the frame.
  • Page 26 12. HOW TO FOLD THE BIKE - Main Frame • Step 3: Slightly lift the clamp up to unlock the frame. After that, you will be able to fold the main frame in half.
  • Page 27 12. HOW TO FOLD THE BIKE - Handlebar • Step 5: Pull the clamp lever • Step 4: Lift up the locking nut down. to unlock the clamp lever. • Step 6:Fold the handlebar in half.
  • Page 28 12. HOW TO FOLD THE BIKE TIP: After properly folded, the bike can fit into a rear trunk or stand by itself. Warning: When unfold the bike back, please make sure the two clamps are locked properly.

  • Page 29: Maintenance

    13. MAINTENANCE Regular maintenance is required to keep the bike in its best working conditions. CLEAN Please use clean water and neutral detergent to clean the bike. Use soft cloths or sponges to clean the surfaces. Please do not use metal brushes, sandpaper or any other abrasive material to avoid scratches or even physical damages.

  • Page 30: E-Bike Registration Form

    Invoice Number: __________________________ Store Location: _______________________________________________ Customer Name: __________________________ Address: ___________________________________________________ Phone Number: ____________________________ E-mail:______________________________ Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □Facebook □Google □Yelp...
