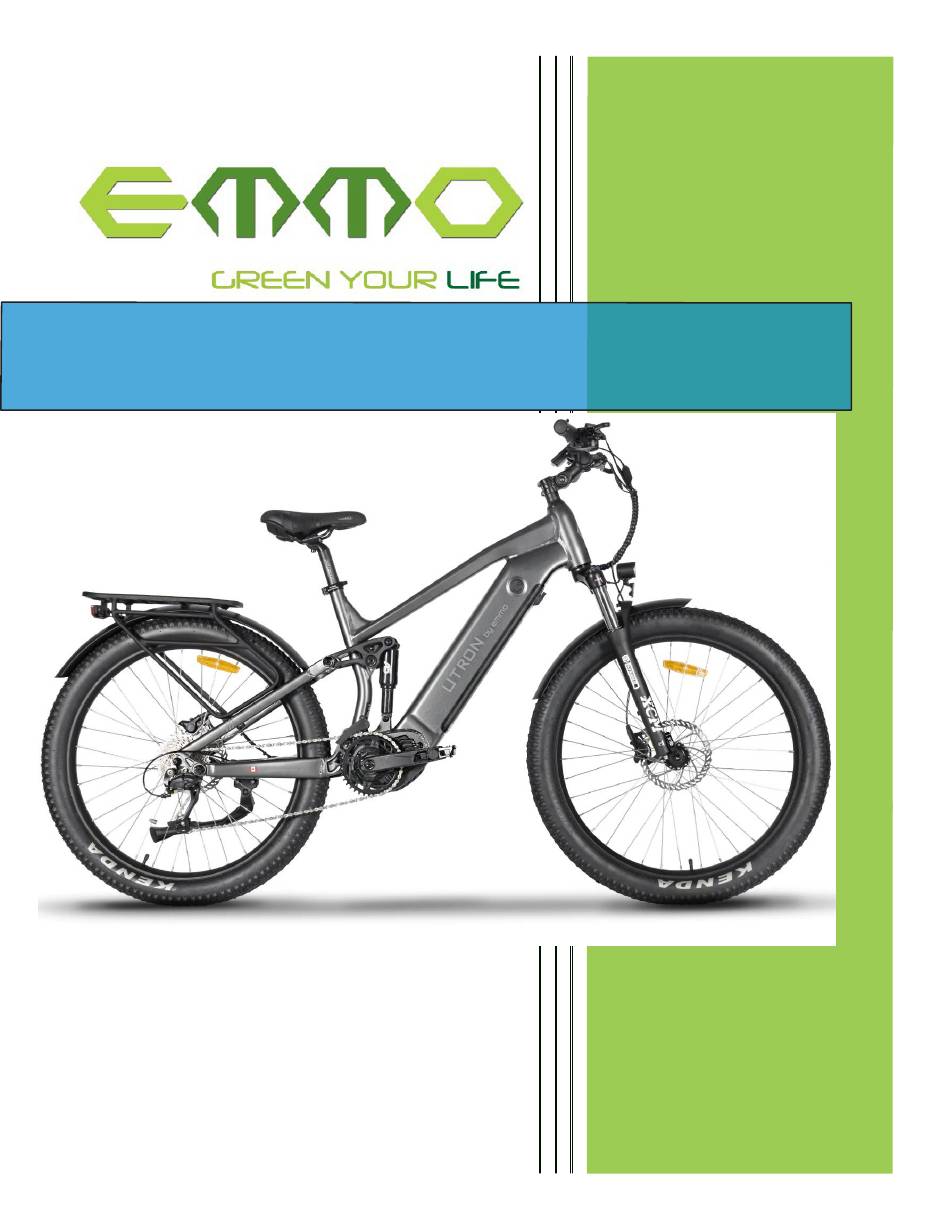

USER'S MANUAL
EMMOM
Monta 2019
EMMO
Utron
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Utron and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO Utron

Summary of Contents for EMMO Utron

  • Page 1 USER’S MANUAL EMMOM Monta 2019 EMMO Utron...
  • Page 2 © 2019 EMMO Inc. All rights reserved. No texts, details, or illustrations from this Manual may be reproduced or distributed, or become the subject of unauthorized use for commercial purposes. Should you discover any errors, we...

  • Page 3: Table Of Contents

    MENU About EMMO…………………………………………………......4 Rules And Regulations……………………………………………….……….. 5 Speedometer And Controls ……………………………………………..….. 6 Rear Shock ….………………………………..………………………………. 15 Thumb Throttle…………………………………..……………………………. 16 Safety Instructions…………………………………..………………………... 17 How To Ride…………………………………..……………………..…………. 18 How To Charge…………………………………..…………………………….. 19 Maintenance Information………………………………………………….…. 21 E-Bike Registration Form……………………………………………………… 22...

  • Page 4: About Emmo

    ABOUT EMMO Established in 2009, EMMO Inc. is a proud Canadian venture that is focused on creating a more sustainable future by providing high- quality electric bicycles. We offer a wide variety of E-bikes that are suitable for leading a greener, and more stylish, way of living. EMMO E-bikes are priced competitively with other green solutions.

  • Page 5: Rules And Regulations

    RULES AND REGULATIONS Of riding an e-bike According to Canada’s Motor Vehicle Safety Regulations (MVSR). A qualified e- bike (defined as Power Assist Bicycle) must meet the following requirements: • The e-bike must have operable pedals • Upper wattage limit for the motor is 500W. Other requirements include a permanently affixed compliance label from the manufacturer stating that the vehicle is a power-assisted bicycle under statutory requirements in force at the time of manufacture.

  • Page 6: Speedometer And Controls

    1. Speedometer and Controls 1.1 Product appearance 1.2 Functions Multiple Power Assist Levels  Walk Assist (slow speed motor assist)  Distance and Odometer (TRIP/TOTAL)  Backlight / Headlight  Current riding speed in real time  Error codes  Power meter (Watts or Amps) ...
  • Page 7 1.3 Button definition Backlight/headlight (if connected) Minus button ON/OFF " " Minus button Mode Product specifications Maximum operating current: 30mA • When power is off, leak current is less than 1uA • Operating current supplied to the controller: 50mA • Operation temperature: -4°F~113°F •...
  • Page 8 CAUTION Avoid collisions to prevent damage or malfunction. The unit is IP65 water resistant. Bolt Size: M3 0.5 x 12mm (Control pad and Mount bracket) 1.5 Interface Current Time Battery Level Indicator USB Connection Indicator Headlight Indicator Current Speed Display Speed Scale Pedal Assist Level/Walk Assist 44.4 mile...
  • Page 9 Battery Level Indicator: The indicator shows the current battery level. The indicator can show battery level value in percentage or voltage. You can set this display option in the “SOC View” of the display settings menu. Current Speed Display: This displays the current travel speed in metric or imperial. Set your preferred unit in the “Unit”...
  • Page 10 To turn off the walk assist, let go of the button. The function is designed for walking alongside the bicycle only. Please do not use this function when riding. When the display is powered ON the default is PAS level 0. Note: Increasing your PAS level provides more power and speed.
  • Page 11 divisions of 3, 5, or 9 levels of the total motor power. Note: The number of pedal assist levels (3, 5, or 9) you set in your display divides the total power of the motor among the number of pedal assist levels. * We highly recommend setting your display to 9 Pedal Assist Levels to have access to more incremental power levels.
  • Page 12 Clock Setting: The clock in this display uses 24-hour notation. Please note that the clock will reset every time you remove the battery of the device. To set the clock, press the button on the option and use the buttons to adjust each value.
  • Page 13 1.8.2 Changing Password Once the password is set, the option “Reset Password” will appear in the password menu. Select “Reset Password” from the menu, the interface will display a prompt you to input the current password to access this option. Please input the correct current password.
  • Page 14 1.9 Error Codes Once the display detected a fault, the icon will be displayed. Error Codes can be found under Information  Error Code Error Code Code Definition 04/05 Throttle Fault Low Voltage Cut-Off Protection High Voltage Cut-Off Protection Hall Sensor Fault 10/11 Over Heat Cut-Off Protection Controller Fault...

  • Page 15: Rear Shock

    2. Rear Shock A5RR1 and A5RE To set the pressure in the main cylinder (valve marked "MP), use a compatible shock pump. Remove the valve cap and attach the shock pump according to the pump manufacturer’s specifications. Recommended air pressure for the main cylinder is 100-150psi. DO NOT EXCEED 180psi.

  • Page 16: Thumb Throttle

    3. THUMB THROTTLE Gently pushing the throttle lever downwards to accelerate.

  • Page 17: Safety Instructions

    4. SAFETY INSTRUCTIONS To ensure the safety of you and others, • Do not ride after you take medications which may affect your riding ability, drink alcohol, or when you are unwell. • Please make sure you are familiar with your local bylaw regarding e-bikes. •...

  • Page 18: How To Ride

    5. HOW TO RIDE THE BIKE • Sit on the bike. Put on the helmet or any protective equipment required. • With your feet still on the floor, turn the bike on (refer to page 10). • Before you start off, kick the side kickstand up.

  • Page 19: How To Charge

    6. HOW TO CHARGE The charger is separated into two different parts: A cable with one end that goes into an 110V power outlet, and the other end that goes into the charger box itself. 2. The charger box with a cable that plugs into the bike.
  • Page 20 Step 3. Make sure the indicator on the charger turns red (red indicator means it charging, green indicator means the battery is fully charged.) Step 4. Once the battery is fully charged, unplug the charger from the power outlet first and then unplug the charger from the battery.

  • Page 21: Maintenance Information

    7. MAINTENANCE Regular maintenance is required to keep the bike in its best working conditions. CLEAN Please use clean water and neutral detergent to clean the bike. Use soft cloths or sponges to clean the surfaces. Please do not use metal brushes, sandpaper or any other abrasive material to avoid scratches or physical damage.

  • Page 22: E-Bike Registration Form

    Fill out the following form: Invoice Number: Store Location: Customer Name: Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...
