Summary of Contents for EMMO F7

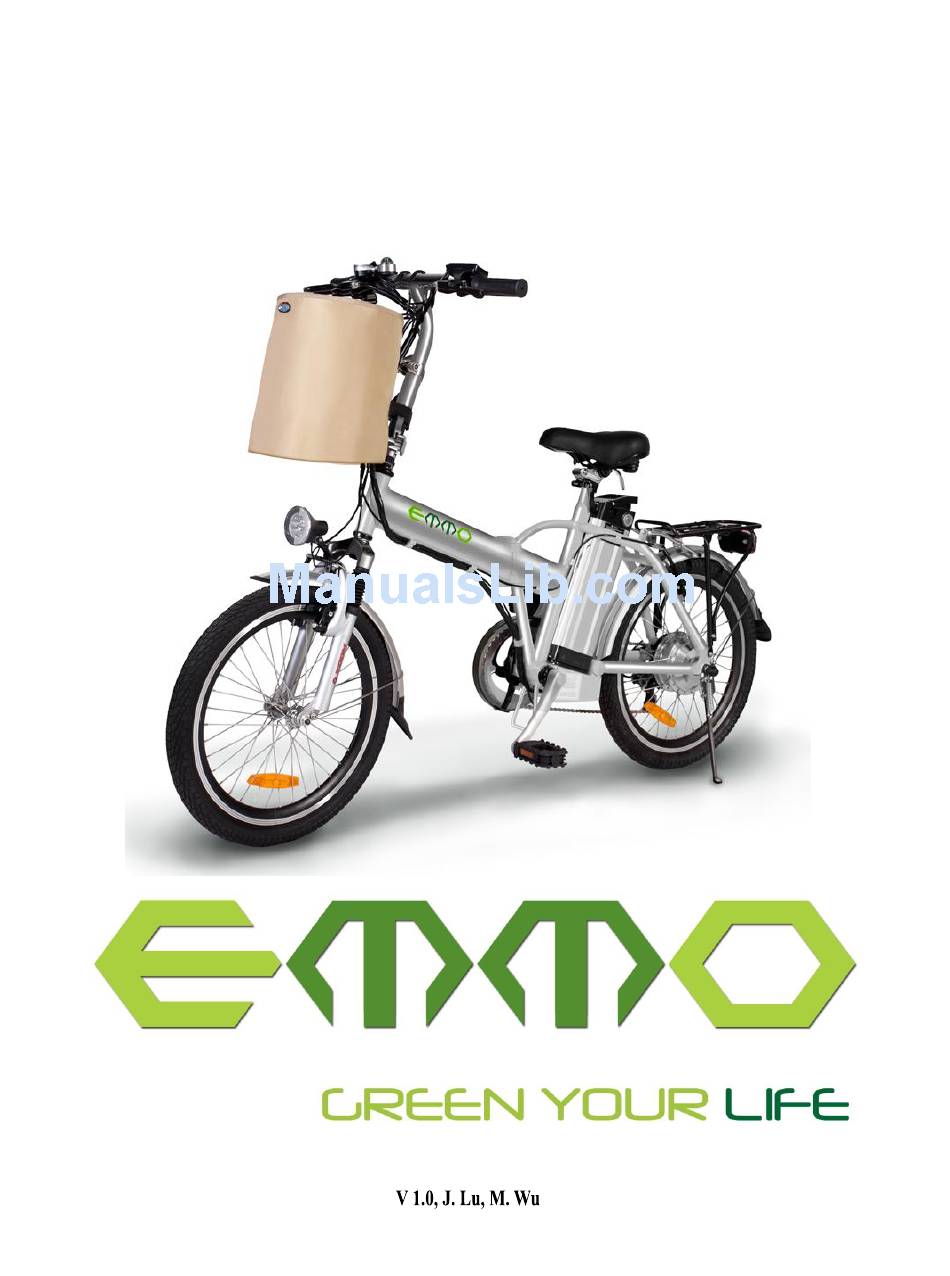

  • Page 1 Emmo F6 Owner’s Manual...

  • Page 2: Table Of Contents

    P a g e Table of Contents MTO Label…………………………………………………………………………………..3 Specifications……………………………………………………………………………..4 Charging Your E-bike………………………………………………………………5-6 Adjusting Brakes and Tire Air Pressure…..........7 Side Stand and Foldable Pedals…………………………………..………...……8 Ignition……………………………………………………………………………………….9 Left and Right Side of the Handlebar and Throttle………………...…10 Folding Your E-bike…..……………………………………………………………...11 Greasing Bike Chain………………………………………………………………….12 E-bike Registration……………………………………………………………..……13 Contact Us……………………………………………………………………..………….14...

  • Page 3: Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e Specifications Color: Silver; Red; Green; Yellow Foldable Bike Style, Lithium Battery, 6 Speed, Lightweight, Aluminum Foldable Frame Special Feature: 20″ x 1.95″ Wheel Size: Net Weight: 25Kg Maximum Speed: 30 km/h 40-45 km* Travel Range: 3 – 6 Hours Charging Time: Climbing Angle: 15 Degrees...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike Charging the battery is done from the charger port located on the battery itself. The charger is separated into two different parts: A cable with one end that goes into a 110V power outlet, and the other end that goes into the charger box itself, the charger box with a cable that plugs into the bike.
  • Page 6 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 6 HOURS. *DO NOT CHARGE THE E- BIKE FOR MORE THAN 8 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *DURING LONG PERIODS OF INACTIVITY, MAKE SURE THAT THERE IS MORE THAN 25% POWER IN THE...

  • Page 7: Adjusting Brakes And Tire Air Pressure

    P a g e Adjusting Brakes (Front and Back) Loosen the screw identified on the picture above (white arrow) and pull the wire to the right in order to tighten the brakes. Pull the wire to the left to loosen the brakes. Tighten the screw after finishing the adjustments. The brake pads can also be adjusted.

  • Page 8: Side Stand And Foldable Pedals

    P a g e Side Stand The side stand is similar to other bicycles – flick it downwards such that it sticks out, as shown in the picture, then lean it to the left. Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up. WARNING! The law requires all e-bikes to have pedals installed.

  • Page 9: Ignition

    P a g e Key Positions in Ignition 1. This is the ‘on’ position. This position is reached when the key is turned to the right, from the off position. The bike will turn on, and all functions on the handlebars will work.

  • Page 10: Left And Right Side Of The Handlebar And Throttle

    10 | P a g e Gear Control Front Brake Pushing the upper button Throttle lowers the gear (i.e. From 5 Pulling this lever will 6). Pushing the lower Turning the throttle activate the front brake. button (‘+’) raises the gear towards the rider (ie.

  • Page 11: Folding Your E-Bike

    11 | P a g e Steps 1-7 listed above are visual representations of how to fold the Emmo F6.

  • Page 12: Greasing Bike Chain

    12 | P a g e Note: Grease the bike chain once a month for maximum efficiency.

  • Page 13: E-Bike Registration

    1. Fill out the following form: Invoice Number: Store Location: Customer Name: Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...

  • Page 14: Contact Us

    P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
