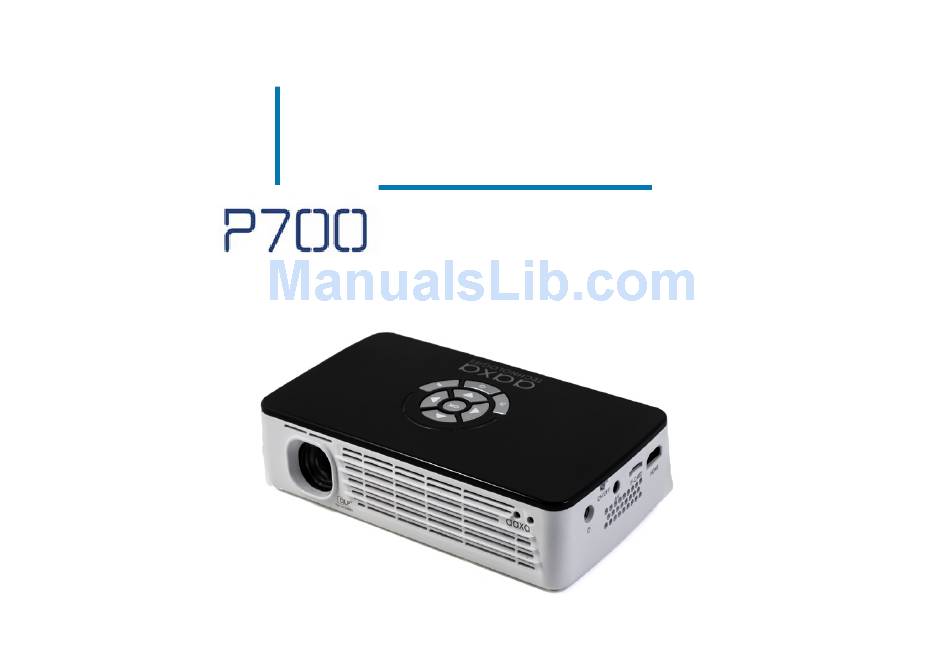

- Page 1 aaxa TECHNOLOGIES Pico Projector User Guide...
- Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving. Caution for Battery Use • Do not pierce or puncture the battery with sharp objects. DO NOT expose to water or wet sur- •...
-
Page 3: Table Of Contents
Table of Contents Chapter 1: P700 at a glance Connecting to a USB Host Main Unit Front/Back Chapter 3: Menu Screens Remote & Keypad Portable Media Player Accessories Video Player Menu Chapter 2: Getting Started Previous/ Next Video Powering On / OFF... - Page 4 Table of Contents Option Settings Keystone Adjustments Chapter 4: Technical Details Troubleshooting Specifications...
-
Page 5: Main Unit Front/Back
Chapter 1 P700 at a Glance Main Unit Front/Back Power Button On/ Off Switch HDMI Micro SD Card Headphone Jack DC Adapter Port VGA Port A/V Cable USB Port Focus Adjustment... -
Page 6: Remote & Keypad
Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the P700 unit. Note: Utilizing the power button on the remote will only put the projector in STANDBY mode. -
Page 7: Accessories
Accessories Tripod Remote VGA Cable Power Adapter A/V Cable *Under various circumstances, the actual accessories may be different from those shown in the pictures above. -
Page 8: Chapter 2: Getting Started
Powering OFF the projector To turn off the projector, toggle the POWER Switch to the “OFF” position once you are in “standby mode”. This will fully turn off the projector. Note: The P700 Projector battery does not charge when it is in operation. -
Page 9: Focus Adjustment / Throw
Focus Adjusment / Throw Distance Focus Adjustment • Spin the focus wheel up or down until the image becomes clear. Throw Distance Chart Distance inch (“) Diagonal inch (“) 16:9 Aspect Ratio Throw Ratio 1.40 *minimum throw distance: 10 inches... -
Page 10: Connecting To A Computer Via Vga
Connecting to a Computer via VGA Step 1: Connect the large end of the to your computer’s VGA Cord VGA Adapter Step 2: to your P700’s Connect the small end of the VGA Adapter VGA Cord Step 3: In the Main Menu Select “INPUT” icon... - Page 11 Connecting to a Computer Cont. Step 4: Enabling VGA or HDMI output on your Computer – to enable VGA or HDMI output on your com- puter most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows 7 computer –...
-
Page 12: Connecting To A Computer Via Hdmi
Connecting to a Computer via HDMI Step 1: Connect one end of the to your computer’s HDMI Adapter HDMI Cord Step 2: Connect one end of the to your P700s HDMI Adapter HDMI Cord Step 3: In the Main Menu Select “INPUT”... - Page 13 Connecting to a Computer Cont. Step 4: Enabling VGA or HDMI output on your Computer – to enable VGA or HDMI output on your com- puter most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows 7 computer –...
-
Page 14: Connecting To Composite Video
Connecting to Composite Video Step 1: Connect one end of the to your P700’s Composite Cord A/V Adapter Step 2: to your devices Connect opposite end of Composite Cord Composite Cord... - Page 15 The P700 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles, and other peripherals with ease. *Apps on smart phones require video out capabilities to be displayed with the P700.
-
Page 16: Connecting To Hdmi Video
Connecting to HDMI Video Step 1: Connect one end of the to your P700’s HDMI HDMI Adapter Step 2: Connect one end of the to your devices HDMI HDMI Adapter... -
Page 17: Phones
The P700 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles, and other peripherals with ease. *Apps on smart phones require video out capabilities to be displayed with the P700. -
Page 18: Connecting Speakers/Headphones
Connecting Speakers/Headphones Step 1: Connect your speakers/headphones the projector’s speaker adapter. 3.5 mm cord Speaker Adapter Step 2: Ensure the power and volume on your speaker or headphones is turned on. Step 3: Place the headphones on and enjoy! *CAUTION for Headphone Use •... - Page 19 Micro SD Card How to insert your Micro SD Card • Slide in your SD card into the SD card slot on the side of the P700. (as shown in picture) • Gently slide the SD card until it clicks into place.
- Page 20 Micro SD Card Cont. File Menu System • The P700 will show all folders and files you have on your SD Card in the C: drive. • Use the directional buttons to navigate Media Player menu to different folders or files.
- Page 21 USB Host How to insert your USB Drive • Slide your USB Drive into USB adapter. (as shown in picture) • Gently slide the drive until it cannot go in any further. How to access your USB Drive • Once your USB Drive has been in- serted, you can navigate to any media content in the main menu.
- Page 22 USB Host Cont. File Menu System • The P700 will show all folders and files you have on your USB Drive. • Use the directional buttons to navigate Media Player menu to different folders or files. • In the Media Player selection you can choose from Videos, Audio, Pictures, and text.
-
Page 23: Main Menu
Chapter 3 Main Menu The P700 features a built in PMP (Portable Media Player) function. This function allows the projector to play videos, pictures, music files, and text. To access the main menu simply turn on the projector. • Scroll left or right by pressing the left and right directional buttons. -
Page 24: Video Player Menu
Video Player Menu Opening a file: 1. Select the video option from the main menu. 2. Select the hardware media the file is stored on. 3. Choose which file you wish to play. -
Page 25: Previous/ Next Video
Previous/ Next Video Playing Videos To adjust the volume use the up and down arrow directional keys on the projector or the volume keys on the remote. To navigate the playback menu, push the “OK” button to open the menu, and use the directional buttons on the nativation pad or remote to highlight the option you wish to choose. -
Page 26: Video Playback Faq
Video Playback FAQ How do I loop a video? 1. Choose either USB or SD Card for playback. 2. Navigate the folders until you reach the file you wish to play. 3. Highlight the file you want to play, then confirm the selection. 4. -
Page 27: Photo Viewer Menu
Photo Menu Opening a file: 1. Select the photo option from the main menu. 2. Select the hardware media the file is stored on. 3. Choose which file you wish to play. -
Page 28: Viewing Pictures
Photo Menu Viewing Pictures To use the photo controls, use the directional keys to highlight the option you wish to choose. By pressing the “OK” button, the user can navigate through the photo menu as shown below. Move slide show to previous or next slide Adjusts the keystone Confirm selection Previous... -
Page 29: Photo Faq
Photo Slideshow FAQ How do I play a slideshow? How do I manually control the slideshow? 1. Choose either USB or SD Card for playback. After selecting the photo you wish to be displayed, you can press “play” to start the slideshow (as outlined in the previous FAQ). -
Page 30: Music Player Menu
Music Player Menu Opening a file: 1. Select the audio option from the main menu. 2. Select the hardware media that the file is stored on. 3. Choose which file you wish to play. - Page 31 Music Player Menu Listening to Audio To use the audio controls, use the directional keys to highlight the option you wish to choose. By pressing the “OK” button, the user can navigate through the photo menu as shown below. Move selection left or right Adjusts the volume Confirm Selection Stop...
-
Page 32: Music Faq
Music Playback FAQ How do I loop a song? How do I create a song playlist? Insert your media device (either mi- 1. Choose either USB or SD Card croSD card or USB) into computer. for playback. Make a new folder on media device (folder name will be the name of the playlist). -
Page 33: Ebook Viewer Menu
EBook Viewer Menu Opening a file: 1. Select the “text” option from the main menu. 2. Select the harware media the file is stored on. 3. Choose which file you wish to play. -
Page 34: Setup Menu
Within the settings menu there are • Sound Mode • Balance four more submenus that allow you to • Auto Volume customize your P700 to the settings • Surround Sound you want. Option • OSD Language • Restore Factory Default •... -
Page 35: Settings Menu
Settings Menu Brightness • The brightness function allows the user to select between 3 differ- ent brightness settings. (2 when plugged in) Eco: Automatically enabled when not plugged in. LED life is at its maxi- mum and fan noise is at its minimum. Normal: Good mix of color quality and brightness. - Page 36 Settings Menu Cont. Software Update • A firmware upgrade can be achieved by following method. The only requirement is for the user to copy the new firmware version onto the USB memory stick. Through the “Settings Menu”, insert the USB stick with the new firmware into the USB port and select the up- grade option through the “Settings Menu”.
-
Page 37: Picture Settings
Picture Settings Picture Mode The picture mode allows the user to select different picture modes such as Standard, Mild, and, Dynamic. The differences in each mode is a combination of changes in Contrast, Brightness, Color, Sharpness, and Tint. The “User” mode allows the user to manually adjust these settings. -
Page 38: Sound Settings
Sound Settings Sound Mode Change the sound mode depending on what is currently playing. The settings are Standard, Music, Movie, Sports, and User. These settings allows the user to change the treble and bass of the sound quality. Balance Adjusts the balance of the sound from left speaker to right speaker. -
Page 39: Option Settings
English, Spanish, Italian, French, Portuguese, Chinese, and many more. Additional language options may be available through reflash. Please contact AAXA Technologies if another language support is required. Restore Factory Default By choosing this function the user can restore the default settings. -
Page 40: Keystone Adjustments
Keystone Adjustments What is Keystoning? “Keystoning” occurs when a projector is aligned non-perpendicularly to a screen, or when the projection screen has an angled surface. The image that results from one of these misalignments will look trapezoidal rather than square. Digital Keystone Adjustments By adding a special, selectable, algorithm to the scaling, some new projectors are able to alter the image before it reaches the projection lens. - Page 41 If the image looks trapezoidal with the top larger (as pictured right), press the top button on the direc- tional pad on the top of the P700 until the keystone effect corrects and the picture turns into a square projection.
-
Page 42: Chapter 4: Technical Details
Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P700 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. The native resolution of the P700 projector is 1280x800. -
Page 43: Specifications
Technical Details Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power Check to ensure the power outlet or battery source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. -
Page 44: Specifications
Specifications Brightness 650 Lumens Native Resolution 1280x800 Maximum Resolution 1920x1080 Contrast Ratio 2000:1 Projectoin Lens: Manual Focus Image Size: 10~160 inches Lamp: Triple RGB LEDs with Vibrant Color Tech- nology Life 15,000hrs Video in: Composite A/V (composite 3.5mm jack) VGA(mini-VGA) HDMI Audio Output: 1.0 W stereo speakers... - Page 45 Please direct all customer service inquiries to: AAXA Technologies, Inc. 1541 Parkway Loop Tustin, CA 92780 (714) 957-1999 info@aaxatech.com...
