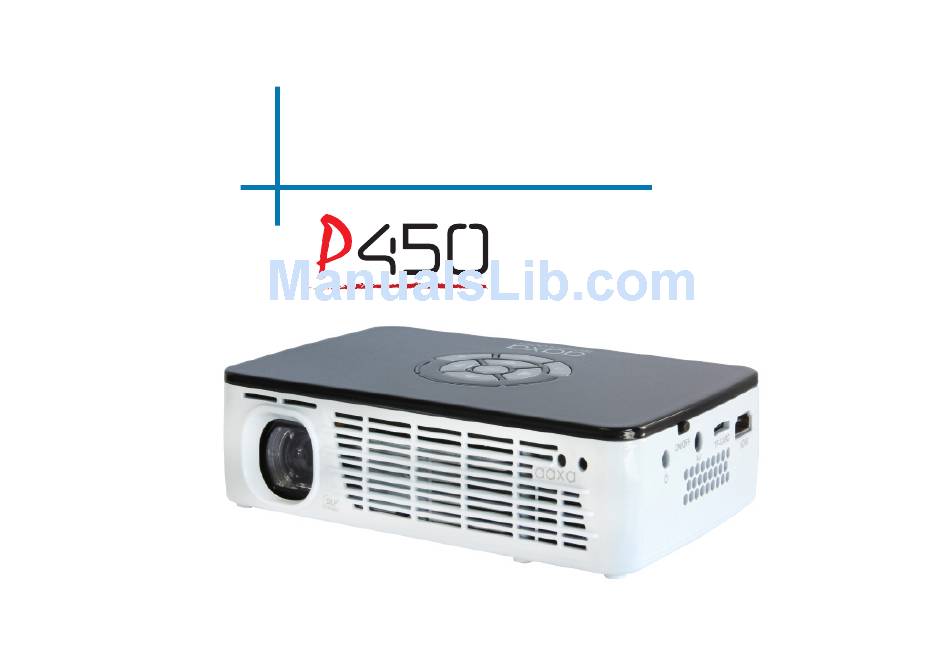

- Page 1 aaxa TECHNOLOGIES PICO PROJECTOR User Guide...
- Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving Caution for Headphone Use • Prolonged use at high volume may impair your hearing. DO NOT expose to water or wet •...
-
Page 3: Table Of Contents
Table of Contents Connecting a Micro SD Card Chapter 1: P450 at a glance Connecting a USB Stick P450 Introduction Chapter 3: Menu Screens Remote & Keypad Main menu Accessories Video Player Menu Chapter 2: Getting Started Photo Viewer Menu... -
Page 4: Chapter 1: P450 At A Glance

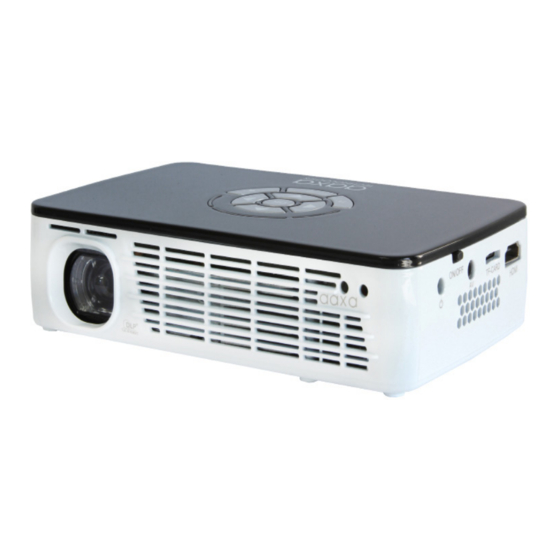

Chapter 1 P450 at a Glance Main Unit Front/Back Power Button Power Switch Micro SD Card HDMI AV Input Power Adapter Port Focus Adjustment Headphone Out VGA Port USB Port... -
Page 5: Remote & Keypad
Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the P450 unit. NOTICE: Pressing power on the remote will only put the projector in STANDBY mode. -
Page 6: Accessories
Accessories Tripod Remote VGA Cable Power Adapter A/V Cable *Under various circumstances, the actual accessories may be different from those shown in the pictures above. -
Page 7: Chapter 2: Getting Started
*Note: Standby mode will still consume a small amount of power. Powering OFF the projector To turn off the projector, toggle the POWER Switch to the “OFF” position. This will fully turn off the projector. *The P450 is NOT battery powered and does not have the option for a battery... -
Page 8: Focus Adjustment / Throw Distance
Focus Adjusment / Throw Distance Focus Adjustment • Spin the focus wheel up or down until the image becomes Throw Distance Chart Throw Distance Diagonal Size Units: Meters Units: Inches 16:95 Aspect Ratio Throw Ratio 1.40 Projection Angle: 39.3 degrees *minimum throw distance: 12 inches... -
Page 9: External Input/Outputs
External Inputs and Outputs USB Stick Composite Cable MicroSD Headphones/speakers Laptop HDMI... -
Page 10: Connecting To A Computer Via Vga
Connect one end of the VGA Cable to your computer’s VGA Adapter. Step 2: Connect the other end of the VGA Cord to your P450’s VGA port. Step 3: In the Main Menu Select “Inputs” icon and then the “VGA” Icon. Select “INPUT” icon... - Page 11 Connecting to a Computer Cont. Step 4: Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your com- puter most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows XP computer –...
-
Page 12: Connecting To A Computer Via Hdmi
Connect one end of the HDMI Cable to your computer’s HDMI Adapter. Step 2: Connect the other end of the HDMI Cord to your P450’s HDMI port. Step 3: In the Main Menu Select “Inputs” icon and then the “HDMI” Icon. Select “INPUT” icon... - Page 13 Connecting to a Computer Cont. Step 4: Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your com- puter most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows XP computer –...
-
Page 14: Connecting To Composite Video
Connecting to Composite Video Step 1: Connect the 3.5mm Composite A/V Cable to the back of the P450. Step 2: Connect the composite end of the AV Cable (Red, White,Yellow) to your device. - Page 15 The P450 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease. *Apps on smart phones require video out capabilities to be displayed with the P450.
-
Page 16: Connecting To Hdmi Video
Connecting to HDMI Video Step 1: Connect one end of the HDMI to your P450’s HDMI Adapter Step 2: Connect the opposite end of the HDMI cable to your device. Note: Apple devices require a specialized HDMI adapter (Sold separately by... - Page 17 The P450 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease. *Apps on smart phones require video out capabilities to be displayed with the P450.
-
Page 18: Connecting Speakers/Headphones
Connecting Speakers/Headphones Step 1: Connect your speakers/headphones to the projector’s audio port. Step 2: Ensure that the projector and/ or the headphones is powered on. Step 3: Place the headphones on and enjoy! *CAUTION Prolonged use of headphones at a high volume may impair hearing... -
Page 19: Connecting A Micro Sd Card
How to insert your Micro SD Card • Slide in your SD card into the SD card slot on the front of the P450. (Text facing down as shown in picture) • Gently slide the SD card until it clicks into place. - Page 20 Micro SD Card Cont. File Menu System • The P450 will show all folders and files you have on your SD Card in the C: drive. Media Player menu • Use the directional buttons to navigate • In the main menu select the type of file to different folders or files.
-
Page 21: Connecting A Usb Stick
USB Host How to insert your USB Drive • Slide your USB Drive into USB port. (as shown in picture) • Gently slide the drive until it cannot go in any further. How to access your Micro SD Card • Insert your USB Drive into the projector. - Page 22 USB Host Cont. File Menu System • The P450 will show all folders and files you have on your USB Drive. • Use the directional buttons to navigate Media Player menu to different folders or files. • In the main menu select the type of file you wish to play.
-
Page 23: Chapter 3: Menu Screens
Chapter 3 Menu Screens Main Menu The P450 features a built in PMP (Portable Media Player) function. This function allows the projector to play videos, pictures, music files, and text directly from your connected devices. Direction Pad Input On / Off Exit/Back •... -
Page 24: Video Player Menu
• Choose which file you wish to play. Fig. 3.1 Fig. 3.2 The P450 will show all folders and files you have on your USB or MicroSD drive. Use the navigation buttons to select folders or files. Previewing Files: •... - Page 25 Video Player Menu Playing Videos To adjust the volume use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the “OK” button to open the menu and use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig 3.3).
-
Page 26: Video Playback Faq
Video Playback FAQ How do I loop a video? How do I preview a video? Choose the “video” option from the 1. Choose either USB or SD Card main menu for playback Navigate using either remote or onboard buttons to the file you wish to preview. -
Page 27: Photo Viewer Menu
• Choose which file you wish to play. Fig 3.4 Fig 3.5 The P450 will show all folders and files you have on your USB or MicroSD drive. Use the navigation buttons to select folders or files. Previewing Files: •... -
Page 28: Viewing Pictures
Photo Menu Viewing Pictures: To adjust the volume use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the “OK” button to open the menu and use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig 3.6). - Page 29 Photo Slideshow FAQ How do I play a slideshow? How do I manually control the slideshow? 1. Choose either USB or SD Card for playback After selecting the photo you wish to be displayed, you can press “play” to start the slideshow (as outlined in the previous FAQ).
-
Page 30: Music Player Menu
• Choose which file you wish to play. Fig. 3.7 Fig. 3.8 The P450 will show all folders and files you have on your USB or MicroSD drive. Use the navigation buttons to select folders or files. Previewing Files: •... - Page 31 Music Player Menu Listening To Audio: To adjust the volume use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the “OK” button to open the menu and use the directional buttons on the navigation pad or remote highlight the option you wish to choose (Fig 3.9).
- Page 32 Music Playback FAQ How do I loop a song? How do I create a song playlist? Insert your media device (either mi- 1. Choose either USB or SD Card croSD card or USB) into computer. for playback Make a new folder on media device (folder name will be the name of the playlist).
-
Page 33: Ebook Viewer Menu
Use the navigation buttons to select folders or files. Viewing Text Files: The P450 Pico Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder. -
Page 34: Chapter 4: Setup Menu
Surround Sound • Time Within the settings menu there are • Clock four more submenus that allow you to • Off Time customize your P450 to the settings • Sleep Timer you want. Option • OSD Language • Restore Factory Default •... -
Page 35: Picture Settings
Picture Settings Picture Mode • Changes the picture mode to different settings depending on your choosing. Color Temperature • Adjusts the color temperature from hot to cool (red to blue). Aspect Ratio • Changes the aspect ratio of the picture - 4:3, 16:9* Noise Reduction •... -
Page 36: Sound Settings
Sound Settings Sound Mode • Change the sound mode depend- ing on what is currently playing. Balance • Adjusts the balance of the sound, from left to right. Auto Volume • Sets the projector to auto-detect for the volume. The projector will auto detect the appropriate sound mode. -
Page 37: Time Settings
Time Settings Clock • Adjust the time/date. Off Time • (Function not available) On Time • (Function not available) Sleep Timer • (Function not available) Auto Sleep • (Function not available) -
Page 38: Option Settings
Option Settings OSD Language • Changes the language of the device. Options include English, Spanish, Chinese, German, French Restore Factory Default • Restores the projector to factory settings. Blending • Adjusts the blending option. OSD Duration • Allows the projector to set a duration for the selected OSD language. -
Page 39: Keystone Adjustment
Keystone Adjustments What is Keystoning? “Keystoning” occurs when a projector is aligned non-perpendicularly to a screen, or when the projection screen has an angled surface. The image that results from one of these misalignments will look trapezoidal rather than square. Digital Keystone Adjustments By adding a special, selectable, algorithm to the scaling, some new projectors are able to alter the image before it reaches the projection lens. - Page 40 If the image looks trapezoidal with the top larger (as pictured right), press the top button on the direc- tional pad on the top of the P450 until the keystone effect corrects and the picture turns into a square projection.
-
Page 41: Chapter 5: Technical Details
Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P450 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. The native resolution of the P450 projector is 1280x800. -
Page 42: Technical Details
Technical Details Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power Check to ensure the power outlet source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. -
Page 43: Specifications
Specifications Brightness: 450 Lumens Native Resolution: 1280x800(WXGA) Maximum Resolution: 1920x1080(1080P) Contrast Ratio: 2000:1 Aspect Ratio: 16:95 Projection Lens: Manual Focus Image Size: 10~140 inches Lamp: Triple RGB LEDs with Vibrant Color Technology Life 15,000hrs Video in: Composite A/V VGA(mini-VGA) HDMI Audio Output: 1.0 W stereo speakers 3.5 mm audio jack... -
Page 44: Notes
Notes... - Page 46 Please direct all customer service inquiries to: AAXA Technologies, Inc. 1541 Parkway Loop Tustin, CA 92780 (714) 957-1999 info@aaxatech.com...
