Gas Connection To Boiler; Minimum And Maximum Inlet Pressures - U.S. Boiler Company K2 Installation Instructions Manual

Support the weight of the gas line piping independently from the boiler gas connection fitting located on the
bottom of the boiler.
If an additional regulator is used to reduce boiler inlet pressure below 1/2 psig (3.4 kPa) it must be at least 6
to 10 ft. upstream of the boiler.
It is very important that the gas line is properly purged by the gas supplier or utility company.
Table 8.2: Minimum and Maximum Inlet Pressures
Model Max. (Natural & LP)
K2-080
K2-100
K2-120
K2-150
K2-180
66
VIII. Gas Piping

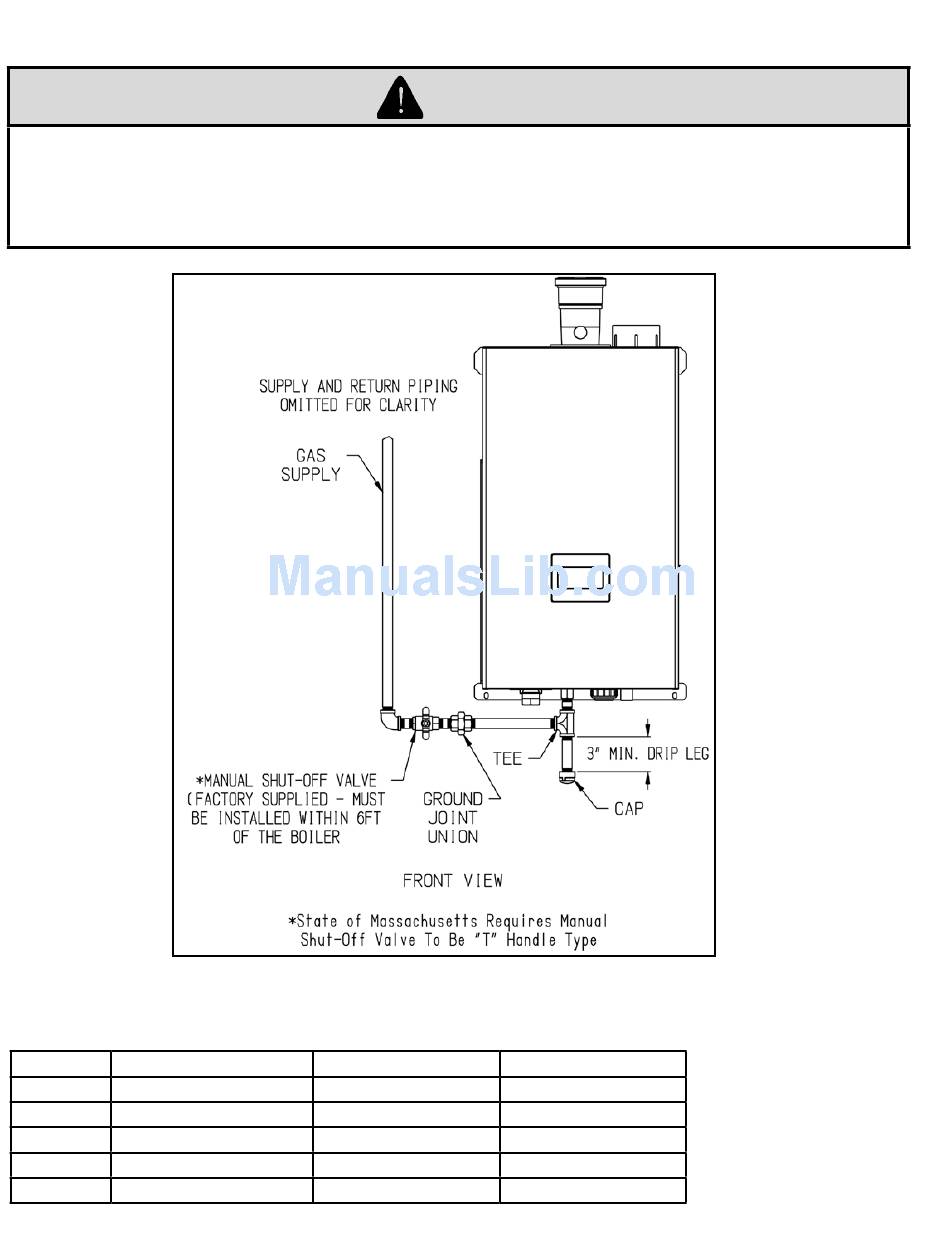

Figure 8.1: gas Connection to Boiler
Min. (Natural)
14.0"
14.0"
14.0"
14.0"
14.0"
(continued)
CaUTiOn
Min. (LP)
2.5"
2.5"
2.5"
2.5"
2.5"
11.0"
11.0"
11.0"
11.0"
11.0"
105294-05 - 5/15
