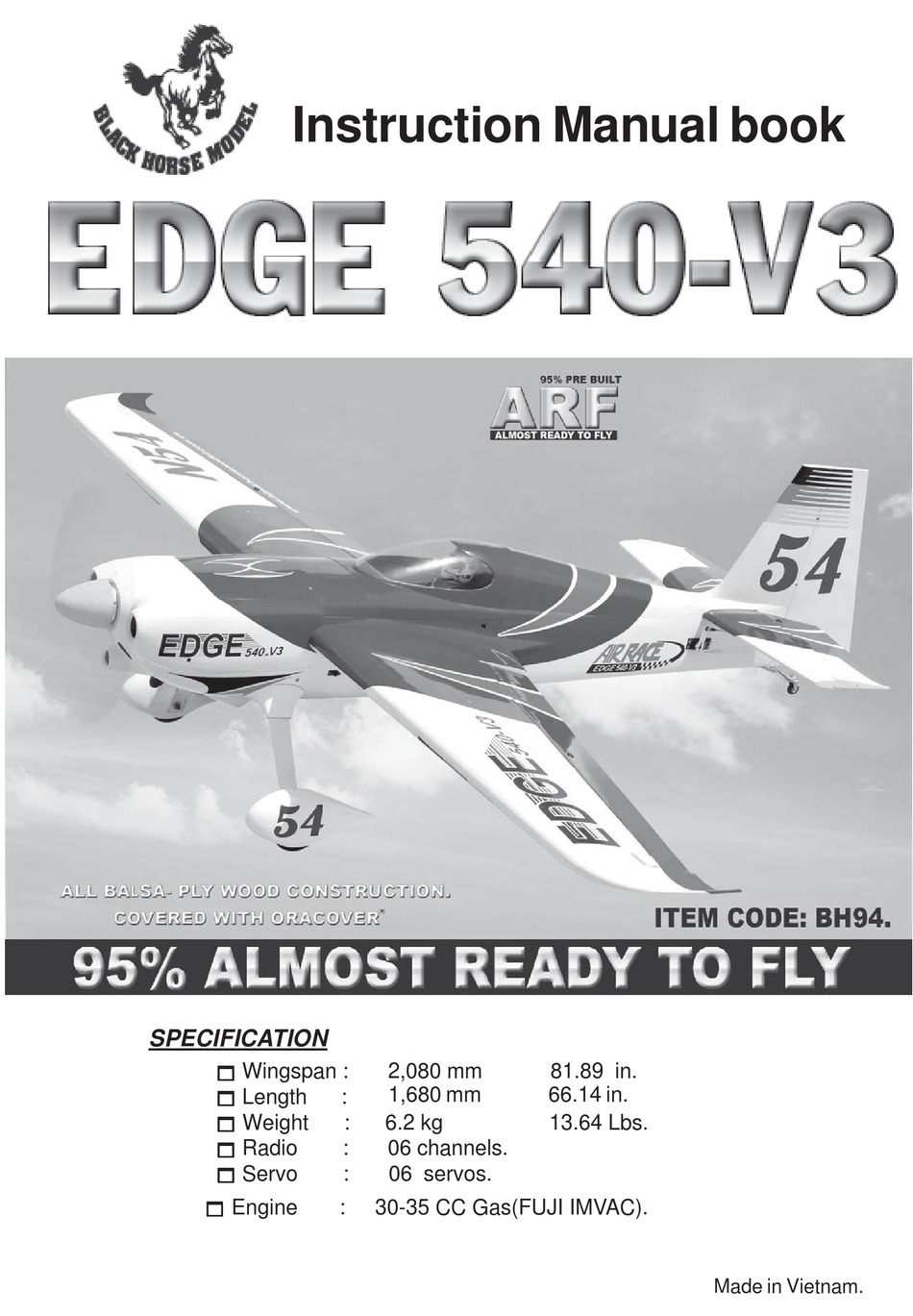

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo


 Engine


2,080 mm
1,680 mm
:
:
6.2 kg
:
06 channels.
:
06 servos.
:
30-35 CC Gas(FUJI IMVAC).
81.89 in.
66.14 in.
13.64 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE 540-V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model EDGE 540-V3

Summary of Contents for Black Horse Model EDGE 540-V3

  • Page 1 Instruction Manual book SPECIFICATION      Wingspan : 2,080 mm 81.89 in.      Length 1,680 mm 66.14 in.      Weight 6.2 kg 13.64 Lbs.      Radio 06 channels.

  • Page 2: Parts List

    - Item code: BH94 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EDGE 540-V3 30cc. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Caution: this model is not a toy! Wing warp: Hold the panel twisted If you are a beginner to this type of powered gently in the opposite model, please ask an experienced model flyer direction to the warp, and for help and support.

  • Page 4: Installing The Aileron Servo

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 REPLACEMENT SMALL PARTS 1. Aluminium landing gear. 2. Wheel pants. 3. Wheels. 4. Fuel Tank. 5. Plastic parts for rudder pushrod. 6. Rudder plastic light. 7. Plastic parts for landing gear. Bottom side.

  • Page 5: Installing The Aileron Linkages

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Secure. Elevator control horn 1. Repeat the procedure for the other wing Repeat the procedure for the other wing half. half. INSTALLING THE AILERON LINKAGES. INSTALLING THE AILERON CONTROL HORN 1 Installing the aileron linkages as pictures below.
  • Page 6 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 2.INSTALLING THE AILERON SERVO- 2. Elevator Electric control horn 2. thread INSTALLING THE AILERON LINKAGES 2. Installing the aileron linkages as pictures below. Secure. 68mm. Secure. INSTALLING THE AILERON CONTROL HORN 2. Secure.

  • Page 7: Installing The Engine Mount

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 FUEL TANK. Bottom side. INSTALLING THE STOPPER ASSEMBLY  1) The stopper has been pre-assembled at the factory.  2) Using a modeling knife, cut one length of silicon fuel line (the length of silicon fuel line is calculated by how the weighted clunk should rest about 8mm away from the rear of the tank and move freely inside the tank).
  • Page 8 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Secure. Tygon gas tubing not included. Fuel pick- up tube Vent tube Fuel fill tube  5) Test fit the stopper assembly into the tank. It may be necessary to remove some of the flashing around the tank opening using a modeling knife.

  • Page 9: Installing The Throttle - Cable

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 INSTALLING THE ENGINE MOUNT. Throttle - cable See pictures below: 5x 90mm Secure. Throttle - cable INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 10 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Left side. L a n d i n g gear. Secure. Right side. MAIN GEAR INSTALATION.  2) Using the hardware provided, mount the main landing gear to the fuselage. PARTS REQUIRED ...
  • Page 11 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Drill 8mm hole. Secure. Secure.
  • Page 12 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 COWLING.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Trim and Bottom side. Top side ...
  • Page 13 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Epoxy glue. C/A glue. Bottom side. Mark line. Remove the covering  3) A drop of C/A glue on the wheel collar screws will help keep them from coming lose during operation. Bottom side.

  • Page 14: Installing The Spinner

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Front view INSTALLING THE SPINNER. INSTALLING THE ELEVATOR SERVOS. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 8mm machine screws. ...

  • Page 15: Horizontal Stabilizer Installation

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Secure HORIZONTAL STABILIZER. Horizontal stabilizer installation  See picture below. 3x15mm. Bottom side Aluminium 9mm. 3 x 15 mm. 221 mm. Secure. Secure.

  • Page 16: Elevator Control Horn Installa- Tion

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of Elevator. Secure. Secure. A + B Epoxy Plus glue.

  • Page 17: Rudder Control Horn Installa- Tion

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 A + B Epoxy Plus glue. Top side. Installing The Rudder. Bottom side. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 18: Rudder Pushrod Installation

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Plastic parts of rudder pushrod. Cut. RUDDER PUSHROD INSTALLATION.  1. Rudder pushrod install as same as the way of aileron control horn.  2. Rudder push - pull system install as same as picture below.
  • Page 19 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 R e m o v e covering. Rudder plastic light. C/A Epoxy. Remove the covering C/A glue. Mark line.

  • Page 20: Mounting The Tail Wheel Bracket

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 MOUNTING THE TAIL WHEEL BRACKET. Bottom side. 3x12mm 3x15mm Drill a hole 2mm diameter INSTALLING THE SWITCH.       1. Cut out the switch hole using a modeling knife.

  • Page 21: Installing The Receiver And Battery

    EDGE 540 V3-30cc Instruction Manual - Item code: BH94 INSTALLING THE RECEIVER AND BATTERY. Switch       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .
  • Page 22 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Secure. RECEIVER. Left wing. See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- ture below. Wing bolt. Left wing Wing bolt. Switch RECEIVER. 4 x 35mm Drill 3mm hole.
  • Page 23 EDGE 540 V3-30cc Instruction Manual - Item code: BH94 Accurately mark the balance point on the top of the wing on both sides of the fuselage. The Secure. balance point is located 83mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 24: Control Throws

    5) Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage.       6) Properly balance the propeller. We wish you many safe and enjoyable flights with your EDGE 540-V3 30CC.
