Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo


 Engine


2,080 mm
1,680 mm
:
:
6.2 kg
:
06 channels.
:
06 servos.
:
30-35 CC Gas(FUJI IMVAC).
81.89 in.
66.14 in.
13.64 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE 540-V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model EDGE 540-V3

Summary of Contents for Black Horse Model EDGE 540-V3

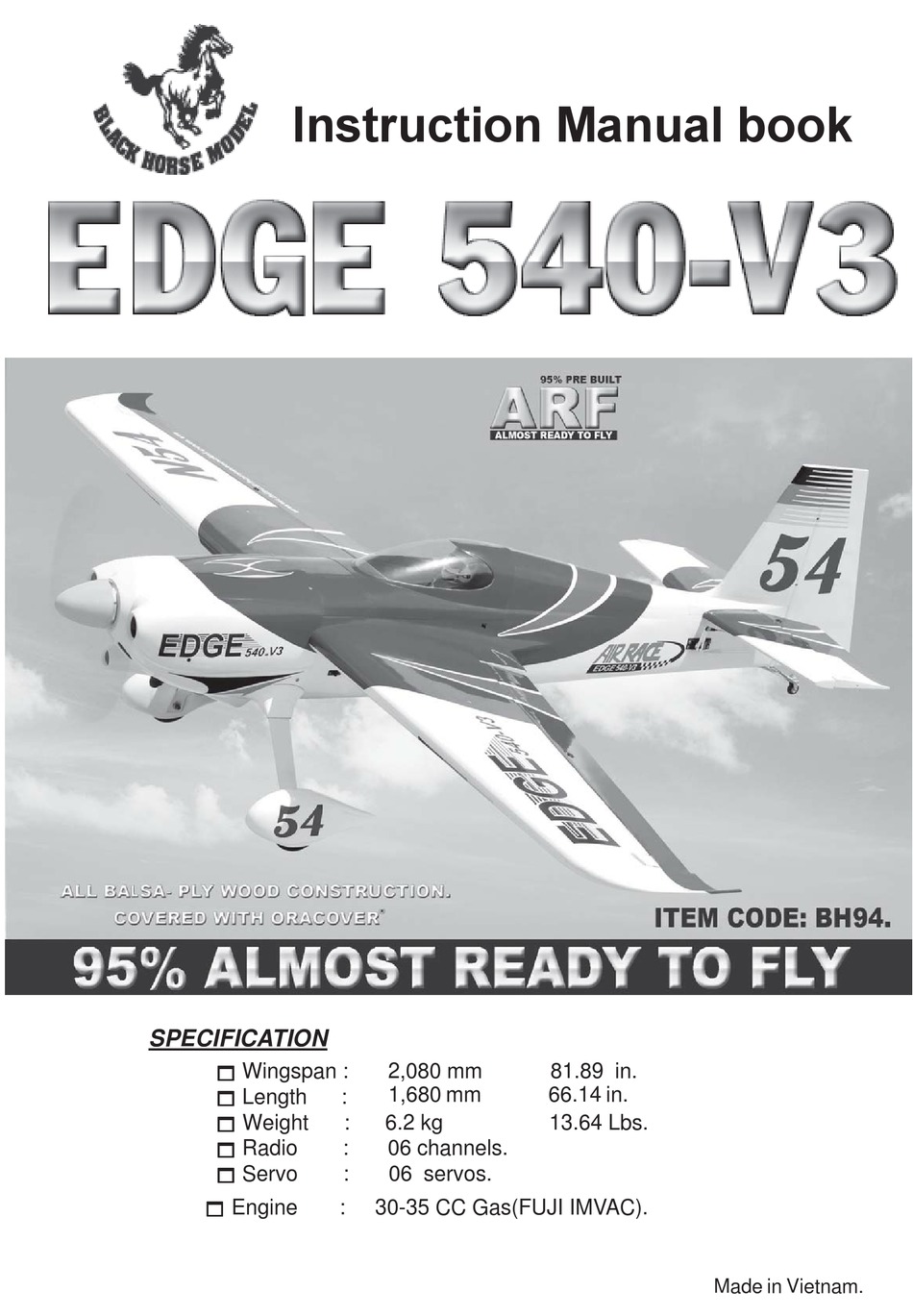

  • Page 1 Instruction Manual book SPECIFICATION      Wingspan : 2,080 mm 81.89 in.      Length 1,680 mm 66.14 in.      Weight 6.2 kg 13.64 Lbs.      Radio 06 channels.
