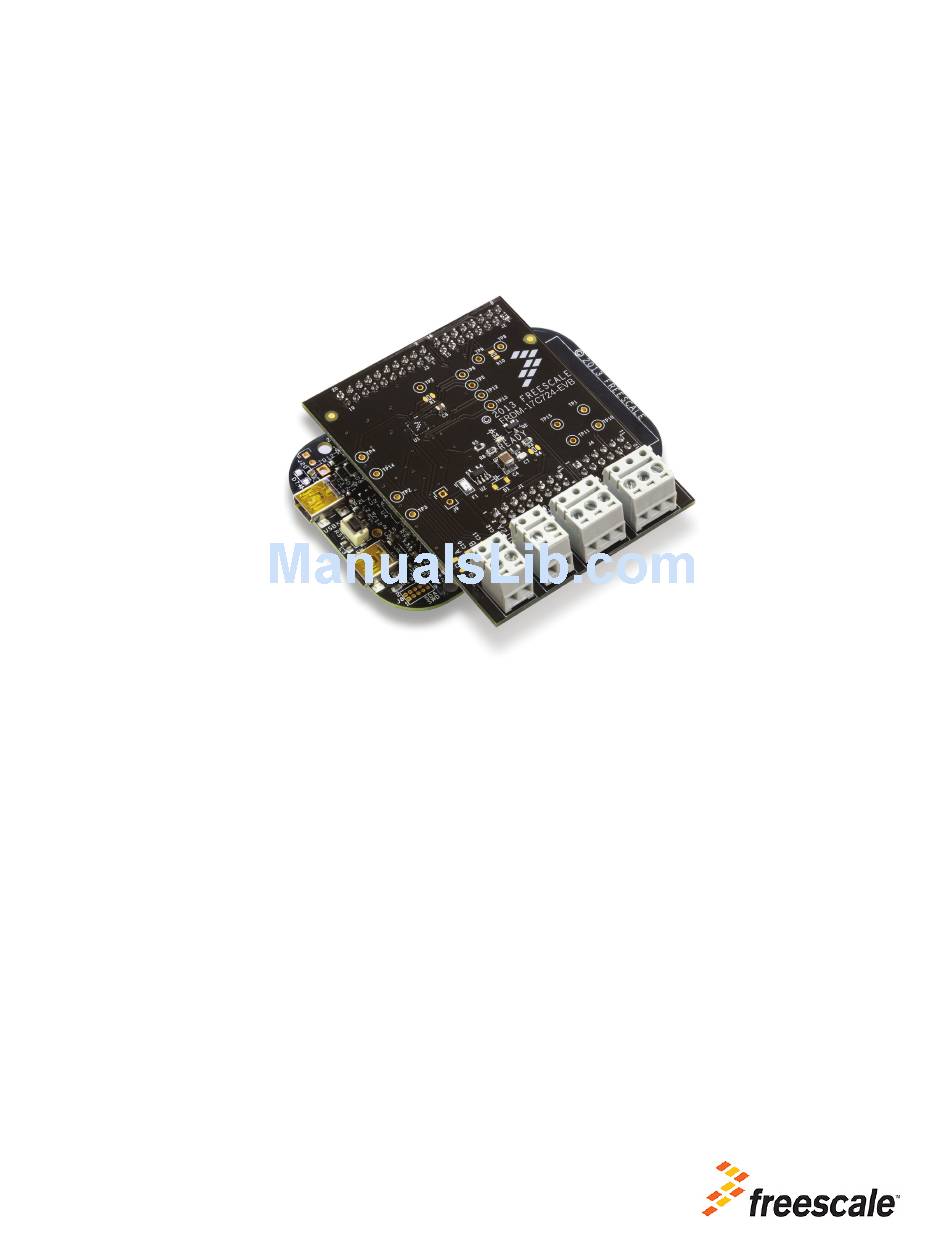

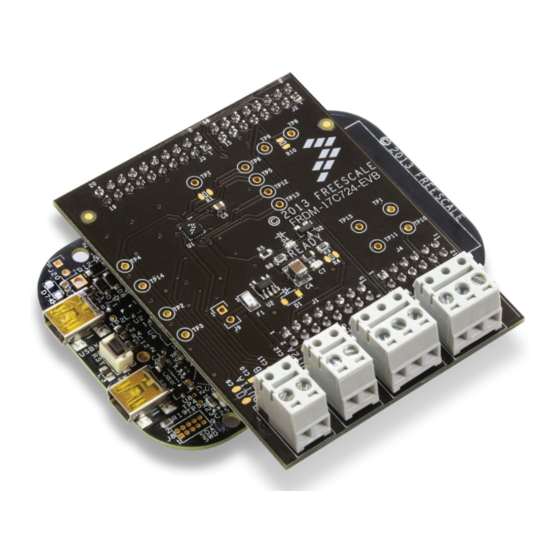

- Page 1 Freescale Semiconductor Document Number: KTFRDM17C724UG Rev. 1.0, 11/2014 User’s Guide FRDM-17C724-EVB Evaluation Board Figure 1. FRDM-17C724-EVB © Freescale Semiconductor, Inc., 2014. All rights reserved.
-
Page 2: Table Of Contents
10 Revision History ....................18 KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc. -
Page 3: Important Notice
Freescale was negligent regarding the design or manufacture of the part. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2014 KTFRDM17C724UG, Rev. -
Page 4: Getting Started
Getting Started Getting Started 2.1 Kit Contents/Packing List The FRDM-17C724-EVB contents include: • Assembled and tested evaluation board/module in an anti-static bag • Quick Start Guide, Analog Tools • Warranty card 2.2 Jump Start Freescale’s analog product development boards help to easily evaluate Freescale products. These tools support analog mixed signal and power solutions including monolithic ICs using proven high-volume SMARTMOS mixed signal technology, and system-in-package devices utilizing power, SMARTMOS and MCU dies. -
Page 5: Getting To Know The Hardware
3.1 Board Overview The FRDM-17C724-EVB evaluation board features the MPC17C724 dual H-Bridge IC, which features the ability to drive either a single two phase stepper motor or two brushed DC motors. The MPC17C724 incorporates internal control logic, a charge pump, gate drive, and high current, low R MOSFET output circuitry. -
Page 6: Board Description
Output 2B Connect motor phase 2 lead to this terminal CRES Charge Pump Voltage Power Supply Input Ground Terminal Not used – connection to FRDM-KL25Z input Not used – connection to FRDM-KL25Z input Ground Terminal KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc. -
Page 7: Led Display
Getting to Know the Hardware 3.6 LED Display An LED is provided as a visual output device for the FRDM-17C724-EVB evaluation board: Table 3. Board Description Name Description Illuminated with an output from the FRDM-KL25Z. Note the on board voltage regulator must... - Page 8 3.11 Jumper J9 The FRDM-17C724-EVB has provision (not populated) for a jumper to accommodate measuring the total current consumption. If the fuse is bypassed, use extreme care to make sure the maximum current for the MPC17C724 is not exceeded (0.4 A continuous, 0.8 A peak/transients).
- Page 9 The FRDM-17C724-EVB kit may be used with many of the Freedom platform evaluation boards featuring Kinetis processors. The FRDM-KL25Z evaluation board has been chosen specifically to work with the FRDM-17C724-EVB kit because of its low cost and features. The FRDM-KL25Z board makes use of the USB, built in LEDs, and I/O ports available with Freescale’s Kinetis KL2x family of microcontrollers.
- Page 10 PTB0 No connection PTE21 No connection PTB1 No connection PTE22 No connection PTB2 No connection PTE23 No connection PTB3 No connection PTE29 No connection ANLIN PTC2 Not used PTE30 No connection PTC1 No connection KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc.
-
Page 11: Installing The Software And Setting Up The Hardware
ID for Freescale (0x15A2), and the part ID (0x138). The left side panel displays these numbers only if the PC is communicating with the FRDM-KL25Z via the USB interface. Figure 3. Motor Control GUI KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor... - Page 12 Note: You may be asked to create a user before you can download the code. 3. Connect the FRDM-17C724-EVB to the FRDM-KL25Z. This is best accomplished by soldering the female connectors to the FRDM-KL25Z, and then connecting to the male pins provided on the FRDM-17C724-EVB.
- Page 13 "Stop" button on the GUI, make the desired changes, and then click "Run" on the GUI to continue. 11. When finished, click "Enable Target" button on the GUI, and then "Quit". Turn off DC power supply. Remove USB cable. KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor...
-
Page 14: Schematic
Schematic Schematic Figure 5. Schematic KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc. -
Page 15: Silkscreen
Silkscreen Silkscreen 7.1 Silkscreen Top KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor... -
Page 16: Bill Of Materials
Freescale does not assume liability, endorse, or warrant components from external manufacturers that are referenced in circuit drawings or tables. While Freescale offers component recommendations in this configuration, it is the customer’s responsibility to validate their application. Critical components. For critical components, it is vital to use the manufacturer listed. KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc. -
Page 17: References
References References Following are URLs where you can obtain information on related Freescale products and application solutions: Freescale.com Description Support Pages Tool FRDM-17C724-EVB Summary http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=FRDM-17C724-EVB Page Product MPC17C724 Summary http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC17C724 Page Freescale FRDM-KL25Z Development http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=FRDM-KL25Z Platform Analog Home http://freescale.com/analog Page mbed Home http://www.mbed.org... -
Page 18: Revision History
Revision History Revision History Revision Date Description of Changes 11/2014 • Initial Release KTFRDM17C724UG, Rev. 1.0 Freescale Semiconductor, Inc. - Page 19 Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. SMARTMOS is a trademark of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2014 Freescale Semiconductor, Inc.
