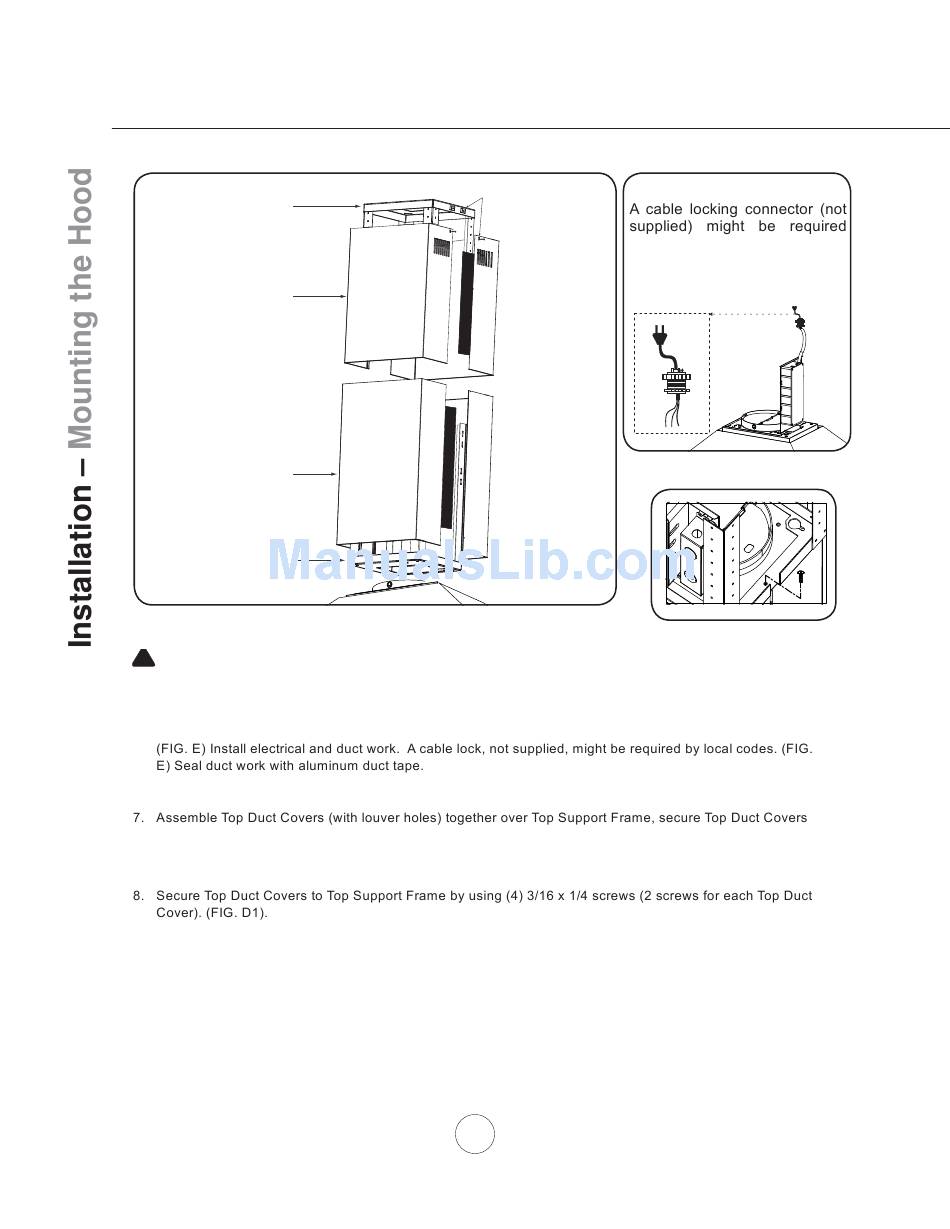

Zephyr Napoli ZNA-M90CS Use, Care And Installation Manual page 12

Top Support Frame
Top Duct Covers
Bottom Duct Covers
Bottom Support Frame
!
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
5. Remove tape securing electronics mounting bracket to hood and reposition electronics mounting bracket.
6. Power up hood, verify all functions and check for leaks around duct tape.
together by magnetic strips. Note: If using hood in ductless recirculating mode you must install the air
diverter plate to the Top Support Frame prior to assembling the duct covers. Turn to page 11 for more
details.
9. Assemble Bottom Duct Covers together over Top Duct Covers and secure together by magnetic strips.
Bottom Duct Covers should rest on top of the Hood Body.
1
FIG. D
10
www.zephyronline.com
Cable Lock
by local codes. Check with
local requirements and codes,
purchase and install appropriate
connector if necessary.
Cable Lock
FIG. E
FIG. F
