Cga 9 Pin D-Sub Connector (Optional); Ega 9 Pin D-Sub Connector (Optional) - Dynamic Displays QES1508 SERIES User Manual

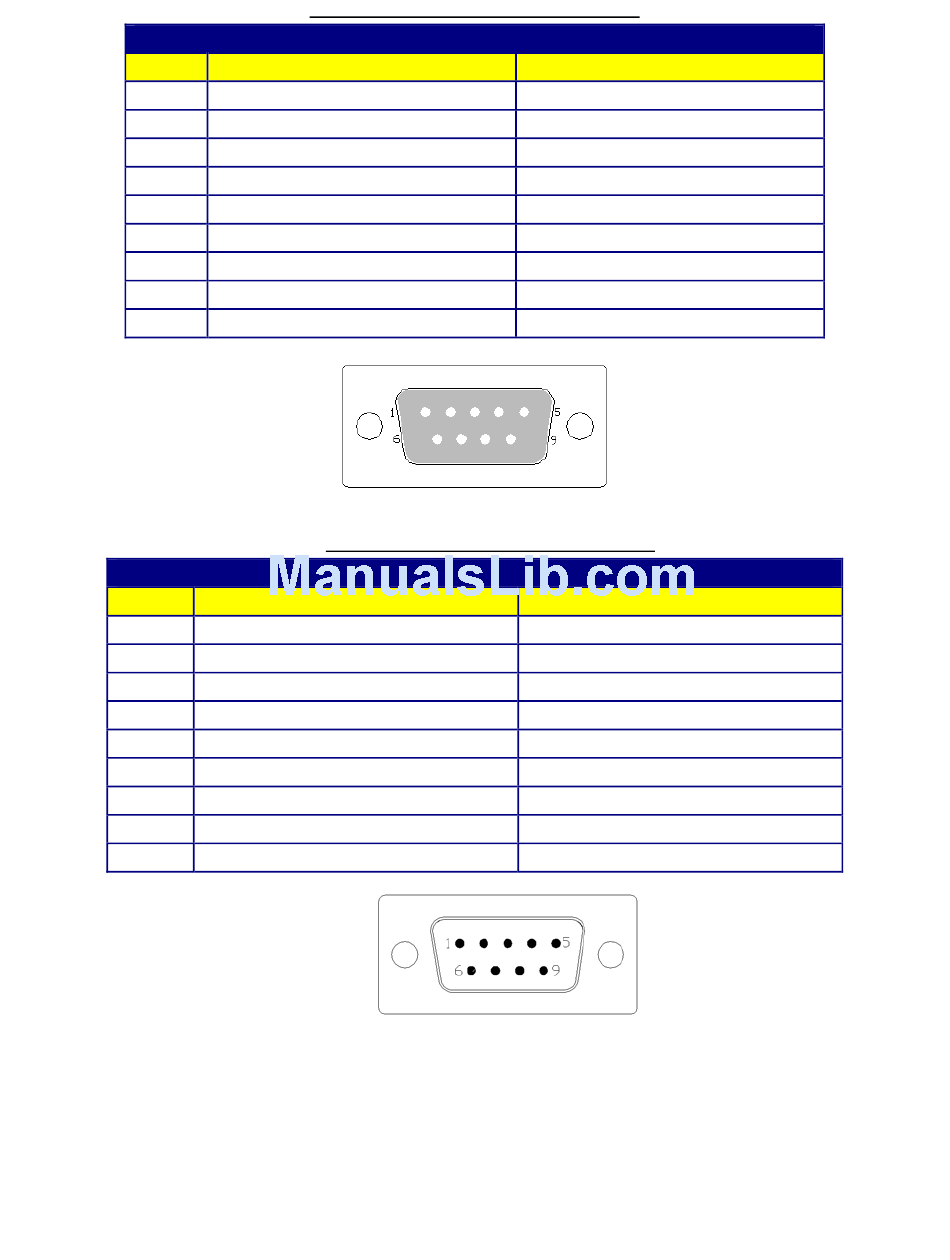

Pin Assignments for 9 Pin Optional CGA Color Graphics Adapter. Video Type: TTL
PIN
1
GND
2 GND
3
R
4 G
5
B
6 I
7 RES
8 HSYNC
9 VSYNC
Pin Assignments for 9 Pin Optional EGA=Enhanced Graphics Adapter. Video Type: TTL
PIN
1 GND
2 SR
3 PR
4 PG
5
PB
6 SG/I
7
SB
8 HSYNC
9
VSYNC
____________________________________________________________________________________
Dynamic Displays, Inc
1625 Westgate Road
Eau Claire WI, 54703

CGA 9 Pin D-Sub Connector (Optional)

CONNECTION

EGA 9 Pin D-Sub Connector (Optional)

CONNECTION
QES1500 Progressive/Interlace Unit
Glee 17C2
DESCRIPTION
Ground
Ground
Red Video
Green Video
Blue Video
Intensity
Reserved
Horizontal Sync
Vertical Sync
DESCRIPTION
Ground
Secondary Red
Primary Red
Primary Green
Primary Blue
Secondary Green / Intensity
Secondary Blue
Horizontal Sync
Vertical Sync
Doc # 0048059
Rev: B
Page 9 of 29
