Osd Interface Controls - Dynamic Displays QES1508 SERIES User Manual

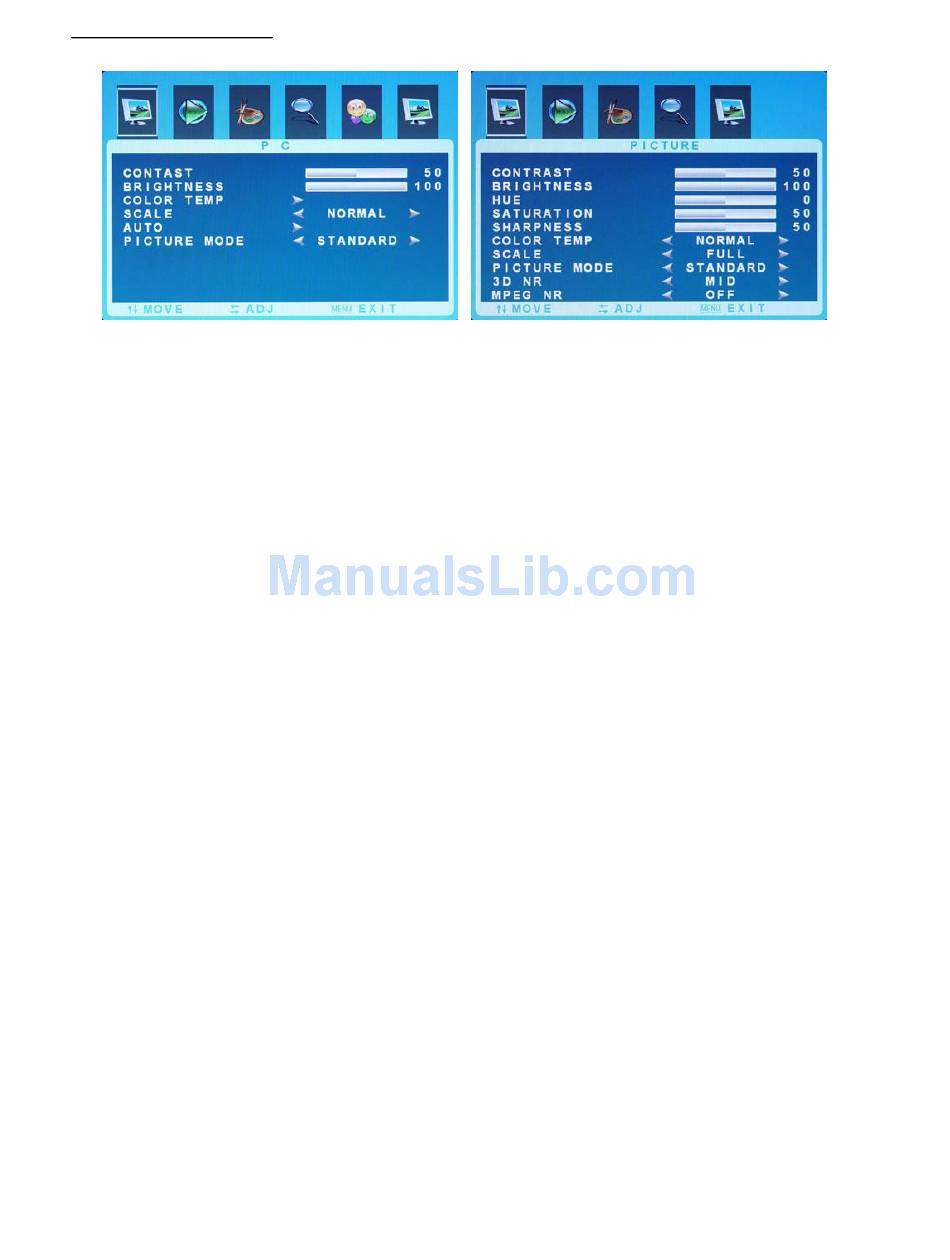

OSD Interface Controls;

1. PC/Picture (AV Mode)
1.1. Contrast; Increases or decreases video gain of the image.
1.2. Brightness; Increases or decreases the brightness of the image.
1.3. HUE; Only Available on S-Video or Composite
1.4. Saturation; Only Available on S-Video or Composite
1.5. Sharpness; Only Available on S-Video or Composite
1.6. Color Temp; allows the user to adjust for desire White Color Balance to a predetermined
temperature colors or individual Red, Green and Blue Controls.
1.6.1. Normal; Recalls the values for the color temperature of 7500K.
1.6.2. Warm; Recalls the values for the color temperature of 6500K.
1.6.3. Cool; Recalls the values for the color temperature of 9300K.
1.6.4. S-RGB -
1.6.5. User - When selecting "USER" you may adjust each individual color one at a time -
Available on PC Mode.
1.6.5.1.
1.6.5.2.
1.6.5.3.
1.7. Scale; With Scale selected, Use the "Left/ Right" buttons to choose from the following options:
1.7.1. Normal - Fills the entire screen.
1.7.2. Center -
1.7.3. Panorama –
1.7.4. Full – Only Available on S-Video or Composite Video.
1.7.5. Zoom –
1.7.6. Zoom 2 –
1.8. Auto; Automatically adjusts for optimum image -
1.9. Picture Mode
1.9.1. Standard
1.9.2. Dynamic
1.9.3. Soft
1.9.4. User
1.9.5. 3D NR –
1.9.5.1.
1.9.5.2.
1.9.5.3.
____________________________________________________________________________________
Dynamic Displays, Inc
1625 Westgate Road
Eau Claire WI, 54703
Only Available on PC Mode.
User_R; Allows the user to adjust the Red gain.
User_G; Allows the user to adjust the Green gain.
User_B; Allows the user to adjust the Blue gain.
Only Available on PC Mode.
Only Available on S-Video or Composite Video.
Only Available on S-Video or Composite Video.
Only Available on S-Video or Composite Video.
Only Available on S-Video or Composite Video.
Off
Low
Mid
QES1500 Progressive/Interlace Unit
Video.
Video.
Video.
Only Available on PC Mode.
Glee 17C2
Only
Doc # 0048059
Rev: B
Page 12 of 29
