Signal Input Connections

Following are the pin out descriptions for the standard and optional connectors provided on the monitor:
PIN
1
Red Video (75 Ohm, 0.7 Vpp)
2
Green Video (75 Ohm, 0.7 Vpp)
3
Blue Video (75 Ohm, 0.7 Vpp)
4
Monitor ID Bit 2
5
Ground
6
Red Video Ground
7
Green Video Ground
8
Blue Video Ground
Video Signal
Input Available
Sync on Green
Composite Sync: Horizontal
(SOG)
and Vertical Sync signals
are on the Green Video
Signal.
Composite
Separate Composite Sync:
Sync
Horizontal and Vertical Sync
(C-Sync).
signals are on the Horizontal
Sync Cable only.
Separate
Separate Sync: Both signals
Horizontal and
(Horizontal & Vertical) are
Vertical Sync
on individual cables as
identified on the chart.
____________________________________________________________________________________
Dynamic Displays, Inc
1625 Westgate Road
Eau Claire WI, 54703

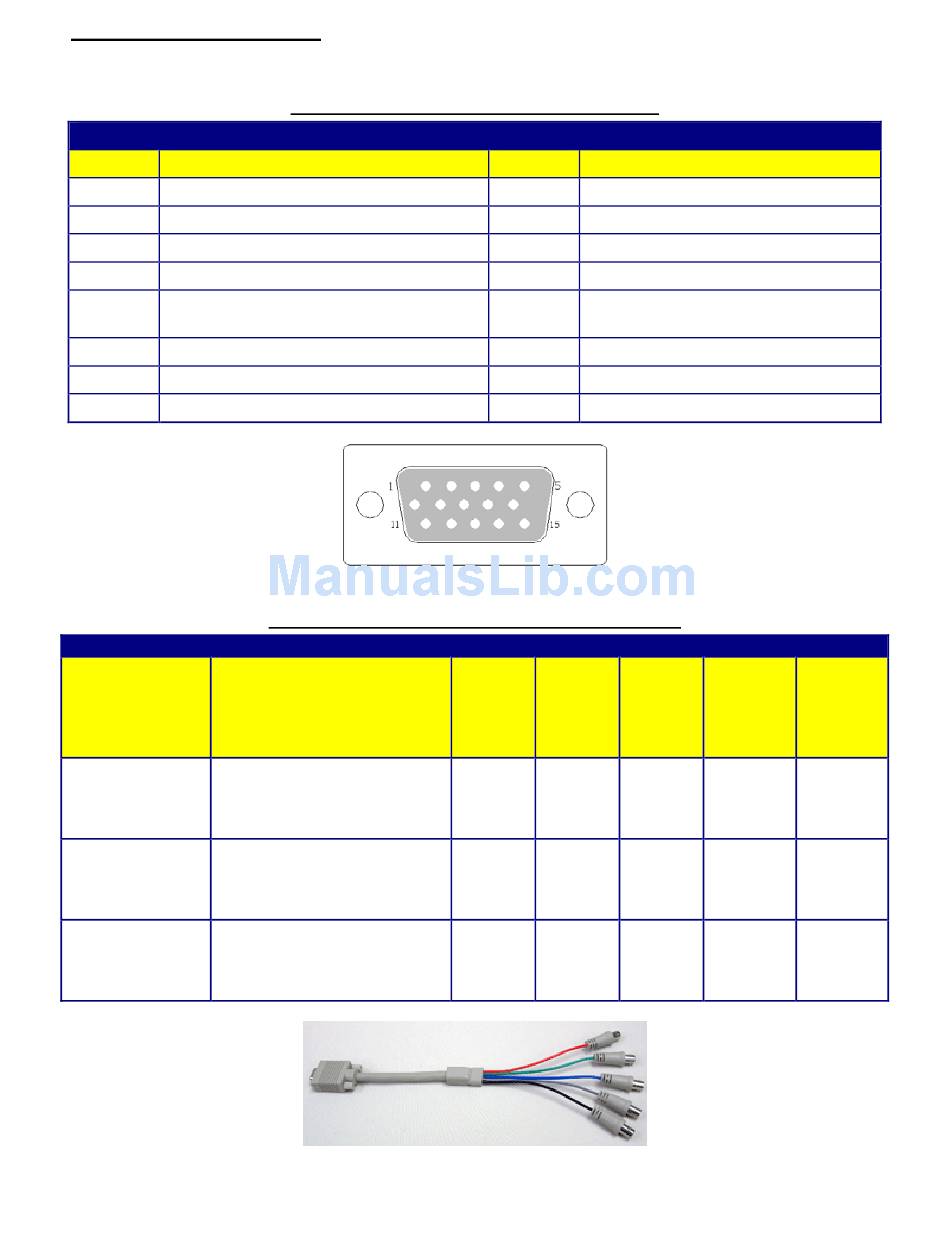

VGA High Density HD15 Connector Pin Out

Pin Assignments for VGA Video HD15 Input Connector
CONNECTION

Female BNC's to HD15 Adaptor Cable (Optional)

BNC to HD15 Adaptor Connections
Signal Description
QES1500 Progressive/Interlace Unit
PIN
9
Key (No pin)
10
Sync Ground
11
Monitor ID Bit 0
12
Monitor ID Bit 1 – Bidirectional Data
13
Horizontal Sync (or Composite
Sync)
14
Vertical Sync
15
Monitor ID Bit 3 - DDC Clock
Red
Green
Connect
Connect
Connect
Connect
Connect
Connect
Glee 17C2
CONNECTION
Blue
Horz.
Sync or
C-Sync
(Gray
Cable)
Connect
Connect
Connect
Connect
Connect
Connect
Doc # 0048059
Page 7 of 29
Vertical
Sync
(Black
Wire)
Rev: B
