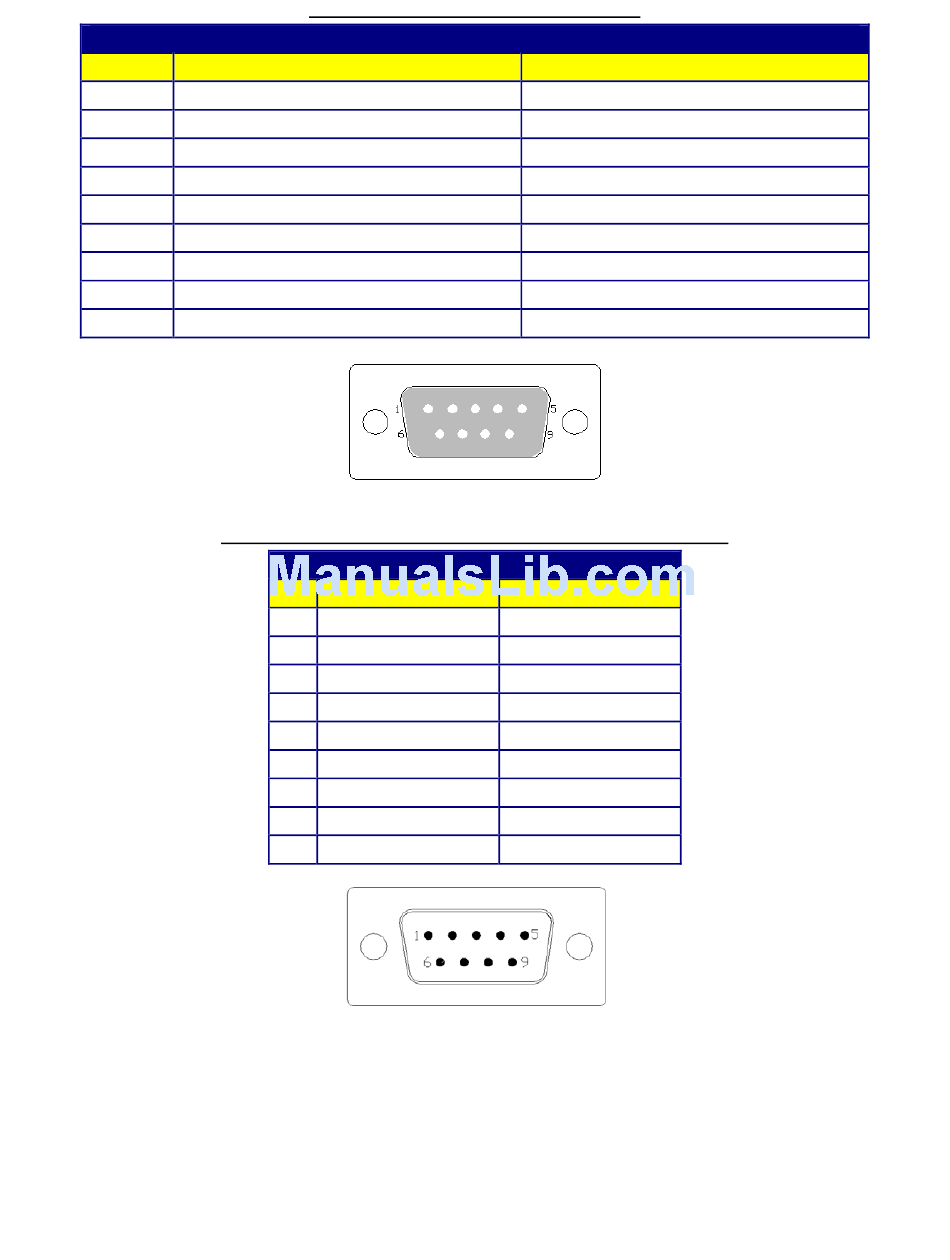

Pin Assignments for 9 Pin Optional MGA – Hercules Mono Graphics Adapter. Video Type: TTL
PIN
1
GND
2
GND
3
N/C
4
N/C
5
N/C
6
I
7
M
8
HSYNC
9
VSYNC

Touch Screen 9 Pin D-Sub connector, Serial Port (Optional).

____________________________________________________________________________________
Dynamic Displays, Inc
1625 Westgate Road
Eau Claire WI, 54703

MDA 9 Pin D-Sub Connector (Optional)

CONNECTION
Pin Assignments for 9 Pin Optional Touch Screen
PIN
CONNECTION
1
CD
2
RDX
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
QES1500 Progressive/Interlace Unit
Glee 17C2
DESCRIPTION
Ground
Ground
No Connection
No Connection
No Connection
Intensity
Monochrome Video
Horizontal Sync
Vertical Sync
DESCRIPTION
Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
System Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
Doc # 0048059
Rev: B
Page 10 of 29
