OSD CONTROLS & FUNCTIONS

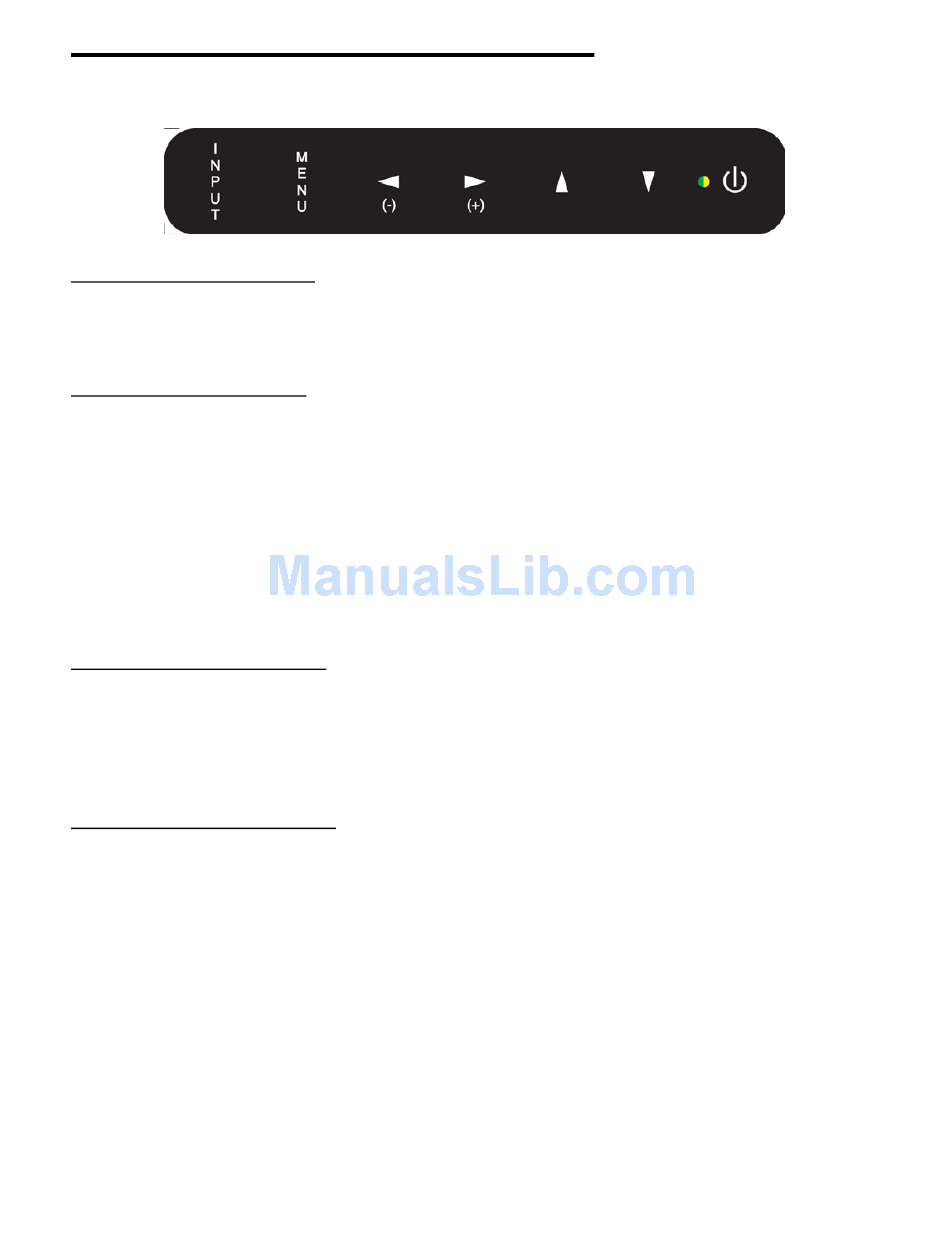

The OSD interface is composed of 7 membrane switches (as shown below) and a Bi-color LED. All the
adjustments required for the monitor are done through these buttons which interface with the Menu
selections on the OSD.

Menu Operating Instructions:

Your LCD monitor allows you to easily adjust the characteristics of the image being displayed. All of
these adjustments are made using the OSD control buttons on the front or rear of the monitor. While you
use these buttons to adjust the controls, the OSD shows you their numeric values as they change.

Menu OSD Control Buttons:

•
INPUT:
•
MENU:
• (-) / ◄:
Left
• Right (+) / ►:
UP / ▲:
•
• DOWN / ▼ :
•
LED:
POWER:

Input Video Options Selection;

•
PC:
•
DVI:
•
AV:
•
SVIDEO:

OSD Interface buttons function:

•
Input Button: Push this button, to select the video input signal (PC, DVI, AV or SVIDEO). With
the adjust buttons▲ or ▼, highlight the input required; then with the adjust buttons ◄(-) or ►(+)
confirm the selection.
•
Menu button: Opens the OSD menu. Also used to exit the OSD menu or confirm adjustment
settings and return to the previous menu.
• Adjust Buttons: ◄ (-), ► (+): These buttons have various functions.
They are used to navigate through the items on the OSD from left to right or right to left.
o
They are used to select menu item to be adjusted.
o
They are used to adjust the value of the menu item.
o
They are used to confirm the selection of the video input signal source.
o
They are used to increase or decrease the volume of the speakers.
o
• Adjust Buttons: ▲, ▼: These buttons used to navigate the OSD menu items from top to bottom
or bottom to top.
•
Power Button: Push this button to turn the unit on or off.
____________________________________________________________________________________
Dynamic Displays, Inc
1625 Westgate Road
Eau Claire WI, 54703
Selects Input Video Source.
Selects command function.
Moves selection to left or decreases function value.
Move selection to right or increase function value
Increase value.
Decreases value.
Green Light: Power ON
Orange Light: Power Saving or No Input Signal
Power on/off control. The monitor will enter into Auto Setup automatically the
first time the unit is first turned on.
Select VGA input connector, HD15.
Select Digital Input Connector, DVI.
Selects Composite Video Connector, RCA Jack.
Selects S-Video Input Connector – Din 4.
QES1500 Progressive/Interlace Unit
