- Page 1 Qi10 Manual (1.2 EN)
-
Page 2: Table Of Contents
Connections......................5 Operation with D6 or D12................5 Operation with E-PAC..................6 Dispersion characteristics.................7 Technical specifications..................8 Altering the HF horn dispersion..............8 Arraying Qi10 cabinets...................9 Manufacturer's declarations..........10 EU conformity of loudspeakers (CE symbol)...........10 WEEE Declaration (Disposal)...............10 General Information Qi10 Manual Version 1.2 EN, 03/2008, D2046.E.01 Copyright ©... -
Page 3: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. Qi10 Manual (1.2 EN) Safety precautions - 1... -
Page 4: Qi10

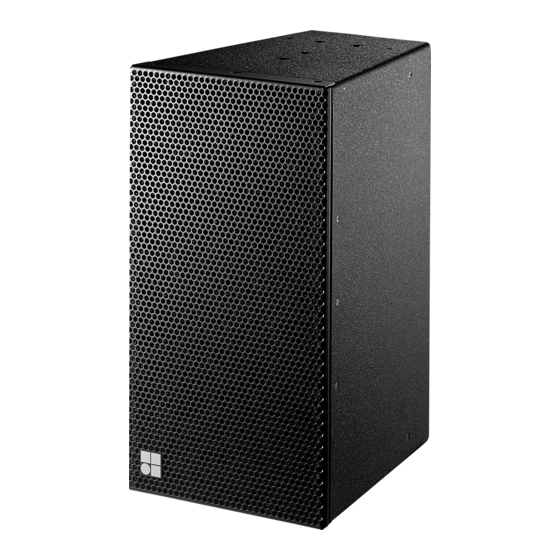

The Qi10 is a 110° x 40° passive two-way loudspeaker. It houses 2 x 10" LF drivers and a 1.3" HF compression driver with a rotatable CD horn and a passive crossover network. -
Page 5: Connections
Connections The Qi10 cabinet is fitted with a pair of NL4 connectors. All pins of both connectors are wired in parallel. The Qi10 uses the pin assignments 1+/ 1–. Using one connector as the input, the second connector allows for... -
Page 6: Operation With E-Pac
Operation with E-PAC Selecting Q10 mode enables the E-PAC to drive one Qi10 loudspeaker. LO IMP mode configures the E-PAC to drive a maximum of two Qi10 loudspeakers with a 6 dB reduction in input level to the loudspeakers. For acoustic adjustment the functions CUT and CPL can be selected. The characteristics of the CUT and CPL settings are explained in the previous section "Operation with D6 or D12 - Controller settings". -
Page 7: Dispersion Characteristics
Horizontal setup with the horn rotated Please note that in the standard upright configuration the Qi10 has a Note: very accurate 110° horizontal constant directivity behavior that is maintained down to approximately 800 Hz, see Fig. 5. -
Page 8: Technical Specifications
310 [12.20"] Fig. 10: Qi10 cabinet dimensions in mm [inch] Altering the HF horn dispersion The Qi10 HF horn has a square flange allowing it to rotate through 90°. To rotate the horn the front grill needs to be removed. -
Page 9: Arraying Qi10 Cabinets
Qi10 used in line array columns with Qi1s and Qi-SUBs The Qi10 with the horn rotated can be positioned at the bottom of a Qi1 line array column to extend the near field coverage horizontally and vertically, if required. -
Page 10: Manufacturer's Declarations
Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to - Qi10 loudspeaker Z0528 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
