- Page 1 Ci7-TOP Manual (2.1 EN)
-
Page 2: Table Of Contents
Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 Ci7-TOP ................4 Connections......................5 Operation with D6 or D12................5 Operation with E-PAC (version 3 with display only).......6 Operation with P1200A..................6 Dispersion characteristics.................6 Technical specifications..................7... -
Page 3: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. Ci7-TOP Manual (2.1 EN) Safety precautions - 1... -
Page 4: Ci7-Top

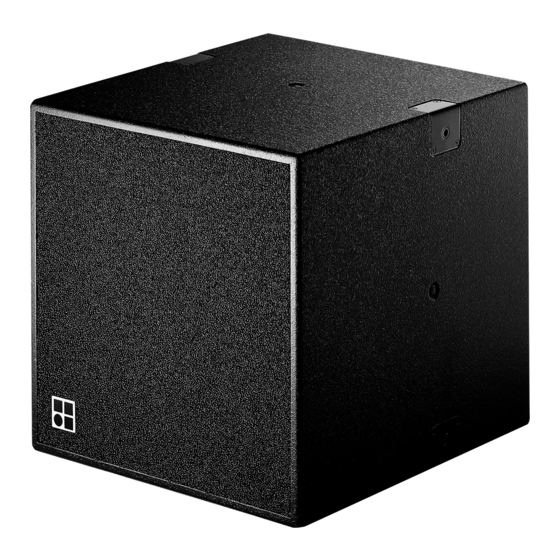

Ci7-TOP The Ci7-TOP is the installation version of the C7-TOP loudspeaker. It is acoustically compatible with the standard road version differing only in cabinet construction and mounting hardware. The Ci7-TOP loudspeaker is a two-way hornloaded loudspeaker which provides full range coverage at very high SPLs. The constant directivity design of the coaxial horns used in the Ci7-TOP maintains a nominal 75°x 40°... -
Page 5: Connections
Within the D12 amplifier this is available in "Dual Channel" and "Mix TOP/SUB" mode. Up to a total of two Ci7-TOP loudspeakers can be driven by each D6 or D12 amplifier channel. In applications with low continuous levels and low ambient temperatures up to three cabinets can be connected to a D12 channel. -
Page 6: Operation With E-Pac (Version 3 With Display Only)
D6 or D12 - Controller settings". Operation with P1200A Up to two Ci7-TOP cabinets can be driven by each P1200A power amplifier channel fitted with a C7-TOP controller module. Fitting one C7-TOP and one subwoofer controller module allows a single mainframe to drive two Ci7-TOP and two active subwoofer cabinets. -
Page 7: Technical Specifications
...........optional fixed cable (H-07-RN-F 2 x 2.5 qmm/AWG 13) Pin assignments....................NL4: 1+/1– .....................Fixed cable: Brown + / Blue – Weight......................50 kg (110 lb) Fig. 6: Ci7-TOP frequency response, standard, CUT and HFA switch settings 240 [9.45"] 580 [22.83"] 273 [10.75"] Fig. -
Page 8: Manufacturer's Declarations
Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to - Ci7-TOP Z2263 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
