Summary of Contents for Atag IC series
- Page 1 U s e r m a n u a l -Range -Range -Range...
-
Page 2: Table Of Contents
9. Warranty ..................14 Important! It is in your own interest that we should know that you have an ATAG boiler. Please fill out the warranty card completely and send it back to us. Then we can be fully at your service. -
Page 3: Introduction
Register) using correctly calibrated instruments with current test certification. When replacing parts use only ATAG Service parts. Contact details for ATAG Heating Technology Ltd can be found on the back page of this manual. User manual ATAG iC, iS and iR-Range... - Page 4 The Benchmark Scheme ATAG Heating Technology Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
-
Page 5: Safety
Always use potable water for filling the installation. Adding chemical agents such as frost and corrosion inhibitors are only to be added by your installer. If in doubt, check with your installer or ATAG Heating Technology Ltd. User manual ATAG iC, iS and iR-Range... -

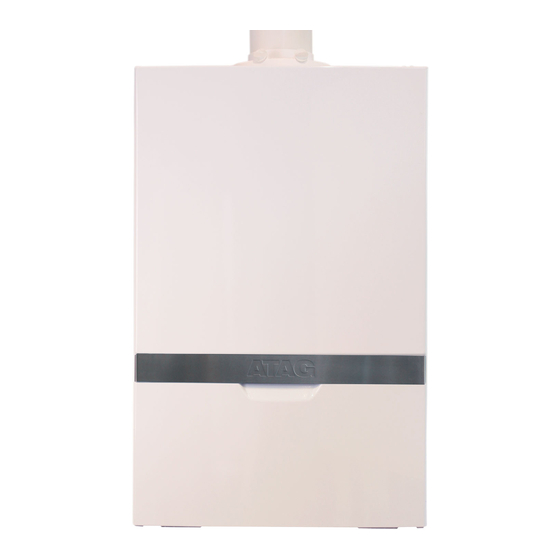

Page 6: Boiler Description
Boiler description The ATAG i-Range boiler is a closed, condensing and modulating heating boiler which meets the European standard (CE). A declaration of conformity can be obtained from the manufacturer. The efficiency of the boiler is very high and the radiation convection and standby losses very low. -
Page 7: Display And Functions
4.3 Reset button ( see also chapter 4.4 reset Commissioning function (Do not use. For service purposes only) Pump function (Press both - buttons for 6 seconds). See chapter 4.x User manual ATAG iC, iS and iR-Range... -
Page 8: Dhw And Heating Program
Briefly press + or – to change the set value. Each change becomes active directly. reset CH program OFF: Press – until the lowest value is reached and then press – again. The display shows - - . Switching on works in reverse order. User manual ATAG iC, iS and iR-Range... -
Page 9: Eco Function Dhw (Ic-Range Only)
Outside temperature (only if an outside sensor is connected) in °C Water pressure in °C (only iC and iS-Range) DHW flow in l/min. (only iC-Range) Ionisation current in mA Revolutions of the fan in rpm To return to the standard view press ESC. User manual ATAG iC, iS and iR-Range... -
Page 10: The Reset Button
- buttons for 6 seconds. symbol is constant in the display and the pump is running constantly. Press both - buttons again for 6 seconds to switch back to automatic. User manual ATAG iC, iS and iR-Range... -
Page 11: Filling The Heating System
Code 117 and spanner symbol visible: Water pressure is too high (> 3.0 bar)*. The boiler is taken out of operation. The installation pressure should be reduced by draining water from the heating system. User manual ATAG iC, iS and iR-Range... - Page 12 When the heating system is filled and after a power interruption the boiler will be reset and starts with a venting program. After the venting program (display shows 1 05) of approx. 7 minutes has ended, the boiler will be operational again. User manual ATAG iC, iS and iR-Range...
-
Page 13: Decommissioning The Boiler
If the installation is being drained, you have to take into account that part of the heating water will remain in the boiler. Make sure that the remaining heating water in the boiler cannot freeze in case of frost. User manual ATAG iC, iS and iR-Range... -
Page 14: Error Codes
The cover of the boiler consists of metal and plastic parts, which can be cleaned with a normal (non-aggressive) cleansing agent. Warranty For the warranty conditions, see the Warranty Card that has been supplied with the boiler. User manual ATAG iC, iS and iR-Range... - Page 15 User manual ATAG iC, iS and iR-Range...
- Page 16 ATA G H e a t i n g Te c h n o l o g y L t d . • 4 7 C a s t l e S t r e e t • R e a d i n g • B e r k s h i r e R G 1 7 S R P h o n e : 0 8 0 0 2 5 4 5 0 6 1 •...
