- Page 1 U s e r m a n u a l -Range -Range -Range...
-
Page 2: Table Of Contents
9. Disposal of the product ..............14 Important! It is in your own interest that we should know that you have an ATAG boiler. Please fill out the warranty card completely and send it back to us. Then we can be fully at your service. -
Page 3: Introduction
When replacing parts use only ATAG Service parts. Contact details for ATAG Heating Technology Ltd can be found on the back page of this manual. User manual ATAG iC, iS and iR-Range... - Page 4 The Benchmark Scheme ATAG Heating Technology Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
-
Page 5: Safety
Always use potable water for filling the installation. Adding chemical agents such as frost and corrosion inhibitors are only to be added by your installer. If in doubt, check with your installer or ATAG Heating Technology Ltd. User manual ATAG iC, iS and iR-Range... -
Page 6: Boiler Description

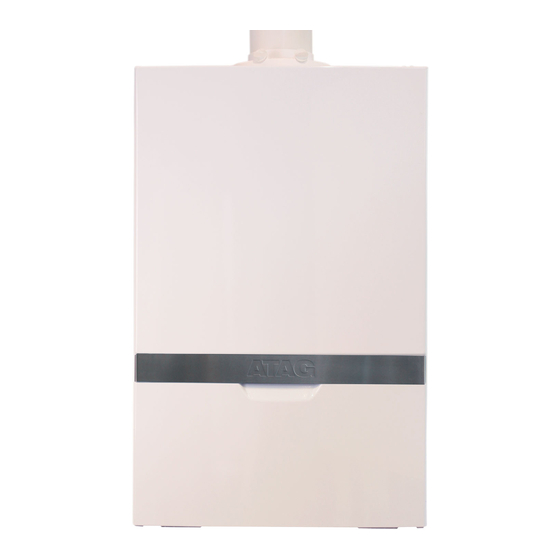

Boiler description The ATAG i-Range boiler is a closed, condensing and modulating heating boiler which meets the European standard (CE). A declaration of conformity can be obtained from the manufacturer. The efficiency of the boiler is very high and the radiation convection and standby losses very low. -
Page 7: Dhw And Heating Program
5. The current DHW comfort Setpoint temperature is displayed. Press OK. 6. Turn the selector wheel until the desired temperature appears on the screen. Press OK. 7. Press the Back button until the Home screen appears. User manual ATAG iC, iS and iR-Range... -
Page 8: Boiler Information
Turn the selector wheel to highlight 8 Service Parameters. Press OK. Option 8.3 Boiler Temperature is highlighted. Press OK. Option 8.3.0 CH Flow Set T is highlighted. Press OK. The screen left appears. User manual ATAG iC, iS and iR-Range... - Page 9 CH Flow T in °C 8.3.2 CH Return T in °C 8.3.3 DHW Flow T in °C 8.3.5 Outdoor T (only if an outside sensor is connected) in °C 8.7.5 Ionization current in µA User manual ATAG iC, iS and iR-Range...
-
Page 10: Pump Function / Boiler Frost Protection
Option CH Setpoint Temp is highlighted. Press OK. Turn the selector wheel to highlight Pump continuous running. Press OK. Turn the selector wheel to highlight Enable. Press OK. If the pump is set to continuously this is displayed User manual ATAG iC, iS and iR-Range... -
Page 11: Filling The Heating System
The central heating installation needs to be filled with potable water according to the requirements in chapter 9.3 'Water quality' in the Installation manual. For filling or topping up the installation use the filling loop according to the following procedure (see figure 1). User manual ATAG iC, iS and iR-Range... - Page 12 The automatic air purge program will take approx. 7 minutes and will be followed by the home screen if the water pressure is above 0.8 bar (pressure reading for iC & iS boilers only). User manual ATAG iC, iS and iR-Range...
-
Page 13: Error Codes
CH Flow Switch open DHW Probe Damaged (Combi) Tank Probe Damaged (Solo) PCB Fault Too many resets No flame detected Fan error (fan does not start up) Example of screen of error message User manual ATAG iC, iS and iR-Range... -
Page 14: Maintenance
Your cooperation in the proper disposal of this product will contribute to the effective usage of natural resources. For more information on recycling this product, please contact your city office, local waste disposal facilities, official service for chemical waste, landfill site, or your supplier. User manual ATAG iC, iS and iR-Range... - Page 15 User manual ATAG iC, iS and iR-Range...
- Page 16 ATAG Heating Technology Ltd. • 80 Churchill Square Business Centre • Kings Hill • West Malling • Kent ME19 4YU P h o n e : 0 8 0 0 2 5 4 5 0 6 1 • E - m a i l : i n f o @ a t a g h e a t i n g .
