Installation
NB. For FRU units - go straight to point 6 below.
1. Loosen the fi xing screw in the base of the unit to release
the Wiring Cover.
2. Holding the unit face downwards, press fi rmly in the
centre of the wallplate and slide it apart and lift it from
the module.
3. Fix the wallplate and terminal block to the wall, or
plaster box, as required. Ensure that the screw heads
do not protrude beyond the vertical centre rib of the
wallplate, or this will prevent the module correctly
locating onto the wallplate.

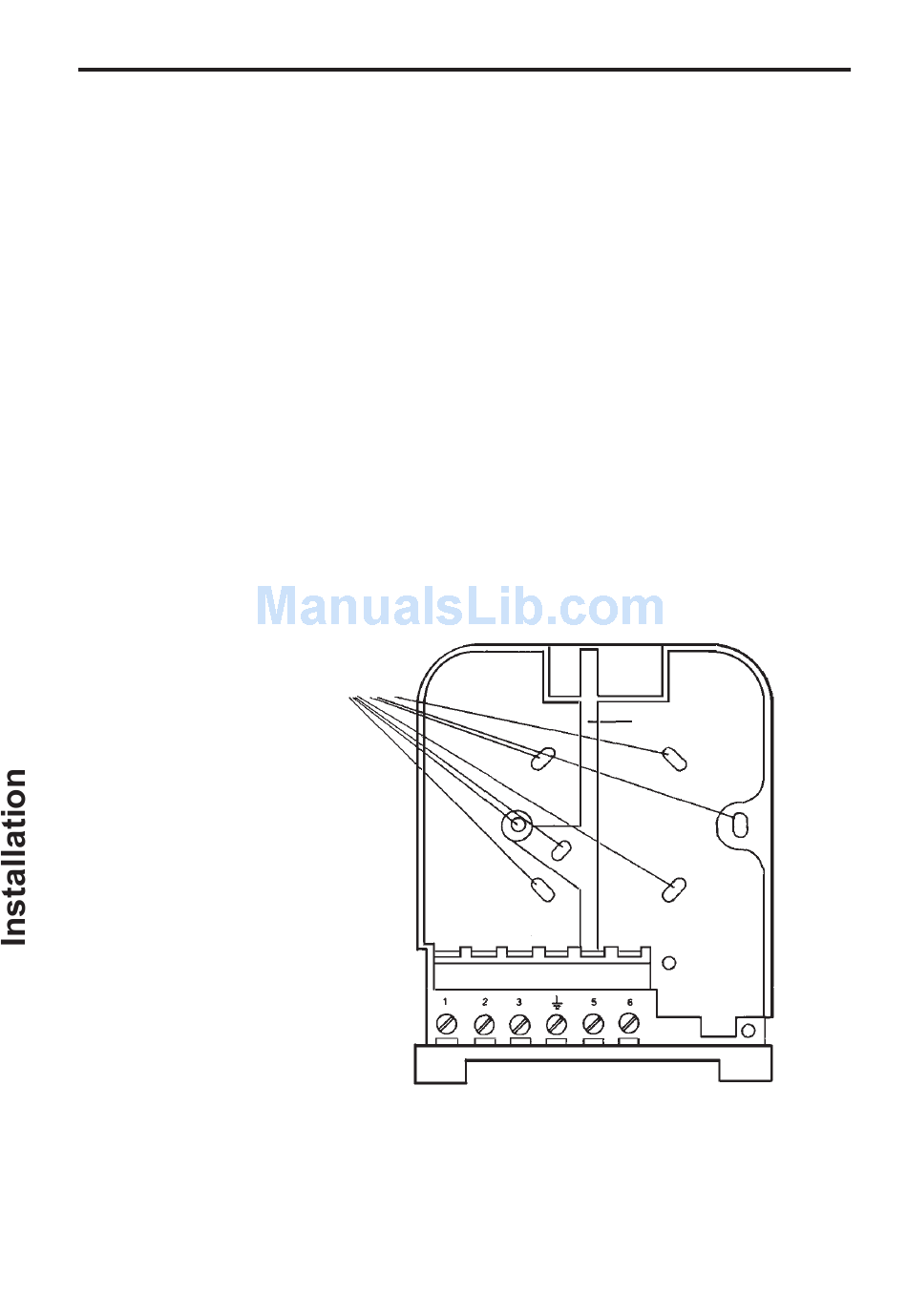

Screw fi xing holes
(screwheads MUST
NOT protrude
above centre rib)
4. Surface cables can only enter from below the unit. Cut
an appropriate cable aperture in the wiring cover. If the
wallplate is mounted on a plaster box, cables can enter
from the rear below the terminal block.
4
Vertical centre rib
Wallplate & Terminals
