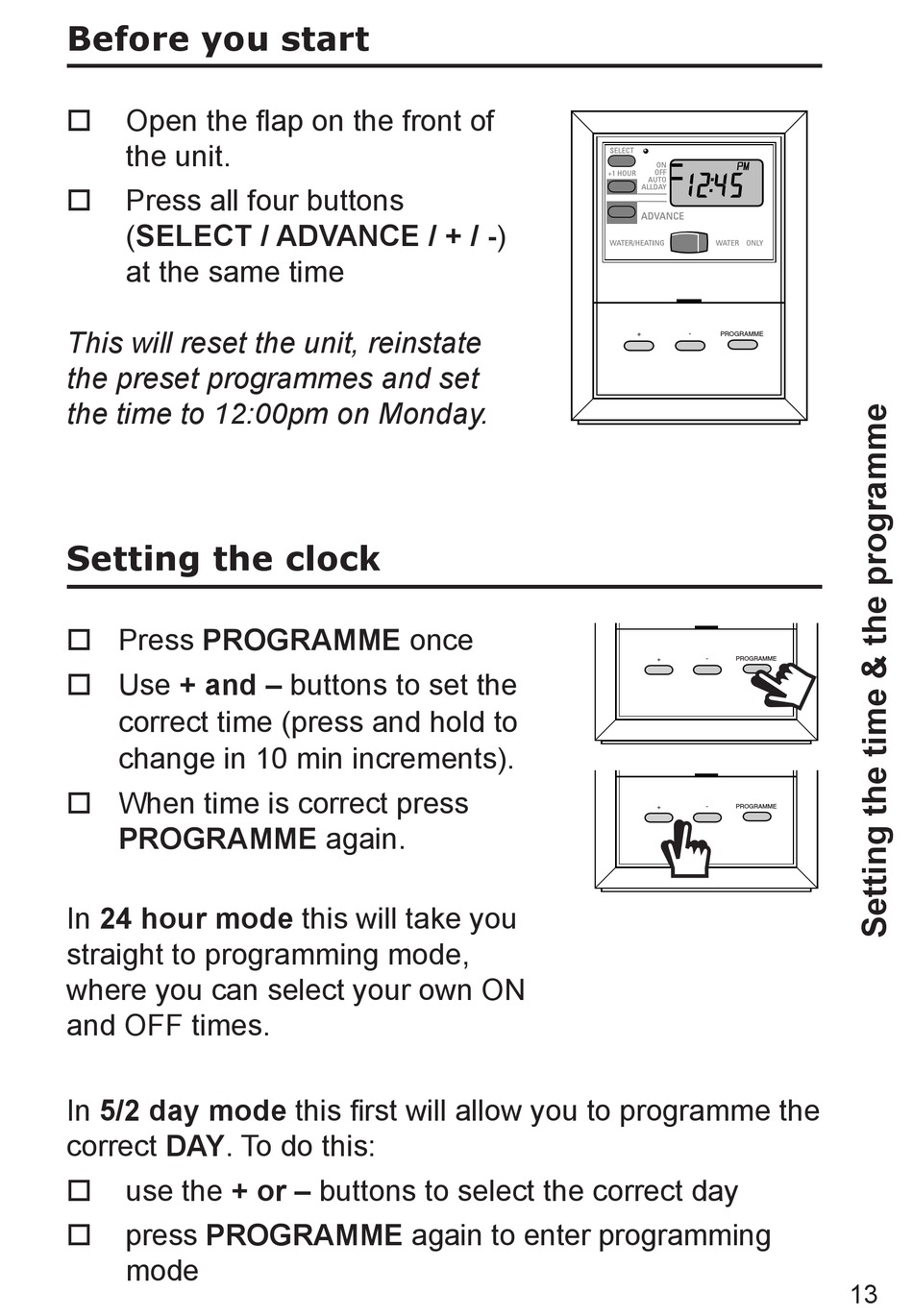

Before you start
Open the fl ap on the front of
the unit.
Press all four buttons
(SELECT / ADVANCE / + / -)
at the same time
This will reset the unit, reinstate
the preset programmes and set
the time to 12:00pm on Monday.
Setting the clock
Press PROGRAMME once
Use + and – buttons to set the
correct time (press and hold to
change in 10 min increments).
When time is correct press
PROGRAMME again.
In 24 hour mode this will take you
straight to programming mode,
where you can select your own ON
and OFF times.
In 5/2 day mode this fi rst will allow you to programme the
correct DAY. To do this:
use the + or – buttons to select the correct day
press PROGRAMME again to enter programming
mode
-
PROGRAMME
+
+
-
PROGRAMME
-
+
PROGRAMME
13
