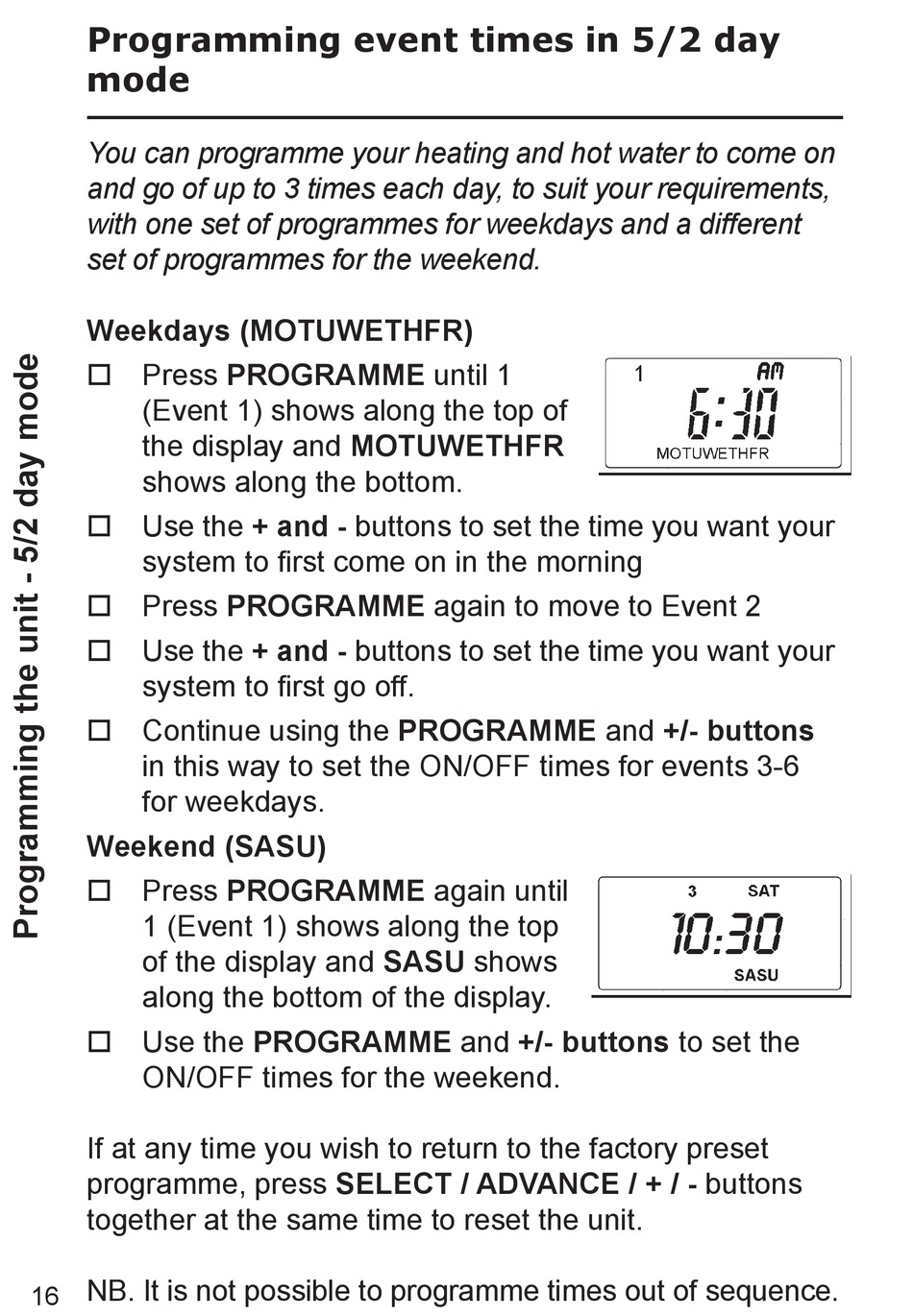

Programming event times in 5/2 day
mode
You can programme your heating and hot water to come on
and go of up to 3 times each day, to suit your requirements,
with one set of programmes for weekdays and a different
set of programmes for the weekend.
Weekdays (MOTUWETHFR)
Press PROGRAMME until 1
(Event 1) shows along the top of
the display and MOTUWETHFR
shows along the bottom.
Use the + and - buttons to set the time you want your
system to fi rst come on in the morning
Press PROGRAMME again to move to Event 2
Use the + and - buttons to set the time you want your
system to fi rst go off.
Continue using the PROGRAMME and +/- buttons
in this way to set the ON/OFF times for events 3-6
for weekdays.
Weekend (SASU)
Press PROGRAMME again until
1 (Event 1) shows along the top
of the display and SASU shows
along the bottom of the display.
Use the PROGRAMME and +/- buttons to set the
ON/OFF times for the weekend.
If at any time you wish to return to the factory preset
programme, press SELECT / ADVANCE / + / - buttons
together at the same time to reset the unit.
NB. It is not possible to programme times out of sequence.
16
