E2S E2xL25UL Instruction And Service Manual page 2

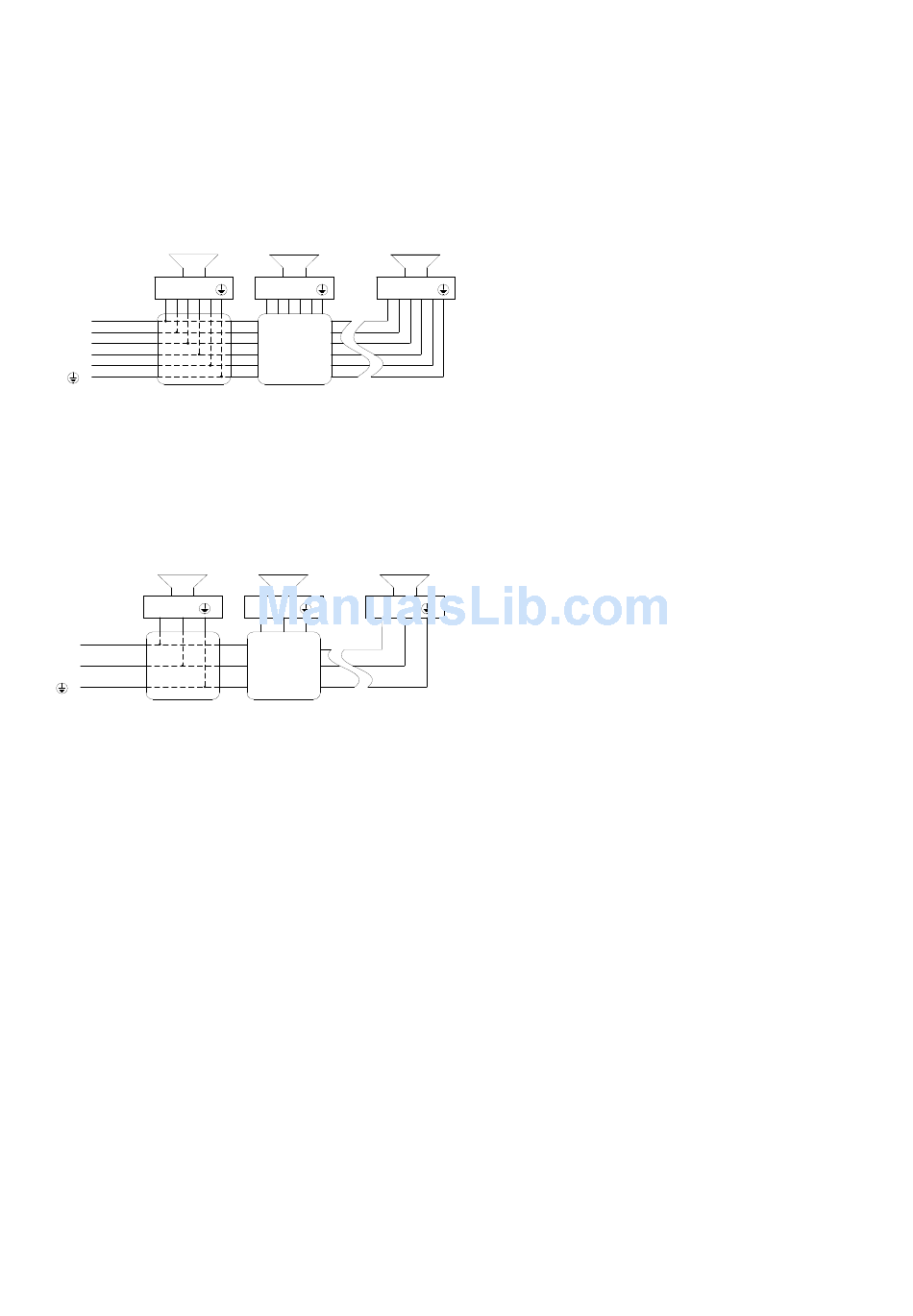

WARNING - ALL ELECTRICAL WIRING MUST BE
INSTALLED IN ACCORDANCE TO THE
NATIONAL ELECTRICAL CODE
100V and 70V Loudspeakers
White Common
Red 25 Watts
Orange 12.5 Watts
Yellow 6 Watts
Violet 2 Watt
Green/Yellow Ground
Watts
C 25 12.5
Comman
25 Watts
12.5 Watts
6 Watts
2 Watt
NOTE - All wires are not used they must be individually insulated to ensure that
cannot make contact to any other wires.
8 ohm and 16 ohm Loudspeakers
Black Common
Red 25 Watts
Green/Yellow Ground
C 25 Watts
Comman
25 Watts
POWER AMPIFIER SELECTION
It is important that the E2xL25UL loudspeakers are connected
to power amplifiers that have outputs that are compatible to
the type of loudspeaker being used. Loudspeakers with a 70V
or 100V line matching transformer fitted must be connected to
a power amplifier with a 70V or 100V line output. Low
impedance 8 ohm or 16 ohm loudspeakers must be
connected to amplifiers with a suitable low impedance output.
Unit Type Input
E2xL25UL 8 ohm
E2xL25UL 16 ohm
E2xL25UL 100V Line
E2xL25UL 70V Line
WARNING – HIGH VOLUME MAY CAUSE HARM TO
PERSONNEL IN CLOSE PROXIMITY
__________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS4231 Issue: D
Watts
6 2 C 25 12.5 6 2
C 25 Watts
Wattage
I/P Volts
25 Watt
25 Watt
25 Watt
25 Watt
26-03-13
Watts
C 25 12.5 6 2
C 25 Watts
Max.
14.14V
20V
100V
70V
Sheet 2 of 2
