INSTRUCTION MANUAL
D2xL1 & D2xL2

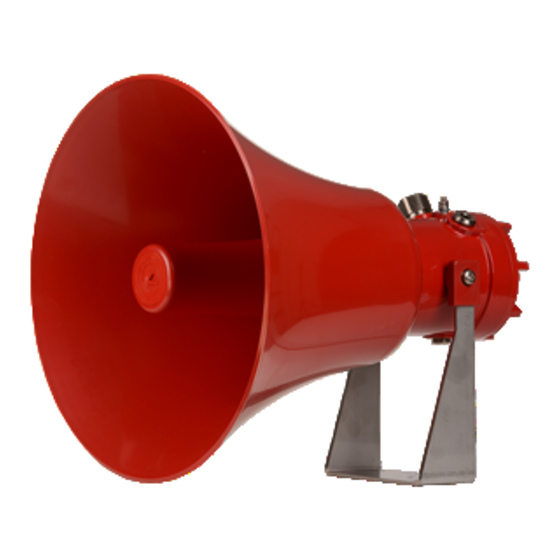

Loudspeaker
Class I, Zone 2 & 22
1)
Product Table
Unit Type Code
D2xL1FV100-A
D2xL1FV725-A
D2xL1FR008-A
D2xL1FR016-A
D2xL2FV100-A
D2xL2FV725-A
D2xL2FR008-A
D2xL2FR016-A
D2xL2HV100-A
D2xL2HV725-A
D2xL2HR008-A
D2xL2HR016-A
Frequency Range: 400Hz to 8000Hz
The table shows the input current taken by the various Loudspeakers.
Nominal current at nominal voltage.
Table 1: Electrical Ratings.
2)
Warnings
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT
DO NOT OPEN WHEN ENERGISED
POTENTIAL ELECTROSTATIC CHARGING HAZARD - CLEAN
ONLY WITH A DAMP CLOTH
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
NE PAS OUVRIR ENERGIE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D252-00-201-IS
D2xL1F D2xL2F
Input
100V Line
70.7 / 25V Line
8 Ohm
16 Ohm
100V Line
70.7 / 25V Line
8 Ohm
16 Ohm
100V Line
70.7 / 25V Line
8 Ohm
16 Ohm
Issue 1
Power (Watts) Max I/P Volts
15
15
15
15
25
25
25
25
25
25
25
25
3)
Marking & Rating Information
3.1 UL Certification
All Loudspeakers comply with the following standards:
UL 1480A (Ed 1) – Speakers for Commercial and Professional Use
CSA C22.2 No. 205 (Ed 3) – Signal Equipment
UL 1480 (Ed 6) – Speakers for Fire Alarm and Signaling Systems,
Including Accessories
CAN/ULC-S541 (Ed 4) – Speakers for Fire Alarm and Signaling
Systems, Including Accessories
See relevant sections further down.
The D2xL Loudspeakers comply with the following standards for
hazardous locations:
21-12-2023
D2xL2H
Sound
Pressure Level
dB(A)
Pink
Max
Noise
Rated
@ 1W
100
70.7
120
10.95
15.49
100
70.7
124
14.14
20
100
70.7
129
14.14
20
www.e2s.com
101
104
106
