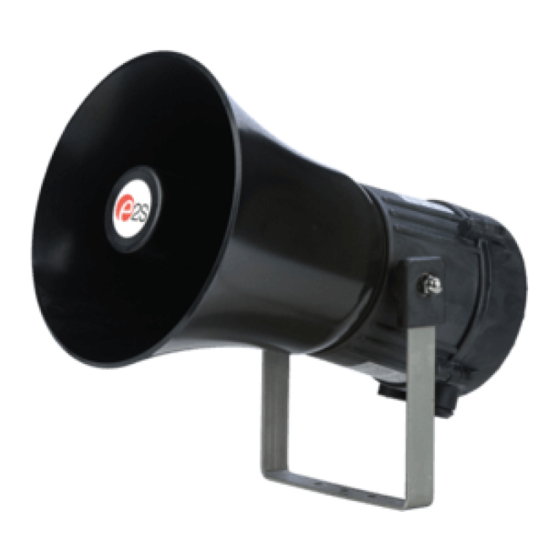

E2S E2xL25UL Instruction And Service Manual


25 Watt Loudspeaker

70V or 100V Line Transformer
with 25W, 12.5W, 6W and 2W tapings

8 ohm or 16 ohm

Type UL 4/4X/13

Operating Temperature Range
-20ºC to +55ºC
Unit Type No. E2xL25UL
Impedance: 8 ohm or 16 ohm
70V Line or 100V Line
Max. Operating Temperature / Code at +40º Ambient
Hazardous Location
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F and G
Max. Operating Temperature / Code at +55º Ambient
Hazardous Location
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F and G
The equipment is suitable for use in the hazardous locations
listed above or non-hazardous locations only.
PRE-INSTALLATION
WARNING –
The E2xL25UL loudspeakers are supplied with
flying leads so it should not be necessary to open the unit
before it is installed.
M4 Hex
Socket Screw
Spring Washer
Flat Washer
WARNING – DO NOT OPEN WHEN ENERGISED
CAUTI0N - DO NOT OPEN WHEN AN EXPLOSIVE GAS
OR DUST ATMOSPHERE IS PRESENT
__________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS4231 Issue: D
INSTRUCTION & SERVICE MANUAL
E2xL25UL LOUDSPEAKERS
For Use In Hazardous Locations
7KA1
Temperature Code
T2D (215ºC)
T6 (85ºC)
Temperature Code
T2C (230ºC)
T5 (100ºC)
26-03-13 Sheet 1 of 2
MOUNTING
The E2xL25UL loudspeaker must be mounted using the rotating
bracket as shown.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY
FOR CLASS I, II DIVISION 2.
WIRING INSTALLATION
The E2xL25UL loudspeaker is provided with 2 off M20 x 1.5
cable entries.
1 x ½" NPT adaptor and 1 x M20 stopping plug are provided.
Installation using Field Wiring Leads and Conduit
If the sounder is supplied pre-wired with flying leads, these are
colour coded and should be connected as shown in the diagram
below.
The conduit running from the supply to the sounder must
include an equipment grounding conductor that is at earth
potential to facilitate ground connection of the device. A number
of sounders can be connected in a chain to the same supply
using field installed wiring compartments that are appropriate for
the hazardous location, provided that the conductor at earth
potential can be readily connected to the ground lead on each
sounder in the chain.
Installation using Cable Glands without Field Wiring Leads
If the sounder is supplied without field wiring leads, the cable
connections are made into the terminal blocks on the electronic
PCB assembly. Terminal blocks are suitable for field wiring
(AWG 18-12). Strain relief has to be ensured by installation with
a suitable cable gland. Follow the markings for the terminals on
the PCB and install wiring as shown in the diagram below.
Cable glands need to be UL certified to ANSI/UL 2225 or C22.2
NO. 174-M1984. and to UL514B / CSA-C22.2 No. 18.3-12,
ratings for hazardous locations must be equal to or better than
the rating of the sounder used.
If a high IP (Ingress Protection) rating is required then a
suitable sealing washer must be fitted under the cable gland.
sales@e-2-s.com
www.e-2-s.com
18° Increments
Release nut to rotate
bracket.
Tel: +44 (0)208 743 8880
Fax: +44 (0)208 740 4200
