Opticon PHL-7100 Quick Manual

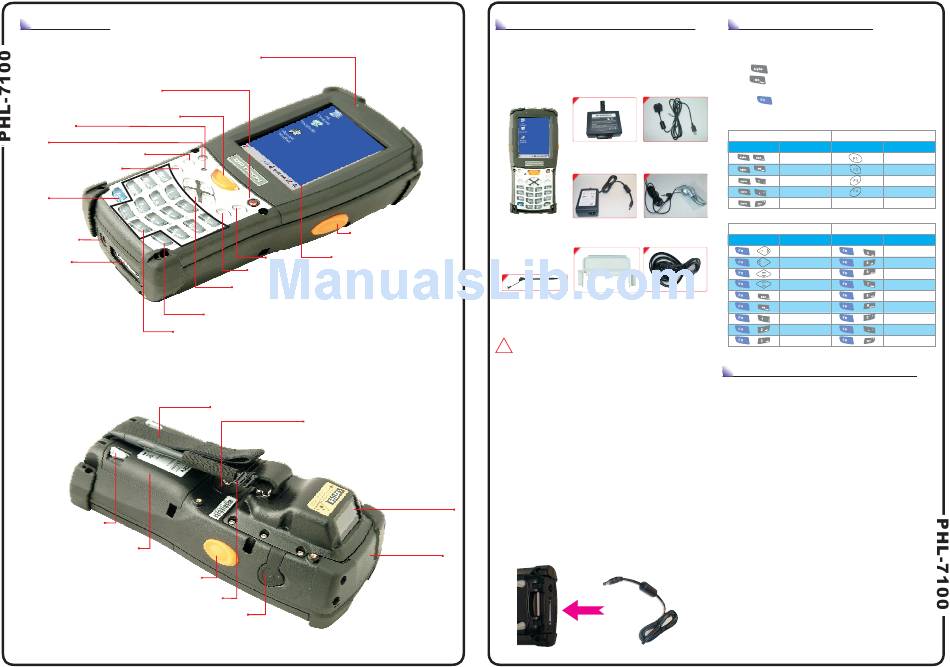

OVERVIEW
Power Key
Scan Key
Charger LED Indicator
None(Reserved for Customization)
F1 Key
F2 Key
Fn Key
DC Power Jack
USB/Serial/
Synchronization Port
Alpha-Numeric Key
Hand Strap
Battery Cover Latch
Battery Cover
Left Scan Key
Stylus
Jack Connector
Scanner LED Indicator
Right Scan Key
LCD Touchscreen
F3 Key
F4 Key
Navigation Key
Enter Key
Speaker
(Under the Hand Strap)
Ear Phone
BEFORE GETTING STARTED BEFORE GETTING STARTED
1. Open the package and check every
accessory:
Main Unit
Quick Guide Quick Guide
(Not Shown) (Not Shown)
CF Support Guide CF Support Guide
Stylus
!
CAUTION:
The device will be powered on when you install Battery Pack.
Power off device after touch screen calibration and charge batteries
for at least 6 hours. Do not turn on the device for the first time until
batteries are charged for at least
℃ ℃ ℉ ℉
at 0 ~45 (32 ~113 ) environment temperature. The Charger
LED will be turned to green color when battery charging is finished.
2. Installing the Battery Pack
1) Detach the Hand Strap.
2) Turn the battery cover latches downwards and lift
the battery cover away.
3) Insert the Battery Pack into the battery compartment with the
label facing out, and make sure the battery fits into place.
4) Place the battery cover by inserting the top first, and then press
the bottom in firmly. Turn the battery cover latches upwards to
secure the cover to the PDT.
Scan Window
3. Connect Power Adapter to charge the PDT
1) Insert DC connector into bottom case of the PHL-7000.
2) Connect Power Cord to power adapter.
3) Insert power cord to AC Outlet.
End Cap
USING THE KEYPAD USING THE KEYPAD
The keypad comprises 24 keys (numeric, arrow,
functional and Fn) and 3 scan buttons.
1) Key"
2) Key"
lower-case ones.
3) Press "
Special Characters
Sequence of Keys
Battery Pack Battery Pack USB Client USB Client
(3000mAh) (3000mAh) Cable for Terminal Cable for Terminal
Special Characters
Power Adapter Power Adapter Ear/Microphone Set Ear/Microphone Set
(5VDC/2.6A) (5VDC/2.6A)
Sequence of Keys
Power Cord Power Cord
BATTERY PRODUCT SAFETY
Lithium-ion Battery Packs might get hot, explode, ignite
6 hours. Always charge batteries
and/ or cause serious injury in case of misuse.
Please follow the safety warnings listed below:
A.Do not throw the battery into fire. Do not expose the battery to
high temperatures.
B. Do not connect the positive Battery Pack with negative
Battery Pack to each other with any metal object (like wire).
C. Do not carry or store Battery Pack together with metal objects.
D. Do not pierce the Battery Pack with nails or drills, strike the battery
pack with a hammer, step on the Battery Pack or otherwise expose
it to strong impacts, shocks or excessive force.
E. Do not solder directly onto the Battery Pack.
F. Do not expose Battery Pack to liquid or allow the battery contacts
to get wet.
G. Do not disassemble or modify the Battery Pack.The Battery Pack
contains safety and protection measures, which, if damaged,
may cause the Battery Pack to generate heat, explode or ignite.
H. Do not discharge the batteries outside the PHL-7000. Do not use
the battery in another device then the PHL-7000 PDT or
IRU-7000 series battery chargers. Otherwise, the Battery Pack
can be damaged, the Battery Pack can be damaged or its life
expectancy reduced. If the device causes any abnormal current
to flow, it may cause the Battery Pack to become hot, explode or
ignite and cause serious injury.
I. In the event the Battery Pack leaks and the fluid gets into one's eye,
do not rub the eye.
Rinse well with water and immediately seek medical care.
If left untreated,the battery fluid could cause damage to the eye.
" toggle between the Numeric and Alpha modes.
" toggle between upper-case character and
" to toggle Function Mode
Special Functions
Sequence of Keys
Description Description
＄ €
Launch of Application 1
Caps
Launch of Application 2
: \
Launch of Application 3
，；
Launch of Application 4
= %
Special Functions
Description Sequence of Keys Description
Increase of Brightness
Paste
Decrease of Brightness Delete
－ (Minus Sign)
Page Down
Page Up Copy
&
Audio Mute
＊
TAB
@
Space
' Start Menu
＋
/
