Summary of Contents for Tvone MX-3141CSVA
-

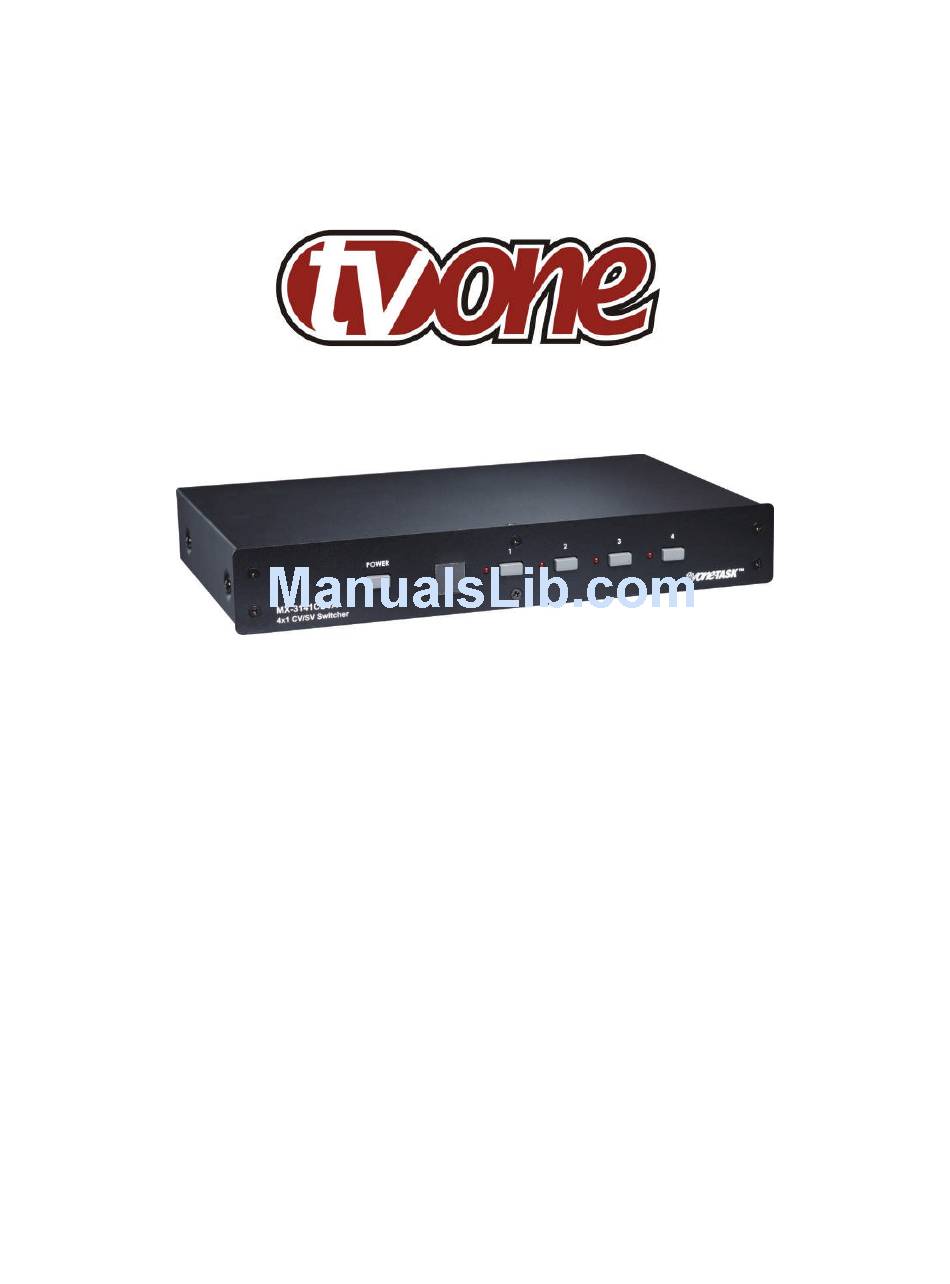

Page 1: Instruction Manual
Instruction Manual MX-3141CSVA Analog Video and Audio Routing Switcher... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance RS-232 Protocols 10.0 Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this MX-3141CSVA 4x1 Video and Audio Routing Switcher from TV One. The MX-3141CSVA is designed to switch four different Video inputs and their associated stereo audio inputs. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality... -
Page 5: Specifications
SPECIFICATIONS Video Inputs MX-3141CSVA 4x CV via RCA + 4x S-Video Audio Inputs MX-3141CSVA 4x via RCA (R/L) Video Outputs MX-3141CSVA 1x CV via RCA + 1x S-Video Audio Outputs MX-3141CSVA 1x via RCA (R/L) Performance Video Bandwidth 300MHz +... -
Page 6: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: 1x MX-3141CSVA 4x1 Routing Switcher 1x AC Power Adapter 1x IR Remote Control 1x Rack Mount Kit... -
Page 7: Operating The Unit
After connecting the signal cables, the AC power adapter should be connected, first to the MX-3141CSVA and then to the AC power source. -
Page 8: Limited Warranty
LIMITED WARRANTY TV One warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. The warranty term for specific product lines is defined below. 1. -
Page 9: Regulatory Compliance
REGULATORY COMPLIANCE The MX-3141CSVA has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant. -
Page 10: Contact Information
Hsin Tai Wu Road, Hsichih No. 1900 Shangcheng Road Taipei Hsien 22101 Pudong, Shanghai Taiwan R.O.C. China 200120 Tel +886 2 2698-2296 Tel +86 21 5830-2960 Fax +886 2 2698-2297 Fax +86 21 5851-7949 sales.asia@tvone.com Email: sales.china@tvone.com www.tvoneasia.com www.tvonechina.com End of Manual...
