Summary of Contents for Tvone MX-3141CSVA
-

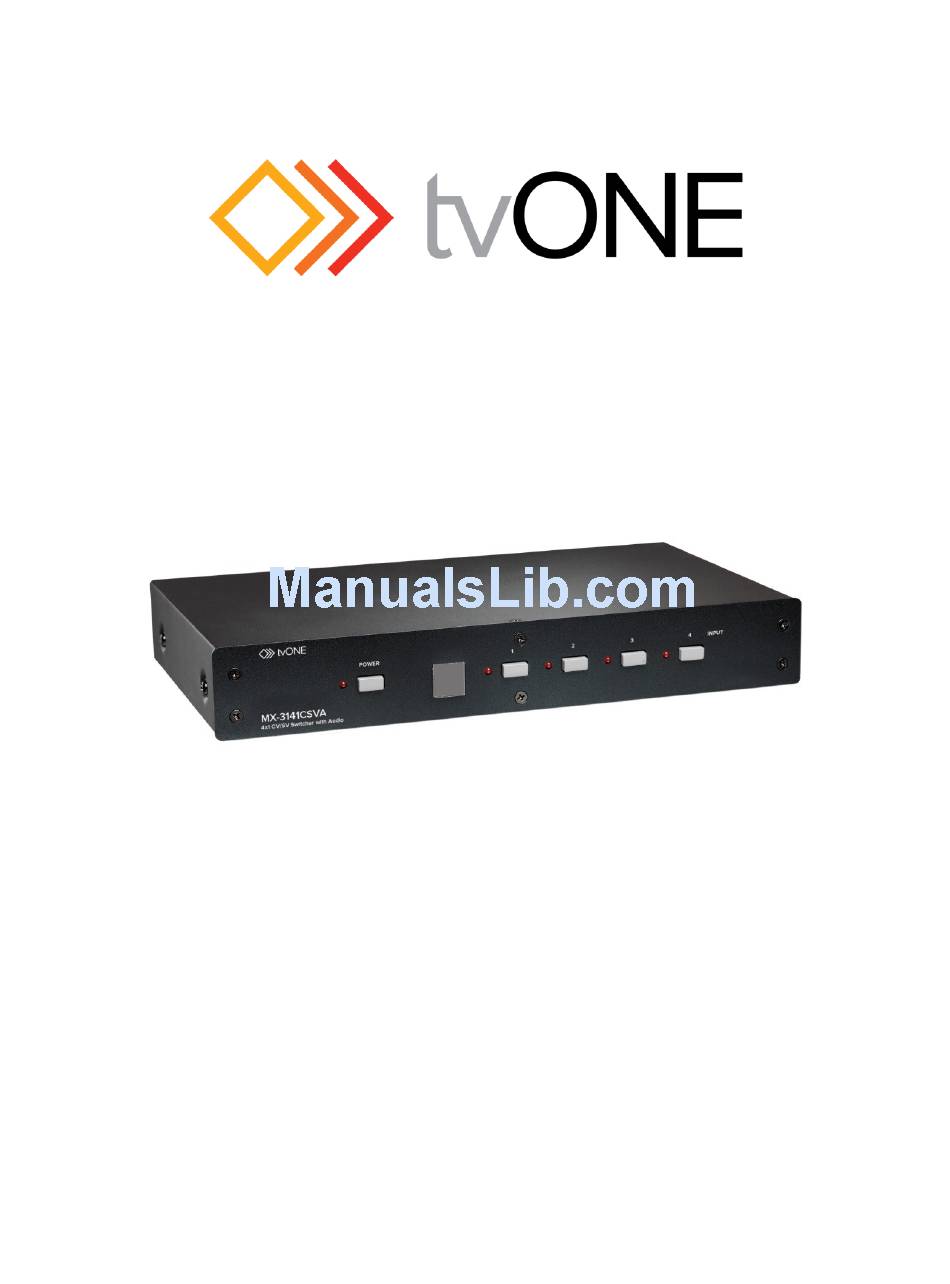

Page 1: Instruction Manual
Instruction Manual MX-3141CSVA Analog Video and Audio Routing Switcher... -
Page 2: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction
Signal Distribution Amplifiers and Cat.5/6 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. tvONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. -
Page 4: Specifications
SPECIFICATIONS: Audio/Video Inputs Composite Video 4x via RCA S-Video 4x via 4-pin din Analog Stereo 4x via RCA (R/L) Audio/Video Outputs Composite Video 1x via RCA S-Video 1x via 4-pin din Analog Stereo 1x via RCA (R/L) 1x via 3.5mm Mini-Jack Additional I/O RS-232 Control 1x via DB-9 Connector... -
Page 5: Checking Package Contents
NOTE: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 6: Operating The Unit
In order for the remote to function properly, the small square window on the front of the MX-3141CSVA must be unobstructed and not in sunlight or extremely bright artificial light. The distance from the IR remote and the switcher should not be more than in a standard residential room. -
Page 7: Troubleshooting
Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit Flow Control: None The RS-232 control codes used by the MX-3141CSVA are as follows: ASCII Code Meaning “I” + “1” Port 1 On “I” + “2”... -
Page 8: Limited Warranty
In no event shall tvONE be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end-user or any third party. -
Page 9: Regulatory Compliance
REGULATORY COMPLIANCE The MX-3141CSVA Routing Switcher has been tested for compliance with the appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product is RoHS compliant.
