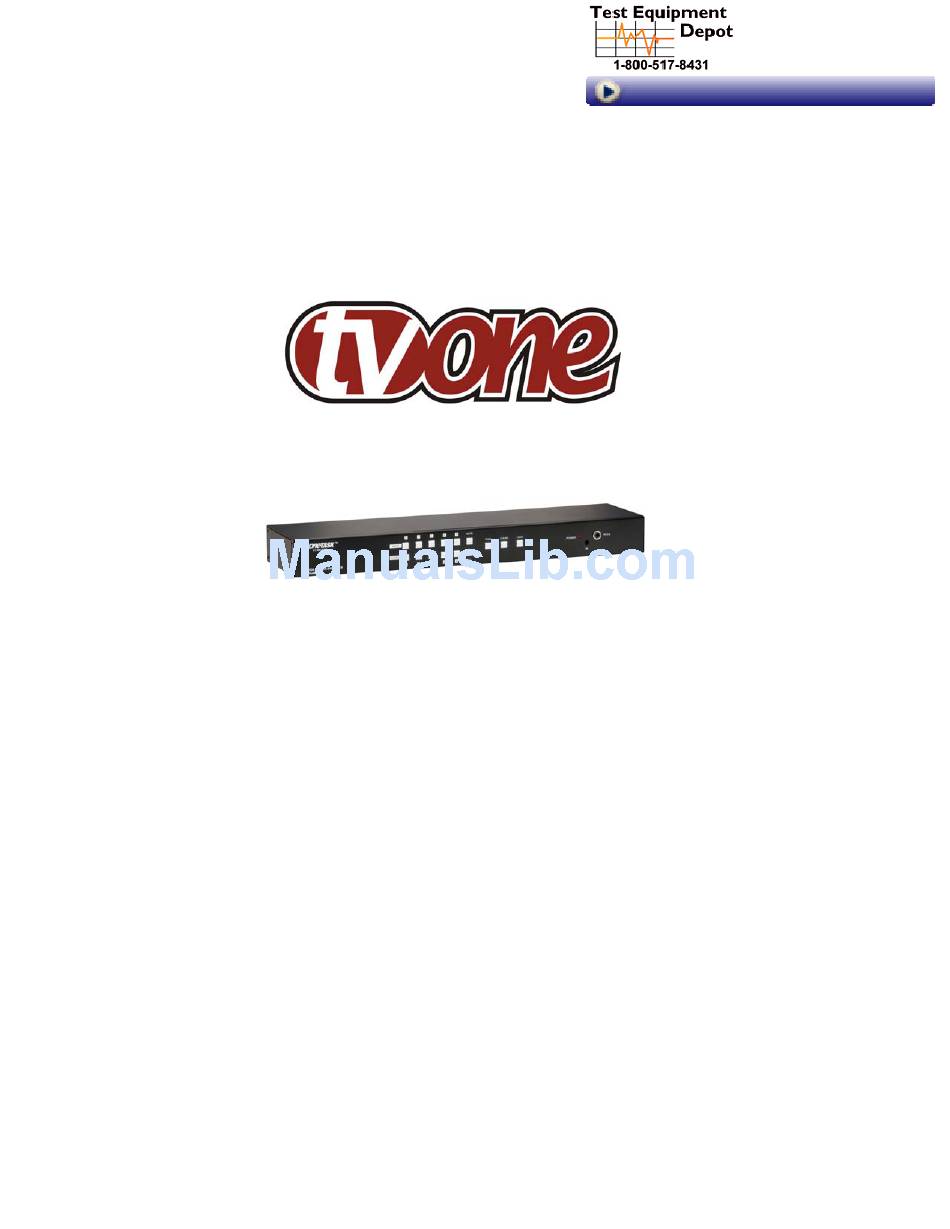

Page 1: Instruction Manual
99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Instruction Manual 1T-MX-4355 5x5 VGA Matrix Switcher with Audio... - Page 2 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this 1T-MX-4355 5x5 VGA Matrix Switcher with Audio from TV One. The 1T-MX-4355 is designed to distribute up to 5 VGA inputs to 5 different destinations or to one destination. This matrix enables the distribution of multiple computer audio and video outputs to multiple displays. - Page 5 FEATURES The 1T-MX-4355 has many features that enable it to perform in a superior manner. Among those features you will find: • 5x VGA inputs, 5x 1/8'' (3.5mm) mini audio inputs • 5x VGA outputs, 5x 1/8'' (3.5mm) mini audio outputs •...
-
Page 6: Specifications
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1x 1T-MX-4355 Matrix Switcher • 1x AC Power Adapter • 1x IR Remote Control •... -
Page 7: Connecting The Hardware
Insure that there is adequate ventilation and make sure that there is access to the rear and front panels. Ensure that the 1T-MX-4355 power switch is in the “Off” position and turn off any equipment that will be part of the installed system. Next, connect the input and output cables as required. -
Page 8: Operating The Unit
OPERATING THE UNIT The 1T-MX-4355 is a special type of device called a Matrix Routing Switcher. A Matrix Switcher allows any input to be routed to any (or all) outputs whereas a regular routing switcher only allows the operator to select an input that will be sent to one dedicated output. - Page 9 (Note that the “All” button can be selected if you desire the source to appear on all outputs.) Here are some operational tips that will allow you to use the 1T-MX-4355 most efficiently: •...
- Page 10 5.2 Control via the Infrared Controller The included Infrared Remote Controller has three sections of selector buttons that can be used to control the 1T-MX-4355. Normal matrix functions are performed by pressing the numbered button of the input you wish to route from the two rows of “INPUT”...
- Page 11 RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit The RS-232 control codes used by the 1T-MX-4355 are as follows: ASCII Code Meaning Displays Firmware Version INn (eg IN1) Input 1 through 5 IN0 (Zero) “Muted”...
- Page 12 Toolbar Menu Input Selection Area Output Selection Area Setting The “Setting” button brings up the communication configuration menu with the following controls: • The “Get” button reads the connected device’s ID number. • The “Set” button assigns a new device ID number to the connected device.
- Page 13 Scan The “Scan” button brings up the Serial Port Scan menu which allows the user to scan the computer’s COM ports for connected units. • The “Select” section allows you to manually select the COM port and Device ID of the unit you wish to control. •...
- Page 14 Fast Select The “Fast Select” drop down allows you to quickly route single Inputs to single Outputs (1:1 mapping) or a single Input to all Outputs. • Choose the “Input Num - Output Num” menu item to set each Input to route to the Output of the same number.
-
Page 15: Troubleshooting
TV One. Should the dealer’s technical personnel be unable to assist you, contact TV One via our support website: http://tvone.crmdesk.com. Create a technical support request on the site and our support team will respond within a short period of time. -
Page 16: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-MX-4355 5x5 VGA Matrix Switcher with Audio has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines.
