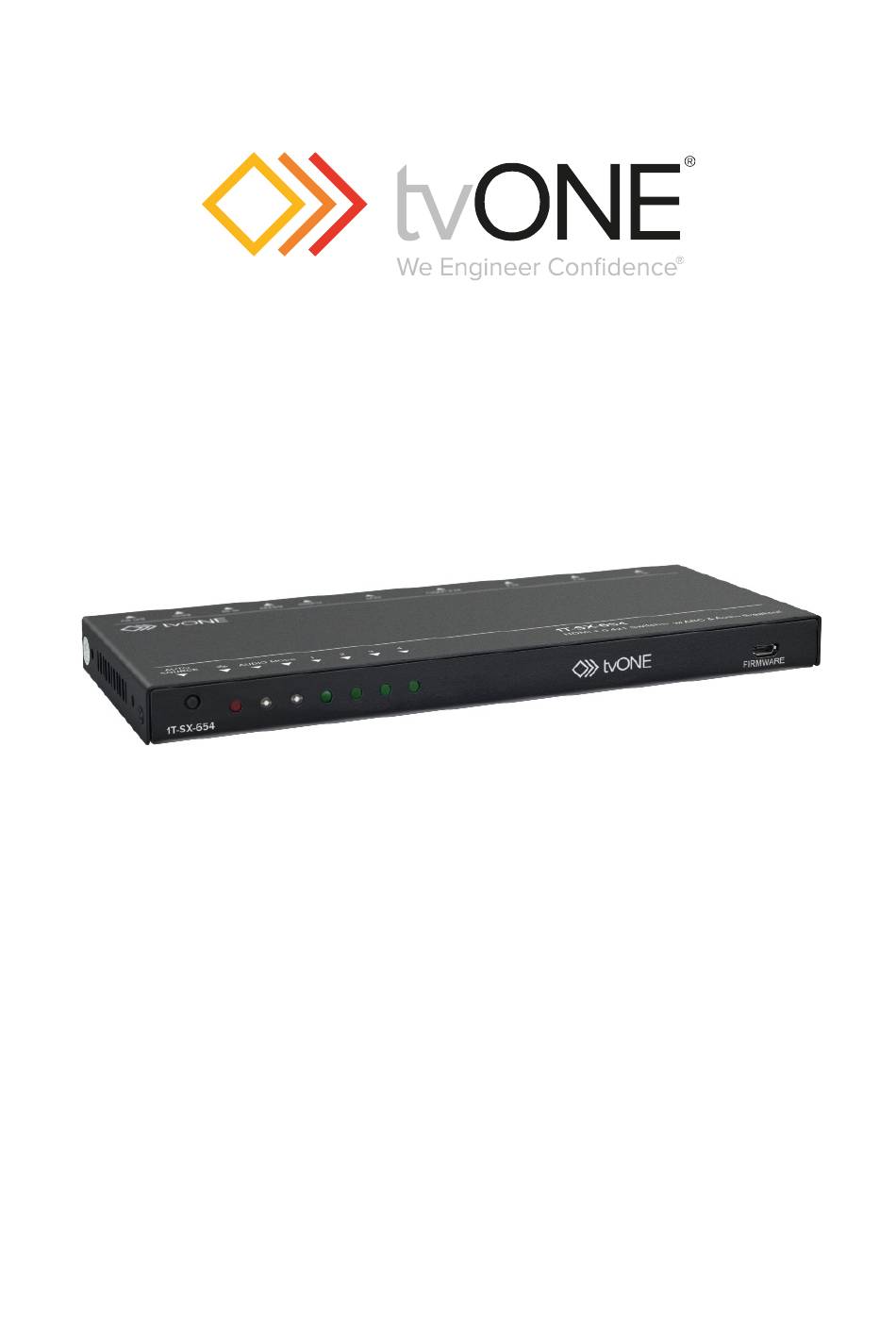

- Page 1 Instruction Manual 1T-SX-654 4x1 HDMI 2.0, 4K HDR Switcher...
-
Page 3: Table Of Contents
Table of Contents Safety precautions 2.0 Introduction 3.0 Features 4.0 Operation Controls and Functions Front Panels Rear Panels 5.0 Source Button Control Manual Switching Automatic Switching IR Remote Functionality 6.0 RS-232 Control RS-232 Commands Signal Switching Source Device Control Display Device Control Audio Selection System Control 7.0 EDID Management... -
Page 4: Safety Precautions
• Unplug the power cord when left unused for a long period of time. • Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. 1T-SX-654 v1.0... -
Page 5: Introduction
2.0 INTRODUCTION The 1T-SX-654 is an ultra-thin auto switcher with four HDMI video inputs and one HDMI output with resolution support up to 4Kx2K@60Hz 4:4:4 HDR. Control options include auto-switch mode, which automatically switches to an HDMI input as soon as a new source is connected, or control via the front panel source button, RS-232 or IR (remote control included). -
Page 6: Operation Controls And Functions
Switching Mode LED • Illuminates green in manual switch mode. • Illuminates yellow in auto-switch mode. Input 1 - 4 LED The LED illuminates green when there is HDMI input on the corresponding channel. FIRMWARE Micro-USB port for firmware upgrade. 1T-SX-654 v1.0... -
Page 7: Rear Panels
HDMI Input 1. • Source Removed: When an active source is removed, the switcher will switch to the first available active input starting at HDMI Input 1. 1T-SX-654 v1.0... -
Page 8: Ir Remote Functionality
• HDMI input 4 port does not support CEC. Any source device connected to this input can not be controlled by IR remote. • The source and display devices are required to support CEC when the IR remote is used to control them. 1T-SX-654 v1.0... -
Page 9: Rs-232 Control
Pause >>SRCPause <<SRCPause Stop >>SRCStop <<SRCStop Fast Forward x1 >>SRCForward >>SRCForward Fast Rewind x1 >>SRCBackward <<SRCBackward Next Section >>SRCSkipForward >>SRCSkipForward Previous Section >>SRCSkipBackward <<SRCSkipBackward Open the menu setting >>SRCMenu >>SRCMenu Go back >>SRCBack >>SRCBack Confirm (OK) >>SRCOk >>SRCOk 1T-SX-654 v1.0... -
Page 10: Display Device Control
Select ARC audio channel. <<AUDExternal >>AUDInternal Select the HDMI audio input channel. >>AUDInternal System Control Function Command Feedback Example >>RESET >>RESET System reset. Get system information. >>SYSInfo <<AUDExternal << WUH4ARC-H2 << V1.0.0 << -------- <<HDMI1 <<Auto Switch <<AUDExternal <<EDID0 1T-SX-654 v1.0... -
Page 11: Edid Management
0110 3840x2160p@60Hz High Definition “OFF”. 4:2:0 RGB 8bit 0111 3840x2160p@60Hz Stereo 4:4:4 RGB 10bit HDR 1000 3840x2160p@60Hz High Definition 4:4:4 RGB 10bit HDR 1001 1280x800@60Hz Stereo 1010 1920x1200@60Hz Stereo 1T-SX-654 v1.0... -
Page 12: User Defined Edid Setting
Remove the USB cable and reconnect to the power supply. The new EDID also can be invoked via the four pin DIP switch directly. The EDID ID and its corresponding switch status are shown in the below list. Switch Status 1011 12 1100 1101 1110 15 1111 1T-SX-654 v1.0... -
Page 13: Arc Mode
“SUCCESS.TXT”, if yes, the firmware was updated successfully, otherwise, the firmware updating has failed. The name of upgrade file (.bin) should be confirm again, and then follow the above steps to update again. Remove the USB cable after firmware upgrade. 1T-SX-654 v1.0... -
Page 14: Specifications
Power supply Input: 100V - 240V AC; Output: 5V DC 1A Power Consumption 5W(Max) PS-05-10-LK Replacement Power Supply Dimensions (W x H x D) 0.47" x 7.63" x 3.18" (12 x 194 x 81mm) Weight (Net) 180g (0.4 lbs) 1T-SX-654 v1.0... -
Page 15: Ordering Information
11.0 ORDERING INFORMATION 1T-SX-654 4x1 4K60 HDMI 2.0 switcher with HDCP 2.2 ACC-PSU5V5-6 Replacement PSU 12.0 PANEL DRAWING 1T-SX-654 v1.0... -
Page 16: Limited Warranty
In no event shall tvONE™ be liable for errors found within, or be liable for any direct, indirect or consequential damages or loss in connection with the purchase or use of the Product and any related hardware, software, or manual. - Page 17 You are required to promptly provide written notice to tvONE™ after become aware of a defect in the Product. Should a Product, in tvONE™ ’s sole but reasonable determination, prove defective within the applicable warranty period, tvONE™...
-
Page 18: Regulatory Compliance
This statement does not affect the legal rights of the user in any way. -
Page 19: Contact Us
Fax: +44-1843-873312 Sales: sales.europe@tvone.com Support: tech.europe@tvone.com Copyright 2018 tvONE. All rights reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements.
