generate different kinds of bass drums, hihats, et cetera—and to provide the parameters most apt for each particular
MACHINE. For example, per default the BD voice makes use of one of the available bass drum MACHINES. Another
MACHINE may be selected which will engage the BD voice circuit in a different way, enabling it to employ frequency
modulation, ring modulation and more.
FIRST STEPS WITH THE ANALOG RYTM
SETTING UP AND STARTING THE ANALOG RYTM
Make sure you place the Analog Rytm on a stable support, such as a sturdy table with sufficient cable space or mount
on a rack capable of a 3 kg load.
1 Before you connect the Analog Rytm to other equipment, make sure all units are switched off.
2 Plug the included PSU-3 adapter to a power outlet and insert the small plug into the Analog Rytm Power In.
3 Connect the Main Out L/R from the Analog Rytm to your mixer or amplifier.
4 Switch on all units. Switch on the Analog Rytm by pressing the Power rocker switch located at the back of the unit.
Before restarting the unit, wait 2 seconds after the LCD backlight goes out.

THE USER INTERFACE

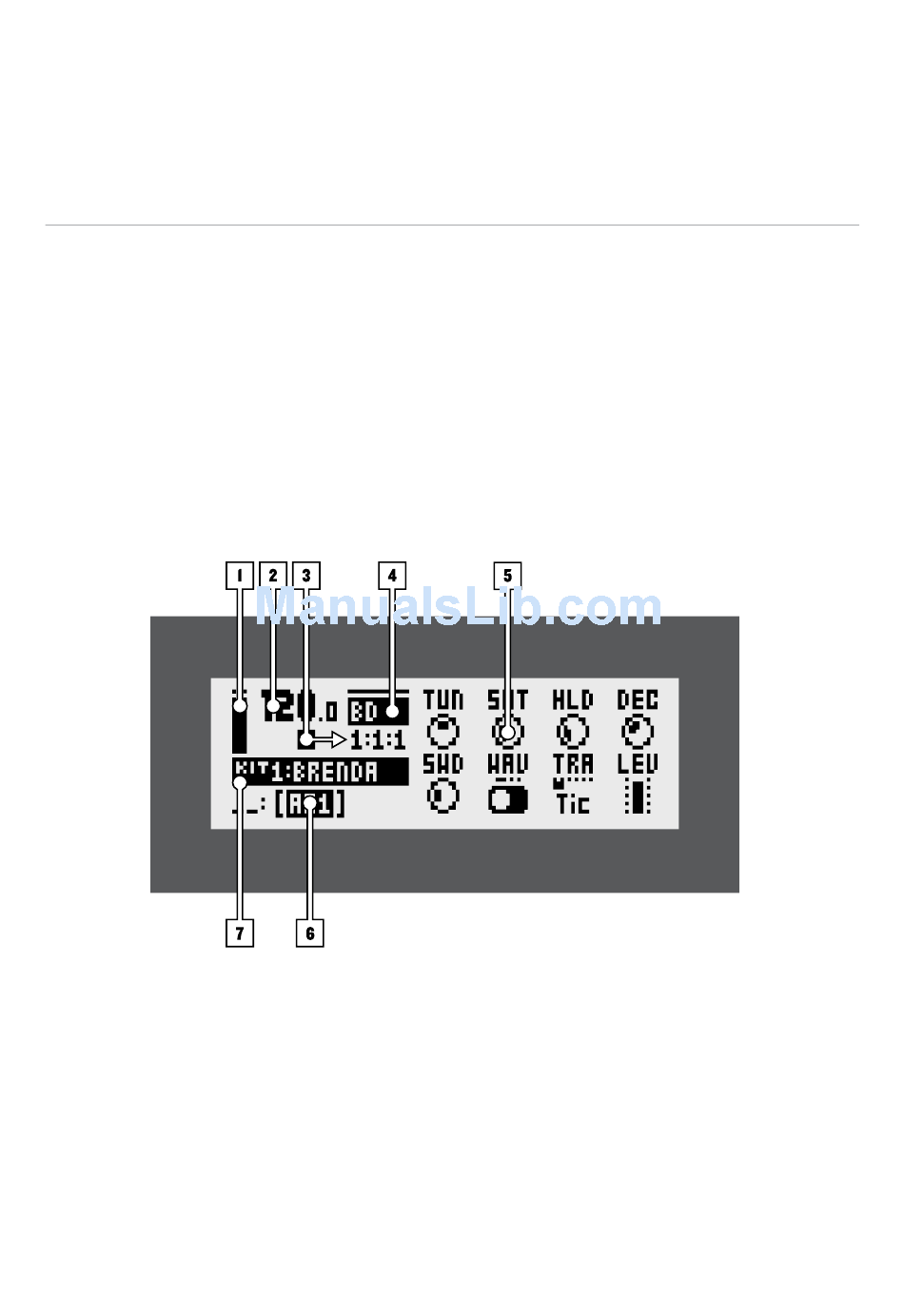

The LCD screen shows all the information needed for real-time interaction and editing on the Analog Rytm. The eight
DATA ENTRY knob parameters shown will vary depending on the given situation. The main interface screen is shown
below:
1 Bar showing the main volume setting of the active track. Turn LEVEL knob to change.
2 The current tempo shown with one decimal.
3 The playback/recording status of the sequencer shown with the standard »record«, »play«, »pause« and »stop« sym-
bols; . To the right is a counter displaying how many bars, beats and steps the sequencer has played.
4 Shows the current PARAMETER page.
5 Eight track Sound parameters. They show what the DATA ENTRY knobs control and their current parameter values.
Press and turn a knob to adjust its parameter in larger increments.
6 The active pattern.
7 The active kit. When turning a DATA ENTRY knob, the full name of the parameter is shown here. When the active
track is changed, the name of the track Sound is briefly shown.
