6

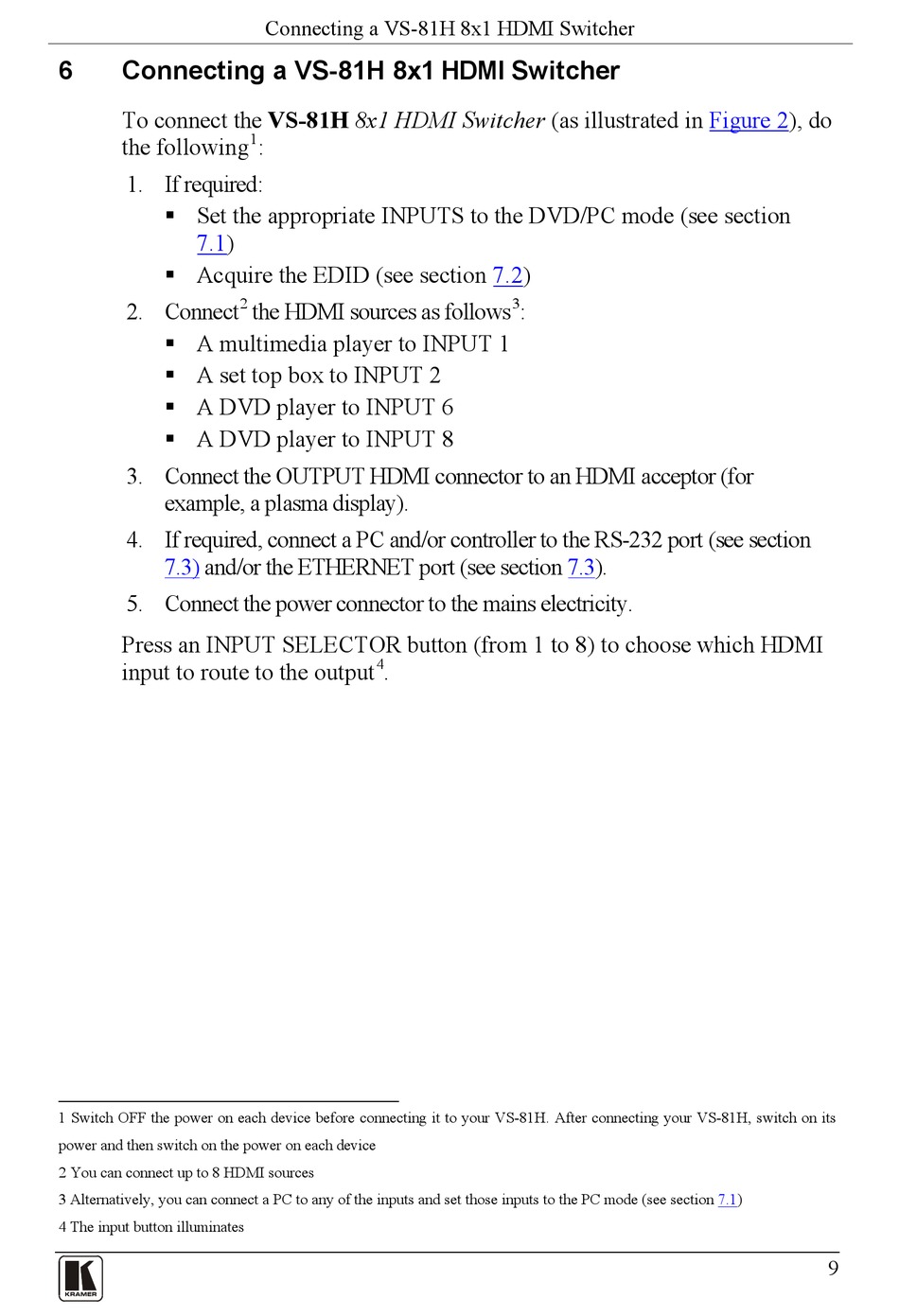

Connecting a VS-81H 8x1 HDMI Switcher

To connect the VS-81H 8x1 HDMI Switcher (as illustrated in
the following
1. If required:
 Set the appropriate INPUTS to the DVD/PC mode (see section
7.1)
 Acquire the EDID (see section 7.2)
2. Connect
 A multimedia player to INPUT 1
 A set top box to INPUT 2
 A DVD player to INPUT 6
 A DVD player to INPUT 8
3. Connect the OUTPUT HDMI connector to an HDMI acceptor (for
example, a plasma display).
4. If required, connect a PC and/or controller to the RS-232 port (see section
7.3) and/or the ETHERNET port (see section 7.3).
5. Connect the power connector to the mains electricity.
Press an INPUT SELECTOR button (from 1 to 8) to choose which HDMI
input to route to the output
1 Switch OFF the power on each device before connecting it to your VS-81H. After connecting your VS-81H, switch on its
power and then switch on the power on each device
2 You can connect up to 8 HDMI sources
3 Alternatively, you can connect a PC to any of the inputs and set those inputs to the PC mode (see section 7.1)
4 The input button illuminates
Connecting a VS-81H 8x1 HDMI Switcher
1
:
2
the HDMI sources as follows
4
.
3
:
Figure 2), do
