Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VS-41HC 4x1 HDMI Switcher P/N: 2900-000423 Rev 4... -
Page 3: Table Of Contents
Connecting the VS-41HC Using the PC and DVD Modes Setting the EDID Acquiring / Changing the EDID Resetting the Default EDID Technical Specifications Figures Figure 1: VS-41HC 4x1 HDMI Switcher Figure 2: Connecting the VS-41HC 4x1 HDMI Switcher VS-41HC – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VS-41HC 4x1 HDMI Switcher, which is ideal for the following typical applications: •... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VS-41HC away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The desktop-sized VS-41HC is a high performance switcher for HDMI signals. It switches any one of the four inputs to a single HDMI output. In particular, the VS-41HC features: • A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) •... -

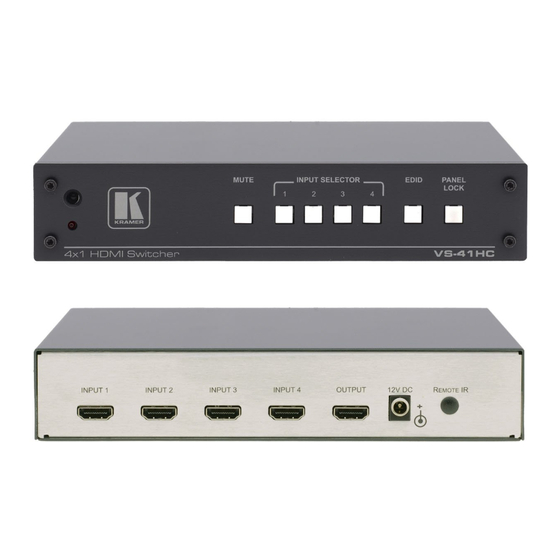

Page 8: Figure 1: Vs-41Hc 4X1 Hdmi Switcher
Figure 1: VS-41HC 4x1 HDMI Switcher Feature Function IR Receiver The red LED lights when receiving signals from the Infrared remote control transmitter MUTE Button Press to toggle disconnecting the output INPUT SELECTOR Buttons Press an INPUT button to select an input (from 1 to 4) -
Page 9: Using The Ir Transmitter
This distance can be extended to up to 60 meters when used with three extension cables (Model: C-A35M/A35F-50). Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the internal IR connection cable (P/N: 505-70434010-S) with the 3.5mm connector that fits into the REMOTE IR opening on the rear panel. -
Page 10: Connecting The Vs-41Hc
Connecting the VS-41HC Always switch off the power to each device before connecting it to your VS-41HC. After connecting your VS-41HC, connect its power and then switch on the power to each device. To connect the VS-41HC as illustrated in the example in Figure 1. -
Page 11: Using The Pc And Dvd Modes
Figure 2: Connecting the VS-41HC 4x1 HDMI Switcher Using the PC and DVD Modes The VS-41HC has two operation modes that can be set individually for each input: the PC mode (default) and the DVD mode: • Use the PC mode when connecting one or more computers to the inputs using a DVI-to-HDMI converter cable For example, the Kramer HDMI-DVI gold-plated cable in various lengths (3”, 6”, 10”... - Page 12 INPUTS 3 and 4 to the DVD mode. To set the inputs to either the PC or DVD mode, do the following: 1. Turn off the VS-41HC power. 2. Press the PANEL LOCK button while turning the power on again.
-
Page 13: Setting The Edid
3. Press the EDID button. The INPUT buttons blink in sequence until the EDID is acquired. Resetting the Default EDID To reset the default EDID, disconnect the output and repeat the steps in Section 5.1. VS-41HC - Setting the EDID... -
Page 14: Technical Specifications
22cm x 18cm x 4.5cm (8.6” x 7” x 1.8”) W, D, H. ½-19 inch 1U WEIGHT: 1.3kg (2.9lbs) approx. ACCESSORIES: 12V/1.25A power adapter, power cord, IR remote control OPTIONS: RK-1 19” rack adapter, external remote IR receiver cable Specifications are subject to change without notice at http://www.kramerelectronics.com VS-41HC - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
