WEEKLY CLEANING & SANITIZING
Use a concentrated cleaning solution to simplify the cleaning procedure. This procedure requires a one gallon container of a cleaning solution
containing hot water and a granulated concentrated cleaner (a cleaner like Coffee Dispenser Cleaner Corporation #12580, Urnex or equivalent)
and a one gallon container of clean hot water.
1.
Turn on water supply to the dispenser.
2.
Remove the quick disconnect from the tea
concentrate bag.
3.

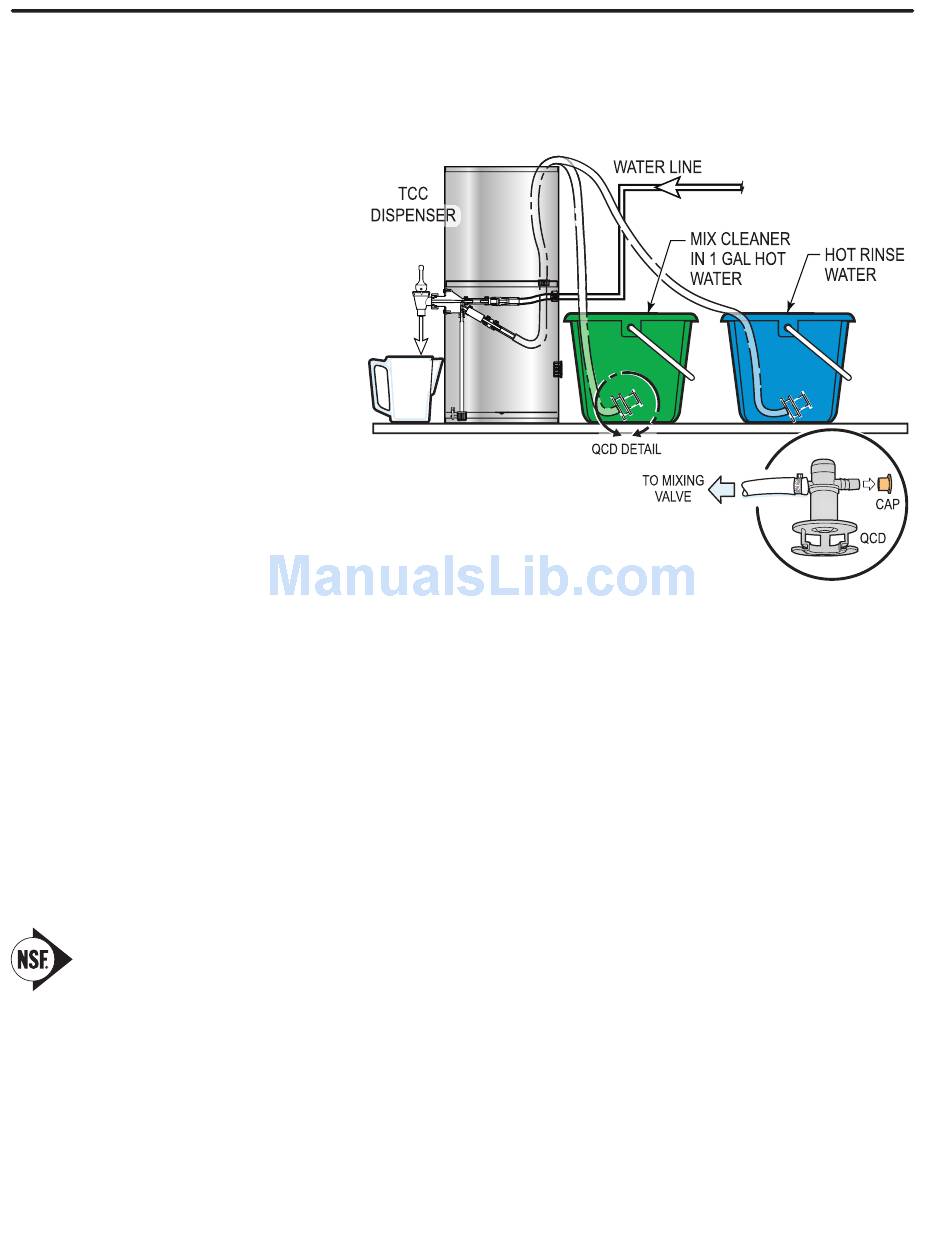

Pull the cap off of the QCD (see detail drawing)
and place this end of the line into the container
containing the cleaning solution.
4.
Place a large empty container under the
dispenser faucet.
5.
Open the front faucet and dispense at least
half of the cleaning solution.
6.
Allow the dispenser to sit overnight before
flushing cleaning solution.
7.
Flush the system by filling a one gallon
container with clean hot water (no cleaning
solution) and open the faucet and dispense
at least one gallon of the hot water or until all the cleaning solution has been flushed
from the system.
8.
Remove the QCD from the flushing container and replace the cap. Reconnect the QCD to the
Bag in the Box tea concentrate and dispense several cups to prime the concentrate line or until
consistency of the product is correct.
SANITIZING
Use a Bag-in-Box style cleaning solution to simplify the sanitizing procedure. A product like BevClean (http://bevclean.
com) beverage line sanitizer comes in a 3 gallon bag-in-box that connects directly to your bag-in-box system for line
sanitizing.
1. Remove the quick disconnect from the tea concentrate bag.
2. Place the BIB sanitizer container next to the TCC tea dispenser. Pull the spout from the sanitizer box through the
marked area. Remove the clear travel cap from spout. Don't worry about spilling sanitizer when the cap is re-
moved. The cap has an internal seal.
3. Snap the QCD bag connector onto the bag spout.
4. Grasping the bag connector (as shown in Load Product, step 6), push the sliding probe all the way into the bag
spout. A "click" will be heard when it is fully inserted.
5. Once the cleaning solution box is connected, open the dispensing valve on the dispenser and run liquid through
the valve until the sanitizer (clear liquid) is detected.
DO NOT FLUSH. Allow the sanitizing solution to sit in the tea lines overnight before proceeding
with line flushing steps 6 through 8, below.
6. Remove the QCD from the BIB cleaner. Unsnap the connector probe, pulling out and removing the connector from
the spout.
7. Flush the line with warm water to remove any cleaning solution.
7. Reattach the tea concentrate BIB product.
8. Open the dispensing faucet in front of the dispenser and allow water to run out until tea flows from the faucet.
9. Repeat the process for any additional faucets on dispenser.
Note: Muliti-outlet manifolds are available for sanitizing up to eight beverage lines with one bag-in-box sanitizer. This
allows you to clean all systems at one time.
4
