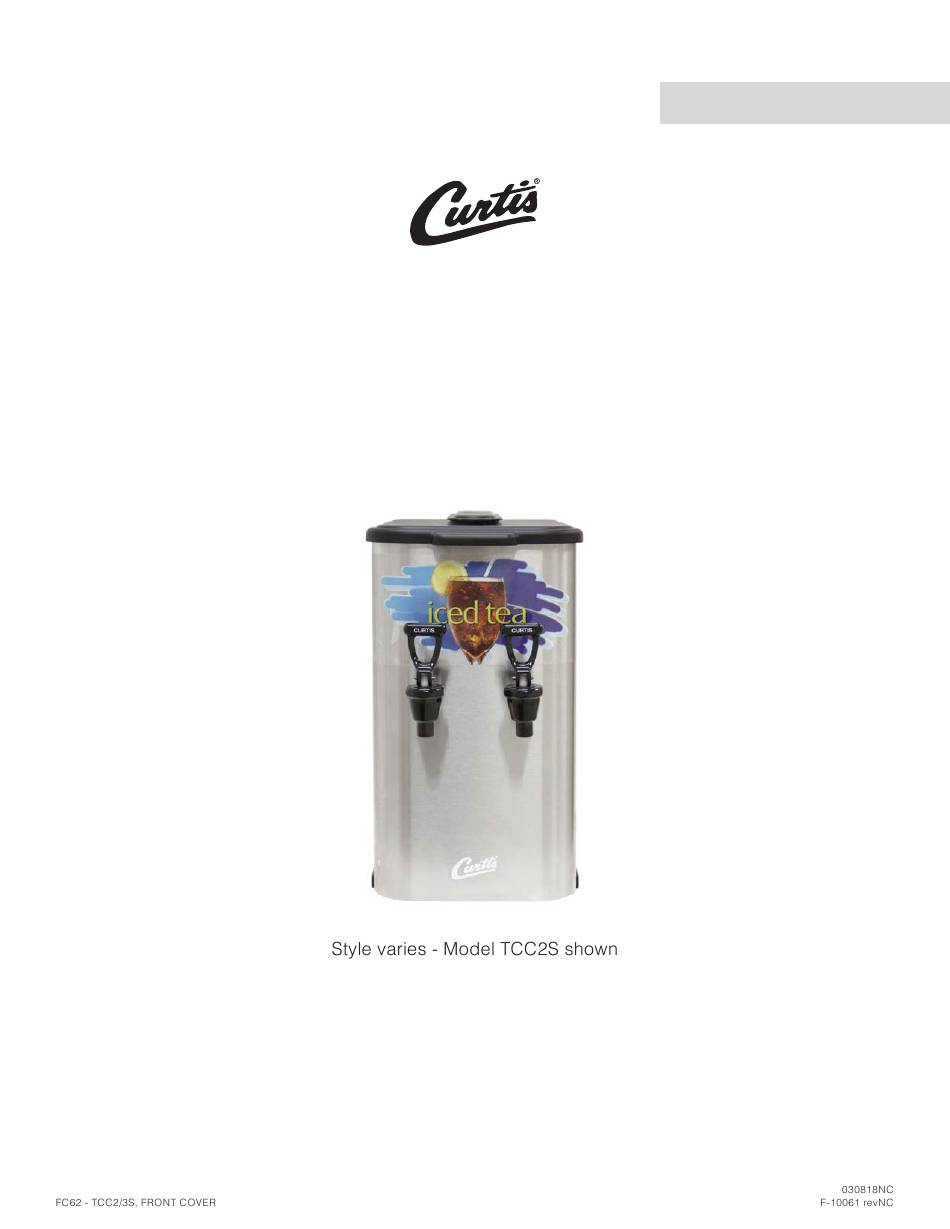

- Page 1 USER GUIDE Short Liquid Concentrate Iced Tea Dispensers READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
..........................II28 .....................II29 ............................OI43 ..............................CI25 ..............................................................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs62
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS62 Key Features • Mixing chambers have been designed and engineered for enhanced blending performance • Easily adjustable concentrate-to-water mixing ratio • Drip tray and quick disconnect included • Braided hoses • Extra length hose for under-counter or remote bag-in-box applications 15.0 psi 7.21”... -
Page 4: Is2
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • This appliance is not suitable for outdoor use. • • • This appliance must not be cleaned by water jet. •...
-
Page 6: Ii28
INSTALLATION INSTRUCTIONS II28 WARNING: NOTICE: SPECIFICATIONS IMPORTANT: Installation Instructions Installation Requirements • • SPECIFICATIONS... -
Page 7: Ii29
INSTALLATION INSTRUCTIONS II29 Installation Leveling Position the unit on a level counter top capable of supporting its operating weight. See the SPECIFICATIONS section. Style varies Back of unit Connect the Water Supply style varies Valve knob Make sure that the water supply valve on the back of in OFF position the unit is in the OFF position. -
Page 8: Oi43
WARNING - DO NOT refrigerate unused tea overnight for later consumption. Never hold dispensed tea for more than eight hours at room temperature. Discard any unused tea after eight hours. NOTICE - Curtis strongly recommends that the water supply valve, behind the unit, be turned off during non-business hours. - Page 9 OPERATING INSTRUCTIONS OI43 Changing/Attaching the Liquid Concentrate Bag (continued) Place the new tea/coffee On units equipped with a On units with a QCD concentrate bag on the Scholle type connector, connector, place the QCD counter next to the TCC place the connector over the next to the spout, then dispenser.
- Page 10 OPERATING INSTRUCTIONS OI43 Mixing Valve Adjustment of the drink, the mixing valve changes the water to concentrate ratio. This valve is very sensitive. Only slight rotation of the mixing rod is needed to change the ratio (1/16th to 1/8th of a turn). The factory setting is approximately 7:1 ratio, which will result in a 5 to 8 percent brix when sweet tea concentrate is used.
- Page 11 OPERATING INSTRUCTIONS OI43 Setting the Pressure Regulator NOTICE - Do not exceed 25 psi (static). Equipment failure or leakage will result. IMPORTANT - is properly set, then adjust the taste/brix level using the Mixing Valve Adjustment instructions. The purpose of the regulator is to provide uniform water pressure, so that the mixing valve can produce a stable and uniform blend of concentrate and water, and also to protect the hydraulics of the dispensing unit from excessive line pressure.
- Page 12 The following cleaning process requires a mild solution of dish-washing detergent and warm water for washing, and for sanitizing, One-Pro Beverage Equipment Cleaner (Curtis PN WC-79001) or BevClean Bag-in-Box (BIB) type cleaning solution. Note: For BevClean BIB solution, multi-outlet manifolds are available for sanitizing up to eight beverage lines at one time.
-
Page 13: Ci25
CLEANING INSTRUCTIONS CI25 Weekly Cleaning and Sanitizing (cont.) Flush the system by placing the QCD(s) in a bucket Hot rinse the faucet(s) until all the detergent solution has been water Remove the QCD(s) from the bucket. If using BevClean BIB sanitizer, replace the QCD cap(s). Sanitizing Set up for the sanitizing process: If using BevClean, place the BIB sanitizer container(s) - Page 14 CLEANING INSTRUCTIONS CI25 Cleaning The Strainer - Monthly or As Needed Turn off the water supply valve on the back of the unit. Open one of the dispensing faucets to relieve pressure in the tubing system. Valve Tilt the dispenser on its side. housing Locate the strainer cap, located on the bottom of the water supply valve.
- Page 15 ROUGH-In. DRAWINGS RD64 TCC2S 9.35 in. [23.7 cm] 17.00 in. [43.2 cm] 17.83 in. [45.3 cm] 2.12 in. [5.4 cm] 7.21 in. [18.3 cm] 8.84 in. 12.84 in. 0.75 in. [22.4 cm] [32.6 cm] [1.9 cm] TCC3S 14.23 in. [36.1 cm] 17.00 in.
- Page 16 WC-5683 TCO’S DTP-13 2 DRIP TRAY, ASSY PLASTIC 13” WC-38471 LABEL, FRONT TCO ICED TEA GENERIC WC-3531 LEG, PLASTIC GLIDE TCN 1 TCC2S, 2 TCC3S Recommended Parts to Stock ITEM # PART # DESCRIPTION LID, SOLID/BREW-THRU (OPTIONAL USES) WC-5683 TCO’S DTP-08 DRIP TRAY, ASSY PLASTIC 8”...
- Page 17 ILLUSTRATED PARTS/RECOMMENDED PARTS IP110 TCC2S Mixing/Dispensing System - Exploded View TCC2/3S, ILLUSTRATED PARTS/RECOMMENDED PARTS 030818NC...
- Page 18 ILLUSTRATED PARTS/RECOMMENDED PARTS IP110 TCC3S Mixing/Dispensing System - Exploded View TCC2/3S, ILLUSTRATED PARTS/RECOMMENDED PARTS 030818NC...
- Page 19 ELBOW, 1/4” MNPT X 1/4 BARB NATURAL KYARR WC-2435 2 WC-2219 Y- FITTING, BARBED 1/4X1/4X1/4 WHITE TUBING, .25” ID X .50” OD BRAIDED SILICONE 60 WC-53113 DUROMETER 1 TCC2S 2 TCC3S Recommended Parts to Stock ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION CONNECTOR, SCHOLLE #1910L BLACK FOR .38...
- Page 20 TROUBLESHOOTING GUIDE TG33 Troubleshooting Guidelines Nothing Comes Out of the Faucet both Only Water Flows from the Faucet, Not Tea/Coffee Tea/Coffee is Weak See Mixing Valve Adjustment in the OPERATING INSTRUCTIONS Tea/Coffee Coming from the Faucet is Foamy or Bubbly Faucet Drips Constantly CLEANING INSTRUCTIONS...
- Page 21 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
