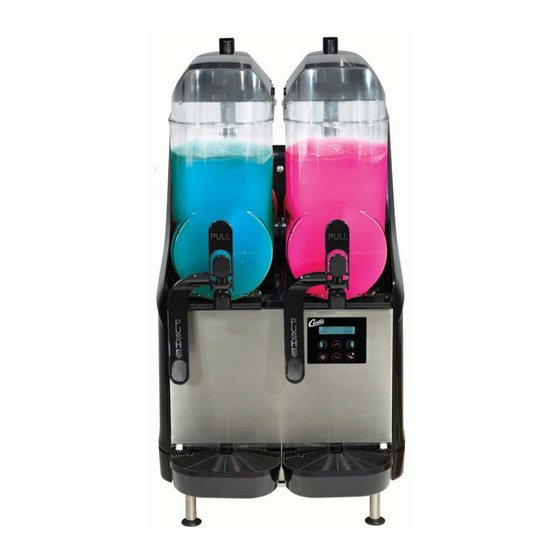

- Page 1 USER GUIDE ™ Chill-X Twin Bowl Frozen Beverage Machine READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
- Page 2 ..............................CI34 ............................................................................................................ES139 .............................................................EC14 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com...
- Page 3 KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS - CFBX FS105 Key Features • Patented Ergonomically Designed Push and Pull Handles - Pull the top handle or push the bottom handle to easily dispense beverages. • Large Capacity - 3.0 gallon bowls merchandise popular frozen beverages such as frozen cappuccino and •...
- Page 4 • This appliance is designed for commercial use. Any service other than cleaning should be performed by an authorized Wilbur Curtis service technician. Do not modify the appliance in any manner or install parts not recommended by the manufacturer. •...
- Page 5 IMPORTANT SAFEGUARDS IS12 Important Safeguards/Conventions (cont.) • • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 INSTALLATION INSTRUCTIONS - CFBX II44 WARNING: WARNING: EXCESSIVE WEIGHT WARNING: reposition. NOTICE: IMPORTANT: Installation Requirements • SPECIFICATIONS • ™ • SPECIFICATIONS electrician. Minimum clearance 44.00” (112.0 cm)
- Page 7 INSTALLATION INSTRUCTIONS - CFBX II44 Installation Move Unit to Operating Location WARNING: gases or other airborne contaminants. Unpack Unit IMPORTANT: Leveling the legs. WARNING: Attach ADA Lever Assembly...
- Page 8 INSTALLATION INSTRUCTIONS - CFBX II44 Base on the bottom of the tap lever into the base holes on Tap lever ADA lever Bowl Put spring into hook Mount Line up as shown Insert (red) tap seal DO NOT push here Push in here...
- Page 9 INSTALLATION INSTRUCTIONS - CFBX II44 Install Filter Front of unit it into the slot, on the bottom of the chassis, in the front. Filter Attach Drip Trays Drain hose WARNING: the unit is on. PROGRAMMING GUIDE section. IMPORTANT: the CLEANING INSTRUCTIONS section.
- Page 10 INSTALLATION INSTRUCTIONS - CFBX II44 Set Up Control Panel the Freezing Instructions in the OPERATING INSTRUCTIONS 70º 70º SLUSH SLUSH ** ) appear on USER MANUAL 70º 70º INSTALL SLUSH SLUSH Press and hold Press USER MENU 70º 70º SLUSH THICKNESS SLUSH SLUSH Press...
- Page 11 INSTALLATION INSTRUCTIONS - CFBX II44 MAINTENANCE 28º 28º PASSWORD 0000 SLUSH SLUSH ENTER PASSWORD: 1941 Press and hold Selects number being changed (number flashes) Increases/decreases number setting USER MENU SLUSH THICKNESS Press and MAINTENANCE until... release PASSWORD 1941 Press USER MENU MAINTENANCE MAINTENANCE Press...
- Page 12 OPERATING INSTRUCTIONS - CFBX OI62 Control Panel Layout 74º 28º STOP SLUSH Temperature, Left Bowl Indicates current temperature measured in the left bowl. Operating Mode, Left Bowl Indicates current mode setting for the left bowl. Operating Mode Selection Button, Used to select the operating mode for the left bowl. See the following Left Bowl pages for instructions and descriptions of the various operating modes.
- Page 13 OPERATING INSTRUCTIONS - CFBX OI62 Types of Products That Can Be Used With This Appliance WARNING - • NOTICE • • IMPORTANT: PROGRAMMING GUIDE Freezing Instructions MAXIMUM LEVEL With the main power switch OFF,...
- Page 14 OPERATING INSTRUCTIONS - CFBX OI62 Freezing Instructions (cont.) 74º 28º STOP SLUSH Turn the main power switch, NOTE: Other Operating Modes (push operating mode button repeatedly to activate) • STOP • STANDBY Operating Mode Button • Right Bowl • DEFROST maintains Operating Mode IMPORTANT:...
- Page 15 CLEANING INSTRUCTIONS - CBFX CI34 WARNING • Turn OFF the main power switch before cleaning. • Wear protective glasses and gloves. Never spray water on the unit to clean it. Do not use cleaning liquids, compounds or powders containing chlorine (bleach), solvents, scouring cleaning pads.
- Page 16 CLEANING INSTRUCTIONS - CBFX CI34 Daily Cleaning (cont.) Remove the Mixing Bowls and Lids Remove the tap lever assemblies from the bowl taps by pushing in on the top of the tap lever with your thumb while pulling up on the bottom with your Lift off the bowl lids.
- Page 17 22 Reinstall the augers. Rotate each auger until it engages completely. Auger 23 Lubricate the inner surface on each bowl seal with food grade lubricant (Curtis Part # WC-4916). Install a bowl seal on the back of each bowl. Bowl seal NOTICE: Failure to lubricate seals may result in leaks.
- Page 18 26 Lubricate the red rubber (tap) seal on the back of the tap lever and the seal handle mounting slots using food grade lubricant (Curtis Part # WC-4916). 27 Prepare the tap assembly for Put spring attachment. Insert the top of the...
- Page 19 CLEANING INSTRUCTIONS - CBFX CI34 Daily Cleaning (cont.) 33 Drain the water from each of the mixing bowls by placing a container under the tap and pulling the lever. 34 Turn OFF the main power switch. Reinstall the Drip Trays and Wipe Up 35 Position the drain hose in the opening in the top of each drip tray.
- Page 20 Replace every 6 months, or as needed. Use kit # WC-100235 (2 sets per kit). Replace once a year, or as needed. Use kit # WC-100236 (2 sets per kit). Also required: Curtis Part # WC-4916, food grade lubricant. Empty the Bowls Skip to step 5 if the bowls are empty.
- Page 21 CLEANING INSTRUCTIONS - CBFX CI34 Preventive Maintenance (cont.) Remove the Mixing Bowls and Lids Remove the handle assemblies from the bowl taps by pushing in on the top of the handle with your thumb while pulling up on the bottom with Lift off the lids.
- Page 22 CLEANING INSTRUCTIONS - CBFX CI34 Preventive Maintenance (cont.) Disconnect tube 13 Inspect the two plastic tubes that run from the gear motors at the back of the unit to the front for clogs. 14 Use the brush included with the unit to clear any clogs that are found.
- Page 23 20 Lubricate the inner surface on each bowl seal with food grade lubricant Auger (Curtis Part # WC-4916). Install a bowl seal on the back of each bowl. 21 Set the mixing bowls back in place. Make sure that the lip on the bottom...
- Page 24 CLEANING INSTRUCTIONS - CBFX CI34 Preventive Maintenance (cont.) 28 Reconnect the power cord. 29 Turn ON the main power switch. 30 Reset the MAINTENANCE reminder using the control panel. Date on which MAINTENANCE reminder is MAINTENANCE 74º 74º currently set to appear. Steps below will set to next 01/25/2019 STOP STOP...
- Page 25 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Entering/Navigating the User Menu Press and hold to enter USER MENU 74º 28º To navigate user menu, press: STOP SLUSH to scroll down to next menu item to scroll up to previous menu item to select the menu item shown for adjustment to save changes and exit the selected menu item Press and...
- Page 26 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Programming Options SLUSH THICKNESS - Use the slush thickness setting to increase slush thickness AND to compensate for mixes that have a higher sugar content or are more dense (fruit, alcohol and dairy based mixes). Increasing dense mixes may require a higher slush thickness setting for proper freezing.
- Page 27 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Programming Options (cont.) Temperature Scale - 74º 28º STOP SLUSH Press and hold USER MENU SLUSH THICKNESS Press and until... release Then press USER MENU C/F ->ºF Toggles between C and F Saves changes and exits (press twice to exit user menu) RESTORE DEFAULT - Resets the control panel to the factory default settings.
- Page 28 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Programming Options (cont.) LCD BACKLIGHT - 28º 74º STOP SLUSH Press and hold USER MENU SLUSH THICKNESS Press and until... release Then press USER MENU LCD BACKLIGHT 100% LCD BACKLIGHT Increases/decreases intensity level Saves changes and exits (press twice to exit user menu) LIGHT - 74º...
- Page 29 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Programming Options (cont.) The default setting is OFF. AUTO FUNCTIONS - mode automatically, then refreeze again at a later time. AUTO FUNCTIONS is ideal for refrigerating the product overnight and refreezing it automatically in the morning. Important Things to Know About AUTO FUNCTIONS: •...
- Page 30 PROGRAMMING GUIDE - CFBX (USER LEVEL) PG28 Programming Options (cont.) Date and Time - Use to set the current date and time for the control panel. Also adjusts the clock format 28º 74º STOP SLUSH Press and hold USER MENU SLUSH THICKNESS Press and until...
- Page 31 ROUGH-IN DRAWINGS RD106 CFBX2 - Twin Bowl Frozen Beverage Machine 43.0 in [109.2 cm] 35.0 in [88.9 cm] 11.06 in [28.1 cm] 5.94 in [15.1 cm] 4.23 in [10.8 cm] 13.63 in 12.13 in [34.6 cm] [30.8 cm] 17.92 in 23.73 in [45.5 cm] [60.3 cm]...
- Page 32 ILLUSTRATED PARTS/RECOMMENDED PARTS IP186 CFBX2 - Exterior - Exploded View CFBX2 - Exterior - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-100211 AIR FILTER WC-100232 RIGHT SIDE PANEL WC-100231 LEFT SIDE PANEL WC-100233 REAR PANEL WC-100018* DRIP TRAY KIT WC-100210...
- Page 33 ILLUSTRATED PARTS LIST IP186 CFBX2 - Bowl Assembly - Exploded View CFBX2 - Bowl Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION PREVENTIVE MAINTENANCE KIT 2 BOWLS 1 YEAR WC-100213 FRONT LID WC-100236* (NOT SHOWN, INCLUDES ITEMS 6, 11, 12 AND 13) WC-100218 BOWL PREVENTIVE MAINTENANCE KIT 2 BOWLS, 6 MO.
- Page 34 ILLUSTRATED PARTS LIST IP186 CFBX2 - Electro-mechanical Components - Exploded View CFBX2 - Electro-Mechanical Components - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-100229 ELECTRONIC CONTROL BOARD WC-100230 NOISE FILTER WC-100220 COMPRESSOR OPERATION BOX WC-100075 POWER CABLE WC-100221 DRYER FILTER...
- Page 35 ELECTRICAL SCHEMATICS ES139 CFBX2 - Twin Bowl Frozen Beverage Machine Power Consumption: 115 Vac, 60 Hz., 7.0 A Description Description Nº Nº Relay (part of CPU) Main power switch (PWS) Fuse T3, 15A fast (F2) Power supply (PS) Left temperature sensor (TS1) Compressor motor (CM) Right temperature sensor (TS2) Fan motor (FM)
- Page 36 TROUBLESHOOTING GUIDE - CFBX (USER LEVEL) TG44 Unit Does Not Turn ON Mixture Does Not Freeze NOTE SPECIFICATIONS Checking for Proper Ventilation PROGRAMMING GUIDE Number of cycles active AUTO FUNCTIONS on (1 to 3) NOTE: PROGRAMMING GUIDE 37º 37º STANDBY STANDBY PROGRAMMING GUIDE Additional Features in the OPERATING INSTRUCTIONS...
- Page 37 TROUBLESHOOTING GUIDE - CFBX (USER LEVEL) TG44 ERROR CODES ERROR CODES PROGRAMMING GUIDE PROGRAMMING GUIDE CLEANING INSTRUCTIONS...
- Page 38 ERROR CODES EC14 See the list below to determine possible problems when an error code appears on the display. ERROR CODE PROBLEM REMEDY HIGH The system has detected a higher than normal TEMPERATURE operating temperature. CLEAN FILTER The system has detected an incorrect operating VOLTAGE ERROR Call a licensed electrician to check the electrical circuit supplying power to the unit.
- Page 39 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
