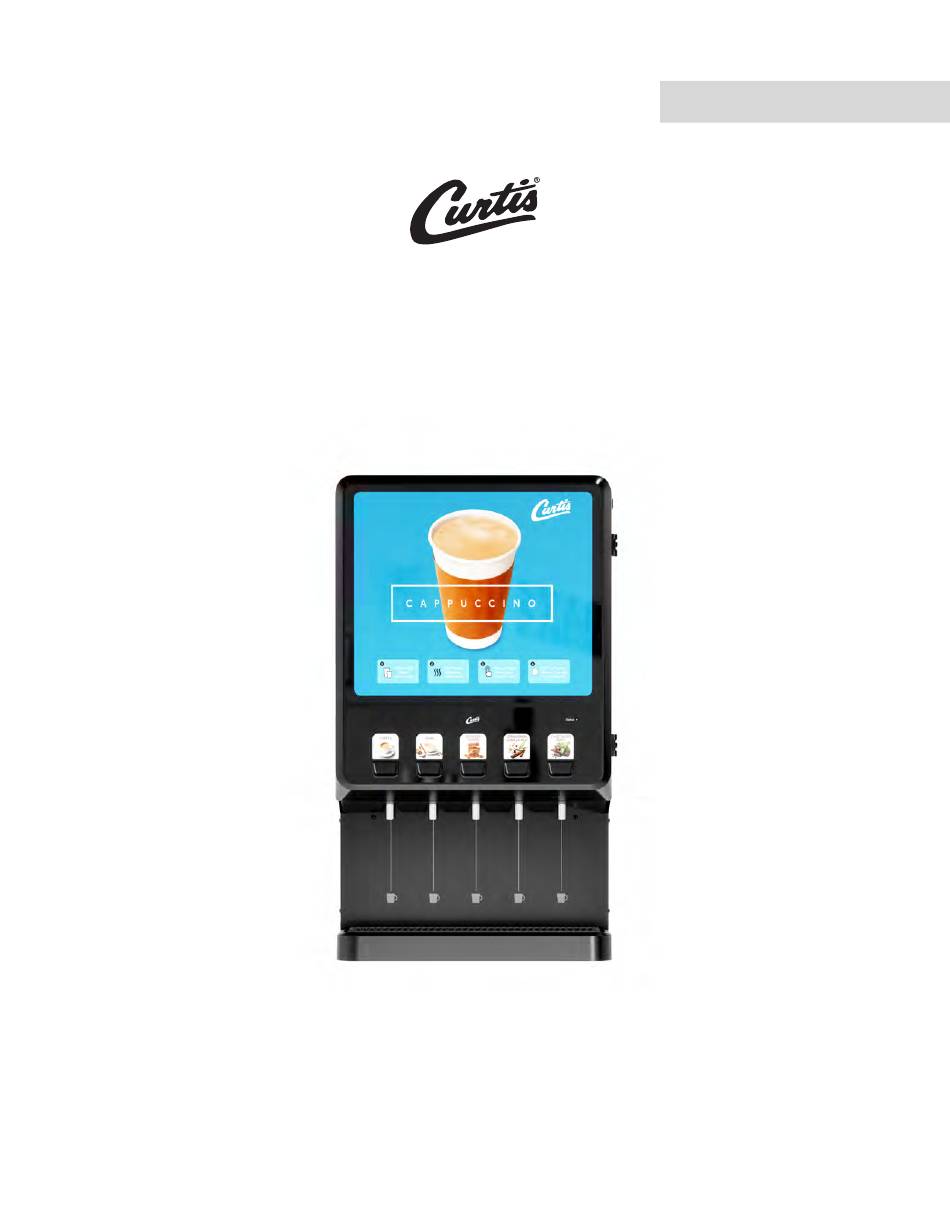

- Page 1 USER GUIDE Next Generation 4/5/6 ™ Primo Cappuccino Station Dispensing System Style Varies - PCNG5 Shown READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine. F-10135 revNC...
-
Page 2: Table Of Contents
Troubleshooting Guide (Dump Valve Calibration) ....................TG54 Error Codes ................................EC17 Product Warranty..............................PW1 Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com For the latest specifi cations and information go to www.wilburcurtis.com Toll Free: 800-995-0417 | Monday - Friday 5:30 . -
Page 3: Key Features/Specifications/System Requirements
FS113 KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS Key Features • G3 Digital Control Module - Provides precise control over all critical blending and dispensing functions. • Pre-Dispense - Easy to use. Choose a size from small, medium or large by the touch of a button. •... -
Page 4: Important Safeguards
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of fi re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •...
- Page 6 EU directive). Do not dispose of this appliance in domestic waste. Contact your local governing authorities for information on disposal requirements. • Any modifi cations to equipment that are not approved by the Wilbur Curtis Company will render this declaration invalid. EC DIRECTIVES...
-
Page 7: Installation Instructions (General)
• A water filtration system is required to maintain trouble-free operation. Wilbur Curtis Co., Inc. recommends a Wilbur Curtis approved water filter. See the Curtis Equipment Catalog for a full line of Wilbur Curtis approved water filters. •... - Page 8 INSTALLATION INSTRUCTIONS II62 Installation Leveling WARNING: Use the leveling legs to level the dispenser only. Do not use them to adjust dispenser height. Do not extend them higher than necessary. Position the dispenser on the counter top. Level it left to right and front to back by turning the bottom of the legs.
-
Page 9: Installation Instructions (Leveling, Water Supply, Electrical)
INSTALLATION INSTRUCTIONS II62 Setting Up 120/220 Volt Units for 220-240 Volt Operation Style may vary WARNING: Do not connect the power cord to the power supply until instructed to do so. Remove the top and left side covers to expose the terminal block. - Page 10 INSTALLATION INSTRUCTIONS II62 Connecting the Wiring (Units That Come from the Factory Without a Power Cord Attached...cont.) 14 Feed the power cable into the unit. The unit may be wired for connection directly to a junction box or for use Power with a power plug that connects to an electrical outlet cable...
- Page 11 INSTALLATION INSTRUCTIONS II62 Power Up the Unit 20 Turn on the water supply valve. 21 Make sure that the circuit breaker supplying power to the dispenser is on. 22 Turn the toggle switch on the back of the dispenser to the ON position.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS OI68 Dispensing WARNING - TO AVOID SCALDING, AVOID SPLASHING. Keep body parts clear of the spout during dispensing. Do not remove the cup during dispensing. The G3 dispenser is factory preset for optimal performance. ... - Page 13 CI38 CLEANING INSTRUCTIONS Spout Cleaning - Every 3 or 4 Hours Make sure power is ON. Place a container under the dispense spout to catch the rinse water. Rinse each flavor by pressing and holding the WASH button, while at the same time pressing one of the PUSH dispensing buttons on the control panel.
-
Page 14: Cleaning Instructions (General)
The following cleaning process requires a mild solution of dish-washing detergent and warm water, One-Pro Beverage Equipment Cleaner (Curtis PN WC-79001) and food grade lubricant (Curtis PN WC-4916). Mix the One- Pro cleaner at a ratio of 1 oz. (28 g.) per 5 gal. (19 L) of hot water (122°F/50°C min.). -
Page 15: Programming Guide
PROGRAMMING GUIDE PG39 CURTIS Ready to Dispens To enter programming mode: With unit ON, press and hold Entering STOP/WASH button for 10 CURTIS Programming mode Ready to Dispens seconds. While pressing STOP/WASH, Washing... “Washing...Select Station” Select Station appears on the display. - Page 16 70 gm next menu. *Approximate Banner Name - changes the banner name that appears on the display (the factory default is CURTIS). No to access. Press ◄ or ► to choose the letter to banner name appears when all blanks are entered. Press repeatedly to change the letter.
- Page 17 PROGRAMMING GUIDE PG39 Programming Options (cont.) Dispense Total - when accessed, displays the total dispense cycles on the unit. It cannot be reset. The display returns to the previous screen automatically after a few seconds. Press ► to continue to the next menu.
-
Page 18: Rough-In Drawing
ROUGH IN DRAWING RD122 PCNG 4/5/6 LIFT DOOR MODELS DIMENSIONS APPLY TO ALL 4, 5 and 6 STATION MODELS... - Page 19 LATCH ASSY, DOOR SIDE MOUNT WC-390669 LABELS, FLAVOR PCNG's WC-10057-E CONTROL MODULE, UCM 120/240V PCNG3/4/5/6 WC-390028 LABEL, UCM PANEL PCGT6 CURTIS WC-39203 LABEL, SERVICING INSTRUCTIONS WC-66179-5 DOOR ASSY, PCNG4300, PCNG5300, PCNG6300 WC-43020 WASHER, #8 FLAT Ø.267 OD x Ø.170 ID x .060 THK...
- Page 20 ILLUSTRATED PARTS LIST IP207 PCNG 4/5/6 - Exterior - Exploded View...
- Page 21 ILLUSTRATED PARTS LIST IP207 PCNG 4/5/6 - Exterior – Parts List ITEM NO PART NO DESCRIPTION WC-68159 COVER, TOP PCNG4, PCNG5 WC-68159-101 COVER, TOP PCNG4300, PCNG5300, PCNG6300 WC-68123 PANEL, SIDE LEFT WC-68222-102 COVER, ALCOVE WC-390672 LABEL, 5-STATION CUP BACKSPLASH PCNG4 WC-390671 LABEL, 5-STATION CUP BACKSPLASH PCNG5 WC-68147...
- Page 22 ILLUSTRATED PARTS LIST IP207 PCNG 4/5/6 - Interior Components - Exploded View...
- Page 23 ILLUSTRATED PARTS LIST IP207 PCNG 4/5/6 - Exterior – Parts List ITEM NO PART NO DESCRIPTION WC-39107-02 LABEL, ADHESIVE CANISTER WC-66164 ELBOW, CANISTER SHORT WC-2401 ELBOW, 3/8 NPT x 1/4 FLARE 304SST WC-10058-E CONTROL MODULE, UPM 120/240V PCNG3/4/5/6 WC-66044 CANISTER TRAY, ASSY PLASTIC PCGT/PCNG-4/5 WC-66071 CANISTER TRAY ASSY, PCGT6/PCNG6 CA-1014-05...
-
Page 24: Illustrated Parts/Recommended Parts (Tank Assembly, 120 Volt)
ILLUSTRATED PARTS LIST IP76 WC-6294/5/6 - Tank Assembly (120 Volt) CONFIGURATION TABLE ITEM 9: DUMP ITEM 11 (CONICAL ITEM 13 (BLIND VALVES BUSHING) BUSHING) MODEL INSTALLED IN INSTALLED IN INSTALLED IN POSITIONS: POSITIONS: POSITIONS: PCGT3 PCGT3300 PCGT3700 1, 2, 3 1, 2, 3 4, 5 PCGT3900... - Page 25 ILLUSTRATED PARTS LIST IP77 WC-62111/2 - Tank Assembly (120/220 Volt) CONFIGURATION TABLE ITEM 9: DUMP ITEM 11 (CONICAL ITEM 13 (BLIND VALVES BUSHING) BUSHING) MODEL INSTALLED IN INSTALLED IN INSTALLED IN POSITIONS: POSITIONS: POSITIONS: PCGT3DV 1, 2, 3 1, 2, 3 4, 5 PCGT3DV8080 1, 2, 3, 5...
- Page 26 ILLUSTRATED PARTS LIST IP79 WC-62017 - Tank Assembly (120 Volt with Hot Water Faucet) Water Level Probe Detail (Older Units) a Valve must be calibrated when replaced. See instructions with kit. WC-62017 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM #...
- Page 27 ILLUSTRATED PARTS LIST IP196 WC-54307 - Tank Assembly (120/220 Volt with Hot Water Faucet) a Valve must be calibrated when replaced. See instructions with kit. Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-43055* GUARD, SHOCK RESET THERMOSTAT (WC-522) GUARD, SHOCK/HEATING ELEMENT FOR SIN- WC-4394* GLE HEATING ELEMENT...
-
Page 28: Electrical Schematics
ELECTRICAL SCHEMATICS ES164 PCNG4/PCNG5 - 110-120 Volt Models 031324NC... - Page 29 ELECTRICAL SCHEMATICS ES164 PCNG4/PCNG5 - 120/220-240 Volt Models 031324NC...
-
Page 30: Troubleshooting Guide (General)
Electric Shock Hazard - the following procedures are to be performed only by a qualified service technician. Disconnect power when replacing components. Neither Wilbur Curtis Co., Inc. nor the seller can be held responsible for the interpretation of this information, or any liability in connection with its use. -
Page 31: Troubleshooting Guide (Dump Valve Calibration)
TG53 TROUBLESHOOTING GUIDE Water Does Not Heat At All • Check to see if the water level in the tank is in contact with the water level probe. If not, see Tank Does Not Fill. The water will not heat unless it is in contact with the probe. •... - Page 32 TG53 TROUBLESHOOTING GUIDE No Power - Display Not Lit Make sure the circuit breaker to the circuit supplying power to the unit is not tripped and is turned on. On dispensers with a power plug, make sure it is connected to the power receptacle. Make sure that the main power toggle switch on the back panel is turned ON.
- Page 33 TG53 TROUBLESHOOTING GUIDE Water Level Error Message Water level fill error or overflow. This error message occurs when the inlet valve solenoid has been on too long during initial fill or tank refill, See the ERROR CODES section for the maximum times allowed. Once the malfunction is corrected, the error message must be cleared.
- Page 34 TG53 TROUBLESHOOTING GUIDE Product Dispensed Into Cup is Weak IMPORTANT: Dump valves should NOT be field adjusted to change product strength. Product strength adjustments should be done through programming on the front panel only. Condition: Water flows and whipper motor runs, but amount of powder flow is too low: Check to see if the canister is full.
- Page 35 TG54 TROUBLESHOOTING GUIDE Dump Valve Calibration After installing a new dump valve, do not reinstall the dump valve cover and canisters, so that you can perform the calibration steps below: Turn the toggle switch on the back of the unit to the ON position. Wait for the ready light to come on. Place a measuring cup below the spout connected to the dump valve that was replaced.
-
Page 36: Error Codes
ERROR CODES EC17 System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: Water level overflow. This error indicates that either there is not enough incoming water flow/pressure or a water overflow condition (unit will stop functioning). -
Page 37: Product Warranty
All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. No units will be accepted if they are damaged in transit due to improper packaging.
